CFA634 eDrawing
Crystalfontz CFA634 eDrawings
Disclaimer: These models are intended for visualization only, not design. These drawings are accurate to the best of our knowledge. However these drawings are not design drawings but were generated from the 2d drawings provided in the datasheet and measurements of sample parts. Please verify your design using the 2d drawings and actual parts. Please let us know if you find any errors or inconsistencies in these drawings.
Self-viewing EXE
Download: CFA_634_LED_BL.exe - LED backlit versionDownload: CFA_634_NON_BL.exe - Non backlit version

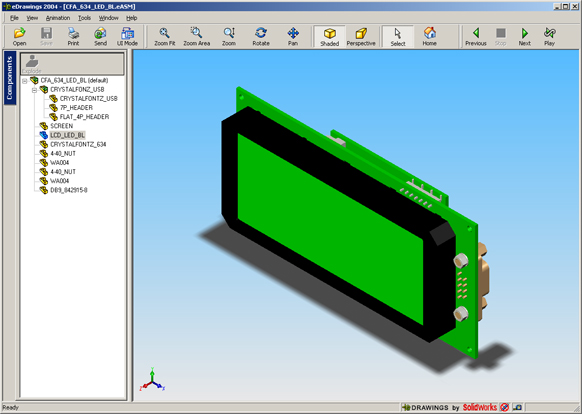

Save this EXE file to your local disk, then execute the EXE file. This will open the SolidWorks eDrawing self-viewer.
No install will be done, no changes will be made to your computer. Once you are done viewing the e-drawing,
you can simply delete the EXE file.
HTML
View: CFA_634_LED_BL.html - LED backlit versionView: CFA_634_NON_BL.html - Non backlit version
This version will prompt you to load the eDrawings plugin. Once the plugin is loaded you can view any of these eDrawings
right in your browser.
IGES
(use "right-click", "Save Target As")Download: CFA_634_LED_BL_IGES.zip - LED backlit version
Download: CFA_634_NON_BL_IGES.zip - Non backlit version
This file is the IGES file that may be imported into your CAD system.
