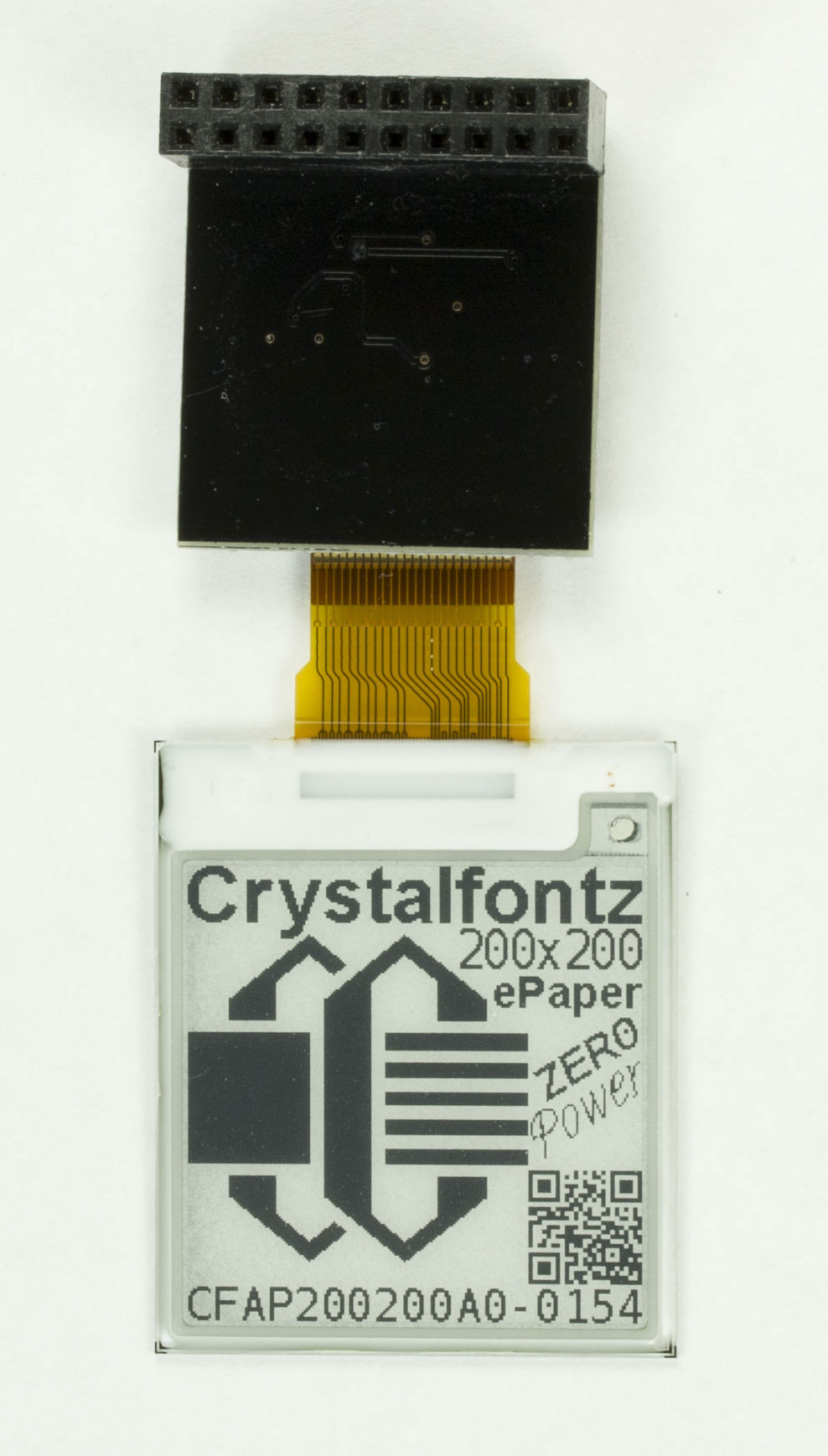

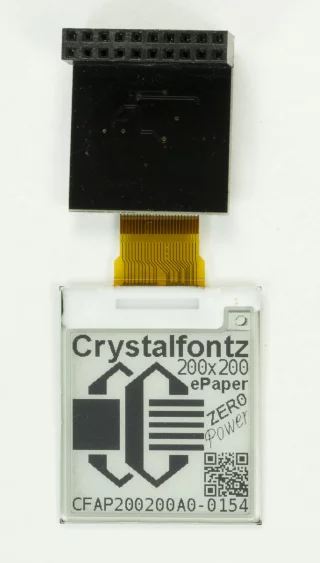

ePaper Breakout Kit - 1.54", Black and White
Part Number: CFA213A0-0154
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Description
Kit with a 1.54-inch black and white ePaper display module and a breakout board will ease product development. Unassembled.TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 200 x 200 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 31.8 | 37.32 | 1.05 |
| inches | 1.252 | 1.469 | 0.041 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 1.540" |
| Active Area | width | height |
|---|---|---|
| millimeters | 27.6 | 27.6 |
| inches | 1.087 | 1.087 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.138 | 0.138 |
| inches | 0.0054 | 0.0054 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.138 | 0.138 |
| inches | 0.0054 | 0.0054 |
| Weight | 9g |
Optical Characteristics
| Glass Type | e ink |
| Polarizer | Reflective |
| Sunlight Readable | Yes |
| Foreground Color | black |
| Background Color | white |
Electrical Specifications
| Supply Voltage for Logic Minimum | 3V |
| Supply Voltage for Logic Maximum | 3.6V |
| Supply Voltage for Logic Typical | 3.3V |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | 0° | 50° |
| Fahrenheit | 32° | 122° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -25° | 70° |
| Fahrenheit | -13° | 158° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Interface | SPI |
Miscellaneous
| Foldable Tab | Yes |
