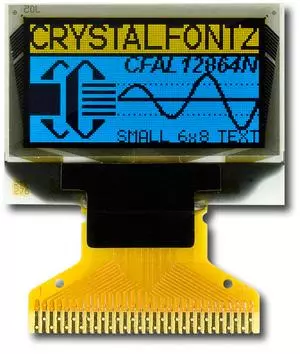

Two separate colors (yellow and blue) make this 128x64 SPI graphic OLED module unique. Customers like the two areas as a convenient way to show lots of information in an easy-to-read display. Less than an inch diagonal, this thin lightweight display uses super low power, making it great for handheld devices powered by batteries.
128x64 graphic OLED display module.
The 0.96" diagonal display is handy for designs that require small form factor.
Two color areas on the display: yellow for the 2-16 pixel rows and blue for the bottom 18-48 pixel rows.
This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost.
The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.
1) The thickness of the CFAL12864N-A-B4 module has changed from 1.45mm to 1.2mm. This change is 0.25mm difference.
2) The luminosity of the module has been improved from:
80nits(min.) to 150nits(min.)
3) Additionally it is important to note that while they have not changed physically, we would like bring attention to dimensions for Active Area and Viewing Area that we have had in our documentation. They have been corrected in the newest revision and now reflect the accurate dimensions for these measurements.
AA from 10.86mm to 11.2mm
VA From 12.86mm to 13.2mm
This is a difference of 0.34mm.
Reason:
We are issuing this PUN to inform our valued customers of the improvements to the CFAL12864N-A-B4's construction, and to provide more accurate and updated technical support documentation.
Impact:
If your application is ultra precise on the thickness of the module, there could possibly be a 0.25mm tolerance issue. Apart from that, little to no impact on any existing application should be evident.
Recommendation:
Customers interested in the continued use of this bi-color OLED module should simply continue to order the CFAL12864N-A-B4 module as they always have.
We encourage you to examine the drawing of the improved and corrected characteristics of the module in the attached PDF.
Availability:
Quantity orders will be available by October 1, 2013.
