128x296 ePaper Development Kit from Crystalfontz

Product

Home » Products

                This product has reached end of life

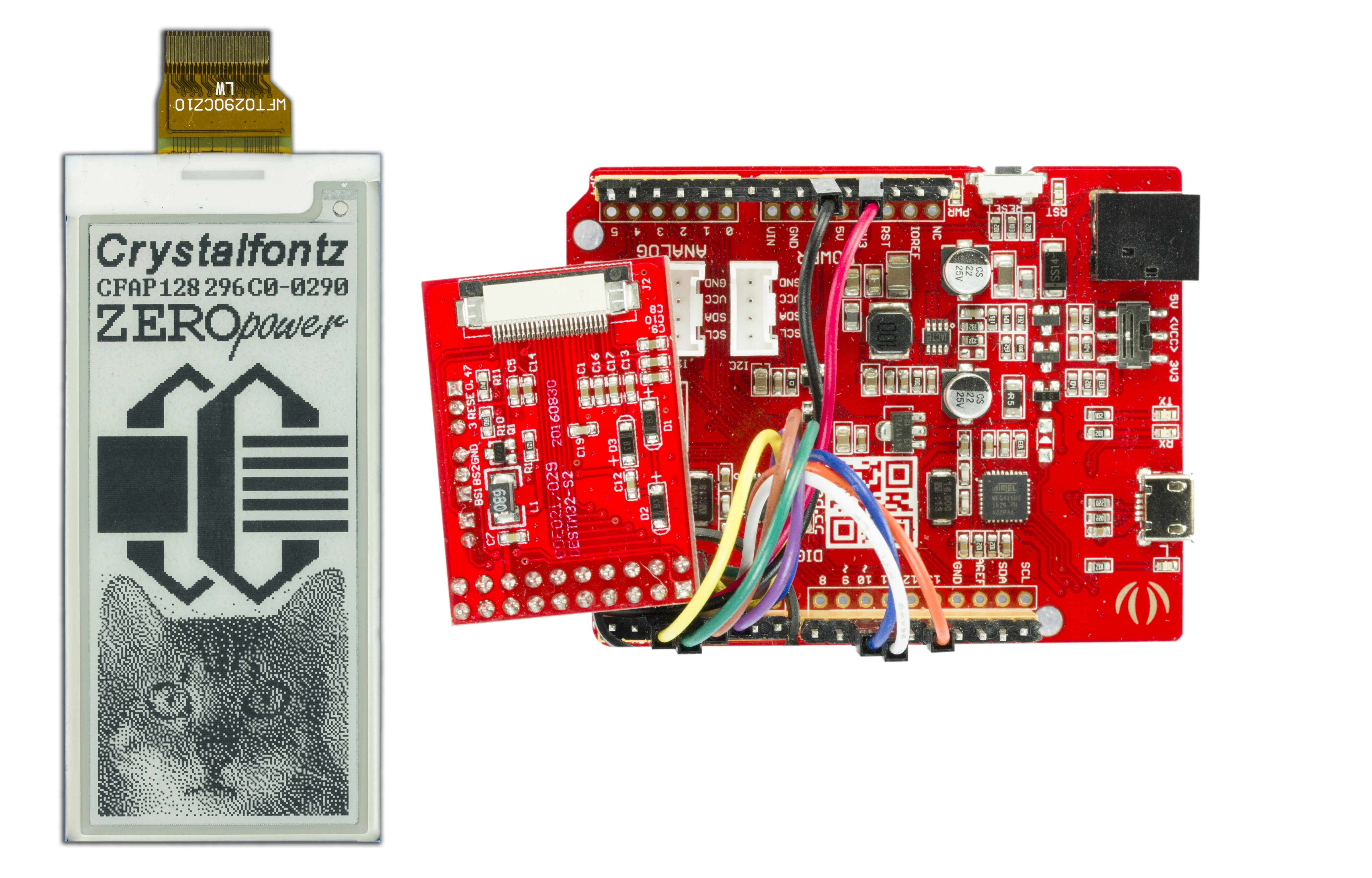

128x296 ePaper Development KitPart Number: CFAP128296C0-E1-2This development kit consists of a 128x296 ePaper display with adapter board and 3.3v Seeeduino.
The display is a 2.9 inch ePaper/eInk display with 296x128 resolution.
The Seeeduino is an ATMEGA328 Microcontroller development board with a 3.3V and 5V switch.(These displays require 3.3V)
Datasheets and sample sketch is available on the displays product page.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 296

    Module Overall        width
        height
        depth

        millimeters
        36.7
        79
        1.18

        inches
        1.45
        3.11
        0.05

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.87"

    Active Area        Width
        Height

        millimeters
        29.06
        66.9

        inches
        1.14
        2.63

    Dot Size        Width
        Height

        millimeters
        0.194
        0.0194

        inches
        0.0076
        0.0008

    Dot Pitch        Width
        Height

        millimeters
        0.226
        0.227

        inches
        0.0089
        0.0089

    Flexible Cable (FFC/FPC)        length

        millimeters
        14.3

        inches
        0.563

        Weight
            70g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            e ink / ePaper
Polarizer
            Reflective
Sunlight Readable
            Yes

        Foreground Color
            Black
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            10mA

        Module Connector Pitch
            2.54mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        50°

        Fahrenheit
        32°
        122°

    Storage Temperatures        min
        max

        Celsius
        -25°
        70°

        Fahrenheit
        -13°
        158°

 cable Electronics
Electronics

        Interface
            SPI

Module Overall	width	height	depth
millimeters	36.7	79	1.18
inches	1.45	3.11	0.05
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	29.06	66.9
inches	1.14	2.63

Dot Size	Width	Height
millimeters	0.194	0.0194
inches	0.0076	0.0008

Dot Pitch	Width	Height
millimeters	0.226	0.227
inches	0.0089	0.0089

Flexible Cable (FFC/FPC)	length
millimeters	14.3
inches	0.563

Operating Temperatures	min	max
Celsius	0°	50°
Fahrenheit	32°	122°

Storage Temperatures	min	max
Celsius	-25°	70°
Fahrenheit	-13°	158°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10953: End-of-Life Notification

Products Affected:	CFA214A0-0154, CFAP128296D0-E1-2, CFAP122250A0-E1-2, CFAP122250A0-E1-1, CFAP128296C0-E1-1, CFAP128296C0-E1-2, CFAP128296D0-E1-1, CFAP176264A0-E1-1, CFAP176264A0-E1-2, CFAP104212C0-E1-1, CFAP104212C0-E1-2, CFAP152152A0-E1-1, CFAP152152A0-E1-2
Date Issued:	June 4, 2018
Summary:	End-of-Life Notification
Description:	The parts listed are being set to End of Life due to the unavailability of a critical part.
Reason:	The Red adapter board - CFA part number CFAPN15087 has been discontinued and is no longer available
Impact:	The listed parts cannot be purchased. All stocks of the CFAPN15087 have been depleted.
Recommendation:	Products using the listed parts will have to be re-designed to use the replacement adapter board. Products still in the design phase should be placed on hold until the new adapter board is available.
Availability:	A new adapter board is being designed - CFA part number CFA-10084. This part has the same functionality as the CFAPN15087. This part will be available after July 1, 2018. The parts listed will be revised to include the use of this new adapter board and will be available by mid-July 2018
Price Change:	TBD
Response:	None Required

128x296 ePaper Development Kit

Part Number: CFAP128296C0-E1-2

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10953: End-of-Life Notification

LCD Software

User Forum

Tech Support

Glass Type	e ink / ePaper
Polarizer	Reflective
Sunlight Readable	Yes

Supply Voltage for Logic Typical	3.3V
Supply Current Typical	10mA

Foreground Color	Black
Background Color	White
