800x480 5 inch Sunlight Readable TFTPart Number: CFAF800480E1-050SN
         This super-bright, sunlight-readable 5-inch TFTLCD uses IPS technology, so it looks great without inverting at extreme viewing angles. This display features a standard 40-pin FPC / ZIF connection and an RGB interface.

This TFT display has plenty of screen real estate to display lots of information inside or outside.

For a display that includes a touchscreen see our 5" IPS TFT with a capacitive touch panel. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        75.8
        2.85

        inches
        4.75
        2.98
        0.11

*width / height does not include Foldable Tab

        Diagonal Dimension
            4.96"

    Viewing Area        Width
        Height

        millimeters
        110.3
        66.8

        inches
        4.34
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Optional Connectors
            CS050Z40GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        52

        inches
        2.047

        Weight
            56g

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Direction
            12 o'clock
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            12V

        Forward Current Maximum
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7262
1200CH System-On-Chip Driver for 800RGBx480 TFT
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF800480E1-050SN Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model

Module Overall	width	height	depth
millimeters	120.7	75.8	2.85
inches	4.75	2.98	0.11
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	110.3	66.8
inches	4.34	2.63

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Flexible Cable (FFC/FPC)	length
millimeters	52
inches	2.047

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Additional Options
Pin Table
Notices

Additional Options

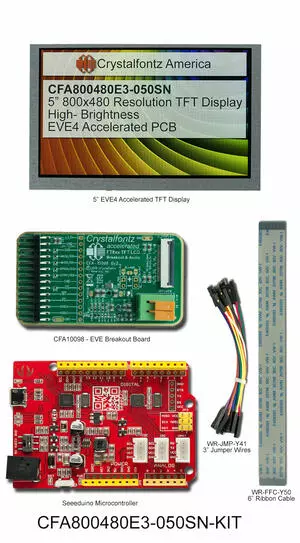

Add an FTDI EVE board to this display or a complete development kit.

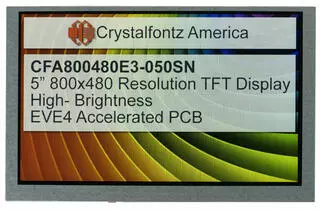

800x480 5" EVE TFT Display
Part Number: CFA800480E3-050SN

Details

Quantity	1 *	10 *	20 *	50 *	100 *	200 *	300 *	500 *	1000 *
Unit Price	$72.48	$70.41	$68.33	$65.85	$65.02	$64.61	$63.78	$63.36	$62.95

Quantity:

800x480 5" EVE Display Dev Kit
Part Number: CFA800480E3-050SN-KIT

Details

Quantity	1 *
Unit Price	$116.13

Quantity:

Product Affected:	CFAF800480E1-050SN
Date Issued:	February 14, 2025
Summary:	800x480 5-inch Sunlight Readable TFT is now available
Description:	Description: The change sent in PCN11317 has been completed and the replacement part, CFAF800480E3-050SN, has been released for sale on our website. Orders for the CFAF800480E3-050SN can be placed directly on our website (https://www.crystalfontz.com/product/cfaf800480e3050sn-5-inch-sunlight-readable-tft) or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions. The new product can be found here: https://www.crystalfontz.com/product/cfaf800480e3050sn-5-inch-sunlight-readable-tft

Products Affected:	CFAF800480E1-050SN, CFAF800480E2-050SC
Date Issued:	January 22, 2025
Summary:	EOL with Replacement
Description:	The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
Reason:	The manufacturing location is changing for the displays.
Impact:	Warmer tones when displaying images Metal Bezel is slightly darker
Recommendation:	CFAF800480E1-050SN -> CFAF800480E3-050SN drop in CFAF800480E2-050SC -> CFAF800480E3-050SW drop in
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
