800x480 5" EVE TFT Display

Part Number: CFA800480E3-050SN

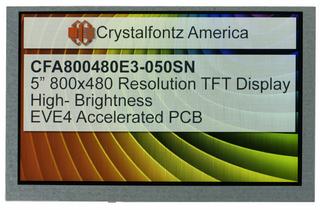

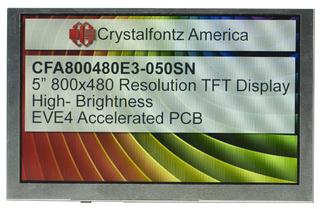

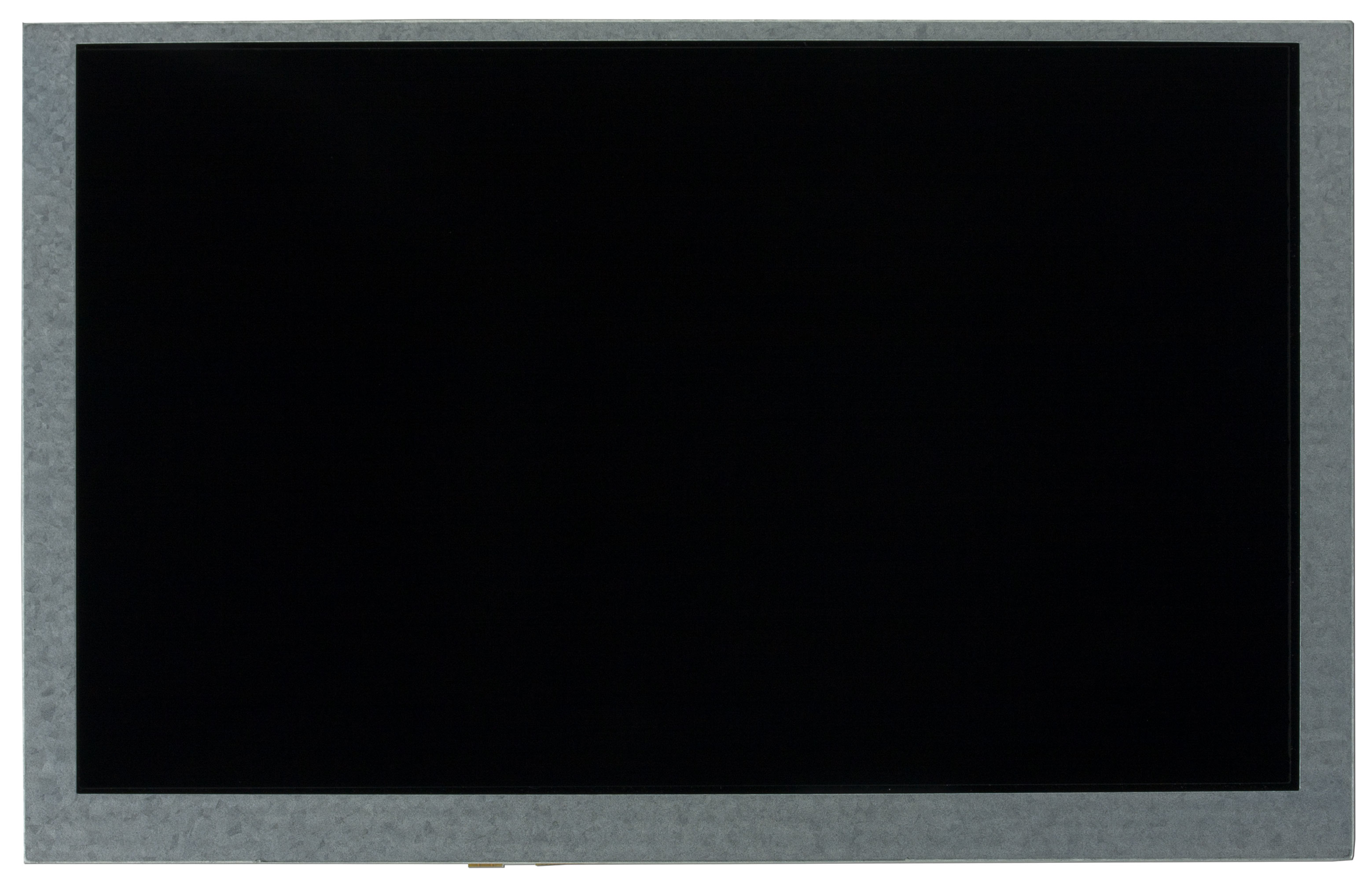

This TFT display module includes a vibrant 5" TFT display mounted on an accelerated graphics embedded video engine (EVE) board. The EVE chip simplifies the creation of a beautiful user interface by leveraging FTDI/Bridgetek's development tools.

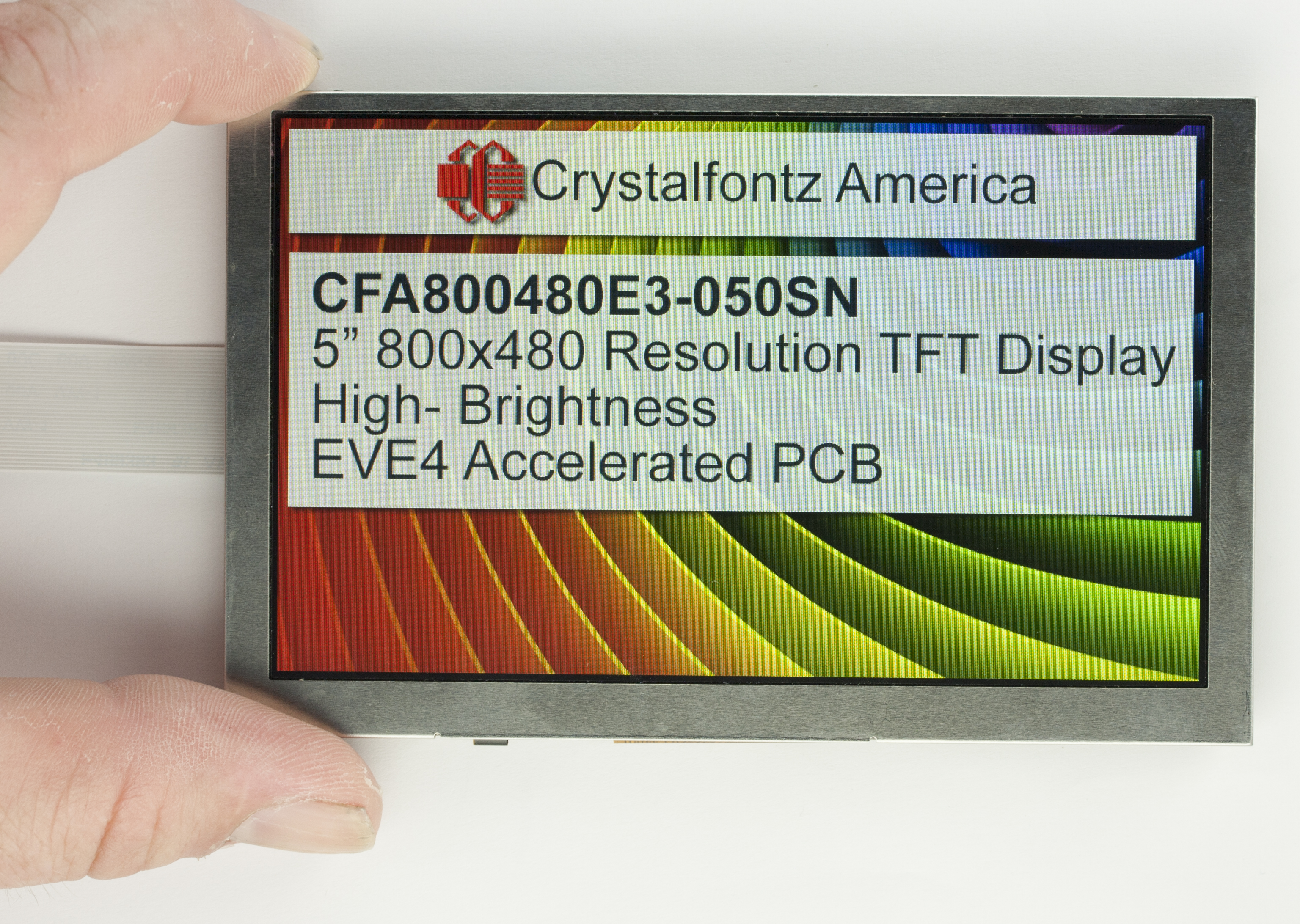

The included 5" TFT display is a beauty. It is sunlight readable (1,000 nits), IPS, and 16M colors. That means whatever you want to display will be visible in most lighting conditions and from wide angles.

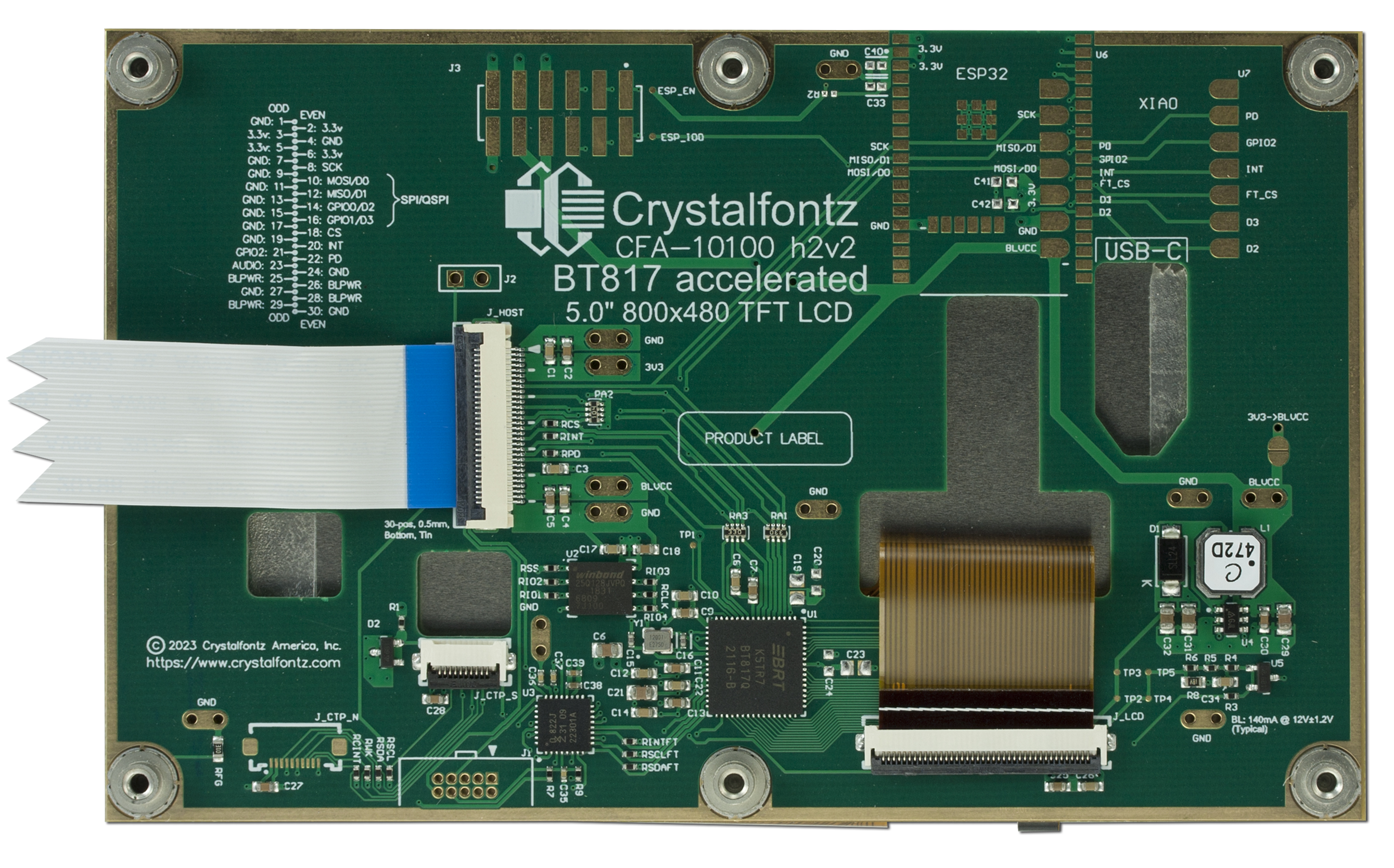

The board on this TFT module does some heavy lifting. A 30-pin ZIF / FFC connector brings in all the necessary signals for the display. The board boosts up the input voltage (3.3 to 5 volts) to power the backlight, and the included EVE chip can control the backlight, display, and audio. Plus, with six threaded mounts (size 2-56), securing this module in your project is easy.

This is a replacement for CFAF800480E1-050SN-A2. Please see Product Change Notice 11178 for more information.

Features to note:
  • 5"
  • Sunlight readable (1000 nits)
  • IPS
  • TFT
  • 16M colors
  • Bridgetek's BT817 EVE integrated
  • 4-wire SPI / Quad SPI
  • Threaded mounting posts for easy integration
  • Can be powered off of a single voltage source
  • This module is available in a complete 5" EVE development kit
Currently Shipping: HW Version 2v2, Firmware Version: 1v0

Product Variations

Touchscreen
CapacitiveResistiveNone

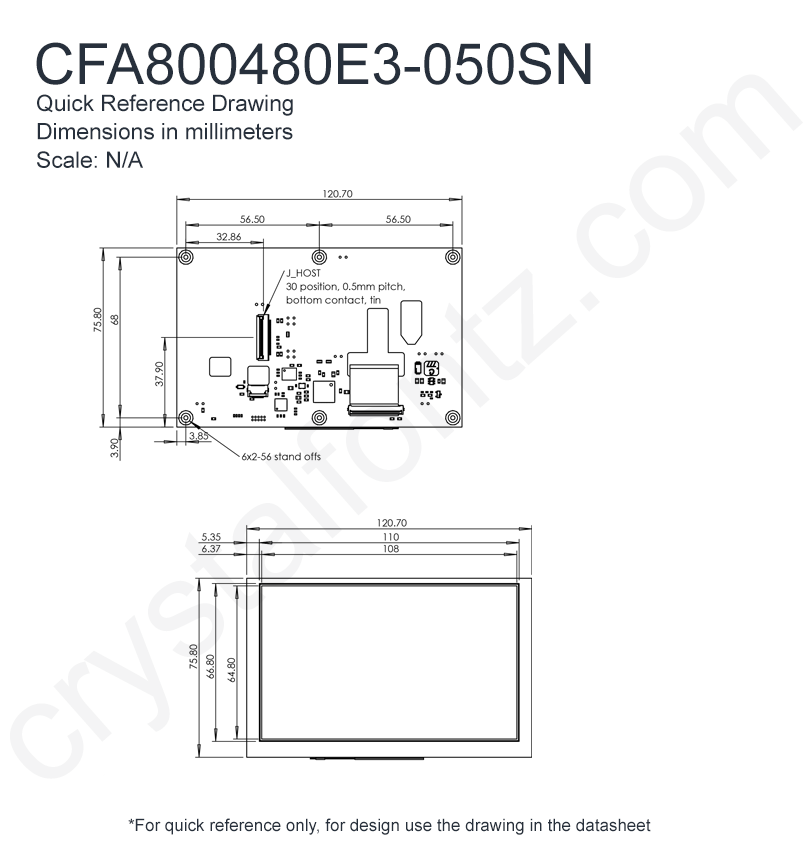

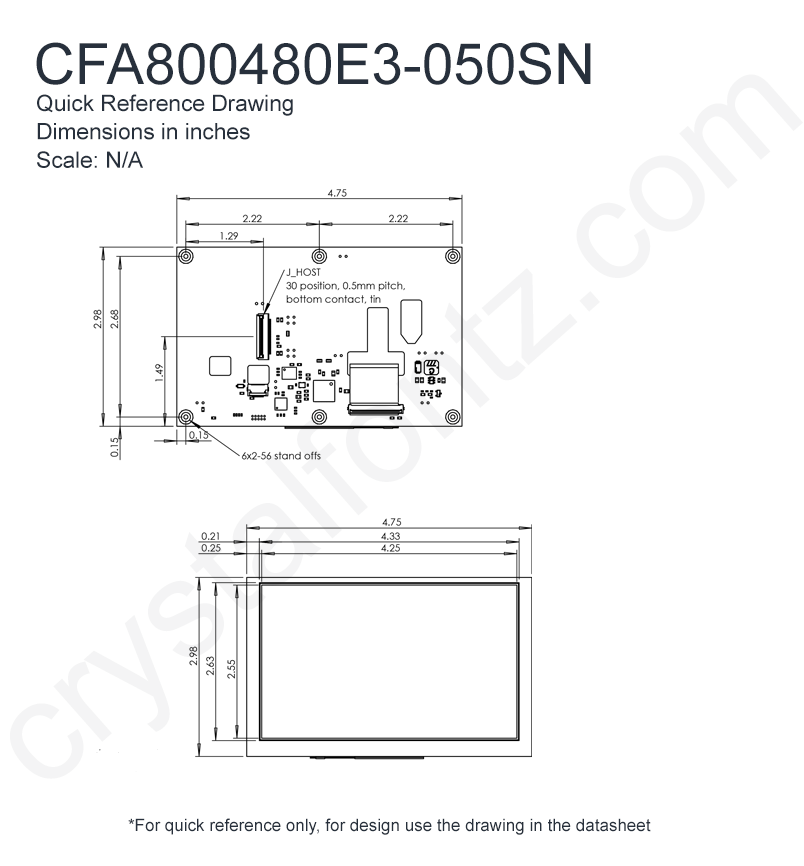

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 800 x 480
    Module Overall width height depth
    millimeters 120.7 75.8 8.75
    inches 4.75 2.98 0.34
    Diagonal Dimension 5"
    Viewing Area Width Height
    millimeters 110 66.8
    inches 4.33 2.63
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 90g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer Transmissive
    View Direction 12 o'clock
    View Angle 160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Typical 20mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.7V
    Forward Voltage Maximum 5.5V
    Forward Voltage Typical 5V
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $87.10
5 $72.48
10 $70.41
20 $68.33
50 $65.85
100 $65.02
200 * $64.61
300 * $63.78
500 * $63.36
1000 * $62.95
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering

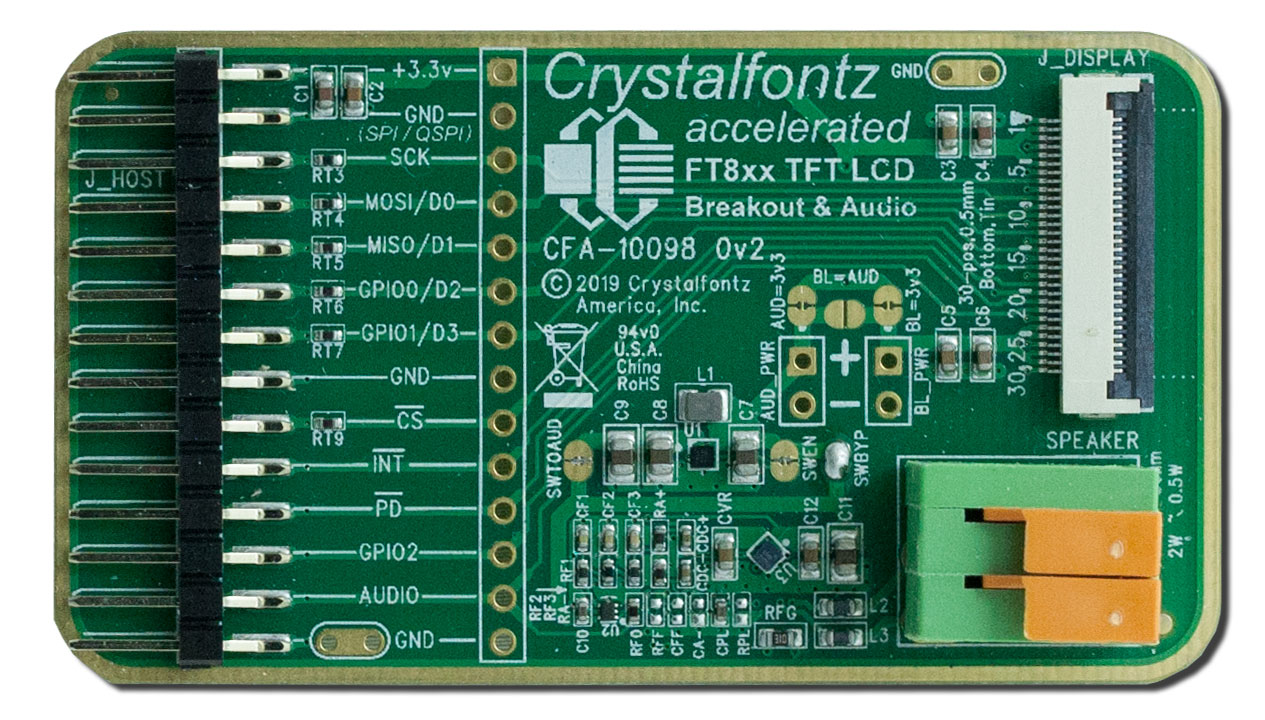

4595 EVE Breakout Board
Need an EVE Breakout Board? $24.63 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add ZIF connectors? $0.61 ea.
4606 6-inch 30-pin FFC Cable
Add a ribbon cable? $2.30 ea.

Additional Options

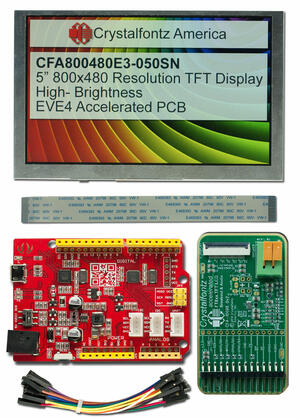

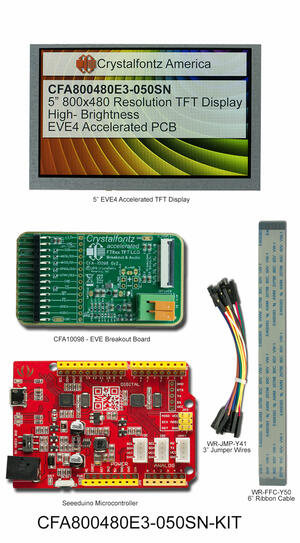

Purchase this EVE Display Module in a development kit and speed up your prototyping.
800x480 5" EVE Display Dev Kit
Part Number: CFA800480E3-050SN-KIT
Details
Quantity 1
Price $116.13
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA800480E3-050SN or RSS RSS feed for changes to CFA800480E3-050SN
  • text_snippet
    Part Change Notice #11271: Manufacturing Location Changing
    Products Affected: CFA800480E3-050SN, CFA800480E3-050SN-KIT, CFA800480E3-050SW, CFA800480E3-050SW-KIT
    Date Issued: June 6, 2024
    Summary: Manufacturing Location Changing
    Description: The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
    Reason: The manufacturing location is changing for the displays.
    Impact: Warmer tones when displaying images.
    Metal Bezel is slightly darker
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
