128x64 High Brightness Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

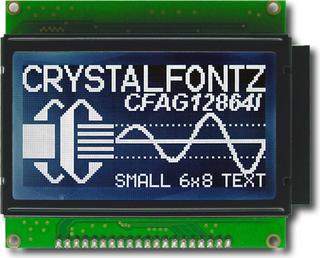

128x64 High Brightness Graphic LCDPart Number: CFAG12864I-STI-TNWhite on black with High Brightness LED backlight. 128x64 graphic LCD, on-board negative voltage generator and temperature compensation.
Glass: FSTN Negative, Transmissive
Backlight: White Edge LED
Compliance: RoHS Compliant
Resolution: 128x64 pixels
Controller: Neotec NT7108
Operating Temp:  -20°C to +70°C
Optics: 6:00 viewing direction
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Dark
White High Brightness LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        85.82
        70
        13.6


        inches
        3.38
        2.76
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        80
        70
        13.6


        inches
        3.15
        2.76
        0.54



        Diagonal Dimension
            2.93"


    Viewing Area        Width
        Height


        millimeters
        72
        40


        inches
        2.84
        1.58



    Active Area        Width
        Height


        millimeters
        66.52
        33.24


        inches
        2.62
        1.31



    Dot Size        Width
        Height


        millimeters
        0.48
        0.48


        inches
        0.019
        0.019



    Dot Pitch        Width
        Height


        millimeters
        0.52
        0.52


        inches
        0.020
        0.020



        Weight
            76g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            High Brightness LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Voltage for Driving Panel Typical
            8.7V
Supply Current Typical
            3mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            48mA
Forward Current Maximum
            80mA
Forward Current Typical
            64mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864ISTITN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864I-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864I-STI-TMI 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $22.79

            10
            $20.07

            20
            $19.48

            50
            $18.77

            100 *
            $18.53

            200 *
            $18.42

            300 *
            $17.39

            500 *
            $17.28

            1000 *
            $16.37

50 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Dark White High Brightness LED Backlight

Module Overall	width	height	depth
millimeters	85.82	70	13.6
inches	3.38	2.76	0.54

PCB Outline	width	height	depth
millimeters	80	70	13.6
inches	3.15	2.76	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$22.79
10	$20.07
20	$19.48
50	$18.77
100 *	$18.53
200 *	$18.42
300 *	$17.39
500 *	$17.28
1000 *	$16.37

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11329: Parts Now Shipping

Products Affected:	CFAG12864B-TFH-V, CFAG12864B-YYH-V, CFAG12864I-STI-TN
Date Issued:	February 28, 2025
Summary:	Parts Now Shipping
Description:	We are now releasing products as stated in PCN11205.

Part Change Notice #11205: Update to PCN# 11169

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	June 26, 2023
Summary:	Update to PCN# 11169
Description:	This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11169: Neotec Controller Change

Products Affected:	CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
Date Issued:	January 16, 2023
Summary:	Neotec Controller Change
Description:	The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted. Contact sales@crystalfontz.com to place last-time buys. Contact support@crystalfontz.com for the latest update on the replacement parts.
Reason:	Neotec has EOL'd the NT7107C and NT7108C.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #11049: This module is being revised.

Product Affected:	CFAG12864I-STI-TN
Date Issued:	August 7, 2019
Summary:	This module is being revised.
Description:	The glass used in the module was discontinued. It is being replaced by a more efficient glass.
Impact:	The form, fit, and function of the module will not change. Customers may see a slight difference in the display between modules with the date code 01/07/2019 and older, and modules with the date code 06/0//2019 and newer. The part number will not change.
Availability:	Modules with the revised glass will be available when current stocks are depleted.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG12864I-STI-TN

128x64 High Brightness Graphic LCD

Part Number: CFAG12864I-STI-TN

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11329: Parts Now Shipping

Part Change Notice #11205: Update to PCN# 11169

Part Change Notice #11169: Neotec Controller Change

Product Update #11049: This module is being revised.

Part Change Notices

LCD Software

User Forum

Tech Support
