Product

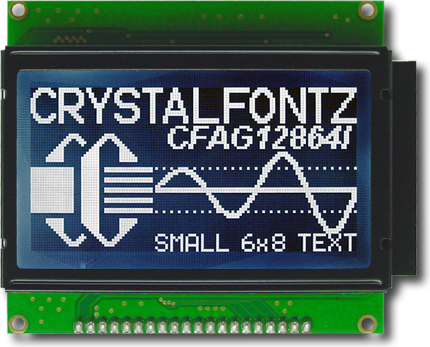

128x64 High Brightness Graphic LCD

Part Number: CFAG12864I-STI-TN

White on black with High Brightness LED backlight. 128x64 graphic LCD, on-board negative voltage generator and temperature compensation.

  • Glass: FSTN Negative, Transmissive
  • Backlight: White Edge LED
  • Compliance: RoHS Compliant
  • Resolution: 128x64 pixels
  • Controller: Neotec NT7108
  • Operating Temp: -20°C to +70°C
  • Optics: 6:00 viewing direction

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64

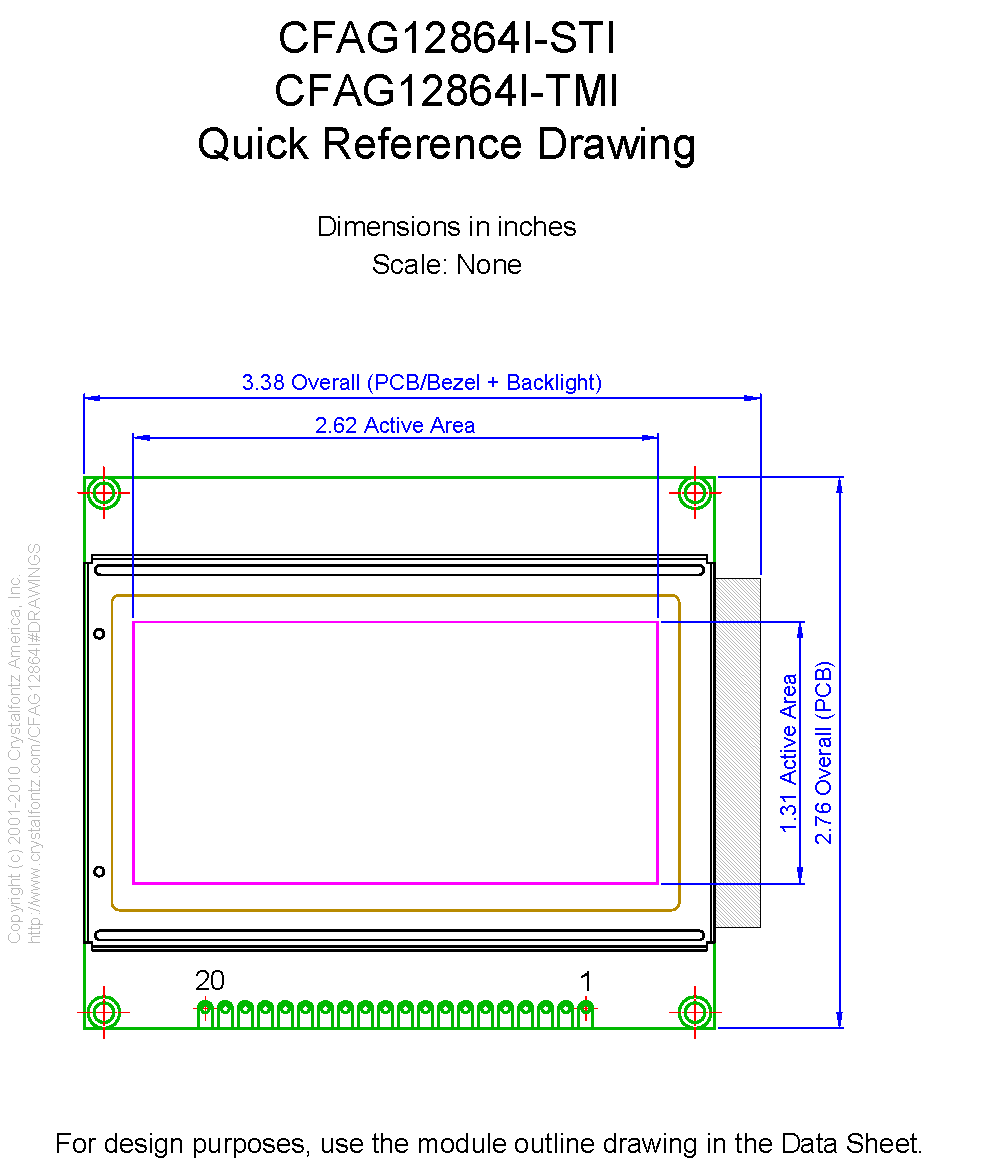

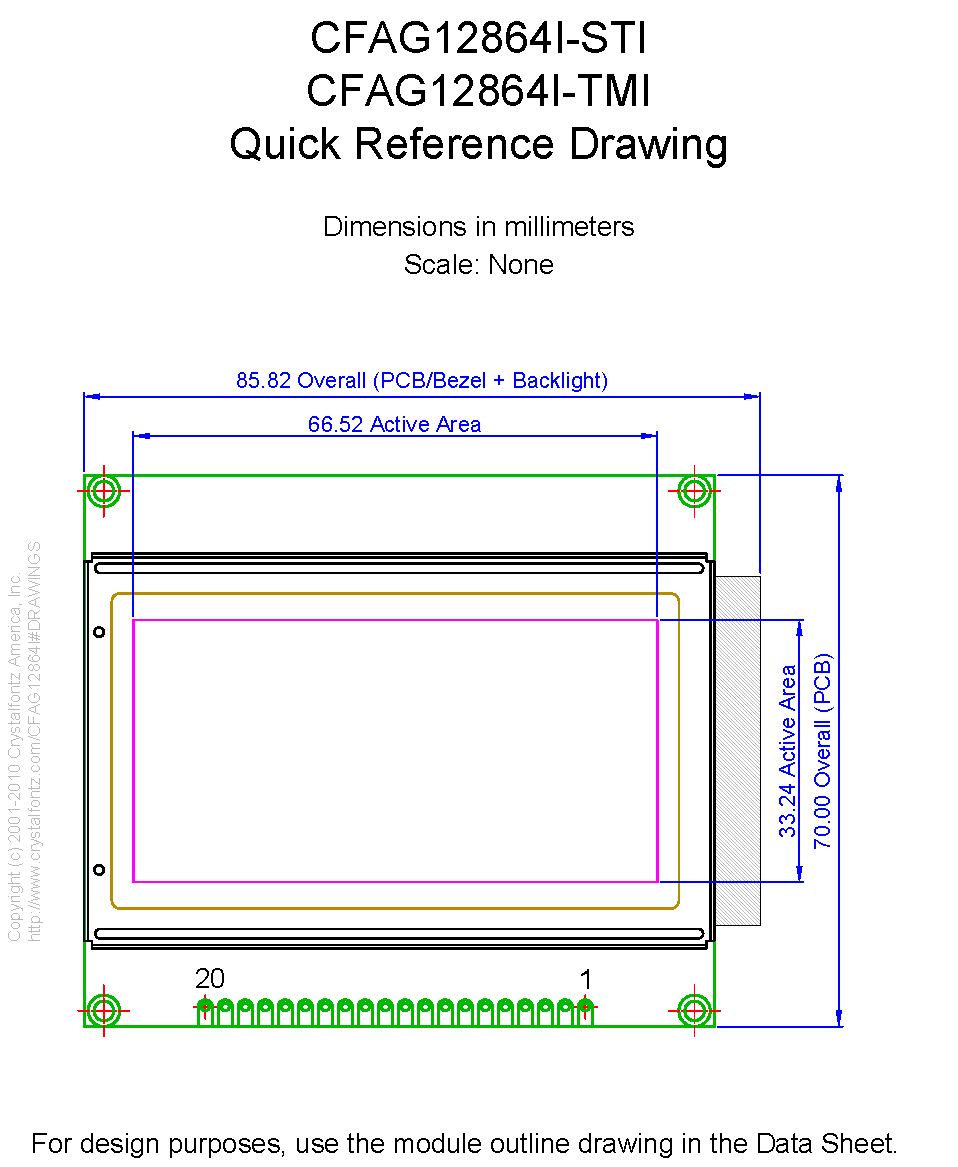

    Module Overall width height depth
    millimeters 85.82 70 13.6
    inches 3.38 2.76 0.54

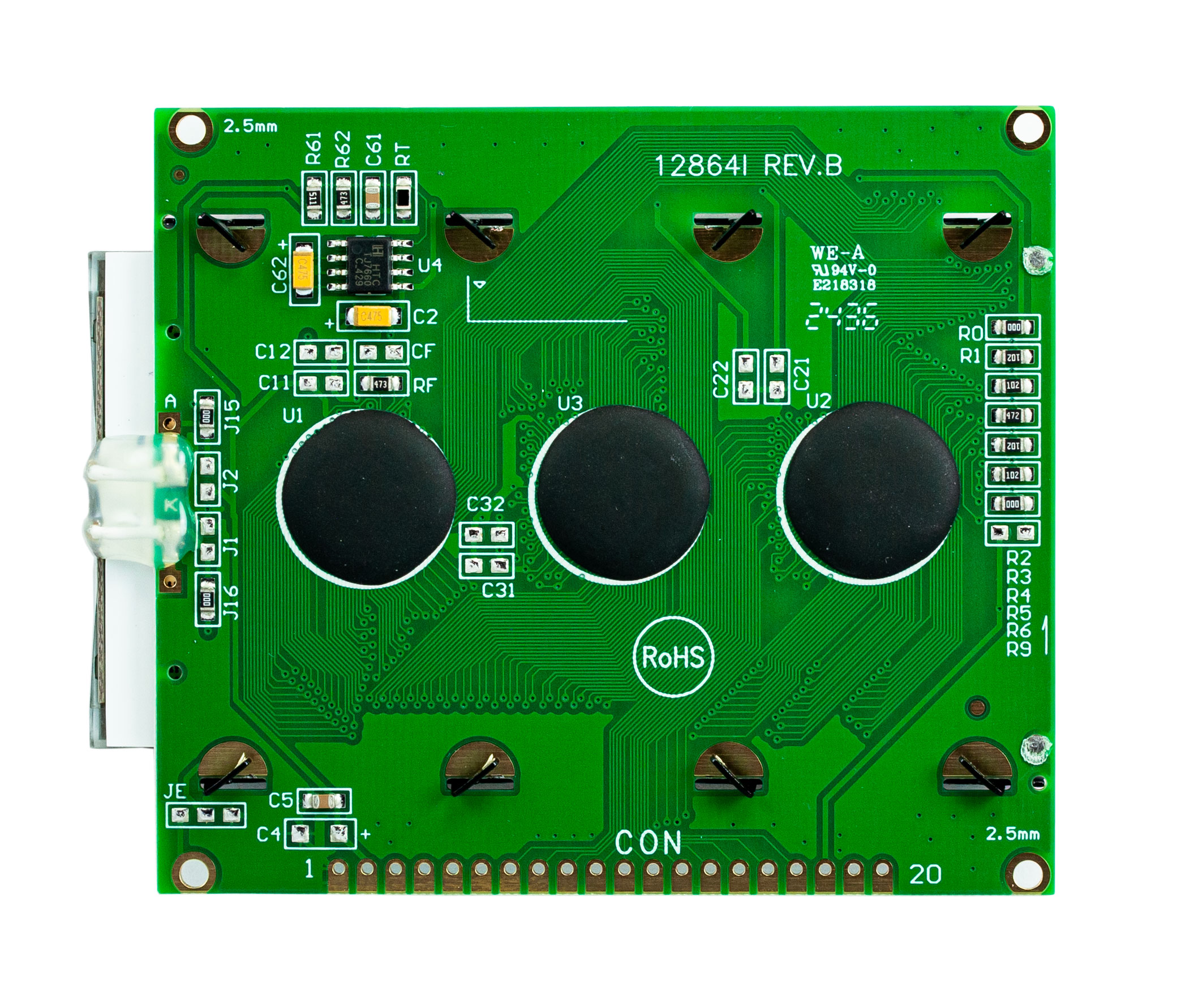

    PCB Outline width height depth
    millimeters 80 70 13.6
    inches 3.15 2.76 0.54
    Diagonal Dimension 2.93"
    Viewing Area Width Height
    millimeters 72 40
    inches 2.84 1.58
    Active Area Width Height
    millimeters 66.52 33.24
    inches 2.62 1.31
    Dot Size Width Height
    millimeters 0.48 0.48
    inches 0.019 0.019
    Dot Pitch Width Height
    millimeters 0.52 0.52
    inches 0.020 0.020
    Weight 76g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Black
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color White
    Backlight Type High Brightness LED
    Mode Negative
    Foreground Color White
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 4.5V
    Supply Voltage for Logic Maximum 5.5V
    Supply Voltage for Logic Typical 5V
    Supply Voltage for Driving Panel Typical 8.7V
    Supply Current Typical 3mA
    Module Connector Pitch 0.1mm
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 3.4V
    Forward Voltage Maximum 3.6V
    Forward Voltage Typical 3.5V
    Forward Current Minimum 48mA
    Forward Current Maximum 80mA
    Forward Current Typical 64mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Neotec NT7108
    NT7108
    LCD Driver
    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $24.68
5 $22.79
10 $20.07
20 $19.48
50 $18.77
100 $18.53
200 * $18.42
300 * $17.39
500 * $17.28
1000 * $16.37
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4694 LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG12864I-STI-TN or RSS RSS feed for changes to CFAG12864I-STI-TN
  • text_snippet
    Part Change Notice #11205: Update to PCN# 11169
    Products Affected: CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-TMI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
    Date Issued: June 26, 2023
    Summary: Update to PCN# 11169
    Description: This is an update to PCN# 11169. The change to these controllers is minimal and it is not expected that any code or hardware will need to be modified to accommodate the new version. We recommend testing the updated versions prior to purchasing production-level orders. Contact support@crystalfontz.com to arrange sample testing.
    Reason: Neotec has EOL'd the NT7107C and NT7108C.
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
  • text_snippet
    Part Change Notice #11169: Neotec Controller Change
    Products Affected: CFAG12864A-TMI-VN, CFAG12864A-YYH-VN, CFAG12864B-TMI-V, CFAG12864B-TFH-V, CFAG12864B-YYH-N, CFAG12864B-YYH-V, CFAG12864M-TMI-TN, CFAG12864M-YYH-TN, CFAG12864C-TMI-TN, CFAG12864C-YYH-TN, CFAG12864I-STI-TN, CFAG12864I-YYH-TN, CFAG12864A-CFH-VN
    Date Issued: January 16, 2023
    Summary: Neotec Controller Change
    Description: The display controllers used on these displays are being EOL'd and replaced with new controllers. At this time, there is limited information on the replacement display controllers but last time buys are being accepted.

    Contact sales@crystalfontz.com to place last-time buys.

    Contact support@crystalfontz.com for the latest update on the replacement parts.
    Reason: Neotec has EOL'd the NT7107C and NT7108C.
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
  • text_snippet
    Product Update #11049: This module is being revised.
    Product Affected: CFAG12864I-STI-TN
    Date Issued: August 7, 2019
    Summary: This module is being revised.
    Description: The glass used in the module was discontinued. It is being replaced by a more efficient glass.
    Impact: The form, fit, and function of the module will not change. Customers may see a slight difference in the display between modules with the date code 01/07/2019 and older, and modules with the date code 06/0//2019 and newer. The part number will not change.
    Availability: Modules with the revised glass will be available when current stocks are depleted.
