LCD Starter Kit with Potentiometer

Part Number: DEVKIT001

Pick up this LCD development kit for prototyping with a graphic or character display. This kit includes everything required to adjust the contrast voltage using an external potentiometer. Check out the datasheet in the sidebar for more information on using this kit.

This kit is intended for use with a character display or a graphic LCD with a header that requires external contrast adjustment. Use this kit with your choice of display and microcontroller. If you need a microcontroller, you can purchase a Seeeduino.

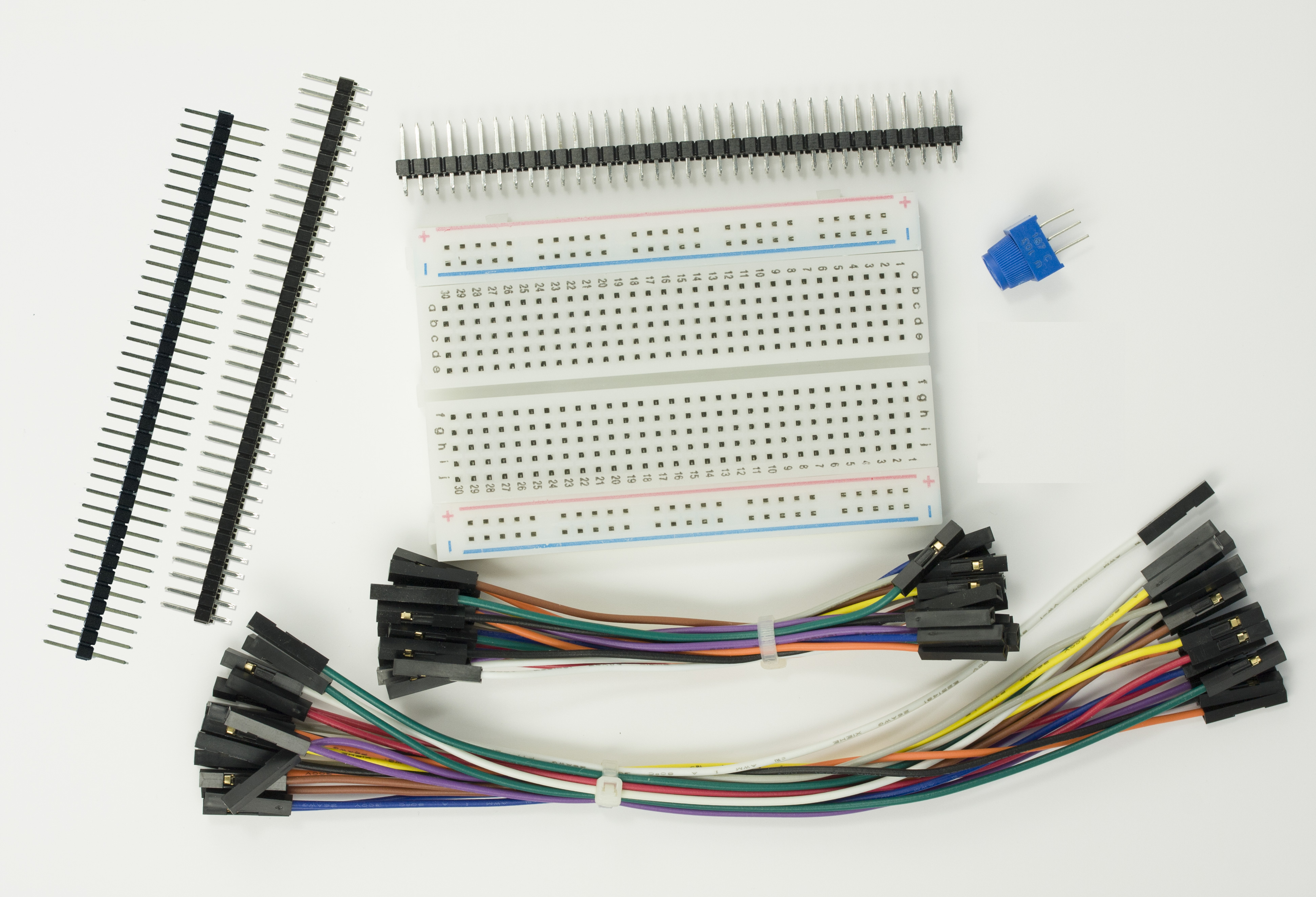

Kit Includes:

• 3" jumper wires
• 6" jumper wires
• Dual row, 72 position, 0.1" header
• Single row, 36 position, 0.1" header
• Small breadboard
• 10k potentiometer
• Single row, 36 position, 0.1" socket header

• square_foot Physical Dimensions

  Module

  Weight

  70.1 g

• download Downloads
  Datasheets


  picture_as_pdf

  Development Kit Datasheet
