Product

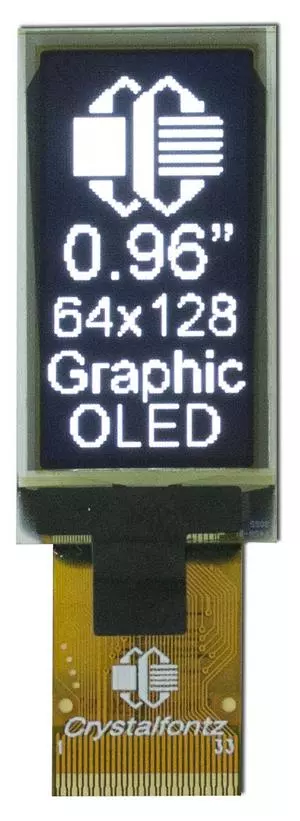

64x128 In-Cell OLED Display
Part Number: CFAL64128B0-0096B-WC
This OLED uses in-cell technology to bring a touchscreen to this extremely thin module. As the name suggests, in-cell touch embeds the capacitive touch sensors into the glass of the display rather than adding a touch panel to the top of the module. By eliminating the need for this extra layer of glass, this touch screen OLED can be thinner and lighter than a comparable module using standard touch technology.The touch on this display recognizes touches in four touch zones and different gestures such as swipes. There are also four out-cell touch options for external sensors.
Because the touch is part of the original OLED panel, this monochrome display only uses a single tail for both the display and touch. Plus, Crystalfontz has worked to create a slim tail to reduce the footprint needed to connect with this display.
This display offers a great way to have a changeable button, ancillary display, or visually responsive control.
Key Features:
- 64x128 pixels
- 0.96" diagonal
- Single 0.3mm pitch, 33 position ZIF tail
- Extremely thin (1.4 mm)
- 4 touch zones with multiple gestures
- 4 out-cell touch options for external sensors to be connected
- Monochrome OLED
- SPI and I2C interface options for both the touchscreen and the display

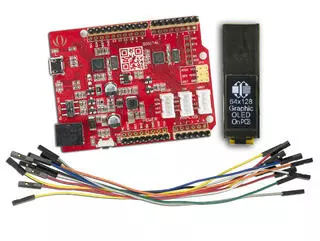

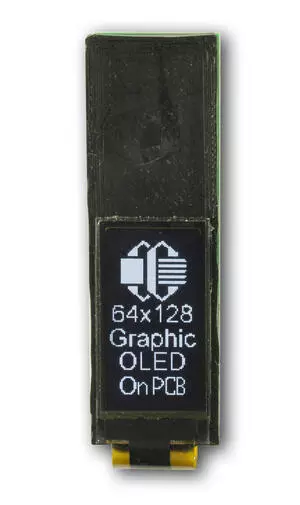

Looking for a quick way to get this display running? Check out this 0.96" in-cell display with breakout board, or the fully assembled 64x128 in-Cell Touchscreen Development Kit.
| Quantity | Unit Price |
|---|---|
| 1 | $10.50 |
| 10 | $10.20 |
| 20 | $9.90 |
| 50 | $9.54 |
| 100 * | $7.30 |
| 200 * | $7.25 |
| 300 * | $7.16 |
| 500 * | $7.11 |
| 1000 * | $6.16 |
90 Units In-Stock & Ready To Ship
Pricing is subject to change.* Contact us about potential lead times.
