Home » Products » Accessories » ZIF Connectors

33 Position, 0.3mm Pitch, Gold, ZIF FFC FPC connector

Part Number: CS030Z33G-A0

Pricing

Quantity Price ea.
5 $1.15
100 $0.68
3000 $0.56
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS030Z33G-A0 or RSS RSS feed for changes to CS030Z33G-A0 for CS030Z33G-A0

Compliance Documents

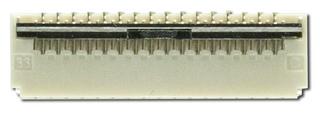

33 Position, 0.3mm Pitch, Gold, ZIF FFC FPC connector (CS030Z33G-A0)

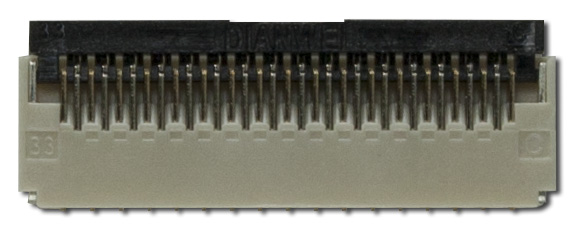

0.3mm pitch, 33 position, gold plated, top/bot, connector. Closed position

Description

0.3mm pitch, 33 position, ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 0.3mm Pitch
  • 33 position
  • Gold plated
  • Top and bottom connector

TECHNICAL SPECS

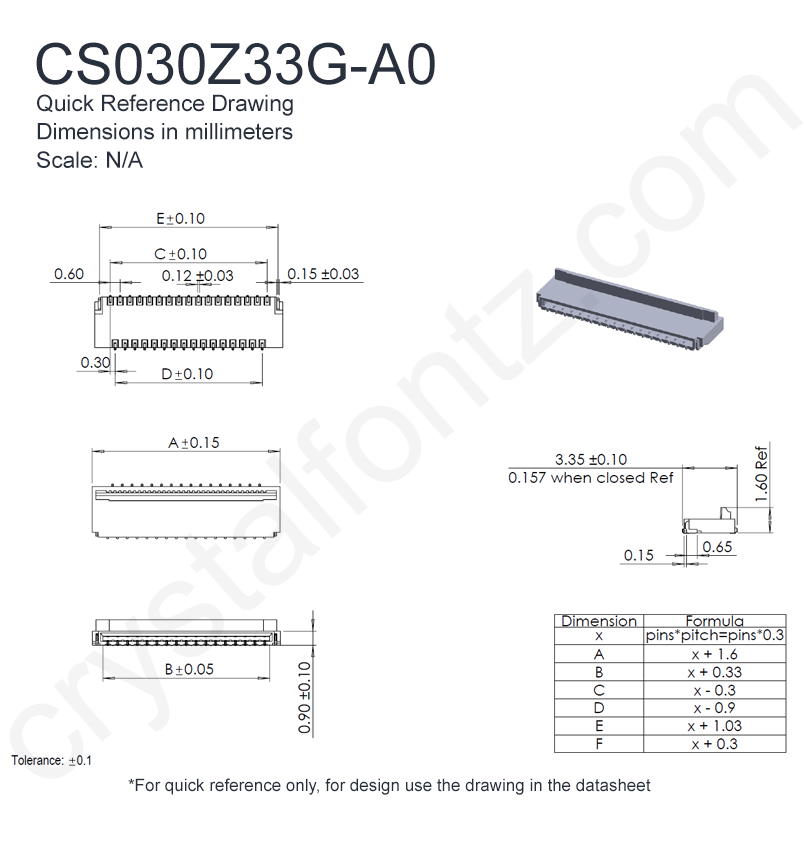

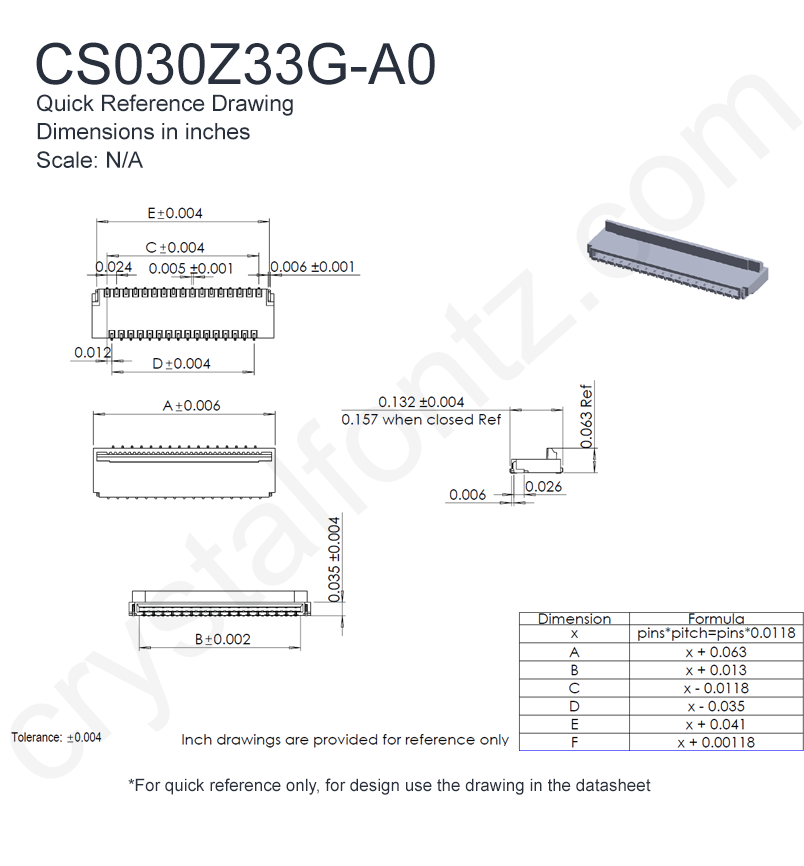

Physical Characteristics

Module Overall width height
millimeters 11.5 0.9
inches 0.453 0.035
Weight 0.221g
Pin Count 33

Electrical Specifications

Module Connector Pitch 0.3mm
For reference only. For design purposes, please use the specifications in the datasheet.
