64x128 In-Cell Touchscreen OLED with Breakout Board

Part Number: CFAL64128B0-0096WC-E1

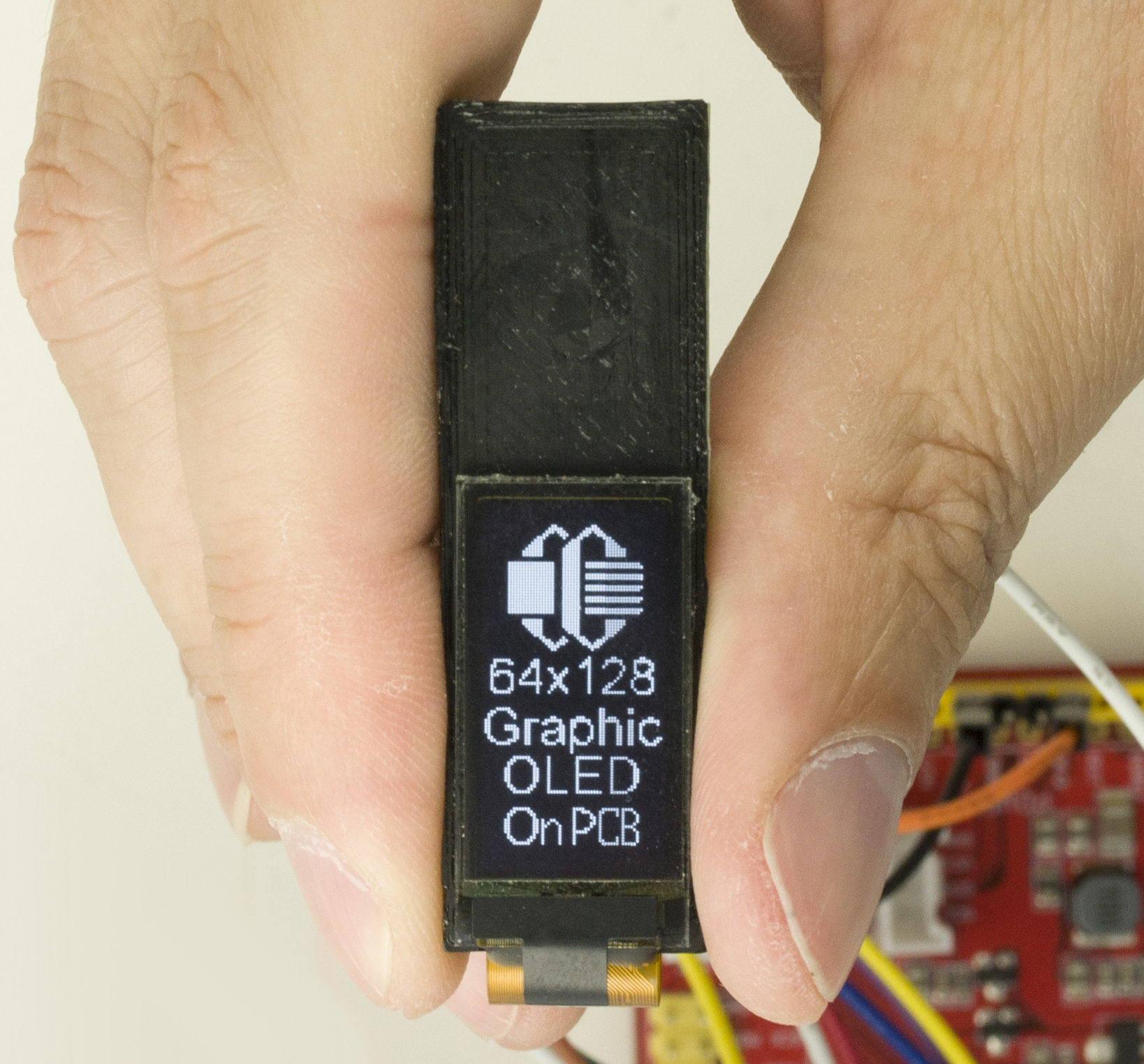

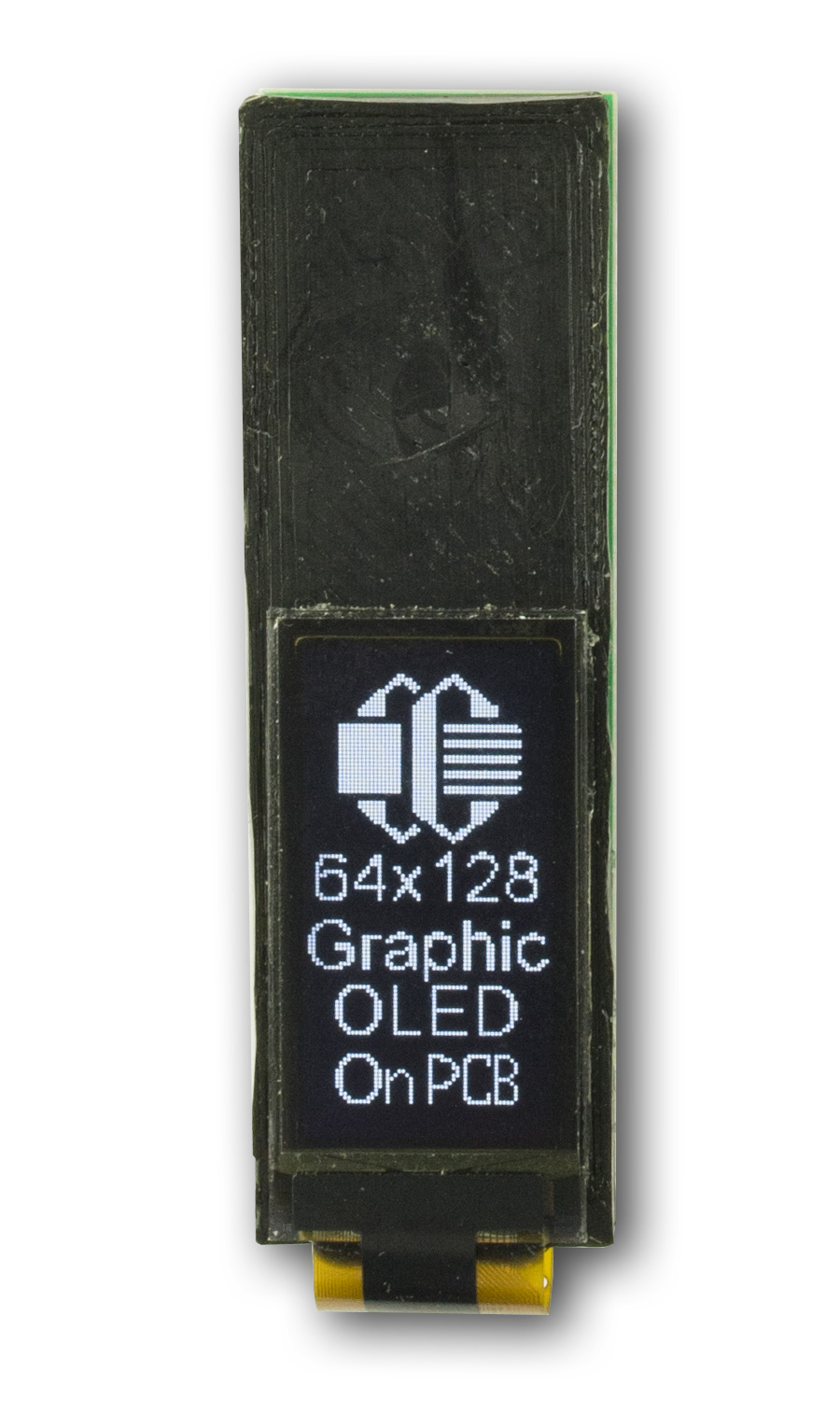

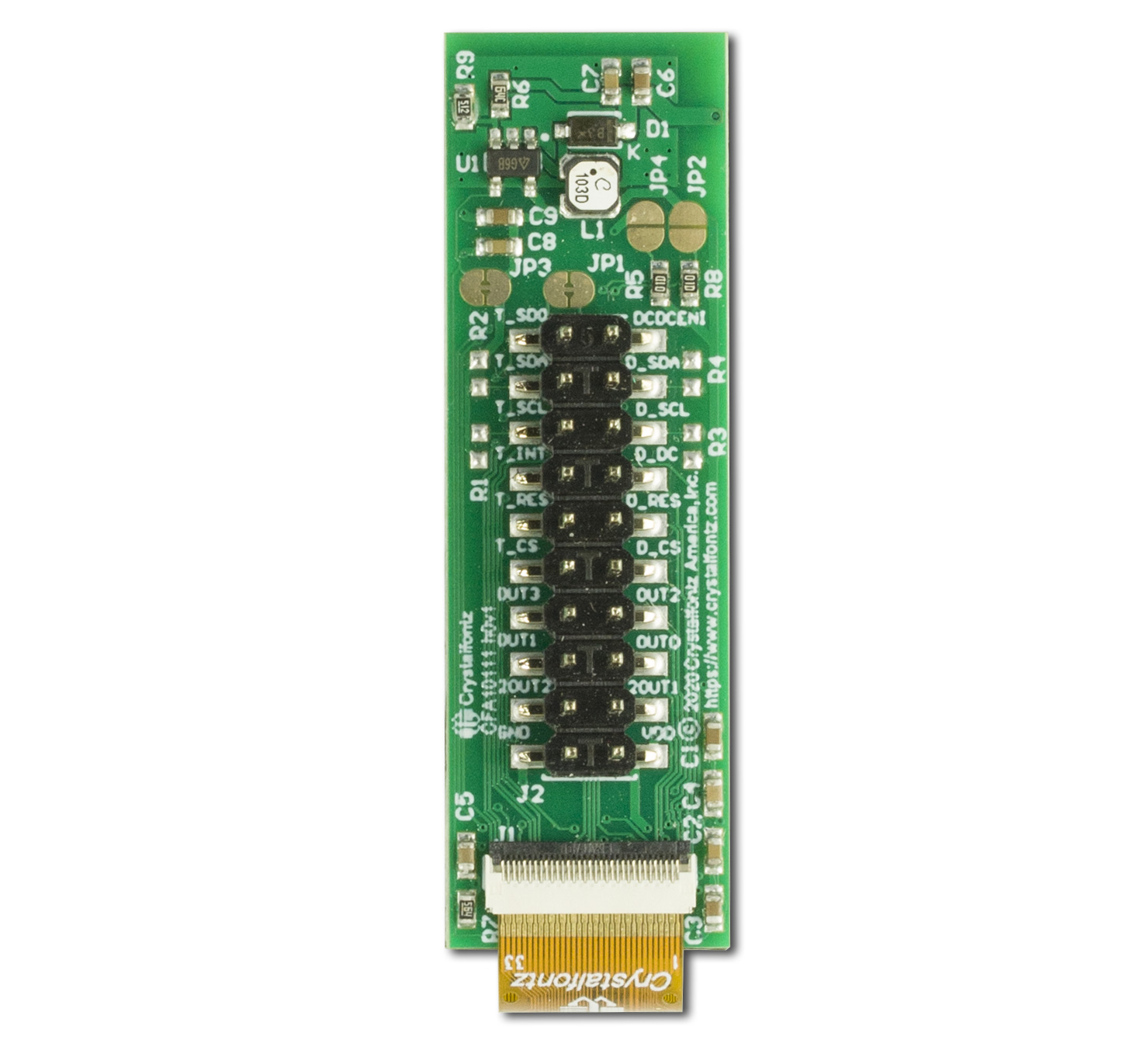

This in-cell touchscreen OLED display module consists of the 0.96" in-cell touchscreen OLED mounted to a breakout PCB and simplifies incorporating the in-cell display into a project. The PCB breaks the display tail out to a 0.1" header. A spacer is included between the OLED and the PCB to demonstrate the gap necessary to protect the display's touch sensors from noise

Packed into less than an inch diagonal, this display has 64x128 resolution and four touch sensing zones. Using in-cell capacitive touch technology, this display is thinner and lighter than a comparable touchscreen display.

This display module is small and light enough for a wearable, and with the combo of touch and display in this small package this display would make a great changing switch, human input device, and so on.

Key Features:
  • 64x128 pixel resolution
  • 0.96" diagonal dimension
  • 20 pin tenth inch header
  • 4 touch zones with multiple gestures
  • 2 out-cell multi-touch options for external sensors to be connected
  • Monochrome OLED
  • Easily switch between I2C or SPI communication using jumpers
Also check out the 0.96" in-cell touchscreen OLED development kit to get up and running quickly. Or, for a similar display with a different outline, the 1.71" in-cell touchscreen OLED display module.
Qty:
Quantity Price
1 $26.57
5 $22.18
10 $21.60
20 $20.87
50 * $20.14
100 * $19.85
200 * $19.70
300 * $19.56
500 * $19.41
1000 * $19.27
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL64128B0-0096WC-E1 or RSS RSS feed for changes to CFAL64128B0-0096WC-E1 for CFAL64128B0-0096WC-E1

Video Demonstrations

In-Cell Touchscreen OLED Modules

Demonstration of our various in-cell touchscreen OLED display modules


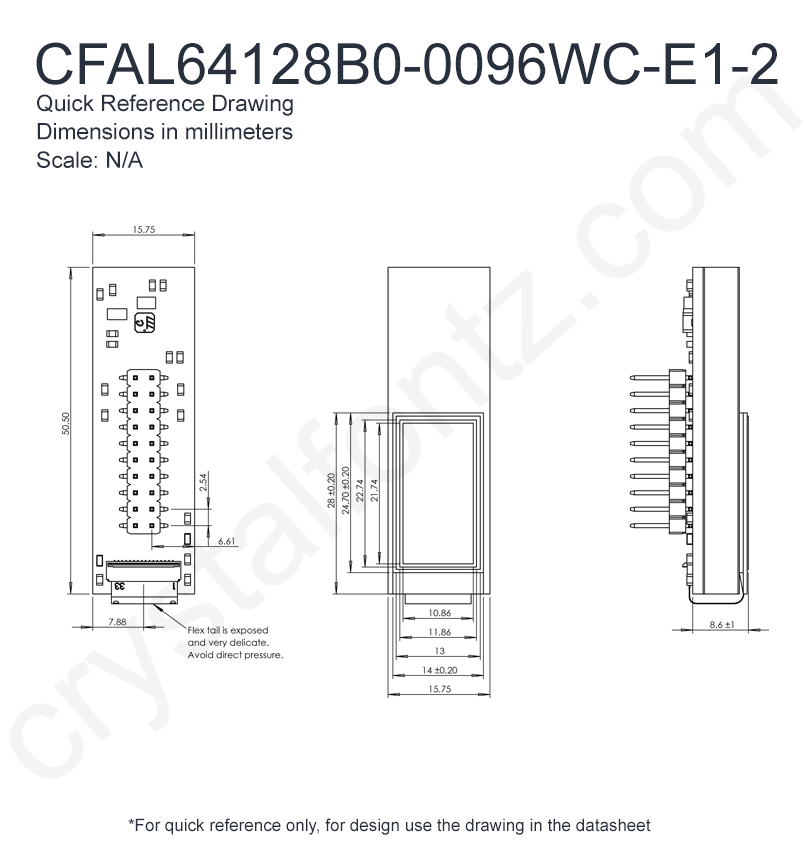

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 64 x 128
Module Overall width height depth
millimeters 14 47.1 8.3
inches 0.551 1.854 0.327
Diagonal Dimension 0.96"
Active Area width height
millimeters 10.86 21.74
inches 0.428 0.856
Dot Pitch width height
millimeters 0.17 0.17
inches 0.007 0.007
Weight 9.8g
Pin Count 20

Optical Characteristics

Glass Type OLED
Foreground Color White
Background Color Black

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Current Typical 20.5mA

Environmental

Operating Temperatures min max
Celsius -40° 70°
Fahrenheit -40° 158°
Storage Temperatures min max
Celsius -40° 85°
Fahrenheit -40° 185°

Electronics

Interface I2C, SPI

Miscellaneous

Nits 250
Touch Screen In-Cell
For reference only. For design purposes, please use the specifications in the datasheet.
