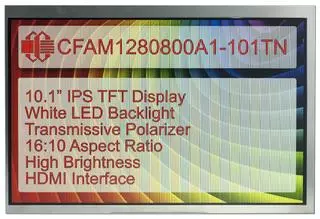

1280x800 10.1" HDMI TFT LCD
Part Number: CFAM1280800A1-101TN
Designed specifically to mount to a Raspberry Pi, this 10.1" IPS HDMI TFT display mounts to the RPi's 40-pin header, but communicates using HDMI. The 40-pin header is passed through enabling all of the RPi's GPIOs to be used on the CON6 connector on the display.This full-color TFT display is super-sharp and offers an HDMI input for quick integration. Plug in a fire stick and make this display into your entertainment console. Plug in a compute stick and you've got an inexpensive handheld computer.
This display does not include a touchscreen. Check out the capacitive 10.1" Touchscreen IPS TFT HDMI Display, and 10.1" HDMI Resistive Touch TFT versions if you need a touchscreen.
Add our HDMI to HDMI Converter to quickly attach it to your RPi. We also recommend an additional power supply for powering the backlight when controlling it via a Raspberry Pi.
Part Number: CFA - Crystalfontz
M - Family of Modules
1280x800 - Resolution
A1 - Series and Revision
101 - Diagonal Size 10.1"
TN - No Touchscreen
| Quantity | Unit Price |
|---|---|
| 1 | $275.61 |
30 Units In-Stock & Ready To Ship
Pricing is subject to change.* Contact us about potential lead times.
Other components worth considering
Product Note:
The following needs to be added to the config.txt file:
hdmi_group=2
hdmi_mode=87
hdmi_cvt 1280 800 60 6 0 0 0
The following line needs to be commented:
#dtoverlay=vc4-kms-v3d
Explanation:
hdmi_group=2: This sets the HDMI group to 2, which defines the video mode.
hdmi_mode=87: This sets the HDMI mode to 87, which is a custom video mode.
hdmi_cvt 1280 800 60 6 0 0 0: This generates a custom video mode with a resolution of 1280x800 at 60Hz refresh rate. The parameters after hdmi_cvt define the width, height, refresh rate, aspect ratio, margins, and interlacing.
Commenting out 'dtoverlay=vc4-kms-v3d' ensures that it is not processed by the system and to prioritize the custom HDMI settings defined above.
