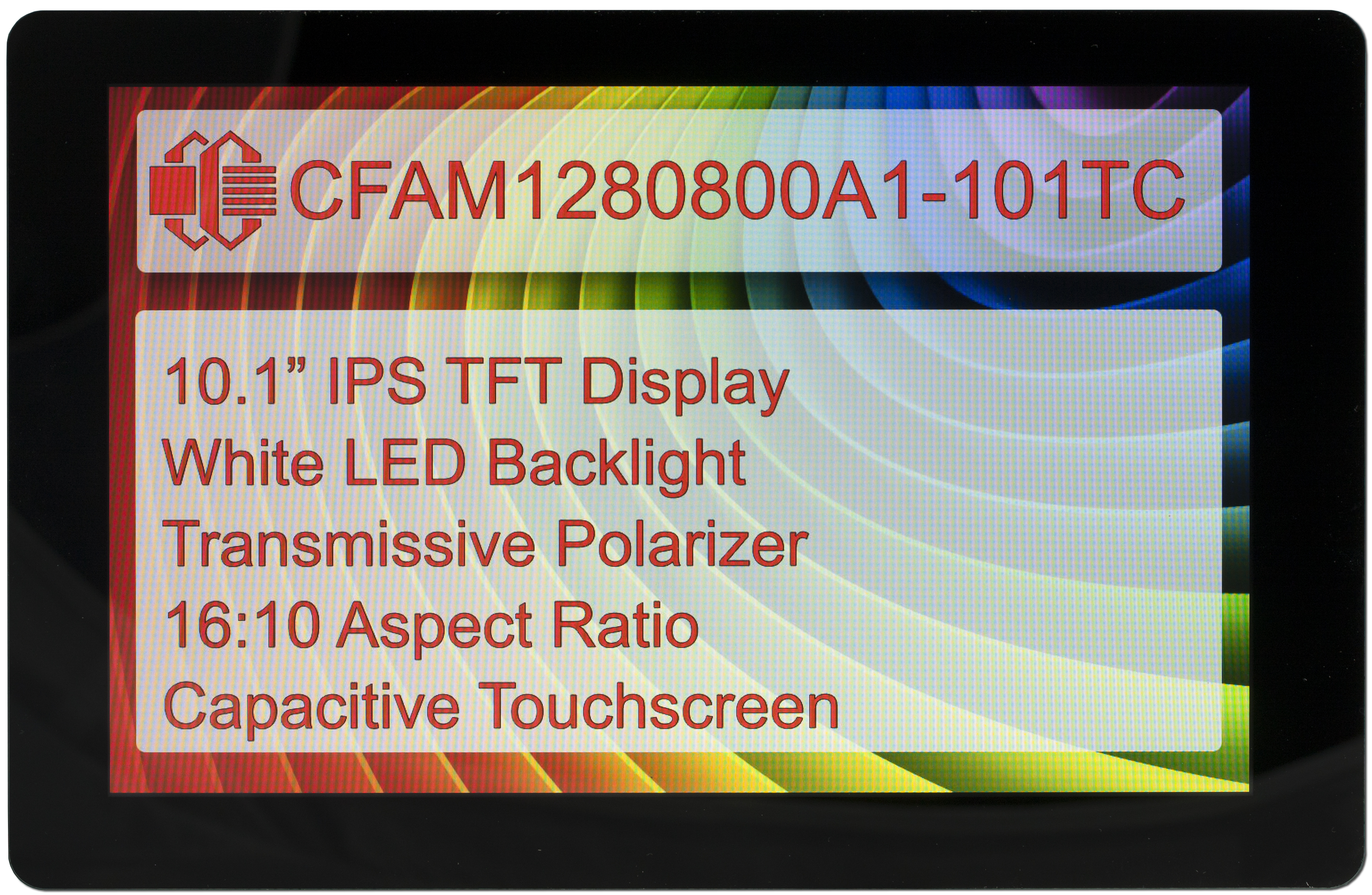

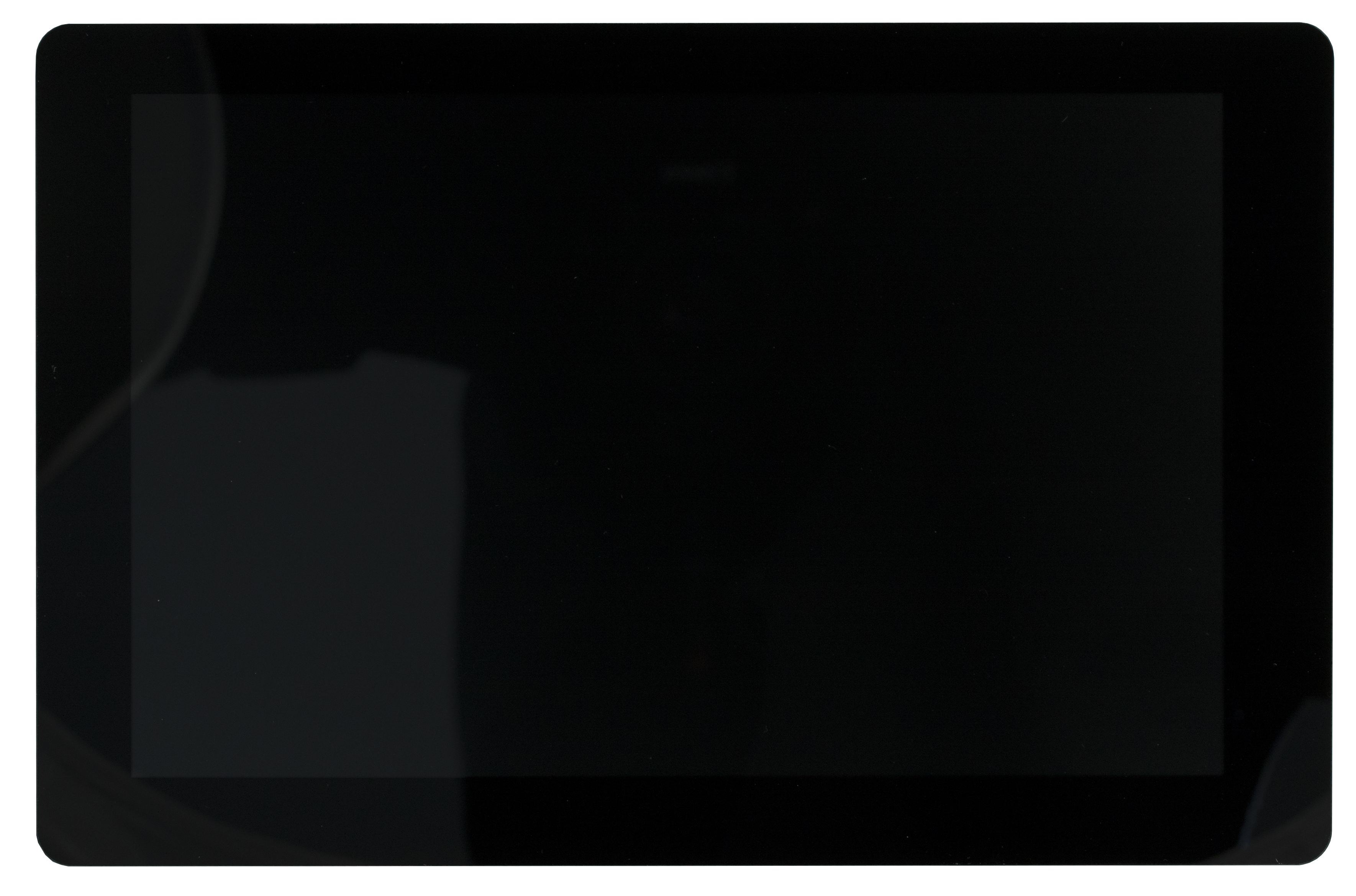

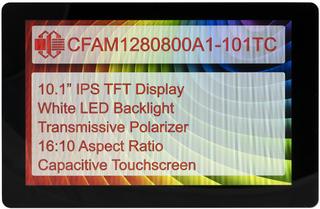

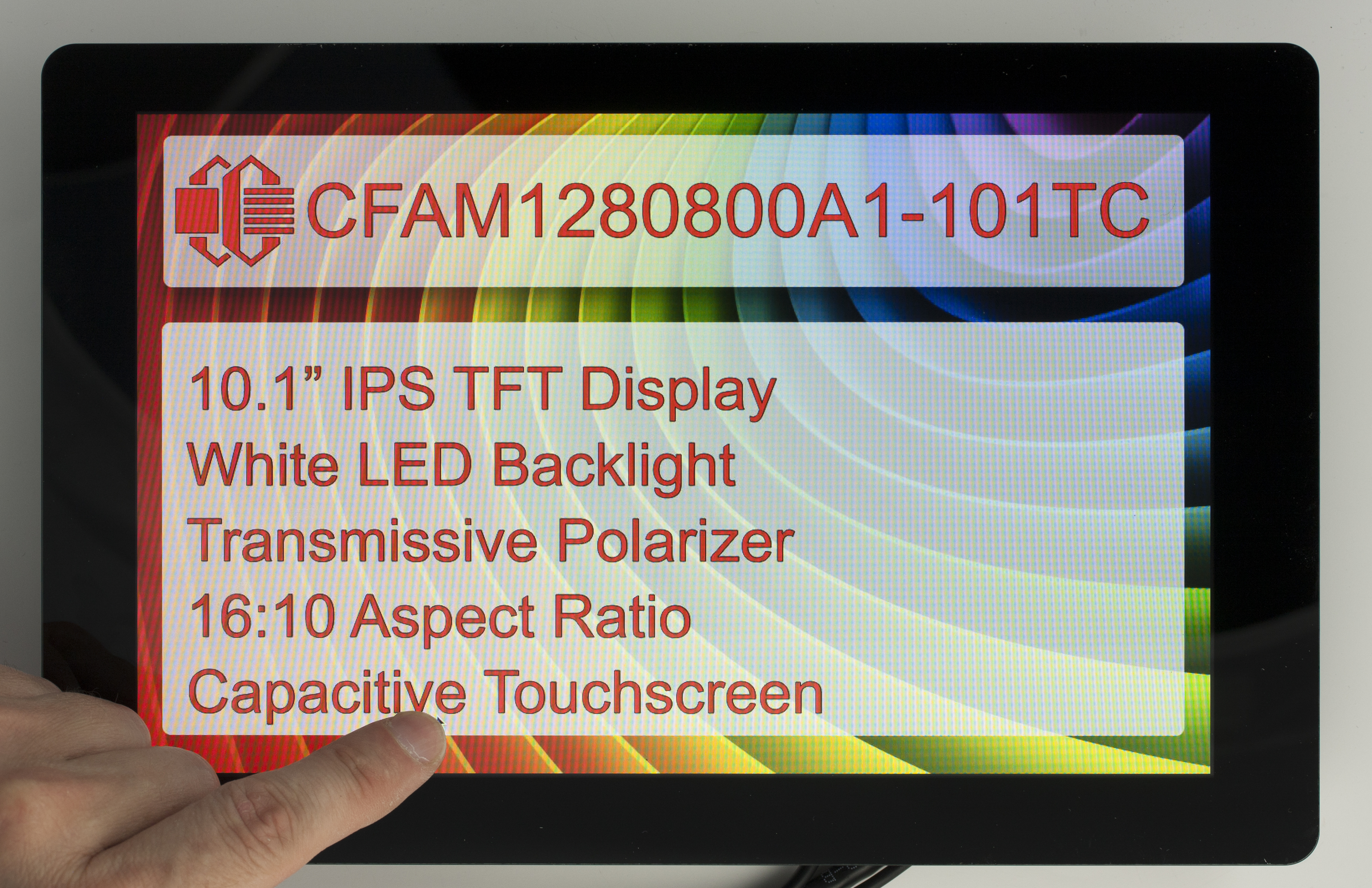

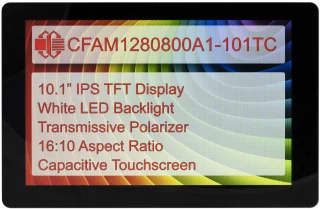

10.1" IPS Capacitive Touchscreen HDMI Display

Part Number: CFAM1280800A1-101TC

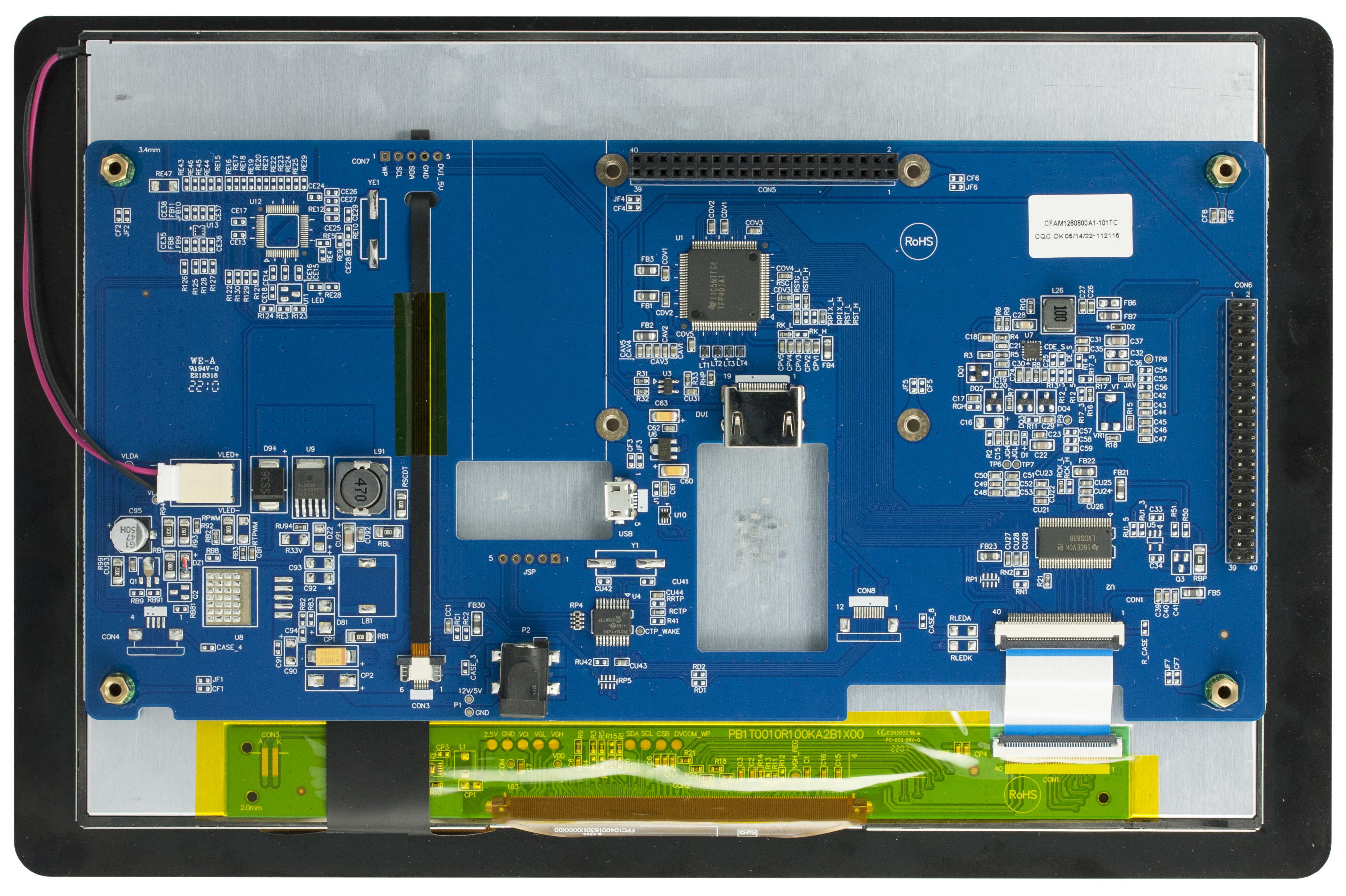

This 10.1" capacitive touch display has an HDMI driver board that makes it a great choice to integrate with a Windows or Linux HDMI-compatible device such as a Raspberry Pi.

The TFT LCD IPS (thin-film transistor liquid crystal display with in-plane switching) means the display is super-bright and beautifully crisp with a wider viewing angle than standard TN TFT displays.

Two things to note if you are considering this display: 1) we've found that the display's power requirements are a bit high for the RPi to handle, so we recommend using this additional power supply for powering the backlight. 2) This device's touch-screen drivers are not supported by the Android OS.

To integrate this display with a Raspberry Pi use our Short USB for RPi and HDMI to HDMI Converter, and the additional power supply mentioned above.

Qty:
Quantity Price
1 $199.50
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering

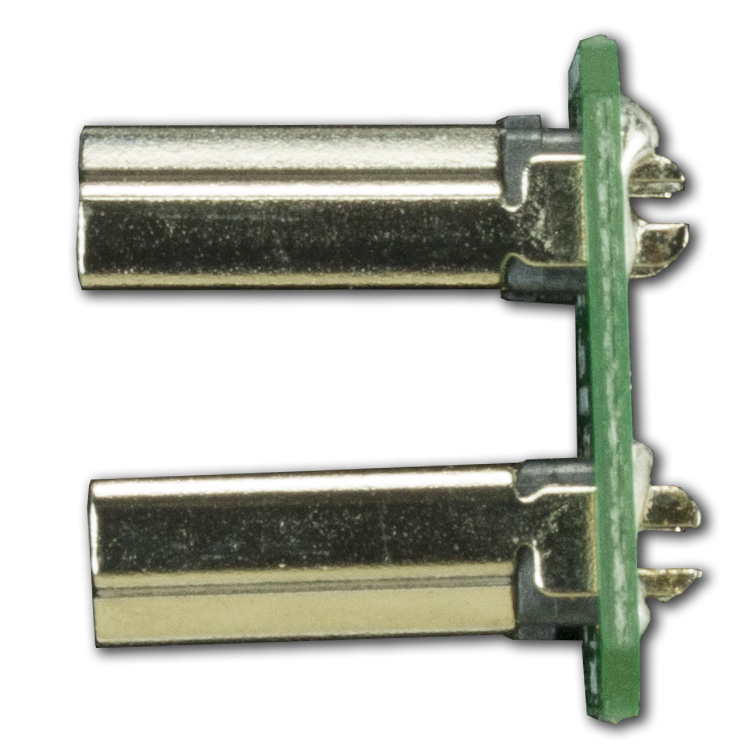

4504 HDMI to HDMI Converter
Easily connect it to your rPi $6.20 ea.

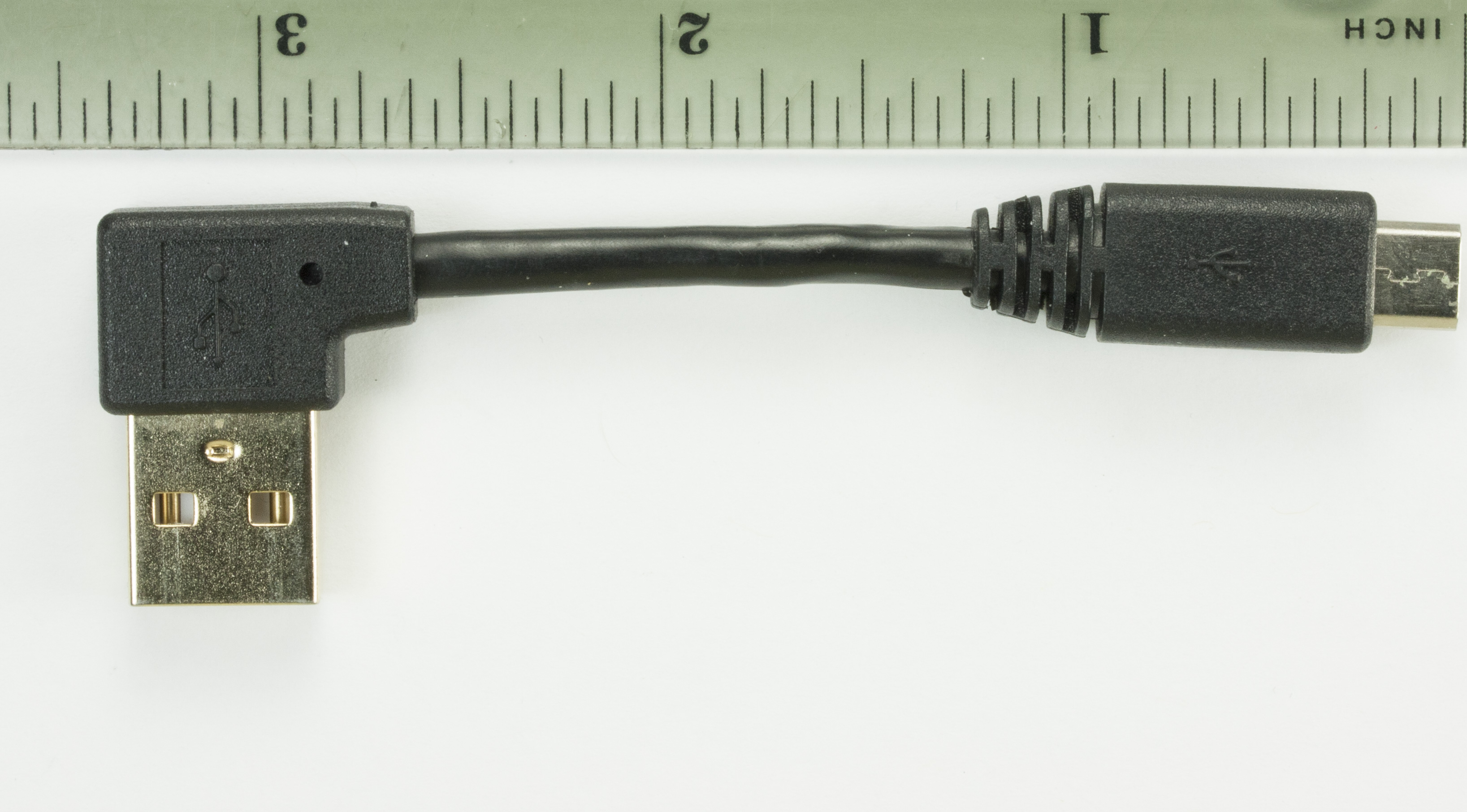

4503 Short USB for RPi
Need a short USB? $6.27 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAM1280800A1-101TC or RSS RSS feed for changes to CFAM1280800A1-101TC for CFAM1280800A1-101TC

TECHNICAL SPECS

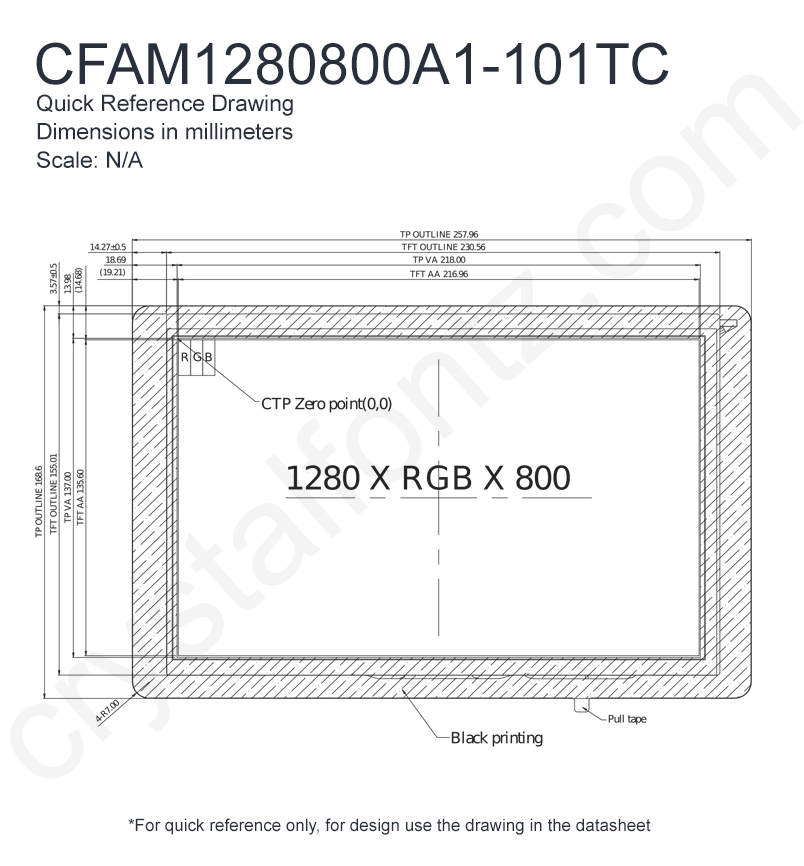

Physical Characteristics

Column Dots x Row Dots 1280 x 800
Module Overall width height depth
millimeters 257.96 168.6 28.7
inches 10.156 6.638 1.130
Diagonal Dimension 10.1"
Viewing Area width height
millimeters 218 137
inches 8.583 5.394
Active Area width height
millimeters 216.96 135.6
inches 8.542 5.339
Dot Pitch width height
millimeters 0.1695 0.1695
inches 0.0067 0.0067
Weight 710g
Pin Count 40

Optical Characteristics

Polarizer IPS Transmissive
View Angle 80°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 4.9V
Supply Voltage for Logic Maximum 5.1V
Supply Voltage for Logic Typical 5V
Supply Current Maximum 2.6mA
Supply Current Typical 1.7mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface HDMI

Miscellaneous

Nits 900
Touch Screen Capacitive

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAM1280800A1-101TC or RSS RSS feed for changes to CFAM1280800A1-101TC

Part Change Notice #11216: 10.1" IPS Capacitive Touchscreen HDMI Display is now available!

New Product: CFAM1280800A1-101TC
Date Issued: July 13, 2023
Summary: 10.1" IPS Capacitive Touchscreen HDMI Display is now available!
Description: CFAM1280800A1-101TC has been released on the website (https://www.crystalfontz.com/product/cfam1280800a1101tc-ips-hdmi-capacitive-touch-display) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
