1280x800 10.1" HDMI TFT LCD

Part Number: CFAM1280800A1-101TN

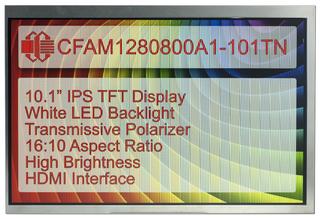

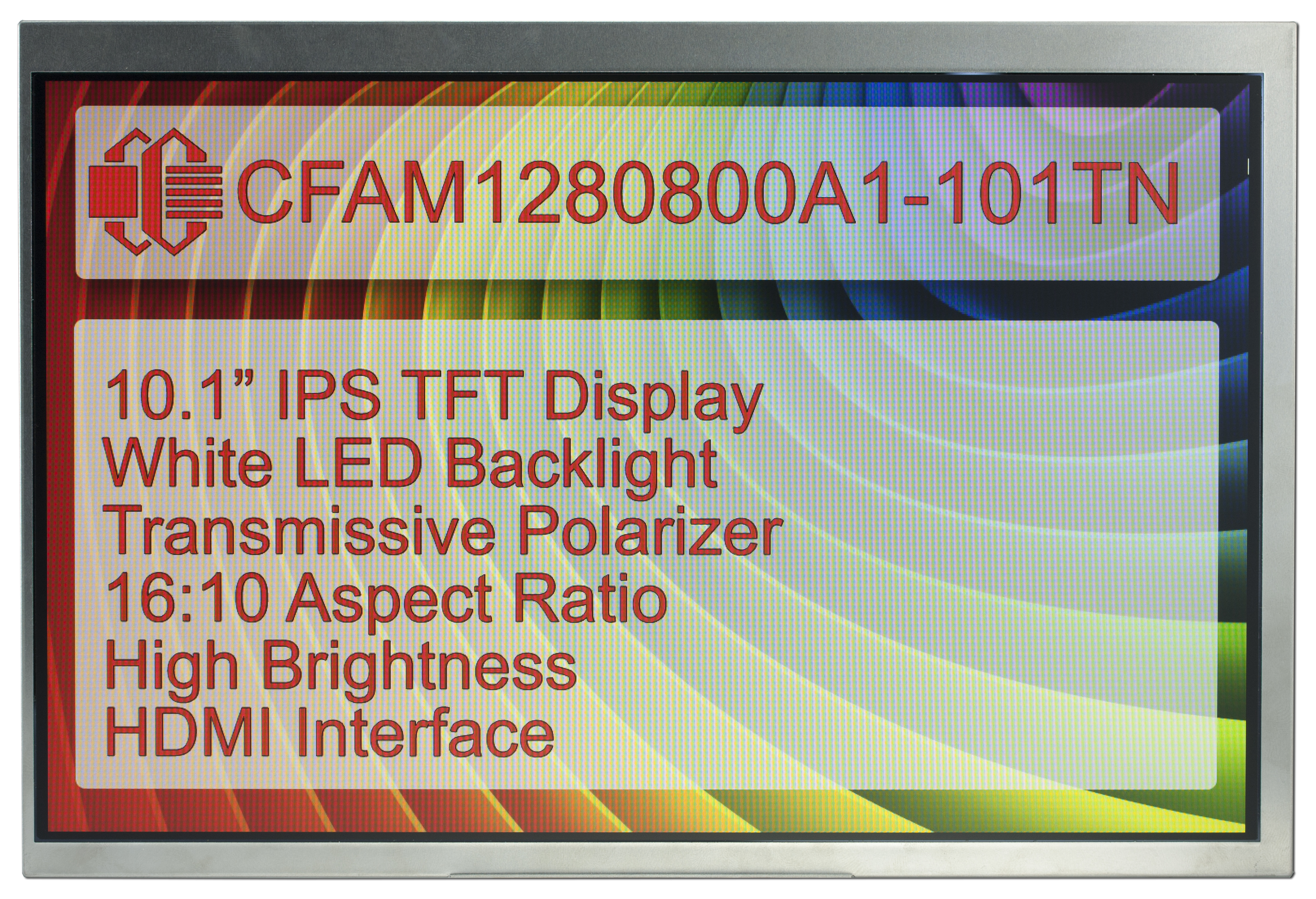

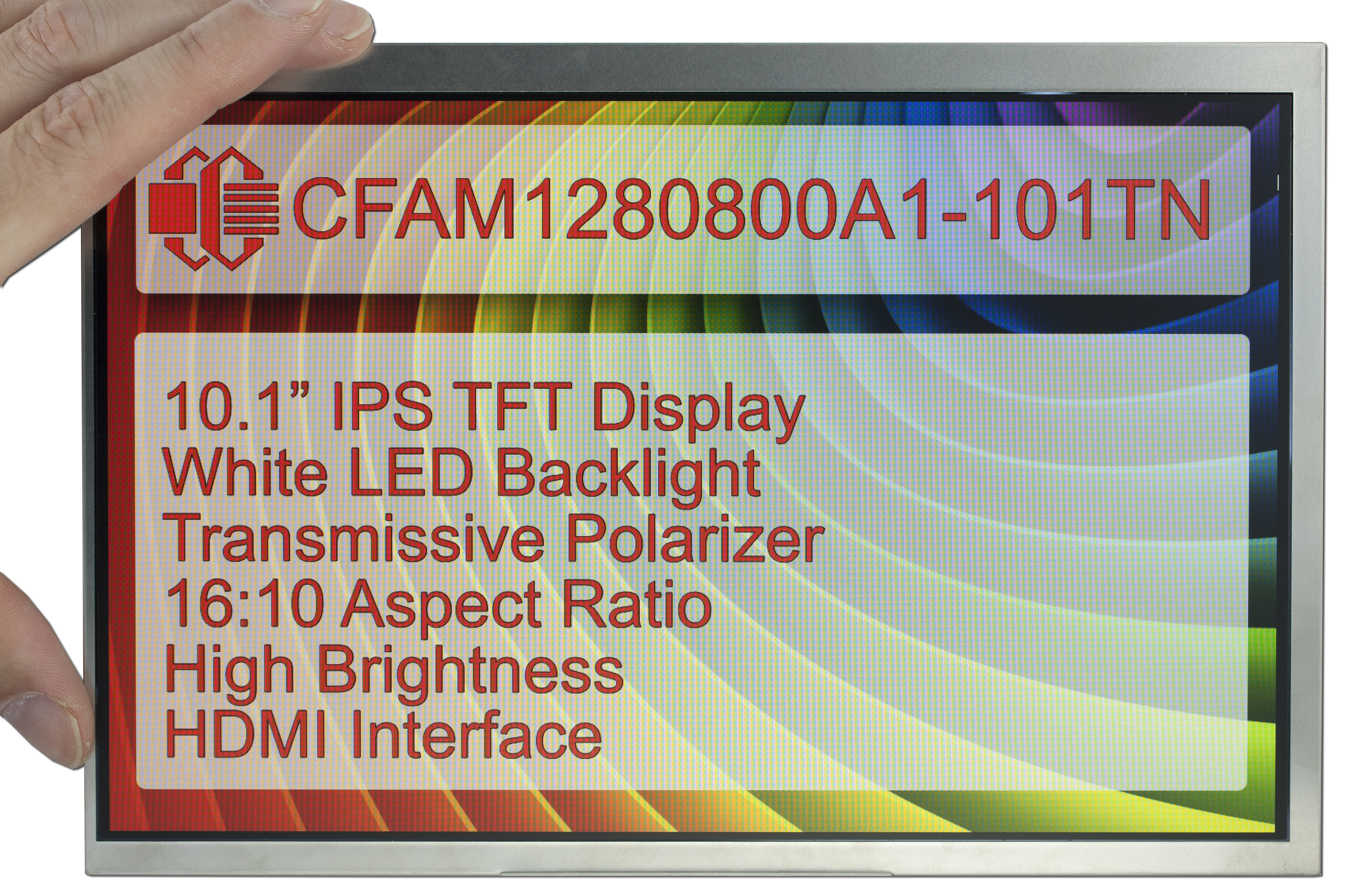

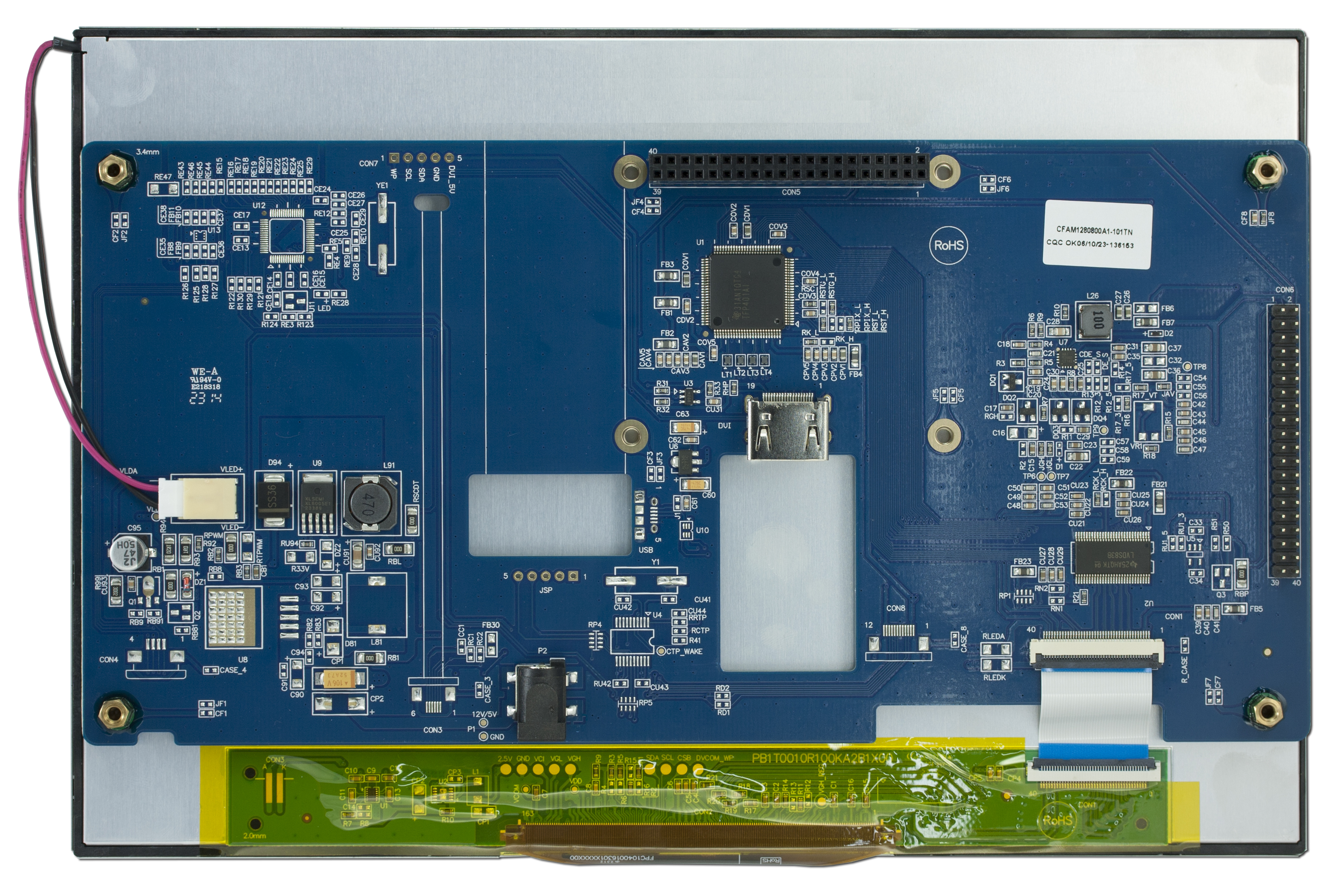

Designed specifically to mount to a Raspberry Pi, this 10.1" IPS HDMI TFT display mounts to the RPi's 40-pin header, but communicates using HDMI. The 40-pin header is passed through enabling all of the RPi's GPIOs to be used on the CON6 connector on the display.

This full-color TFT display is super-sharp and offers an HDMI input for quick integration. Plug in a fire stick and make this display into your entertainment console. Plug in a compute stick and you've got an inexpensive handheld computer.

This display does not include a touchscreen. Check out the capacitive 10.1" Touchscreen IPS TFT HDMI Display, and 10.1" HDMI Resistive Touch TFT versions if you need a touchscreen.

Add our HDMI to HDMI Converter to quickly attach it to your RPi. We also recommend an additional power supply for powering the backlight when controlling it via a Raspberry Pi.

Part Number: CFA - Crystalfontz
M - Family of Modules
1280x800 - Resolution
A1 - Series and Revision
101 - Diagonal Size 10.1"
TN - No Touchscreen

Product Variations

Touchscreen

None Capacitive Resistive

Physical Characteristics

Column Dots x Row Dots

1280 x 800

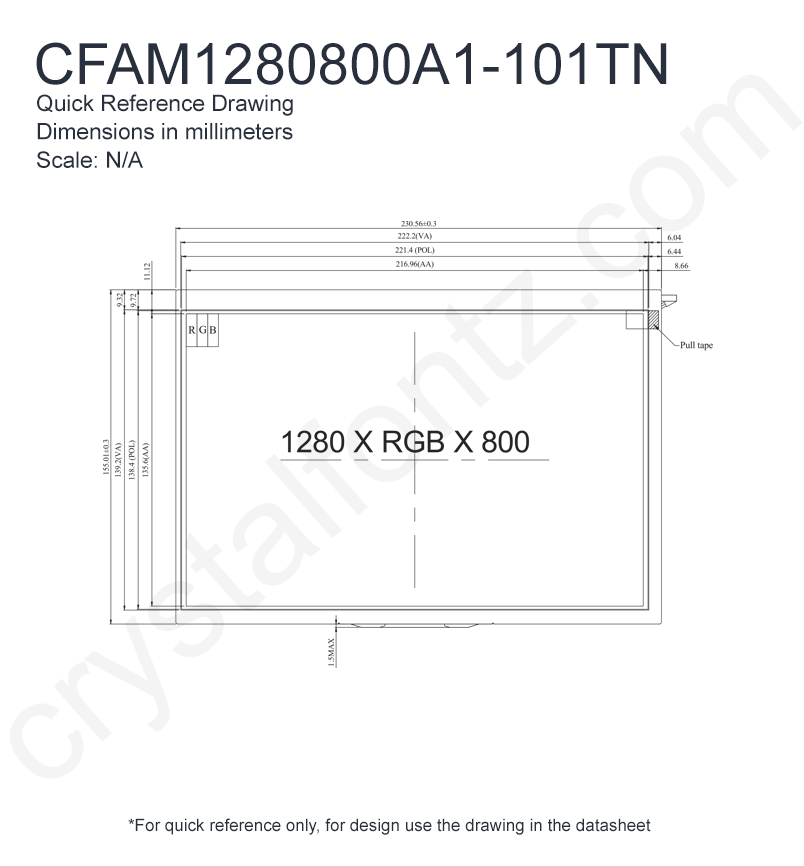

Module Overall	width	height	depth
millimeters	230.56	155.01	25.6
inches	9.08	6.10	1.01

Diagonal Dimension

10.1"

Viewing Area	Width	Height
millimeters	220.6	138.7
inches	8.69	5.46

Active Area	Width	Height
millimeters	216.96	135.6
inches	8.54	5.34

Dot Pitch	Width	Height
millimeters	0.1695	0.1695
inches	0.0067	0.0067

Weight

391g

Optical Characteristics
Optical Characteristics

Polarizer Transmissive

Backlight Color White

Backlight Type LED

Foreground Color RGB

Background Color Dark
Electrical Specification
Electrical Specifications

Supply Voltage for Logic Minimum 4.9V

Supply Voltage for Logic Maximum 5.1V

Supply Voltage for Logic Typical 5V

Supply Current Maximum 2300mA

Supply Current Typical 1500mA
Environmental
Environmental

Operating Temperatures min max

Celsius -20° 70°

Fahrenheit -4° 158°

Storage Temperatures min max

Celsius -30° 80°

Fahrenheit -22° 176°
Electronics
Electronics

Interface HDMI
Datasheets

picture_as_pdf
CFAM1280800A1-101TN Datasheet
Compliance Documents

picture_as_pdf Declaration of Conformity RoHS2

picture_as_pdf Declaration of Conformity REACH
<

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Note
Change Notices

Product Note:

The following needs to be added to the config.txt file:
hdmi_group=2
hdmi_mode=87
hdmi_cvt 1280 800 60 6 0 0 0

The following line needs to be commented:
#dtoverlay=vc4-kms-v3d

Explanation:
hdmi_group=2: This sets the HDMI group to 2, which defines the video mode.
hdmi_mode=87: This sets the HDMI mode to 87, which is a custom video mode.
hdmi_cvt 1280 800 60 6 0 0 0: This generates a custom video mode with a resolution of 1280x800 at 60Hz refresh rate. The parameters after hdmi_cvt define the width, height, refresh rate, aspect ratio, margins, and interlacing.
Commenting out 'dtoverlay=vc4-kms-v3d' ensures that it is not processed by the system and to prioritize the custom HDMI settings defined above.

Part Change Notice #11305: 1280x800 10.1" HDMI TFT LCD is now available

New Product:	CFAM1280800A1-101TN
Date Issued:	October 30, 2024
Summary:	1280x800 10.1" HDMI TFT LCD is now available
Description:	CFAM1280800A1-101TN has been released on our website (https://www.crystalfontz.com/product/cfam1280800a1101tn-1280x800-hdmi-tft-lcd) and is now available for sale. Orders can be placed directly from our website, or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
