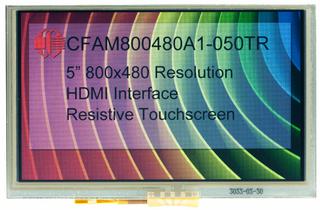

800x480 Resistive Touch TFT with HDMI

Part Number: CFAM800480A1-050TR

This 5" TFT display module includes a control board specifically designed to connect to a 40-pin header on a Raspberry Pi, so the display acts as a Raspberry Pi hat. It also includes a pass through of the 40-pin connector so none of the RPi's functionality is lost. To connect to the Raspberry Pi HDMI, this Short USB for RPi cable and HDMI to HDMI connector are useful.

Even if the Raspberry Pi isn't how you're looking to connect this HDMI display module, the standard-sized HDMI connector allows it to be used with many HDMI outputs.

This display is small and compact and is easy to use with a Raspberry Pi, a Mini-Computer or an embedded system that has HDMI output.

Part Number:
CFA - Crystalfontz America
M - HDMI Module
800480 - 800x480 pixel resolution
A1 - Family and Revision
050 - 5" diagonal dimension
T - Standard Brightness
R - Resistive Touchscreen

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  800 x 480

  Module Overall	width	height	depth
  millimeters	120.7	75.8	23
  inches	4.75	2.98	0.91

  Diagonal Dimension

  5"

  Viewing Area	Width	Height
  millimeters	111.7	65.91
  inches	4.40	2.60

  Active Area	Width	Height
  millimeters	108	64.8
  inches	4.25	2.55

  Dot Size	Width
  millimeters	0.135
  inches	0.0053

  Dot Pitch	Height
  millimeters	0.135
  inches	0.0053

  Weight

  123.2g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transmissive
  View Direction	12 o'clock
  View Angle	70°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.9V
  Supply Voltage for Logic Maximum	5.1V
  Supply Voltage for Logic Typical	5V

  Supply Voltage for Driving Panel Typical	5V
  Supply Current Maximum	680mA
  Supply Current Typical	450mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-30°	70°
  Fahrenheit	-22°	158°

  Storage Temperatures	min	max
  Celsius	-20°	80°
  Fahrenheit	-4°	176°

• cable Electronics

  Electronics

  Interface

  HDMI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAM800480A1-050TR Datasheet
