7" 800x480 Resistive Touchscreen TFT Display
Part Number: CFAM800480A1-070TR

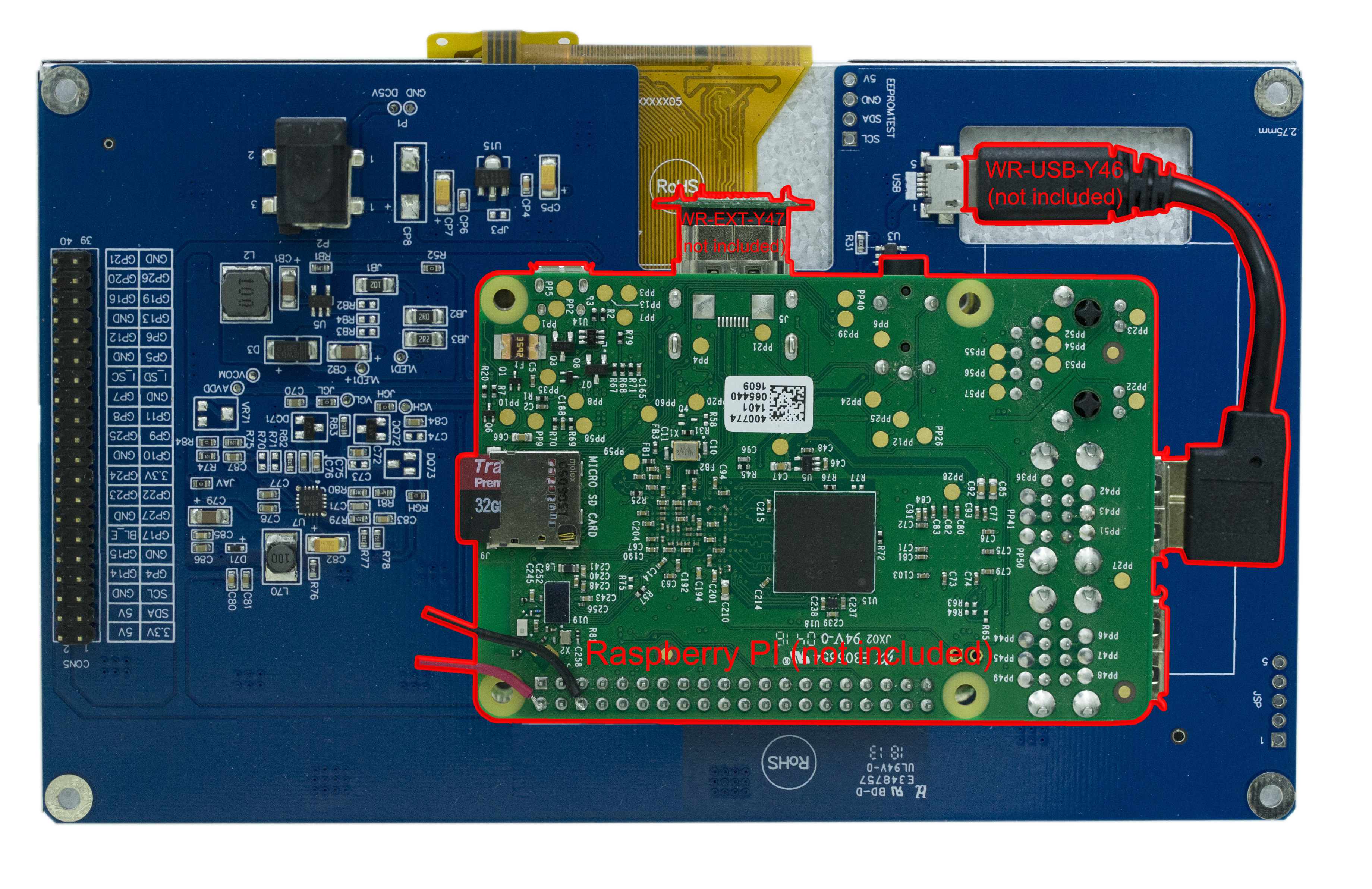

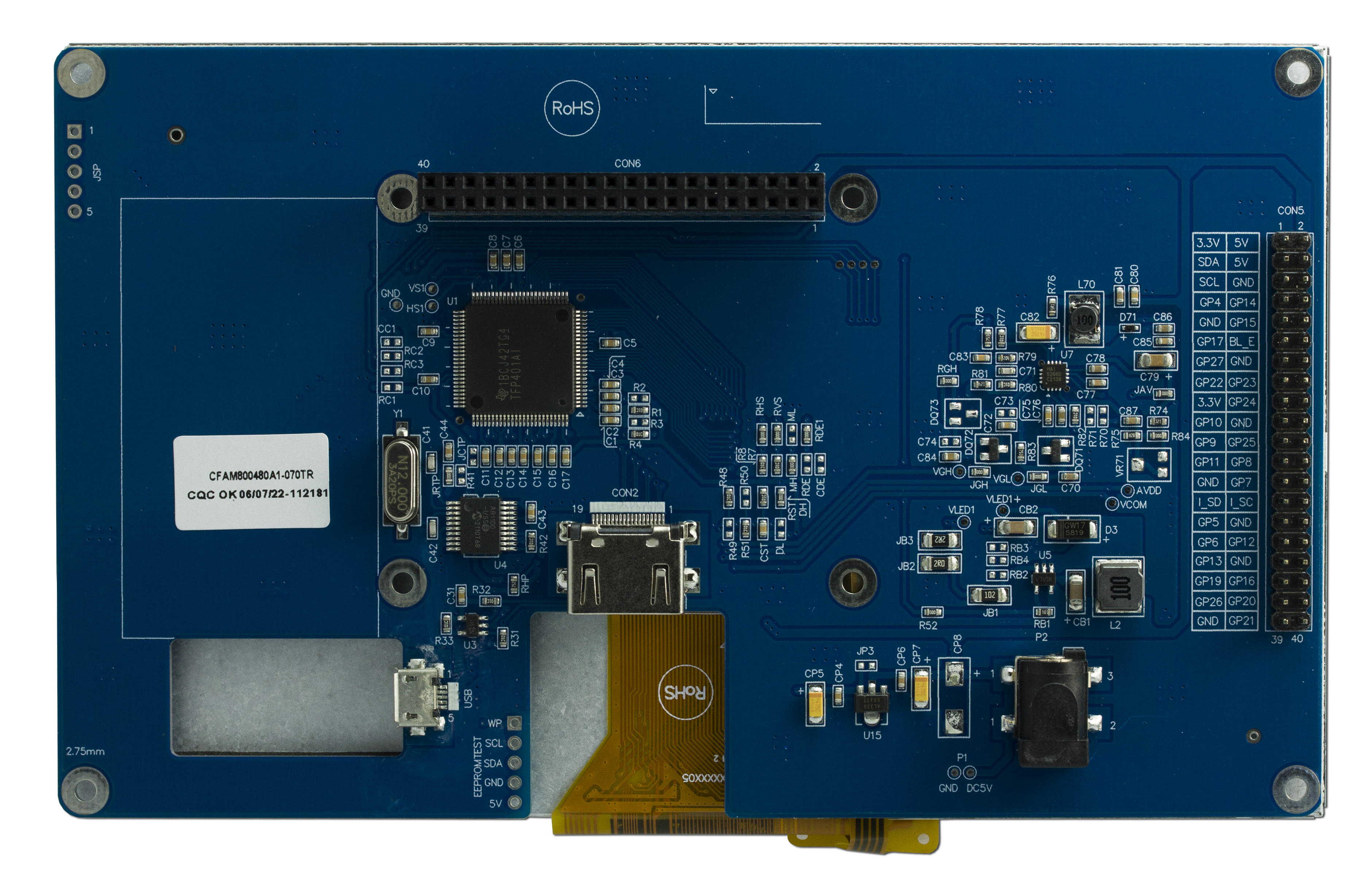

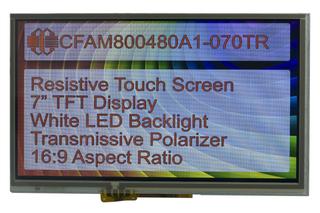

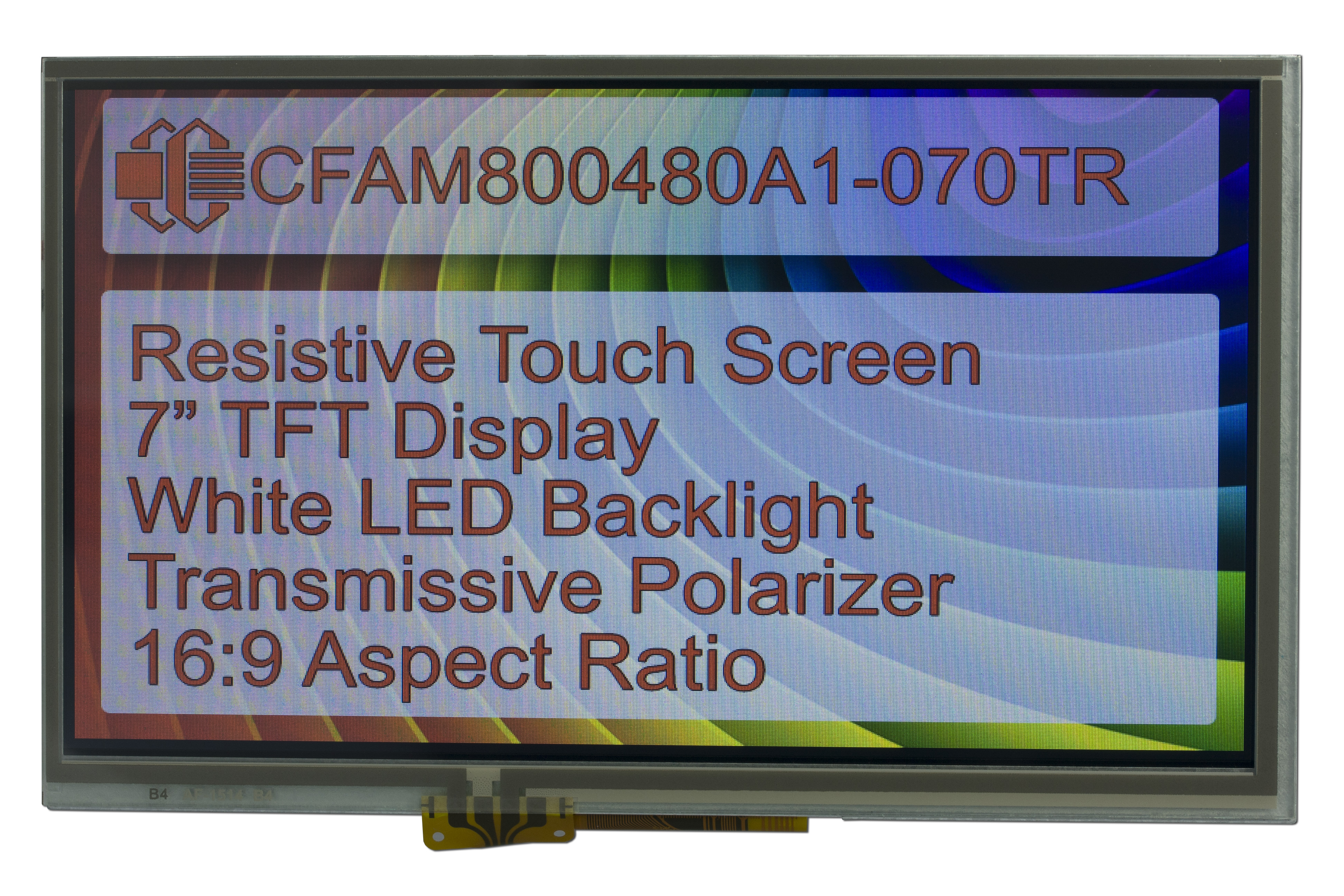

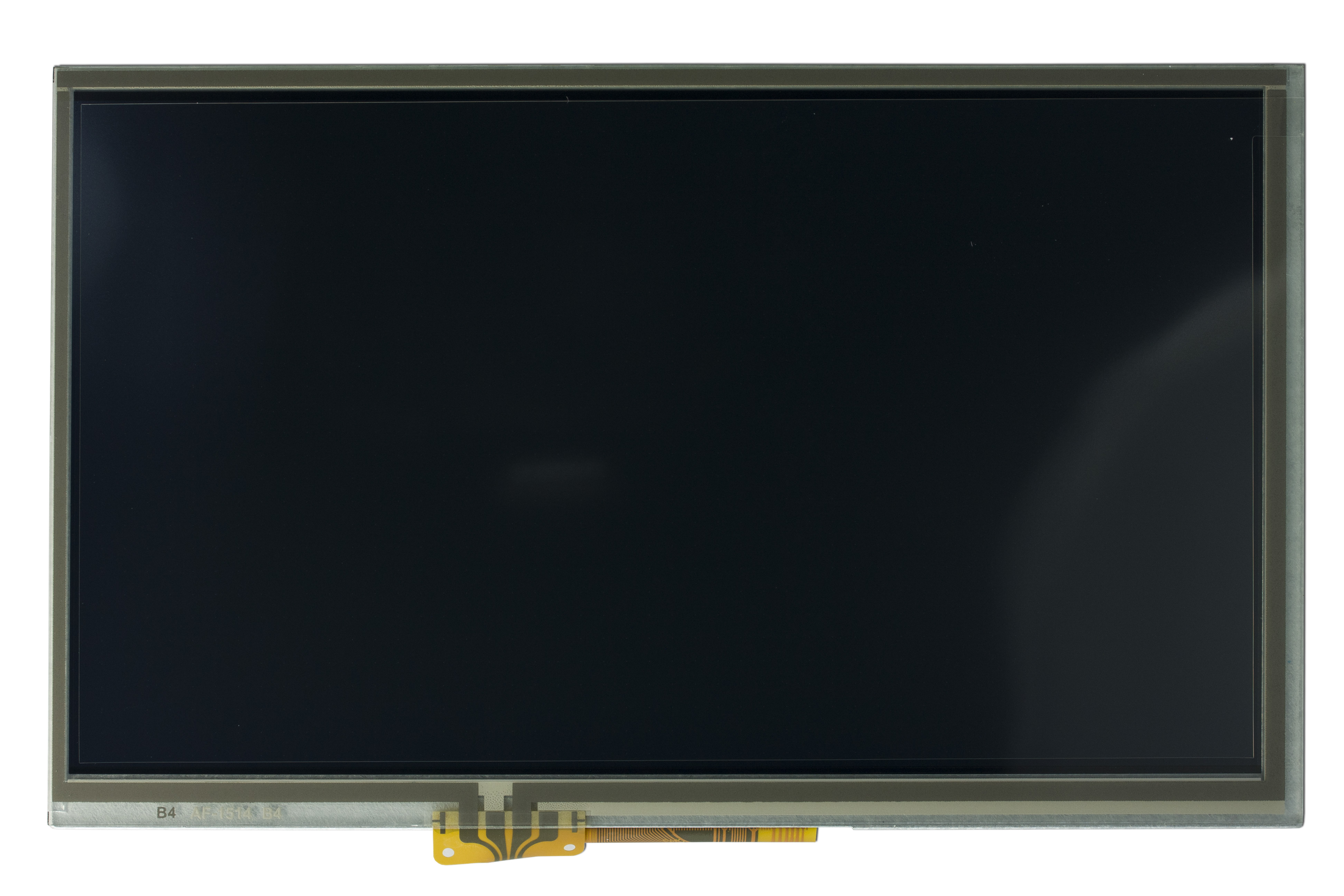

This 7" TFT comes with an HDMI adapter board so it can easily be plugged into a Raspberry Pi or other HDMI system. It boasts a wide operating temperature range, a 16:9 aspect ratio, a transmissive polarizer, and a white LED backlight. This LCD has a 12:00 o'clock viewing direction and the screen is anti-glare.

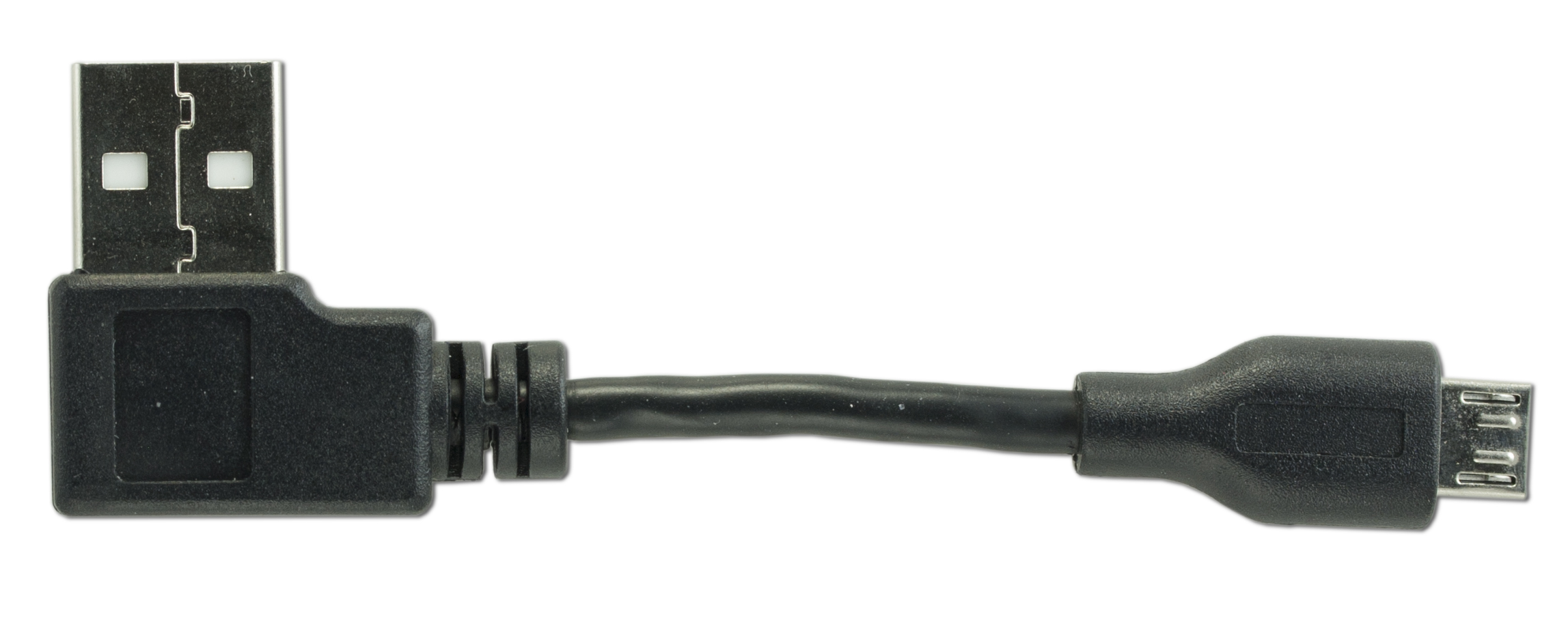

The touchscreen is connected to a host system via the micro USB connector (we recommend our Short USB cable). The display capabilities are done via HDMI, we recommend our small HDMI to HDMI header for a tight interface with the RPi.
This display requires more power than the Raspberry Pi can reliably supply. We've used this additional power supply for powering the backlight when controlling it via a Raspberry Pi.
The resistive touchscreen provides a perfect human interface for your applications. Please note that this device's touch-screen drivers do not seem to be supported by the Android OS.
Part Number:
CFA- Crystalfontz America
M- HDMI interface
800480- Pixel resolution
A1- Family and revision
070- 7" diagonal
T- Standard Brightness
R- Resistive touchscreen
The touchscreen is connected to a host system via the micro USB connector (we recommend our Short USB cable). The display capabilities are done via HDMI, we recommend our small HDMI to HDMI header for a tight interface with the RPi.
This display requires more power than the Raspberry Pi can reliably supply. We've used this additional power supply for powering the backlight when controlling it via a Raspberry Pi.
The resistive touchscreen provides a perfect human interface for your applications. Please note that this device's touch-screen drivers do not seem to be supported by the Android OS.
Part Number:
CFA- Crystalfontz America
M- HDMI interface
800480- Pixel resolution
A1- Family and revision
070- 7" diagonal
T- Standard Brightness
R- Resistive touchscreen
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Compliance Documents
TECHNICAL SPECS

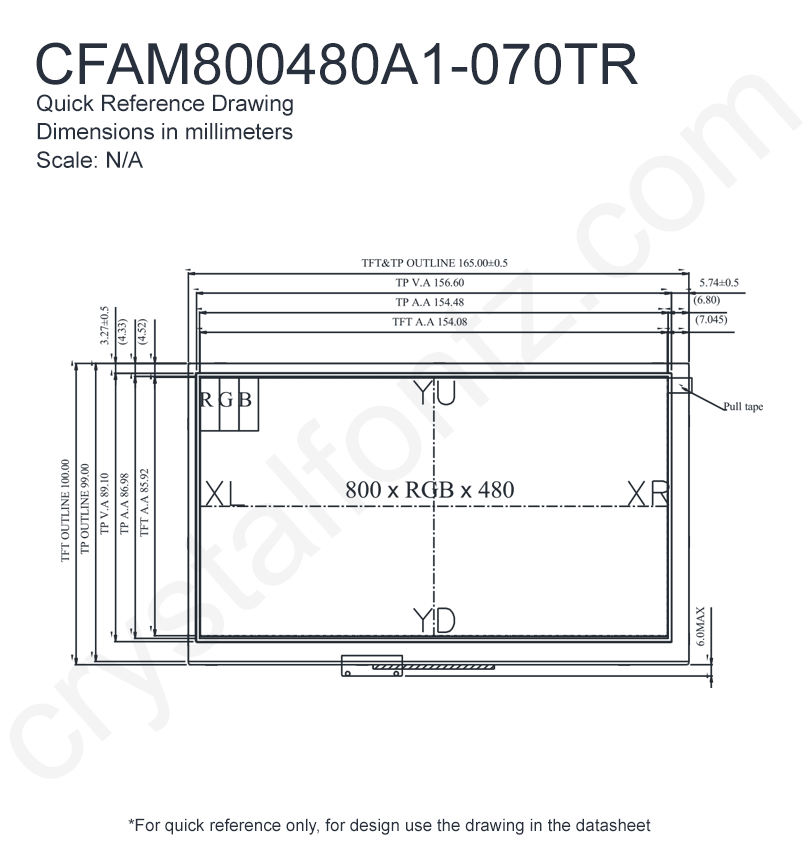

Physical Characteristics
| Column Dots x Row Dots | 800 x 480 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 165 | 100 | 25.3 |
| inches | 6.496 | 3.937 | 0.996 |
| Diagonal Dimension | 6.95" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 156.6 | 89.1 |
| inches | 6.165 | 3.508 |
| Active Area | width | height |
|---|---|---|
| millimeters | 154.08 | 85.92 |
| inches | 6.066 | 3.383 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.0642 | 0.179 |
| inches | 0.0025 | 0.0070 |
| Weight | 261g |
| Pin Count | 40 |
Optical Characteristics
| Glass Type | TFT |
| Polarizer | Transmissive |
| View Angle | 70° |
| Backlight Color | White |
| Backlight Type | LED |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 4.5V |
| Supply Voltage for Logic Maximum | 5.5V |
| Supply Voltage for Logic Typical | 5V |
| Supply Voltage for Driving Panel Typical | 5V |
| Supply Current Typical | 900mA |
Backlight Electrical Specifications
| Forward Current Typical | 1500mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Interface | HDMI |
Miscellaneous
| Touch Screen | Resistive |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
End-Of-Life #11175: CFAM800480A1070TR End-Of-Life Notification
| Product Affected: | CFAM800480A1-070TR |
| Date Issued: | February 17, 2023 |
| Summary: | CFAM800480A1070TR End-Of-Life Notification |
| Description: | These parts are being replaced with a new part and will no longer be available with the Innolux TFT display once the stock has been depleted. For up-to-date information on the replacement options, contact support@crystalfontz.com. |
| Reason: | Innolux is closing down its line that manufactures the display used on these parts. |
| Availability: | Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. |
Part Change Notice #11171: 7" 800x480 Resistive Touchscreen TFT Display is now available
| New Product: | CFAM800480A1-070TR |
| Date Issued: | January 25, 2023 |
| Summary: | 7" 800x480 Resistive Touchscreen TFT Display is now available |
| Description: | CFAM800480A1-070TR has been released on our website (https://www.crystalfontz.com/product/cfam800480a1070tr-800x480-resistive-touch-screen-tft) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions. |
For reference only. For design purposes, please use the specifications in the datasheet.
