42 x 65 Graphic LCD with Carrier Board

Part Number: CFAO4265A-TFK-CB

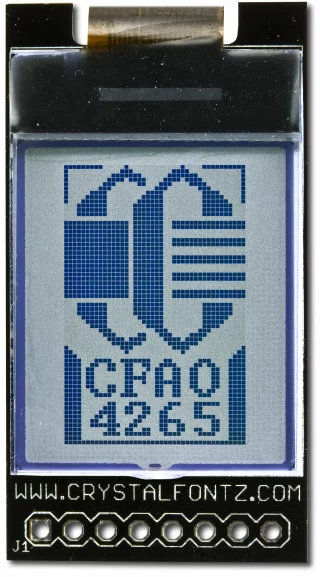

42 x 65 Graphic LCD with Carrier Board (CFAO4265A-TFK-CB)
42 x 65 Graphic LCD with Carrier Board
Close

Description

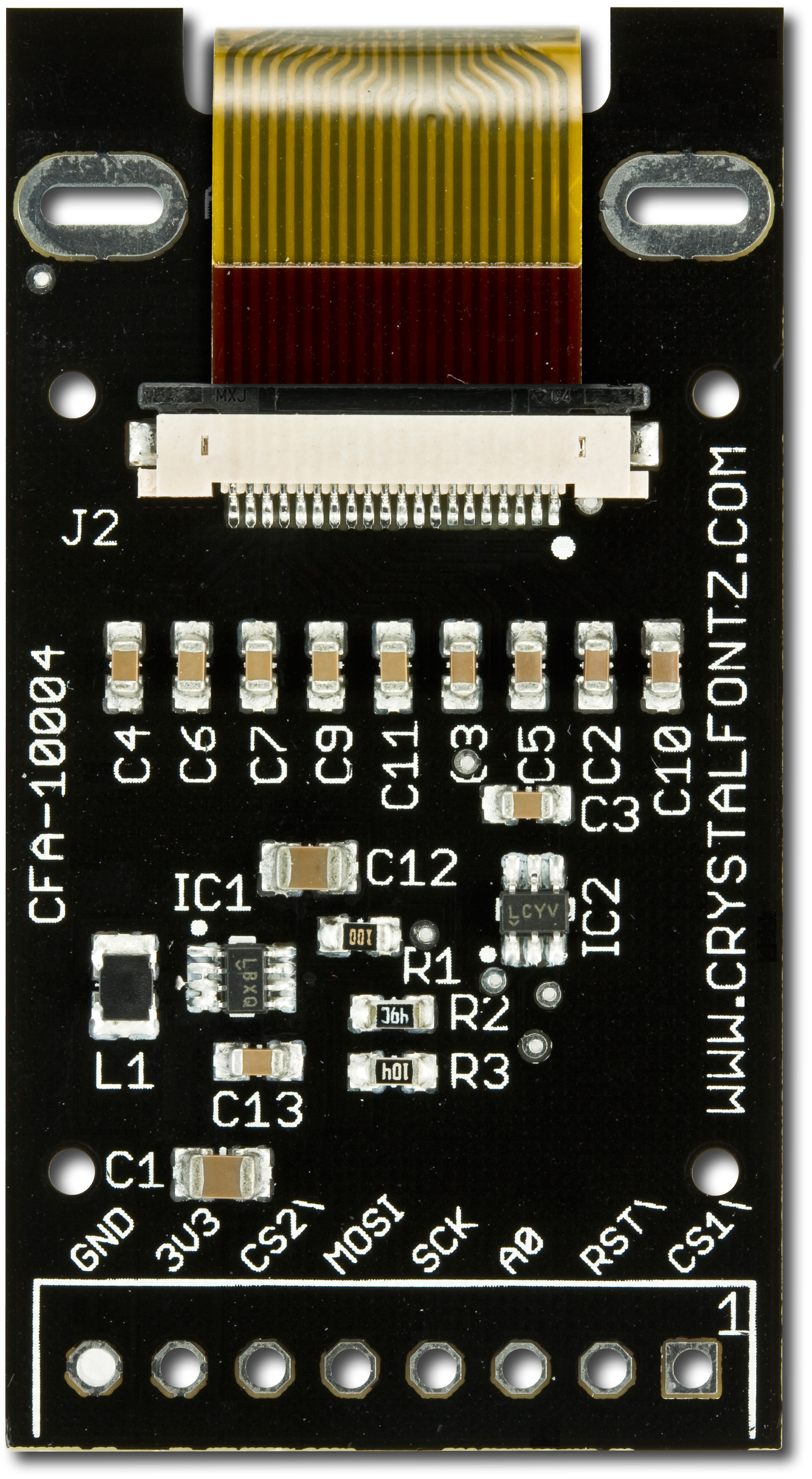

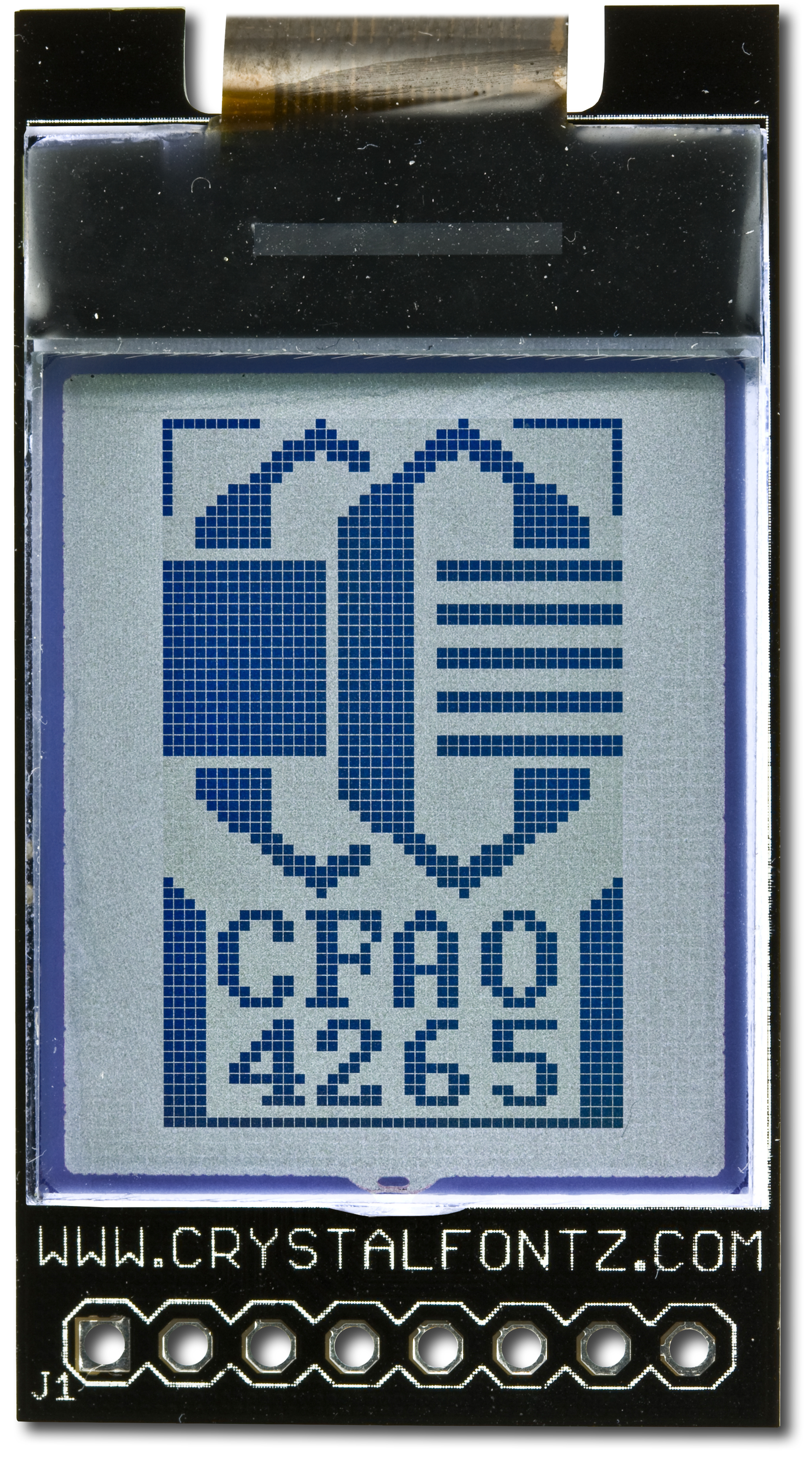

Streamline your development with this CFAO4265A-TFK display module mounted to a CFAB-10004 carrier board. The carrier board has the current-controlled, switching LED driver, including SPI control of the LED brightness. All external components for panel voltage generation are included.

  • COG (Chip-On-Glass) display module is mounted on the carrier board with the ZIF connector, the adhesive protection liner is removed, and backlight connections are already soldered.
  • By itself, the carrier board weighs 4 grams.
  • RoHS Compliant.
  • Crystalfontz America, Incorporated is ISO certified

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Weight 7.9g

Optical Characteristics

Electronics

Interface SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAO4265A-TFK-CB or RSS RSS feed for changes to CFAO4265A-TFK-CB

Part Change Notice #10648: Controller change from ST7565P to ST7565R

Products Affected: CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TFK-CB, CFAO4265A-TTL-CB
Date Issued: March 25, 2015
Summary: Controller change from ST7565P to ST7565R
Description: As part of our continuous improvement, the controller on the CFAO4265A display modules is changing from the Sitronix ST7565P to the ST7565R.
ECO-49.

Sitronix ST7565P controller datasheet:
https://www.crystalfontz.com/controllers/Sitronix/ST7565P/299

Sitronix ST7565R controller datasheet:
https://www.crystalfontz.com/controllers/Sitronix/ST7565R/300
Reason: Improved manufacturability, component availability, and lower cost.
Impact: This change effects all CFAO4265A parts. Testing has shown functional compatibility between the ST7565P and ST7565R.
There are no physical changes to the display.
Recommendation: It is recommended to obtain test units prior to implementing new parts in production volumes.
Availability: Inventory with ST765R controller will be available late Q2 / Early Q3 2015.
Price Change: Lower manufacturing costs are reflected in lower product pricing.

Product Update #10646: (New Product) CFAO4265A-TFK-CB

New Product: CFAO4265A-TFK-CB
Date Issued: March 3, 2015
Summary: (New Product) CFAO4265A-TFK-CB
Description: Miscellaneous: CFA-10004 carrier board plus CFAO4265A-TFK display.

Product Update #10375: New Product in Miscellaneous: CFAO4265A-TFK-CB

New Product: CFAO4265A-TFK-CB
Date Issued: November 8, 2011
Summary: New Product in Miscellaneous: CFAO4265A-TFK-CB
Description: CFAB-10004 carrier board plus CFAO4265A-TFK display.
