                The epaper display in this kit is no longer available. While we do not offer any direct replacements, perhaps one of our other epaper displays will fit your needs. Please contact our technical support team to get assistance in finding the right display.

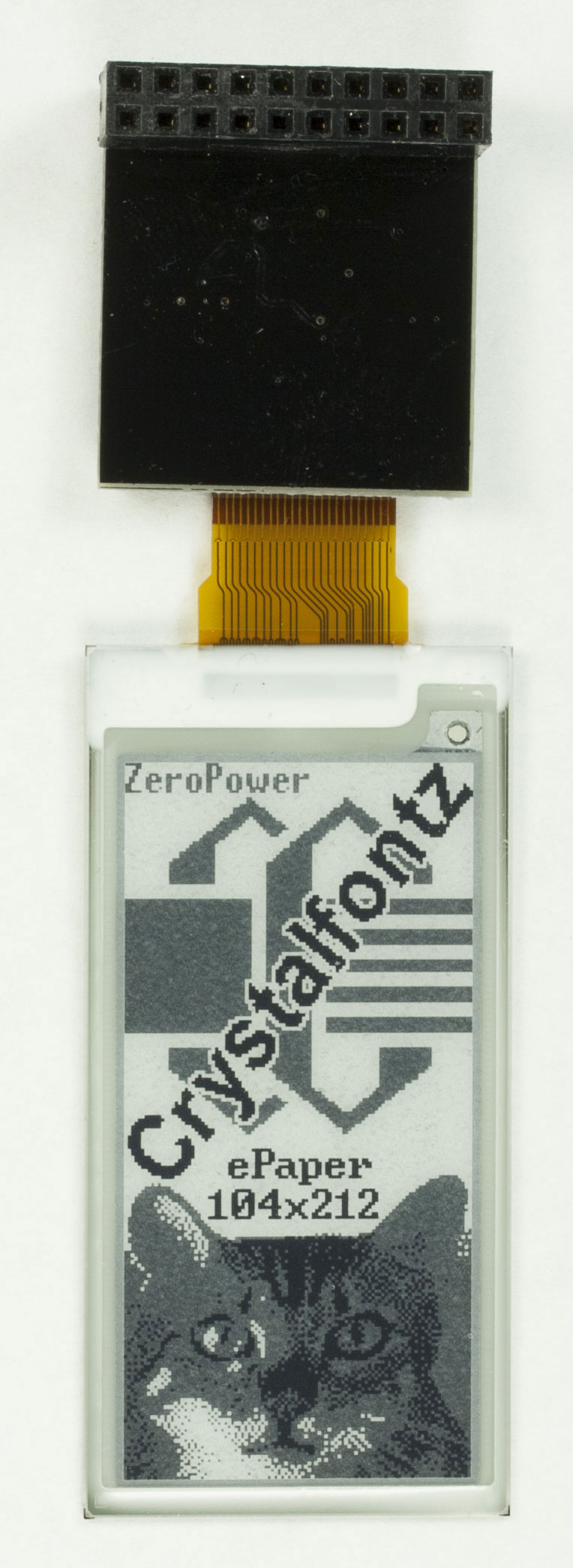

ePaper Breakout Kit - 2.13", 3-Level GrayscalePart Number: CFA213A0-0213
         Kit with a 2.13-inch 3-level grayscale ePaper display module and a breakout board will ease product development. Unassembled. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            104 x 212

    Module Overall        width
        height
        depth

        millimeters
        29.2
        59.2
        0.98

        inches
        1.15
        2.33
        0.04

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.13"

    Active Area        Width
        Height

        millimeters
        23.712
        48.55

        inches
        0.93
        1.91

    Dot Size        Width
        Height

        millimeters
        0.228
        0.229

        inches
        0.0090
        0.0090

    Dot Pitch        Width
        Height

        millimeters
        0.228
        0.229

        inches
        0.0090
        0.0090

        Weight
            9g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            e ink
Polarizer
            Reflective
Sunlight Readable
            Yes

        Foreground Color
            3-level grayscale
Background Color
            white

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        40°

        Fahrenheit
        32°
        104°

    Storage Temperatures        min
        max

        Celsius
        -25°
        70°

        Fahrenheit
        -13°
        158°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            SPI
