128x56 Transparent OLED Display

Part Number: CFAL12856A0-0151-B

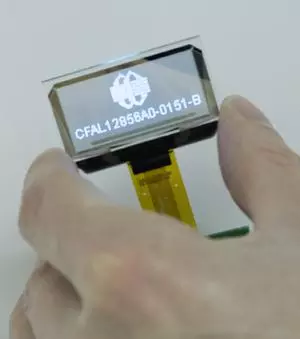

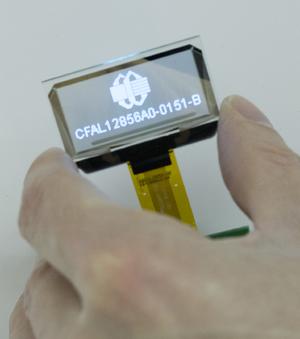

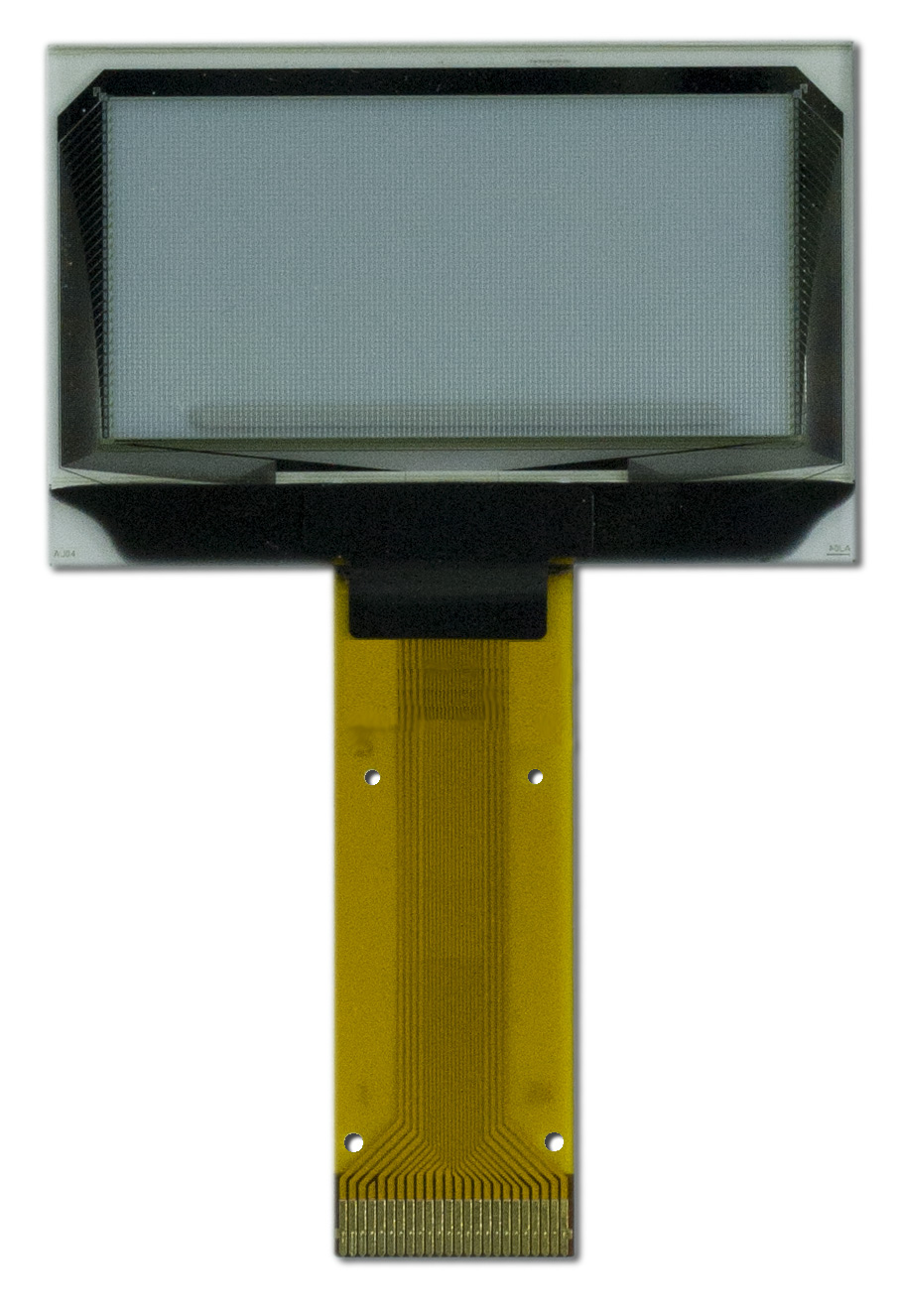

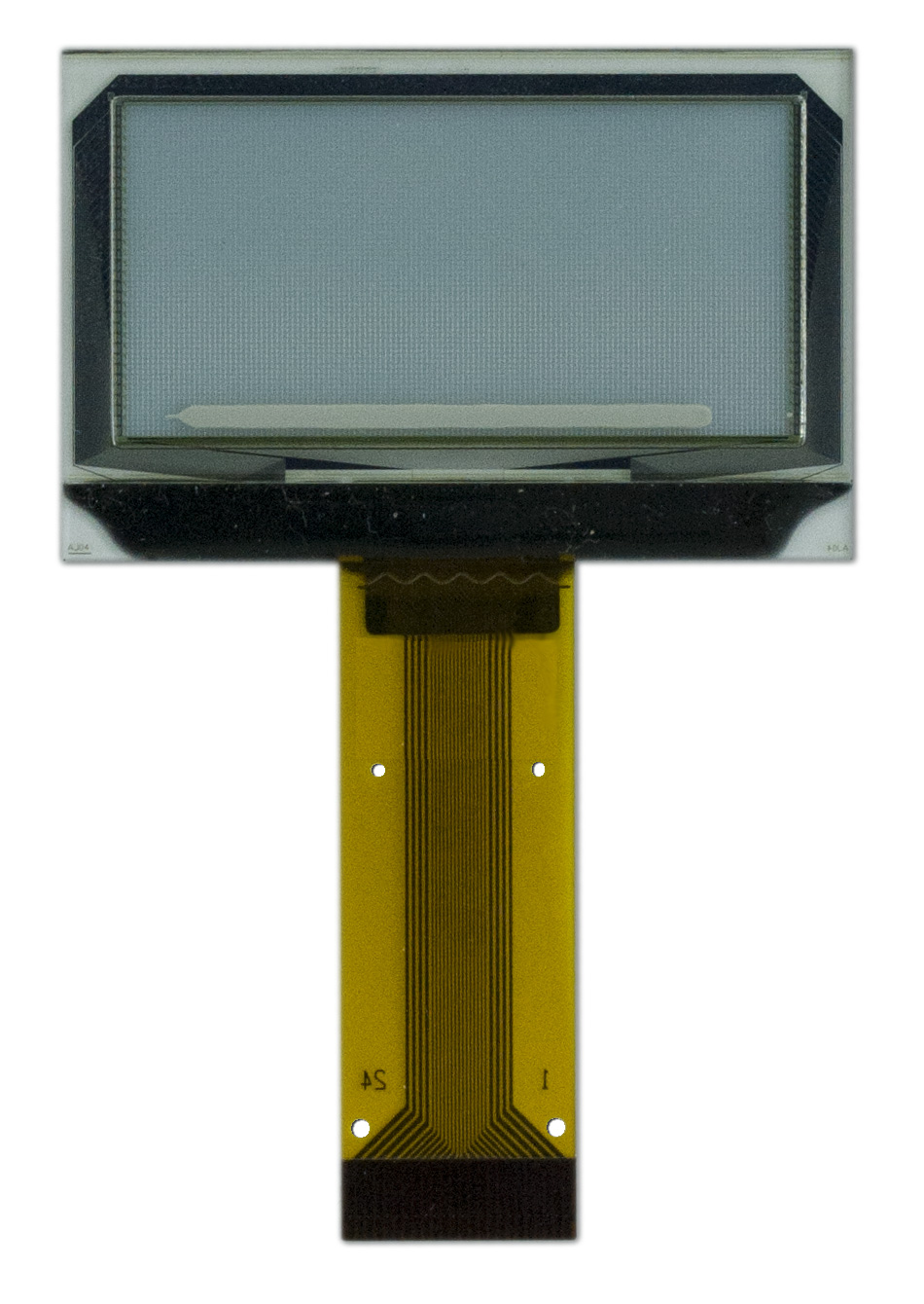

Brand new, cutting-edge transparent OLED display! Also known as TOLED. 128x56 1.51 inch! As you can see from the images this OLED is super-bright, monochrome display. The pixel color is a light-blue when lit and about 70% transparent when not lit. There are actually 64 rows, however the bottom 8 rows have the "getter" so those pixels aren't viewable from the back.

This display supports, parallel, I2c, and SPI interfaces. We powered it up using an 3.3v Seeeduino/Arduino UNO Clone and a small break-out board. This little OLED uses the super common Solomon Systech SSD1309 integrated controller.

Check out the schematic in the datasheet to see how to wire this transparent display to your microcontroller. You'll need a few easily sourced components.

This is a 3.3v device, plugging it into 5v can permanently damage this module.

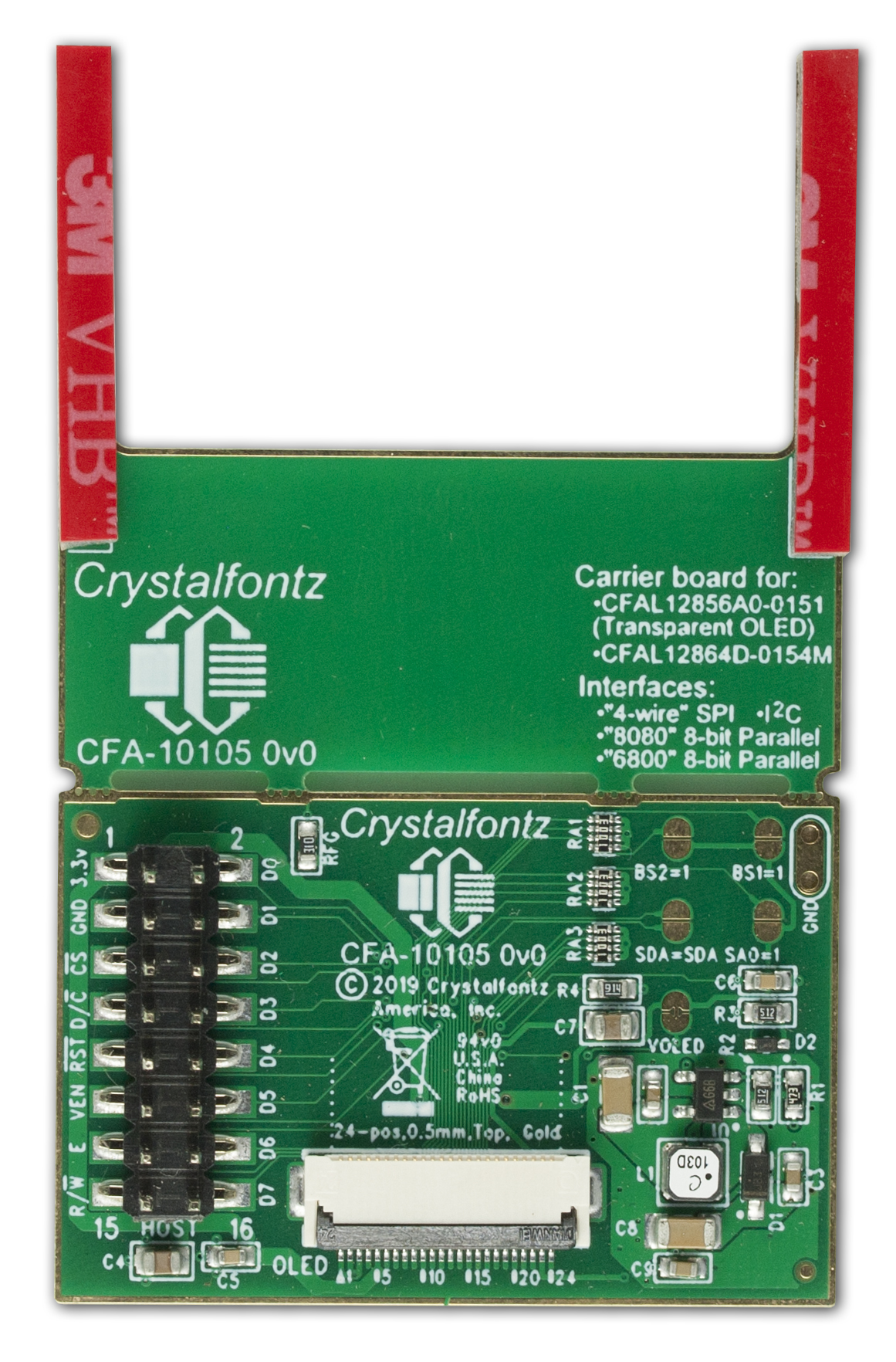

Compatible Breakout board: OLED Breakout Board

The ZIF connector you need is:
24-position 0.5mm pitch

Looking for more information? Check out our Transparent OLED Breakout Board: FAQs

Qty:
Quantity Price
1 $29.99
5 $28.18
10 $26.08
20 $25.15
50 $24.22
100 $21.46
200 $21.13
300 $20.96
500 $20.79
1000 * $20.63
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4616 SSD1309 OLED Breakout Board
Speed up development $14.19 ea.
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.
4826 24-Position ZIF Breakout Board
Add a 24-pin ZIF Breakout Board? $6.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12856A0-0151-B or RSS RSS feed for changes to CFAL12856A0-0151-B for CFAL12856A0-0151-B

Video Demonstrations

Awesome little transparent OLED display. Its a 128x56 pixels and 1.51 inch diagonal. Super-bright, monochrome (light blue). We powered it up with a Seeeduino for this demonstration.

Get up and running quickly with our Breakout board specifically designed for this transparent OLED.

TECHNICAL SPECS

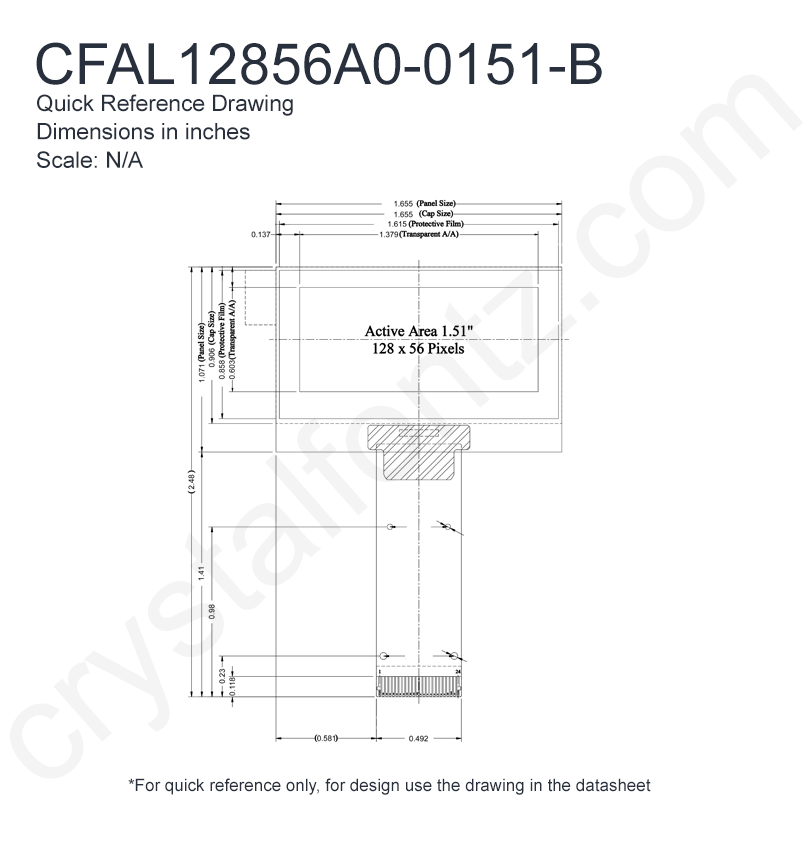

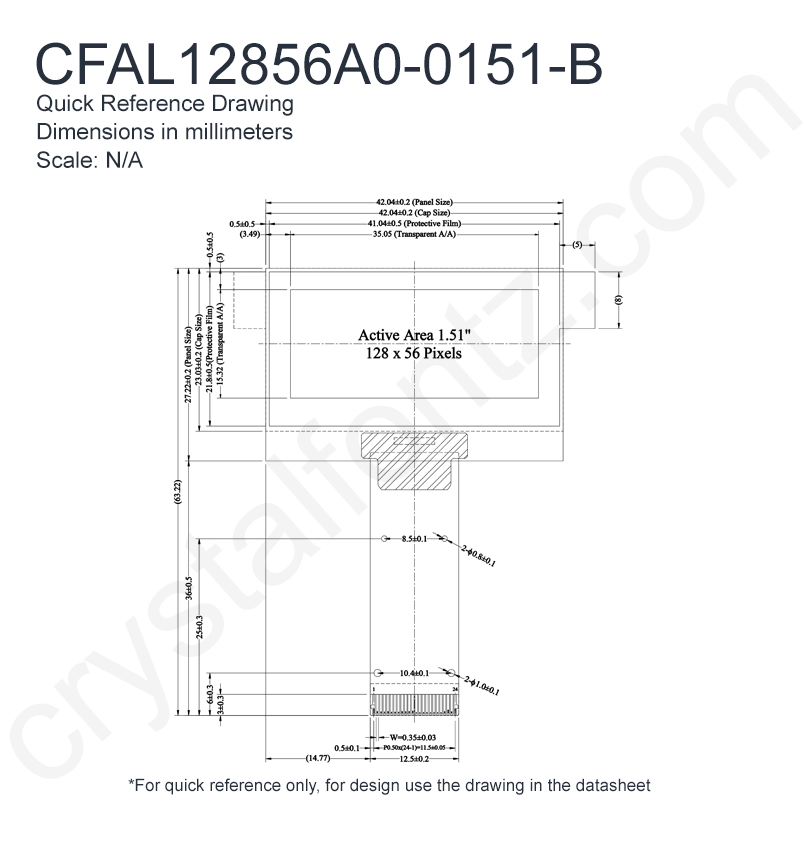

Physical Characteristics

Column Dots x Row Dots 128 x 56
Module Overall width height depth
millimeters 42.04 27.22 1.25
inches 1.655 1.072 0.049
*width / height does not include Foldable Tab
Diagonal Dimension 1.51"
Active Area width height
millimeters 35.05 15.32
inches 1.380 0.603
Dot Pitch width height
millimeters 0.274 0.274
inches 0.0108 0.0108
Optional Connectors CS050Z24GA0
Flexible Cable (FFC/FPC) length
millimeters 36
inches 1.417
Weight 3g
Pin Count 24

Optical Characteristics

Glass Color Transparent
View Angle 180°
Foreground Color Light Blue
Background Color Transparent

Electrical Specifications

Supply Voltage for Logic Minimum 1.65V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 2.8V
Supply Voltage for Driving Panel Typical 12.5V
Supply Current Typical 15.2mA

Environmental

Operating Temperatures min max
Celsius -40° 70°
Fahrenheit -40° 158°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°

Electronics

Controller Documents Solomon Systech SSD1309
SSD1309 128 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface 8-bit Parallel, I2C, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Buy this transparent OLED display in a development kit and save time!

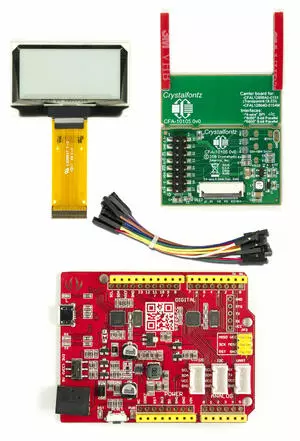

Transparent OLED Development Kit
Part Number: CFAL12856A0-0151-B-E1-2

Want to get your transparent OLED up and running fast? This transparent OLED development kit is shipped ready to go, so all you have to do is apply power via the included USB cable. Then you're ready to get down to the fun part of creating. This kit ships assembled and loaded with some demo code that can be modified or replaced with your own.

Includes:

Details
Quantity 1
Price $74.52
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
