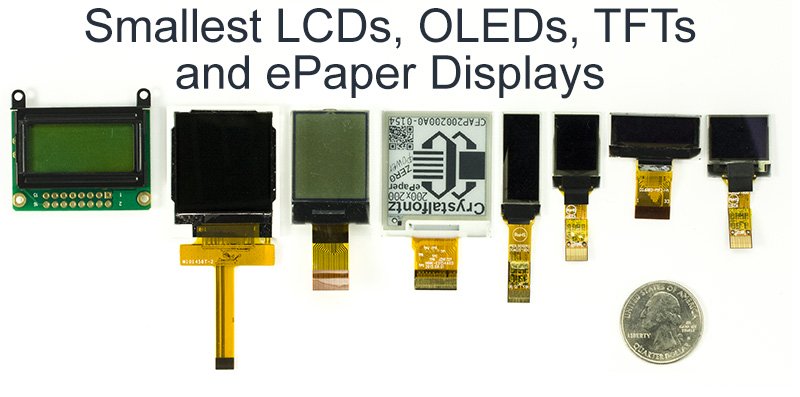

Our Smallest LCD, OLEDs, ePaper and TFTs

We often get asked, "What's your smallest display?". Crystalfontz specializes in small displays, in fact the majority of our displays are smaller than 5". To make it easier for you to find the smallest lcd display, we've compiled this list of the most tiny displays we have.

Crystalfontz Smallest Displays

Smallest Monochrome OLEDs

Monochrome means that the display is only capable of displaying only one tone of color, like these small monochrome OLEDs below.


 CFAL6448A-066BW
64x48 Small Graphic OLED
  • Part #: CFAL6448A066BW
  • Size: 18.46mm x 18.1mm x 1.26mm
  • Interfaces: I2C, SPI
  • Resolution: 64x48 pixels
  • Color: White on Black
  • Polarizer: Emissive
  • Diagonal Dimension: 0.66"
  • Controller: Solomon Systech SSD1306
 CFAL4864A-071BW
Small 48x64 .71inch OLED Display
  • Part #: CFAL4864A071BW
  • Size: 13.9mm x 22mm x 1.26mm
  • Interfaces: I2C, SPI
  • Resolution: 48x64 pixels
  • Color: White on Black
  • Polarizer: Emissive
  • Diagonal Dimension: 0.71"
  • Controller: Solomon Systech SSD1306
 CFAL12832C0-091B-W
Monochrome 128x32 I2C OLED graphic display
  • Part #: CFAL12832C0091BW
  • Size: 30mm x 11.5mm x 1.26mm
  • Interfaces: I2C, SPI
  • Resolution: 128x32 pixels
  • Diagonal Dimension: 0.91"
  • Controller: Solomon Systech SSD1306
  • Pin Count: 0.5
 CFAL12832C0-091B-Y
Small 128x32 Graphic OLED Display
  • Part #: CFAL12832C0091BY
  • Size: 30mm x 11.5mm x 1.26mm
  • Interfaces: I2C, SPI
  • Resolution: 128x32 pixels
  • Diagonal Dimension: 0.91"
  • Controller: Solomon Systech SSD1306
  • Pin Count: 0.5

Smallest Color OLEDs


 CFAL12836A0-088
128x36 Color OLED Display Module
  • Part #: CFAL12836A0088
  • Size: 26.59mm x 13mm x 1.285mm
  • Interfaces: 8-bit Parallel, SPI
  • Resolution: 128x36 pixels
  • Color: RGB on Black
  • Polarizer: Emissive
  • Diagonal Dimension: 0.88"
  • Controller: LDT LD7138
 CFAL9664B-F-B2
96x64 OLED Full Color Display
  • Part #: CFAL9664BFB2
  • Size: 24.8mm x 22.42mm x 1.33mm
  • Interfaces: 8-bit Parallel, SPI
  • Resolution: 96x64 pixels
  • Color: RGB on Black
  • Polarizer: Emissive
  • Diagonal Dimension: 0.95"
  • Controller: Solomon Systech SSD1331

Smallest Monochrome LCDs


 CFAG4265A0-TFK
42x65 One Inch LCD Module
  • Part #: CFAG4265A0TFK
  • Size: 22.4mm x 32.85mm x 4.8mm
  • Interfaces: SPI
  • Resolution: 42x65 pixels
  • Color: Dark on White
  • Polarizer: Transflective
  • Diagonal Dimension: 1.00"
  • Backlight: White LED
  • Controller: Sitronix ST7565R
 CFAO4265A-TTL
42x65 White on Dark Graphic LCD
  • Part #: CFAO4265ATTL
  • Size: 22.4mm x 32.85mm x 4.8mm
  • Interfaces: SPI
  • Resolution: 42x65 pixels
  • Color: White on Dark
  • Polarizer: Transmissive
  • Diagonal Dimension: 1.00"
  • Backlight: White LED
  • Controller: Sitronix ST7565R
 CFAG12864T3-TFH
Small Backlit Sunlight Readable LCD
  • Part #: CFAG12864T3TFH
  • Size: 38mm x 26.42mm x 8.8mm
  • Interfaces: 8-bit Parallel, SPI
  • Resolution: 128x64 pixels
  • Color: Dark on Light Gray
  • Polarizer: Transflective
  • Diagonal Dimension: 1.15"
  • Backlight: White LED
  • Controller: Sitronix ST7565P
  • Pin Count: 18

Smallest Color TFT LCDs:


 CFAF80160A0-0096TW
Tiny Capacitive Touchscreen Display
  • Part #: CFAF80160A00096TW
  • Size: 18.7mm x 31.9mm x 2.64mm
  • Interfaces: SPI
  • Resolution: 80x160 pixels
  • Color: RGB on Dark
  • Polarizer: Transmissive - IPS
  • Diagonal Dimension: 0.96"
  • Backlight: White LED
  • Controller: Sitronix ST7735S
  • Pin Count: 10
 CFAF80160A0-0096TN
80x160 Small Full-Color TFT Display
  • Part #: CFAF80160A00096TN
  • Size: 13.5mm x 27.85mm x 1.54mm
  • Interfaces: SPI
  • Resolution: 80x160 pixels
  • Color: RGB on Dark
  • Polarizer: Transmissive - IPS
  • Diagonal Dimension: 0.96"
  • Backlight: White LED
  • Controller: Sitronix ST7735S
  • Pin Count: 10
 CFAF128128B1-0145T
128x128 1.45" Full Color TFT LCD Display
  • Part #: CFAF128128B10145T
  • Size: 33.3mm x 38.2mm x 2.8mm
  • Interfaces: SPI
  • Resolution: 128x128 pixels
  • Color: RGB on Dark
  • Polarizer: Transmissive
  • Diagonal Dimension: 1.45"
  • Backlight: White LED
  • Controller: Sitronix ST7735S
 CFAF240240A3-013TN
240x240 Color TFT LCD Display
  • Part #: CFAF240240A3013TN
  • Size: 26mm x 29.15mm x 1.5mm
  • Interfaces: SPI
  • Resolution: 240x240 pixels
  • Color: RGB on Black
  • Polarizer: Transmissive
  • Diagonal Dimension: 1.3"
  • Backlight: White LED
  • Controller: Sitronix ST7789H2
  • Pin Count: 18

Smallest Character LCDs:


 CFAH0802D-YYH-JP
Backlit 8x2 Character Sunlight Readable LCD
  • Part #: CFAH0802DYYHJP
  • Size: 40mm x 35.4mm x 14mm
  • Interfaces: 4-bit Parallel, 8-bit Parallel
  • Character Count by Lines: 8x2
  • Color: Dark on Yellow-Green
  • Polarizer: Transflective
  • Diagonal Dimension: 1.11"
  • Backlight: Yellow-Green LED
  • Controller: Sitronix ST7066U
  • Pin Count: 16
 CFAH1602S-YYH-ET
16x2 Black on Yellow LCD
  • Part #: CFAH1602SYYHET
  • Size: 59mm x 29.3mm x 5.5mm
  • Interfaces: 4-bit Parallel, 8-bit Parallel
  • Character Count by Lines: 16x2
  • Color: Dark on Yellow-Green
  • Polarizer: Transflective
  • Diagonal Dimension: 1.88"
  • Backlight: Yellow-Green LED
  • Controller: Sitronix ST7066U
  • Pin Count: 16

Smallest ePaper Displays:

 CFAP200200A3-0154
1.54" 200x200 Square ePaper Display
  • Part #: CFAP200200A30154
  • Size: 31.8mm x 37.32mm x 1.05mm
  • Interfaces: SPI
  • Resolution: 200x200 pixels
  • Diagonal Dimension: 1.50"
  • Pin Count: 24
 CFAP152152C0-0154
1.54" 152x152 Square ePaper Display
  • Part #: CFAP152152C00154
  • Size: 31.8mm x 37.32mm x 0.98mm
  • Interfaces: SPI
  • Resolution: 152x152 pixels
  • Diagonal Dimension: 1.53"
  • Pin Count: 24
