This is a pre-configured part. CFA-632 Serial LCD 16x2, RoHS Compliant, Y/G LED Backlight, FFSTN Negative, with 7 pin header loaded in J2.

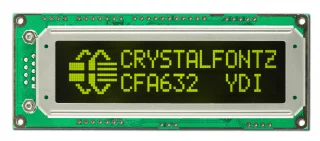

16x2 RS232 LCD Module

Part Number: CFA632-YDI-KS16

Pricing

Quantity Price
1 $48.12
10 $43.98
20 $41.80
50 $39.73
100 $37.50
200 $35.43
500 $33.30
1000 * $31.12
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheets

CFA632 Series Data Sheet Release Date 2015-03-30.pdf
(Datasheet V 2015-03-30, Hardware 3.3, Firmware 3.3)
Previous Versions of Datasheets
CFA632 Family Preliminary Data Sheet Release Date 2013-06-26.pdf
(Datasheet V 2013-06-26, Hardware 3.3, Firmware 3.2)
CFA632-YDI-KS Data Sheet v1.3.pdf
(Datasheet V 1.3, Hardware 2.4, Firmware 2.4)
CFA632-YDI-KS Data Sheet v1.2.pdf
(Datasheet V 1.2, Hardware 2.4, Firmware 2.4)
CFA632-YDI-KS Data Sheet v1.1.pdf
(Datasheet V 1.1, Hardware 2.4, Firmware 2.4)
CFA632-YDI-KS Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware 2.2, Firmware 2.2)


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA632-YDI-KS16 or RSS RSS feed for changes to CFA632-YDI-KS16 for CFA632-YDI-KS16


Description

CFA-632 RS-232 Serial LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, FFSTN Negative, Black, Transmissive -20°C to +70°C 6:00.

The CFA632 can use any of SIX interfaces on any modules in the family by simply changing the interface selection using a command setting and making the appropriate jumper configurations. The interfaces are:

Large easy-to-read LCD in a compact size can display 16 characters x 2 lines. Overall module size is 108.00 mm width x 42.00 mm height x 19.90 mm depth (4.25" x 1.65" x 0.78"). Character height is 7.30 mm (0.29").

Optional PC CDROM mounting bracket with three choices of overlay for a single bay is available. Mounting dimensions are 5.25" (W) x 1" (H).

The CFA632 family has two colors choices:

  1. CFA632-YDI-Kx: Yellow-green array LED backlight with negative FFSTN transmissive mode LCD. Displays yellow-green characters on a dark (near-black) background. The display can be read in normal office lighting and in dark areas. May be difficult to read in direct sunlight.
  2. CFA632-YFH-Kx: Yellow-green array LED backlight with positive FSTN transflective mode LCD. Displays dark(near-black) characters on yellow-green background. The display can be read in normal office lighting, in dark areas, and in bright sunlight.

Use any of six interfaces on any module in the CFA632 family by simply changing the interface selection in a command and using the appropriate jumper configurations.

The displays have a 6 o’clock viewing angle (polarizer viewing direction)

Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control command.

The modules have a RockWorks RW1067 controller.

.

Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller. Backlight is 5 volts only.

Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.

Wide temperature range for operation is -20°C to +70°C.

RoHS compliant. You can download the Certificate of Compliance for ISO, RoHS, and REACH from the Doc/Files tab on the part number’s website page.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 108 42 19.9
inches 4.252 1.654 0.783
PCB Outline width height depth
millimeters 108 42 19.9
inches 4.252 1.654 0.783
Viewing Area width height
millimeters 82.3 22.5
inches 3.240 0.886
Active Area width height
millimeters 74.82 15.8
inches 2.946 0.622
Character Size width height
millimeters 3.84 7.3
inches 0.151 0.287
Character Pitch width height
millimeters 4.68 8.5
inches 0.184 0.335
Dot Size width height
millimeters 0.72 0.86
inches 0.028 0.034
Dot Pitch width height
millimeters 0.78 0.92
inches 0.031 0.036
Weight 65g

Optical Characteristics

Glass Type FFSTN
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color Yellow-Green
Backlight Type LED
Mode Negative
Foreground Color Yellow
Background Color Dark

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface Logic Level Serial, RS232, SPI

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA632-YDI-KS16 or RSS RSS feed for changes to CFA632-YDI-KS16

Product Update #10662: (New Product) CFA632-YDI-KS16

New Products:
Date Issued: July 17, 2015
Summary: (New Product) CFA632-YDI-KS16
Description: Intelligent Serial LCD Modules: CFA-632 Serial LCD 16x2, RoHS Compliant, Y/G LED Backlight, FFSTN Negative, with 7 pin header loaded in J2.
