244x68 Graphic LCD Display
Part Number: CFA835-TFK
The CFA835 family of modules are intelligent graphic LCDs. They offer an outstanding package: a display, six-button keypad, GPIOs, LEDs, multiple interface choices and memory in an attractive stainless-steel bezel. This powerful module is a great choice for a front panel or user interface display. Between the graphic display and four status LEDs, messages can be quickly and clearly communicated, and the fully decoded keypad allows for clear and robust inputs from the user.The CFA835 has versatile and reliable packet-based communications with a set of 61 commands that simplify programming. The commands include tools to draw lines, rectangles, and circles. This means putting graphs, tables, and charts on your display is simple. For example, create a chart to display temperature fluctuations over time.
The entire USB LCD module only needs a single power supply. The buck-boost switching supply means the module can operate on a wide power supply voltage range from +3.3v to +5.0v, making it perfect for embedded systems.
This module was made for the demands of a commercial environment. Its wide operating temperature range means this module keeps going in temperatures between -20°C and +70°C.
The fully decoded 6-button keypad allows any combination of key presses to be valid and unique. The keypad is backlit and the large translucent silicone keys are responsive. Plus, a physical keypad reduces the chance of accidental incorrect touches.
The LCD backlight and contrast are adjustable. Both are fully voltage regulated over the power supply range. The LCD backlight comprises 12 LEDs edge lighting the LCD. The keypad LEDs are separately controllable.
The display on this module has a light background with dark blue font.

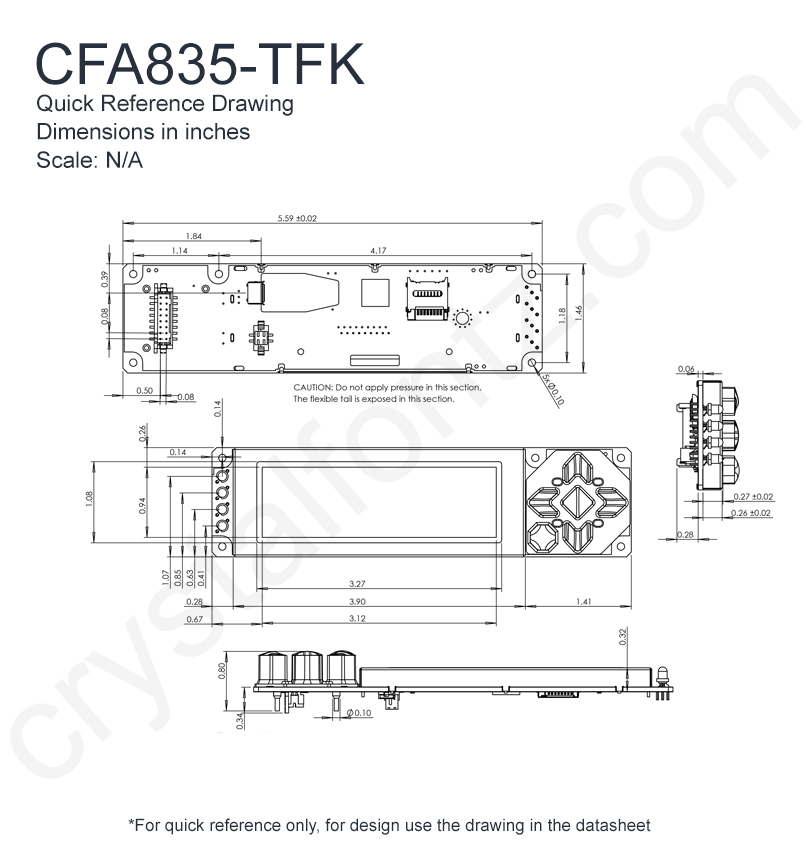

CFA835-TFK Features
- 244 x 68 pixel backlit LCD
- Light background with dark blue font
- Edge-lit backlight with 12 LEDs, 6 per side
- Grayscale graphic LCD controller
- 12 o'clock viewing direction
- 6 button backlit fully decoded keypad
- 4 bi-color (red/green) LEDs
- Separate switching LED brightness controllers for keypad and LCD backlights
- Interfaces: USB 2.0, Logic-level Serial, RS232 Serial, I2C and SPI
- Multiple simultaneous serial/SPI/I2C/CAN interfaces (depending on GPIO use)
- Packet based communication with a 61-command set
- Powerful and adaptable module for embedded systems
- MicroSD card slot
- Thirteen general purpose input/output pins (GPIOs)
- Operating Temperatures: -20 to 70°
- Buck-boost switching supply allows wide supply voltage range (3.3v to 5.0v)
- STMicroelectronics STM32F401 microcontroller
- ARM 32-bit Cortex™-M4 CPU @ 84 MHz
- 256K Flash, 64K RAM
- Run STM32 embedded applications on the CFA835 hardware using our open source firmware as a starting point
- Cables for connecting to a variety of host systems
- ATX power supply control functionality allows the buttons on the CFA835 to replace the "power" and "reset" buttons on host system, simplifying front panel design
- System Cooling Accessory Board (FBSCAB) for controlling fans and reading temperature sensors (up to 128 temperature sensors and 32 fans)
- SLED or drive bay bracket for mounting into a system
Not sure which LCD module to choose? Compare all of our intelligent display modules.
Product Variations
Colors | Dark on Yellow-Green Yellow-Green LED BacklightDark on Light Gray White LED BacklightLight on Blue White LED Backlight |
|---|
| Quantity | Unit Price |
|---|---|
| 1 | $135.07 |
| 10 | $126.62 |
| 20 | $117.09 |
| 50 | $109.81 |
| 100 | $102.55 |
| 200 | $101.34 |
| 500 | $100.00 |
| 1000 | $99.10 |
3141 Units In-Stock & Ready To Ship
Pricing is subject to change.* Contact us about potential lead times.
