One-Wire Temperature Sensor

Part Number: WR-DOW-Y17

Pricing

Quantity Price
1 $8.50
10 $7.50
20 $5.95
50 $5.45
100 $5.25
500 $5.00
1000 $4.75
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-DOW-Y17 or RSS RSS feed for changes to WR-DOW-Y17 for WR-DOW-Y17

One-Wire Temperature Sensor (WR-DOW-Y17)
One-Wire Temperature Sensor
Close

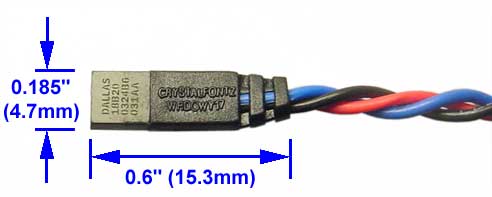

This image is a close-up of the DS18B20 sensor. The DS18B20 boasts 0.5 degree C absolute accuracy and 0.0625 degree C resolution. The WRDOWY17s cross section is the same as the DS18B20, allowing the sensor to be installed in space constrained locations.

The DS18B20 is identical to the DS1822 sensor with better accuracy, so the WRDOWY17 may be used to replace the DS1822, depending on the application.
This image is a close-up of the DS18B20 sensor. The DS18B20 boasts 0.5 degree C absolute accuracy and 0.0625 degree C resolution. The WRDOWY17s cross section is the same as the DS18B20, allowing the sensor to be installed in space constrained locations.

The DS18B20 is identical to the DS1822 sensor with better accuracy, so the WRDOWY17 may be used to replace the DS1822, depending on the application.
This image is a close-up of the DS18B20 sensor. The DS18B20 boasts 0.5 degree C absolute accuracy and 0.0625 degree C resolution. The WRDOWY17s cross section is the same as the DS18B20, allowing the sensor to be installed in space constrained locations. The DS18B20 is identical to the DS1822 sensor with better accuracy, so the WRDOWY17 may be used to replace the DS1822, depending on the application.
Close

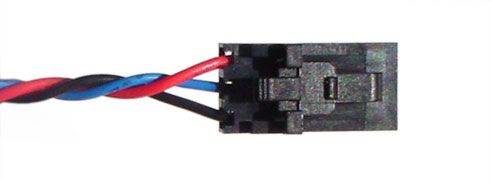

Here is a detail shot of the WRDOWY17s female end, which connects to the CFA-633's DOW header. This connector was specifically chosen because it is latching, polarized and it is not easily confused with other connectors used on a typical PC.
Here is a detail shot of the WRDOWY17s female end, which connects to the CFA-633's DOW header. This connector was specifically chosen because it is latching, polarized and it is not easily confused with other connectors used on a typical PC.
Here is a detail shot of the WRDOWY17s female end, which connects to the CFA-633's DOW header. This connector was specifically chosen because it is latching, polarized and it is not easily confused with other connectors used on a typical PC.
Close

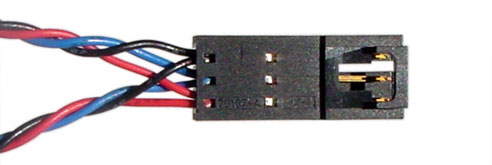

Midway along the WRDOWY17s length, there is an male connector. The male connector allows additional WRDOWY17's to be connected (up to the maximum of 32 sensors supported by the CFA-633.
Midway along the WRDOWY17s length, there is an male connector. The male connector allows additional WRDOWY17's to be connected (up to the maximum of 32 sensors supported by the CFA-633.
Midway along the WRDOWY17s length, there is an male connector. The male connector allows additional WRDOWY17's to be connected (up to the maximum of 32 sensors supported by the CFA-633.
Close

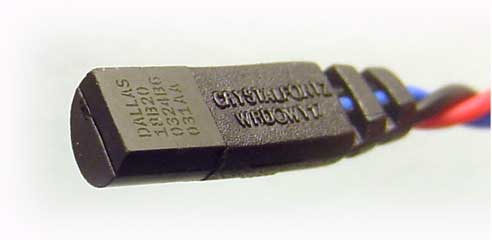

This is an additional image of the sensor, angled to show the cross section.
This is an additional image of the sensor, angled to show the cross section.
This is an additional image of the sensor, angled to show the cross section.
Close

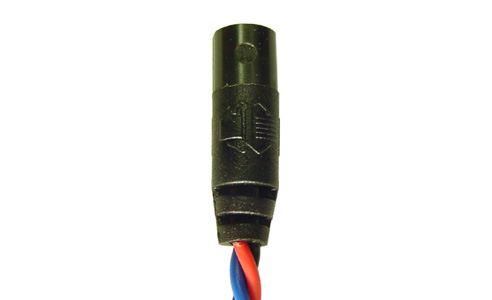

Here is the back of the sensor.
Here is the back of the sensor.
Here is the back of the sensor.
Close

Description

The WRDOWY17's cross section is identical to the DS18B20, allowing the sensor to be installed in space constrained locations. The DS18B20 is identical to the DS1822 sensor with better accuracy, so the WRDOWY17 may be used to replace the DS1822, depending on the application.

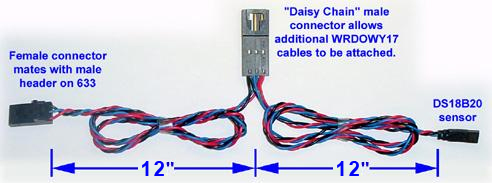

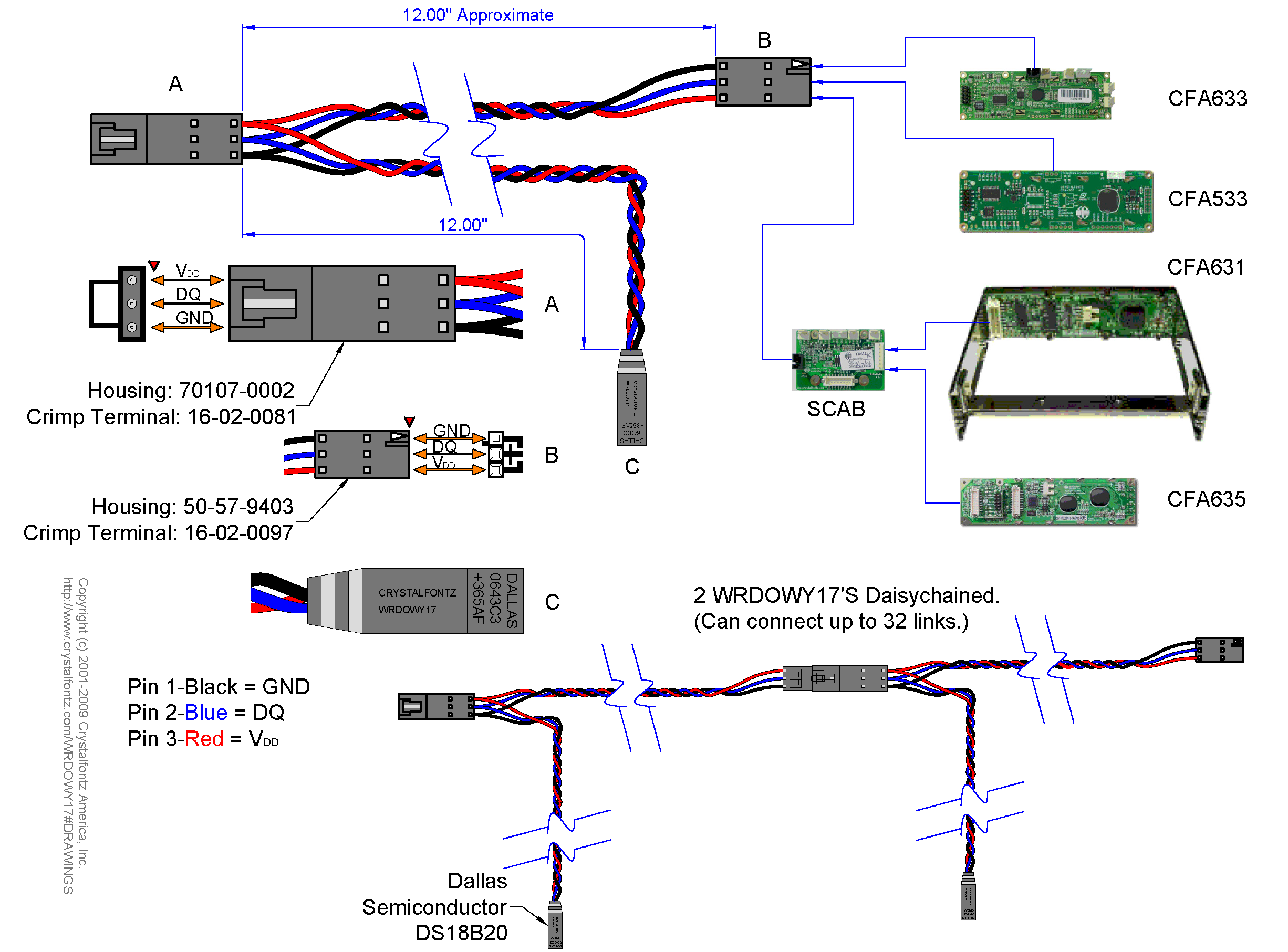

The Dallas One Wire DS18B20 measuring 12" + 12" between connectors for an approximate length when stretched of 25". The temperature sensor can connect multiple cables to a single LCD. Easy connection of up to 32 sensors to the CFA533, CFA631 (with SCAB), CFA633, CFA633 USB and CFA635 (with SCAB). RoHS compliant.

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 335
inches 13.189
Weight 7g
For reference only. For design purposes, please use the specifications in the datasheet.
