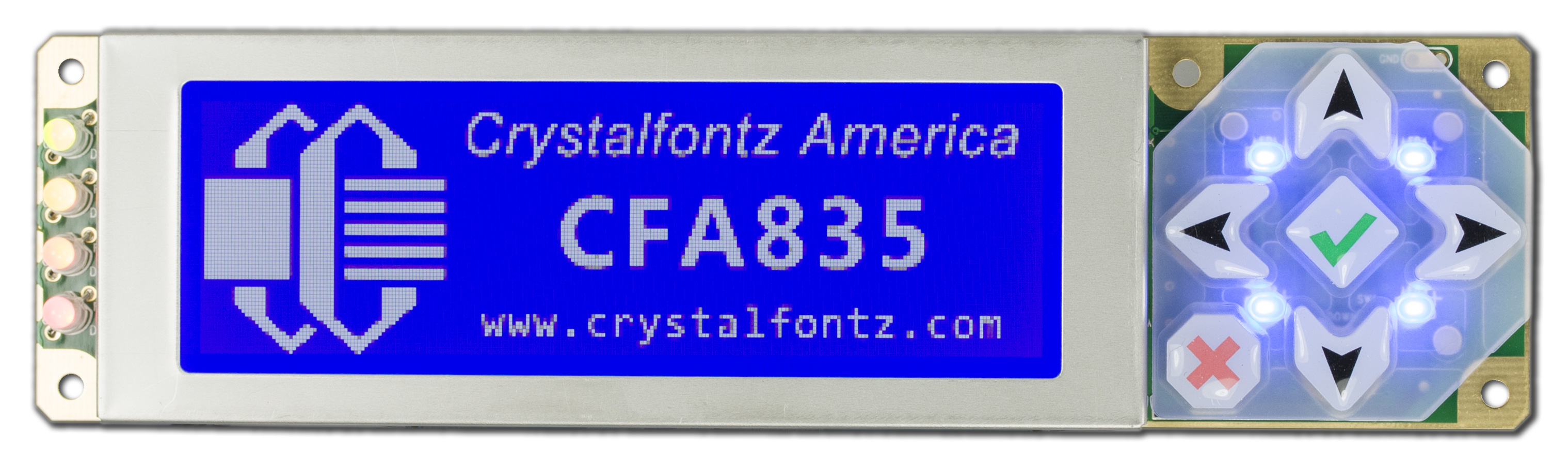

Dark Blue 244x68 Graphic Display Module
Part Number: CFA835-TML
The CFA835 family of modules are intelligent graphic LCDs. These modules pack a lot in one package: a display with a stainless-steel bezel, six-button keypad, GPIOs, LEDs, and memory. The white on dark blue graphic
LCD can be used to display information to the user including temperatures and fan information using the optional FBSCAB, update based on inputs from the keypad, display welcome and power-off messages when used to replace a system's power-on and power-off buttons, display system status information, and much more.

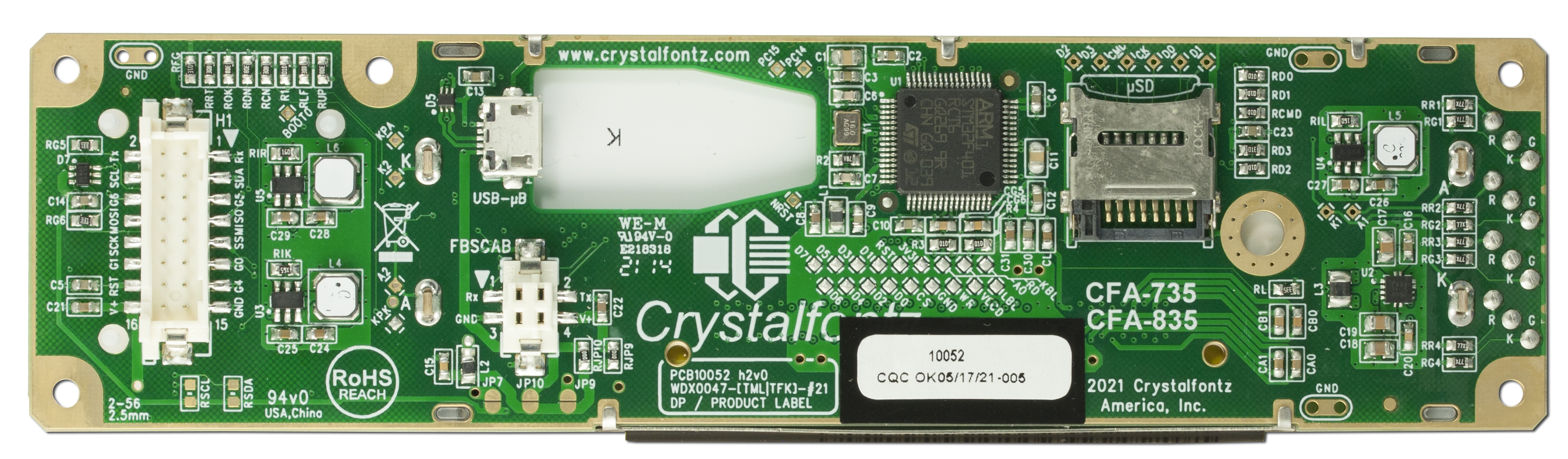

These modules include an STM32F401 microcontroller and use a buck-boost switching supply to allow for a wide supply voltage range which makes these modules perfect for use in embedded systems. The CFA835 has versatile and reliable packet-based communications with a set of 61 commands that simplify programming. The commands include tools to draw lines, rectangles, and circles. This means putting graphs, tables, and charts on your display is simple. For example, create a chart to display temperature fluctuations over time.
With a 12 o'clock viewing direction, optimal viewing for this module is at or below eye level. That makes this module a great choice for adding to a computer box or any other application being handled at a desk or mounted for easy use.
The fully decoded 6-button keypad allows any combination of key presses to be valid and unique. The keypad is backlit and the large translucent silicone keys are responsive, making it easy for users to interact with.
CFA835-TML Features
- 244 x 68 pixel backlit LCD
- Single supply operation of 3.3v to 5v
- Blue background with gray font
- Edge-lit backlight with 12 LEDs, 6 per side
- Grayscale graphic LCD controller
- 12 o'clock viewing direction
- 6 button backlit fully decoded keypad
- 4 bi-color (red/green) LEDs
- Separate switching LED brightness controllers for keypad and LCD backlights
- Interfaces: USB 2.0, Logic-level Serial, RS232 Serial, I2C and SPI
- Multiple simultaneous serial/SPI/I2C interfaces (depending on GPIO use)
- Packet based communication with a 61-command set
- Powerful and adaptable module for embedded systems
- MicroSD card slot
- Thirteen general purpose input/output pins (GPIOs)
- Operating Temperatures: -20 to 70°
- Buck-boost switching supply allows wide supply voltage range (3.3v to 5.0v)
- STMicroelectronics STM32F401 microcontroller
- ARM 32-bit Cortex™-M4 CPU @ 84 MHz
- 256K Flash, 64K RAM
- Run STM32 embedded applications on the CFA835 hardware using our open source firmware as a starting point
Options available after clicking "Customize and Add to Cart":
- Cables for connecting to a variety of host systems
- ATX power supply control functionality allows the buttons on the CFA835 to replace the "power" and "reset" buttons on host system, simplifying front panel design

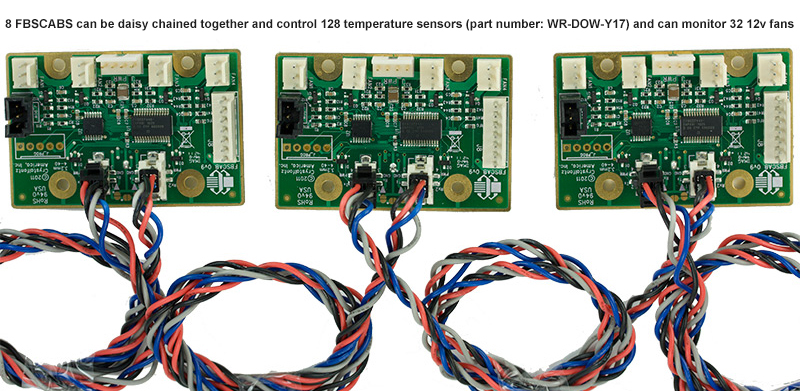

- System Cooling Accessory Board (FBSCAB) for controlling fans and reading temperature sensors (up to 128 temperature sensors and 32 fans)
- SLED or drive bay bracket for mounting into a system
Not sure which LCD module to choose?
Compare all of our intelligent display modules.
Pixel Grid
| Column Dots |
244 px |
| Row Dots |
68 px |
Color

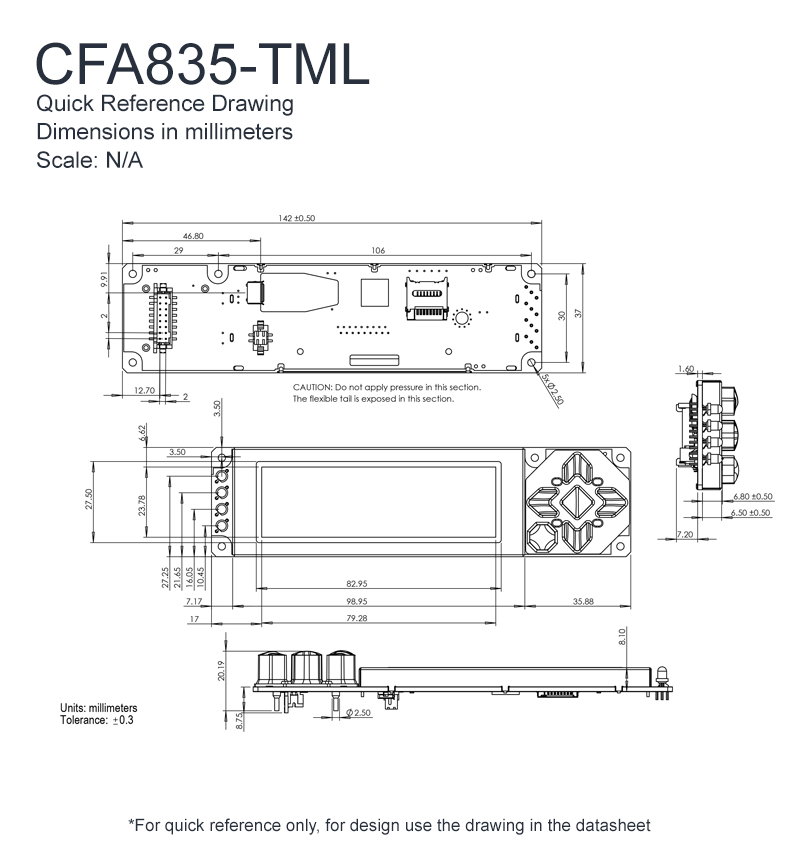

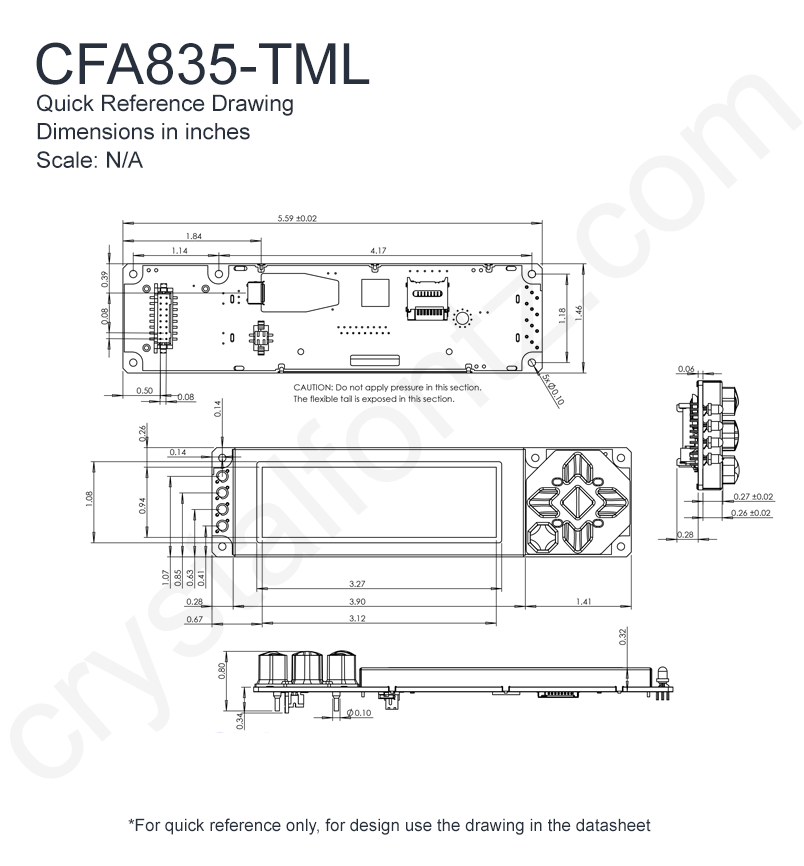

| Module | Metric | Imperial |
| Overall Width |
142.00 mm |
5.591 in |
| Overall Height |
38.00 mm |
1.496 in |
| Overall Depth |
20.80 mm |
0.819 in |
| Diagonal Dimension |
3.19 in |
| Weight |
55 g |
| Shape |
Rectangle |
| Display Area | Metric | Imperial |
| Active Area Width |
77.97 mm |
3.070 in |
| Active Area Height |
22.38 mm |
0.881 in |
| Viewing Width |
83.00 mm |
3.268 in |
| Viewing Height |
27.50 mm |
1.083 in |
| Character Geometry | Metric | Imperial |
| Character Width |
3.23 mm |
0.127 in |
| Character Height |
4.88 mm |
0.192 in |
| Character Pitch Width |
3.90 mm |
0.154 in |
| Character Pitch Height |
5.60 mm |
0.220 in |
| Dot Geometry | Metric | Imperial |
| Dot Pitch Width |
0.33 mm |
0.013 in |
| Dot Pitch Height |
0.35 mm |
0.014 in |
| Dot Size Width |
0.30 mm |
0.012 in |
| Dot Size Height |
0.33 mm |
0.013 in |
| Keypad | Metric | Imperial |
| Keypad Depth |
12.00 mm |
0.472 in |
| Keystroke Travel |
2.40 mm |
0.094 in |
Connectors
| Module Connector Type |
Header |
| Module Connector Pitch |
2.54 mm (0.10 in) |
Technology
| Display Technology |
LCD |
| Display Addressing |
Passive |
| Glass Type |
STN |
| Mode |
Transmissive |
| Polarizer |
Negative |
Viewing
| View Direction |
12:00 o'clock |
Display Colors
| Foreground Color |
Light |
| Background Color |
Blue |
| Glass Color |
Blue |
Backlight
| Backlight Type |
LED |
| Backlight Color |
White |
| Display | Min | Typ | Max | Unit |
| Supply Voltage - Logic |
| Supply Voltage for Logic |
3.3 |
5 |
5.5 |
V |
| Supply Current |
54 |
— |
276 |
mA |
Available Interfaces
| Standard Interface(s) |
UART/Serial, USB |
Temperature
| Min (°C) | Max (°C) | Min (°F) | Max (°F) |
| Operating Temperature |
-20°C |
70°C |
-4°F |
158°F |
| Storage Temperature |
-30°C |
80°C |
-22°F |
176°F |
Humidity
| Relative Humidity | 0% to 90% RH (non-condensing) |
-
Datasheets
Documents & Files
-
Product Note:
Currently Shipping: Hardware Version 2v0 Firmware Version 1v6
-
| Products Affected: |
CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA835-TML, CFA835-TFK, CFA635-TFK-KL, CFA635-TFK-KS, CFA635-TFK-KU, CFA635-TML-KL, CFA635-TML-KS, CFA635-TML-KU, CFA635-YYK-KL, CFA635-YYK-KS, CFA635-YYK-KU, XES635BK-TML-KU, XES635BK-TFK-KU, XES635BK-YYK-KU |
| Date Issued: |
October 15, 2025 |
| Summary: |
Status LED change |
| Description: |
The status LED is being changed from LD2X512A1XXXXXXX0001 to SSL-LX3059IGW |
| Reason: |
LD2X512A1XXXXXXX0001 has gone EOL and is no longer available. |
| Impact: |
There is a slight visual difference in the red color hue. |
| Availability: |
Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
|
-
| Product Affected: |
CFA835-TML |
| Date Issued: |
October 4, 2023 |
| Summary: |
Keypad LED, H1 Header, and Firmware Change |
| Description: |
The keypad LEDs are changing to an alternative LED, H1 is has been changed by the manufacturer, and the FBSCAB header has been changed by the manufacturer. The polarizer is changing due to the manufacturer EOLing the existing material. The firmware is being updated to resolve an issue where packets could be dropped when polled too quickly. There is no visual difference for the LEDs and the headers still function the same.
The firmware is changing from f1v6 to f1v7. |
| Reason: |
We are switching suppliers to improve the manufacturability of the LEDs. Hirose has changed the family of headers that are used on FBSCAB and H1 to address a packing change they made. The firmware change is a bug fix.
|
| Availability: |
Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. |
-
| Products Affected: |
CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA835-TML, CFA835-TFK |
| Date Issued: |
January 17, 2022 |
| Summary: |
PCN 11097 is now in effect |
| Description: |
PCN 11097 has been completed and is now in effect. Please refer to PCN 11097 for more information. Please submit any questions to support@crystalfontz.com. |
-
| Products Affected: |
CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA835-TML, CFA835-TFK |
| Date Issued: |
August 4, 2021 |
| Summary: |
Display Controller Change |
| Description: |
The display controller, UC1611, is no longer available in the form of bonding on the PCB which is how Crystalfontz has used it for this design. We are designing a drop-in replacement that uses the UC1611 heat seal package, which will continue to be supported, instead of the PCB bonding package.
This component package change requires us to alter the PCB by moving some components around so that the heat seal tool can be used without causing damage to any components.
Availability of the current hardware version is very limited due to the ongoing worldwide chip shortage. Contact sales@crystalfontz.com for availability and to stay updated for a more accurate ship date. |
| Reason: |
UC1611 is no longer supported in the PCB bondable package. |
| Availability: |
Fourth-quarter of 2021. If you would like samples when it becomes available, please contact sales@crystalfontz.com. |
-
| Products Affected: |
CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA835-TML, CFA835-TFK |
| Date Issued: |
April 27, 2021 |
| Summary: |
Firmware Update |
| Description: |
Manufacturing changes for internal process improvements and updating the build instructions so that the serial number is properly returned when using command h01.
Hardware Version Change: the hardware version is not changing
Firmware Version Change: the firmware version is not changing
|
| Reason: |
The serial number was not being stored properly in the module's bootloader at the time of manufacturing. |
| Availability: |
The update will go into effect in May of 2021. |
-
| Products Affected: |
CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA835-TML, CFA835-TFK |
| Date Issued: |
October 12, 2020 |
| Summary: |
Updating the hardware and firmware to accommodate a new LCD controller. |
| Description: |
These changes are being made to the hardware for both the CFA735TFK and TML variants and 835 TFK and TML variants of displays:
The hardware and firmware now support the new LCD controller
The hardware has an improved ADC circuit for GPIO5 and GPIO6
835 only:
The firmware has been updated with new features including Live Display, analog to digital interpretation on GPIO5 and GPIO6, closed loop temperature control. The new datasheets will have more information on these changes. |
| Reason: |
The LCD controller went end-of-life and a replacement is needed. |
| Impact: |
This is intended as a drop-in replacement. If the new features listed for the 835 are not wanted, a field upgrade kit that supports the new controller without the new features is available. |
| Recommendation: |
Request samples to validate the new version. |
| Availability: |
Available now. |
| Price Change: |
Price is subject to change. |
-
| Products Affected: |
CFA835-TML, CFA835-TFK |
| Date Issued: |
February 11, 2020 |
| Summary: |
Firmware Update Available |
| Description: |
The firmware is being revised from v1.1 to v1.2 |
| Reason: |
To correct an issue when the size of a font file on an SD card exceed the buffer size. The revised firmware will stop reading from the SD card until the buffer can accept the remainder of the file. |
| Impact: |
This issue only affected files with very large fonts |
| Recommendation: |
Customers who use large fonts should update to the latest firmware. It is recommended that any user who upgrades to the new firmware test the upgrade in their system before upgrading all modules. |
| Availability: |
The revised firmware is available now in a field upgrade kit.
https://www.crystalfontz.com/products/document/4216/835_firmware_1v2_field_upgradekit.zip |
| Price Change: |
N/A |
-
| Products Affected: |
CFA835-TML, CFA835-TFK |
| Date Issued: |
October 31, 2019 |
| Summary: |
CFA835 Firmware Version 1.1 is now available.
Firmware update to correct a USB data handling issue. |
| Description: |
Fixed an issue with the USB data handling, primarily affecting the command 40 (0x28) subcommand 2 “Send Image Data to Display from Host.” Other USB data throughput improvements were also made. |
| Impact: |
The main effect of these changes is that command packets sent via USB may have slightly different reply times depending on the type of packet.
The firmware revision number has also incremented, as such the command 1 (0x01) “Get Module Information” will return “CFA835:hX.X:f1.1” |
| Availability: |
The firmware is available now. Upgrade information is included in the datasheet. |
-
| Products Affected: |
CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA835-TML, CFA835-TFK, CFA835-YYK |
| Date Issued: |
July 12, 2018 |
| Summary: |
As part of our continuous improvement program, the CFA735 and CFA835 series displays are being revised. |
| Description: |
Components have been updated to ensure the long-term availability of the modules.
The LCD glass used has been changed to improve contrast.
|
| Availability: |
Samples will be available in November 2018.
Last time buys of the current design may be made until January 2019.
|
-
| Products Affected: |
CFA835-TML, CFA835-TFK, CFA835-YYK |
| Date Issued: |
July 29, 2015 |
| Summary: |
CFA635, CFA735, and CFA835 displays with ATX (power on / off / reset) functionality enabled serial cable bundle change. |
| Description: |
As part of our continuous improvement process, CFA635 KS, CFA735 KT, and CFA835 display modules with the ATX (power on / off / reset) functionality enabled will have their RS-232 SERIAL cable bundle options changed from a serial cable and WRPWRY24 to a serial cable and a WRPWRY25. With TX (power on / off / reset) functionality enabled, additional |
| Reason: |
The WRPWRY24 is a power only cable and suitable for powering the CFA635, CFA735, and CFA835 when properly configured. When the displays are configured for ATX (power on / off / reset) functionality additional connections are necessary for proper operation. The WRPWRY25 offers the additional connections. |
| Impact: |
Full functionality will now be available as the part is shipped. |
| Availability: |
Immediate. |
| Price Change: |
There is no price change associated with this change. |
