This product is discontinued and has been replaced by CFAF240320B1-032T-TS

We recommend the CFAF240320B1-032T-TS-CB (listed under Additional Options) as a replacement. The kit consists of the CFAF240320B1-032T-TS TFT display module mounted on a carrier board. Questions? Our technical support team will be happy to help you.

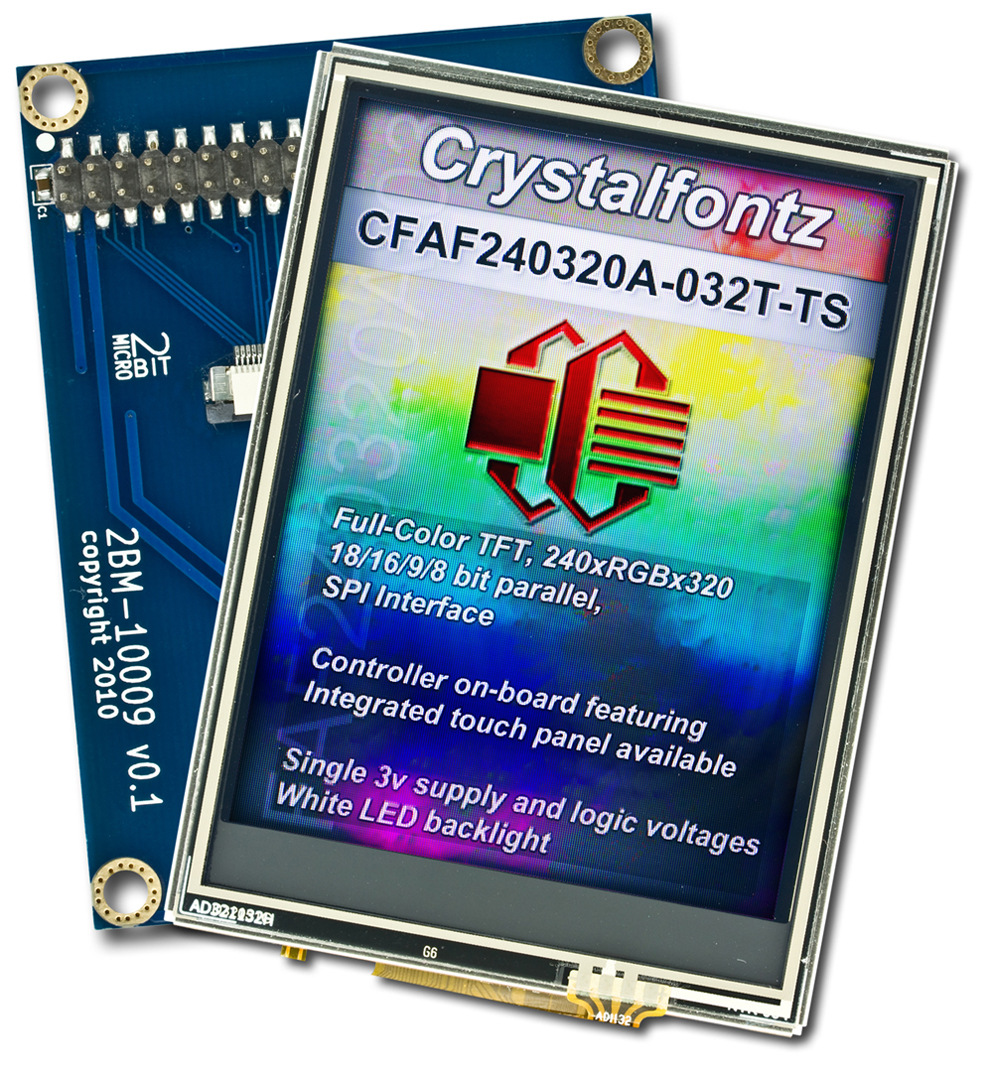

240x320 Color TFT with Carrier Board

Part Number: CFAF240320A-032T-TS-CB


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240320A-032T-TS-CB or RSS RSS feed for changes to CFAF240320A-032T-TS-CB for CFAF240320A-032T-TS-CB


Description

3.2-inch graphic TFT touch screen display module mounted on carrier board, Full color (262K) 240x 320, Orise Tech OTM3225A driver, 16-bit 8080 parallel, 20°C to 70°C, Mates with standard ZIF sockets

  • This assembly includes:
    • Full-color (262K) 240 x RGB x 320 display module consists of a TFT panel, touch screen, a driver IC, an FFC/FPC flexible cable, and an LED backlight.

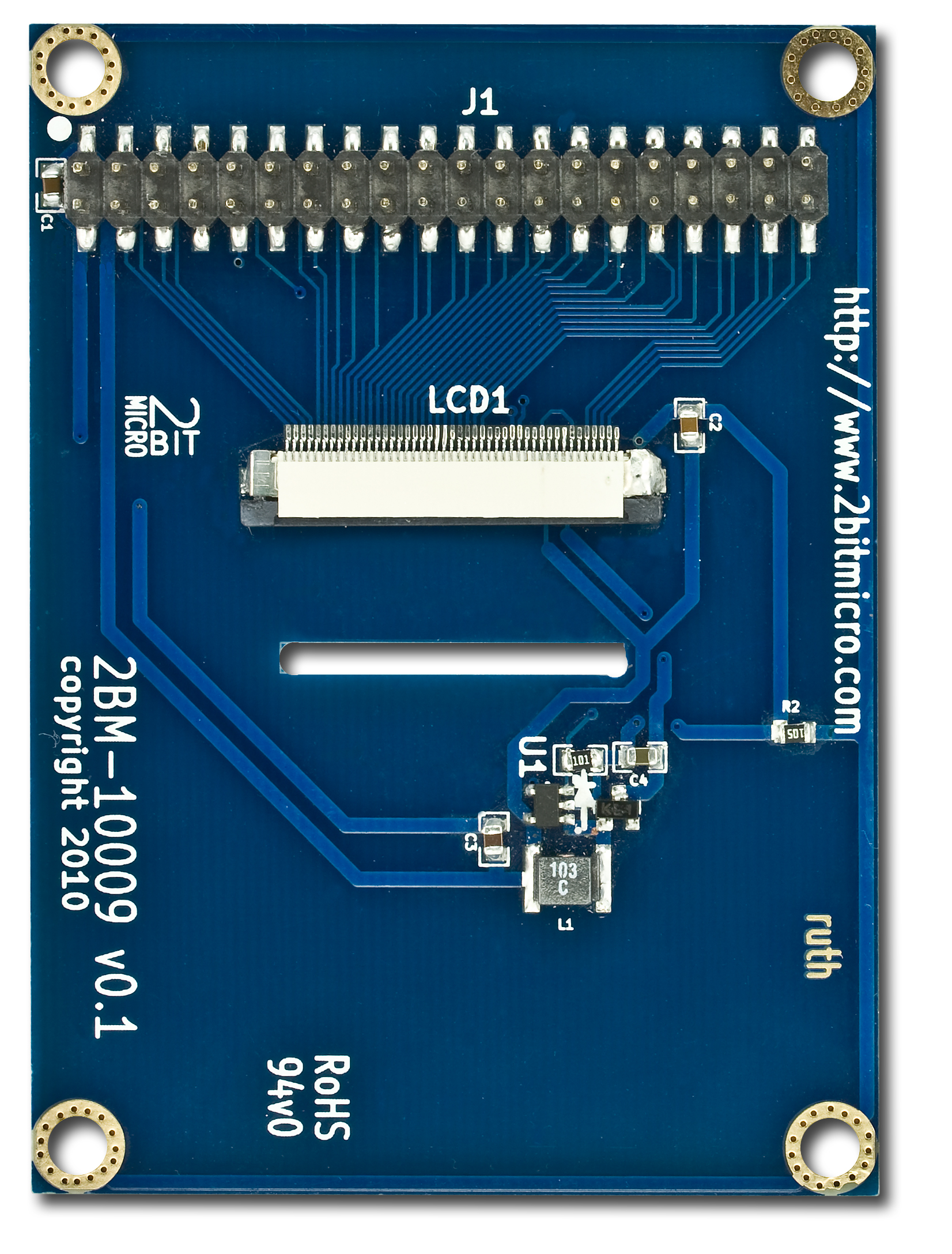

    • 2BM carrier board. The carrier board supports a current driver for the LED backlight of the display.
  • Active Area is 3.2" diagonal, 48.60 (W) x 64.80 (H) millimeters (1.91" (W) x 2.55" (H).
  • Host interface is 16-bit, 8080 parallel.
  • Thanks to the integrated Orise Tech OTM3225A or compatible driver, only a single 3.3v supply is needed for both power supply and logic. Click here for the controller datasheet.
  • The display module's 45-pin FFC/FPC flexible cable mates with standard 0.5 mm ZIF sockets such as 609-1196-1-ND
  • 9:00 o'clock viewing direction (polarizer viewing direction). Use in portrait or landscape orientation.
  • Temperature operation range is from -20°C to +70°C.
  • To get you started, free downloadable sample code is under the DATASHEETS & FILES tab below.
  • RoHS compliant. Crystalfontz America and factory are ISO certified.
  • To buy the CFAF240320A-032T-TS display module without the carrier board, click here .
  • For this TFT display module without a touch screen, click here .

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 240 x 320
Module Overall width height depth
millimeters 57.54 79.3 6.39
inches 2.265 3.122 0.252
*width / height does not include Foldable Tab
Diagonal Dimension 3.200"
Viewing Area width height
millimeters 50.6 71.26
inches 1.992 2.806
Active Area width height
millimeters 48.6 64.8
inches 1.913 2.551
Dot Pitch width height
millimeters 0.21 0.21
inches 0.008 0.008
Weight 122.5g

Optical Characteristics

Glass Type/Glass Color TFT/Black
Polarizer Transmissive
View Direction 9 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.7V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 2.8V
Supply Current Typical 8mA
Module Connector Pitch 0.2mm

Backlight Electrical Specifications

Forward Voltage Minimum 12.3V
Forward Voltage Maximum 13.3V
Forward Voltage Typical 12.8V
Forward Current Typical 20mA

Environmental

Operating Temperatures min max
Celsius -30° 75°
Fahrenheit -22° 167°
Storage Temperatures min max
Celsius -40° 85°
Fahrenheit -40° 185°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller OTM3225C

Miscellaneous

Foldable Tab Yes
Touch Screen yes

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240320A-032T-TS-CB or RSS RSS feed for changes to CFAF240320A-032T-TS-CB

Part Change Notice #10674: CFAF240320A-032T and CFAF240320A-032T-TS End of Life

Products Affected: CFAF240320A-032T-TS-CB, CFAF240320A-032T-TS, CFAF240320A-032T-CB, CFAF240320A-032T
Date Issued: October 7, 2015
Summary: CFAF240320A-032T and CFAF240320A-032T-TS End of Life
Last revision: A
Description: CFAF240320A-032T and CFAF240320A-032T-TS is End Of Life as of 2015-10-07. This part is no longer being manufactured.
Reason: Due to the discontinuation of this part's controller, this part can no longer be manufactured.
Impact: Immediate.
Recommendation: We are working diligently to source a replacement part. Once identified, we will issue a second PCN with the replacement part information.
Availability: Current stock will be available until exhausted.
Part will then be unavailable.
Price Change: N/A

Product Update #10449: (New Product) CFAF240320A-032T-TS-CB

New Product: CFAF240320A-032T-TS-CB
Date Issued: November 20, 2012
Summary: (New Product) CFAF240320A-032T-TS-CB
Description: Under TFT LCD Modules: TFT LCD with touch panel and 2BM-10009 carrier board. Includes driver for LCD's backlight.
