240x320 2" Transflective TFT from Crystalfontz

Product

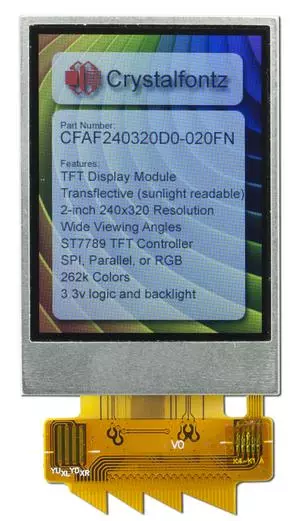

240x320 2" Transflective TFTPart Number: CFAF240320D0-020FN
         This small TFT uses a transflective polarizer, which combines the benefits of transmissive and reflective technology. Transflective displays use less power to achieve sunlight readability - this display is sunlight readable with only 3.2v and 80 mA required to operate the backlight.

At 2 inches on the diagonal, this display is compact but packs a punch with 240x320 pixels and 262k colors.

Part Number

CFA - Crystalfontz America

F - TFT LCD

240x320 - 240x320 pixel resolution

D0 - Family and revision

020 - 2" diagonal

F - Transflective polarizer

N - No touchscreen
Product VariationsTouchscreenResistiveNone

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        35.8
        52.1
        2.65

        inches
        1.41
        2.05
        0.10

        Diagonal Dimension
            2"

    Active Area        Width
        Height

        millimeters
        30.6
        40.8

        inches
        1.21
        1.61

    Dot Pitch        Width
        Height

        millimeters
        0.1275
        0.1275

        inches
        0.0050
        0.0050

        Weight
            10.6g
Pin Count
            45

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transflective
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            12mA
Supply Current Typical
            6mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.8V
Forward Voltage Maximum
            3.3V
Forward Voltage Typical
            3.2V

        Forward Current Minimum
            60mA
Forward Current Typical
            80mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320D0-020Fx Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $23.54

            10
            $22.82

            20
            $22.20

            50 *
            $20.27

            100 *
            $18.90

            200 *
            $18.74

            300 *
            $17.42

            500 *
            $16.58

            1000 *
            $15.46

33 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Need ZIF Connectors? $1.50 ea.

						45-Position ZIF Breakout Board
Add a 45-pin ZIF Breakout Board? $6.54 ea.

Module Overall	width	height	depth
millimeters	35.8	52.1	2.65
inches	1.41	2.05	0.10

Active Area	Width	Height
millimeters	30.6	40.8
inches	1.21	1.61

Dot Pitch	Width	Height
millimeters	0.1275	0.1275
inches	0.0050	0.0050

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$23.54
10	$22.82
20	$22.20
50 *	$20.27
100 *	$18.90
200 *	$18.74
300 *	$17.42
500 *	$16.58
1000 *	$15.46

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11215: 240x320 2" Transflective TFT is now available

New Product:	CFAF240320D0-020FN
Date Issued:	July 6, 2023
Summary:	240x320 2" Transflective TFT is now available
Description:	CFAF240320D0-020FN has been released on our website (https://www.crystalfontz.com/product/cfaf240320d0020fn-240x320-2-inch-transflective-tft) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF240320D0-020FN

240x320 2" Transflective TFT

Part Number: CFAF240320D0-020FN

Product Variations

Touchscreen

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11215: 240x320 2" Transflective TFT is now available

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type	TFT
Polarizer	Transflective
View Angle	160°
Sunlight Readable	Yes

Backlight Color	White
Backlight Type	LED
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	2.5V
Supply Voltage for Logic Maximum	3.6V
Supply Voltage for Logic Typical	3.3V

Forward Voltage Minimum	2.8V
Forward Voltage Maximum	3.3V
Forward Voltage Typical	3.2V

Forward Current Minimum	60mA
Forward Current Typical	80mA

Controller Documents	Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Weight	10.6g
Pin Count	45
