45-Position ZIF Breakout Board

Part Number: CFABB-CS050Z45G-B0

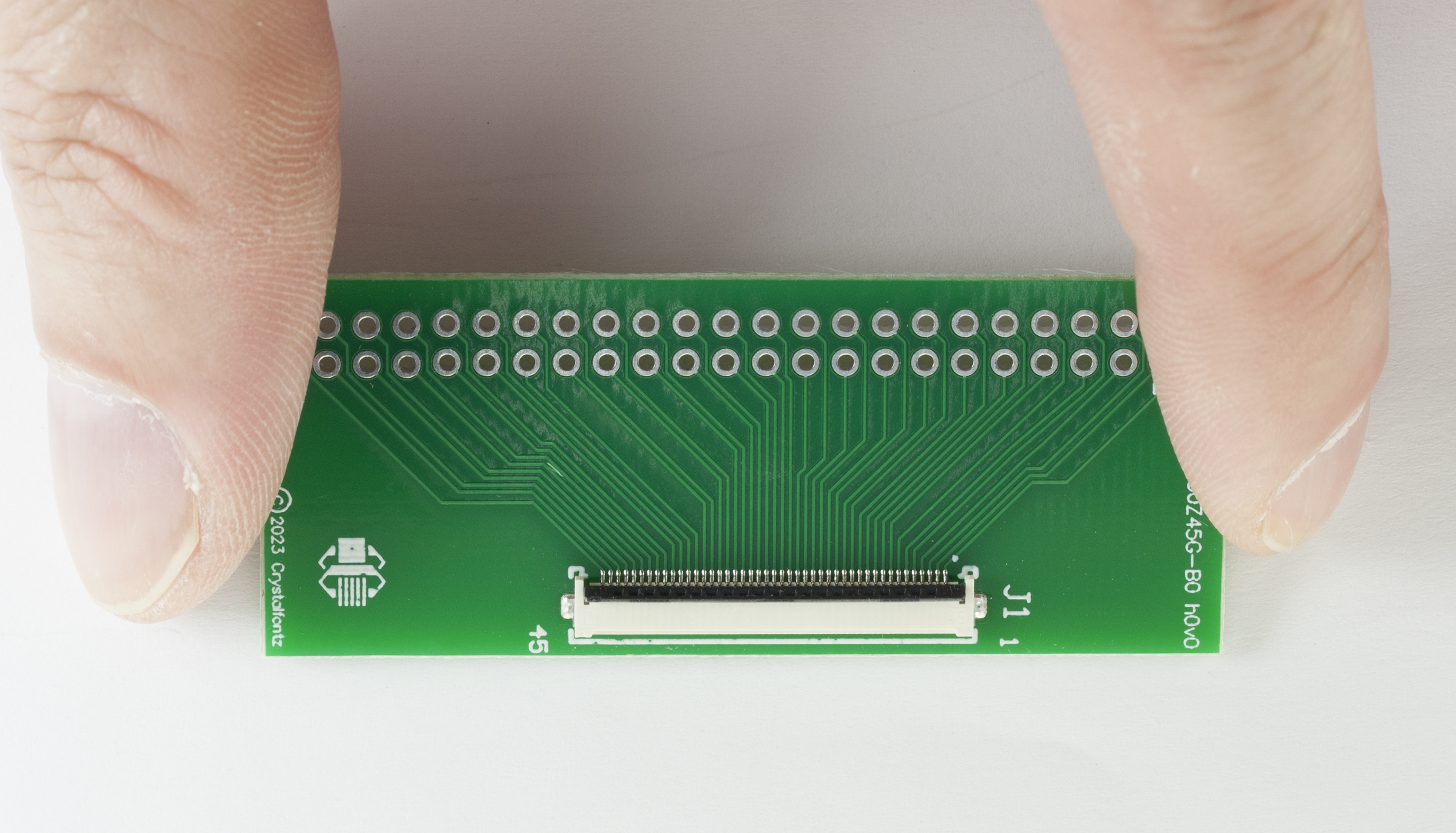

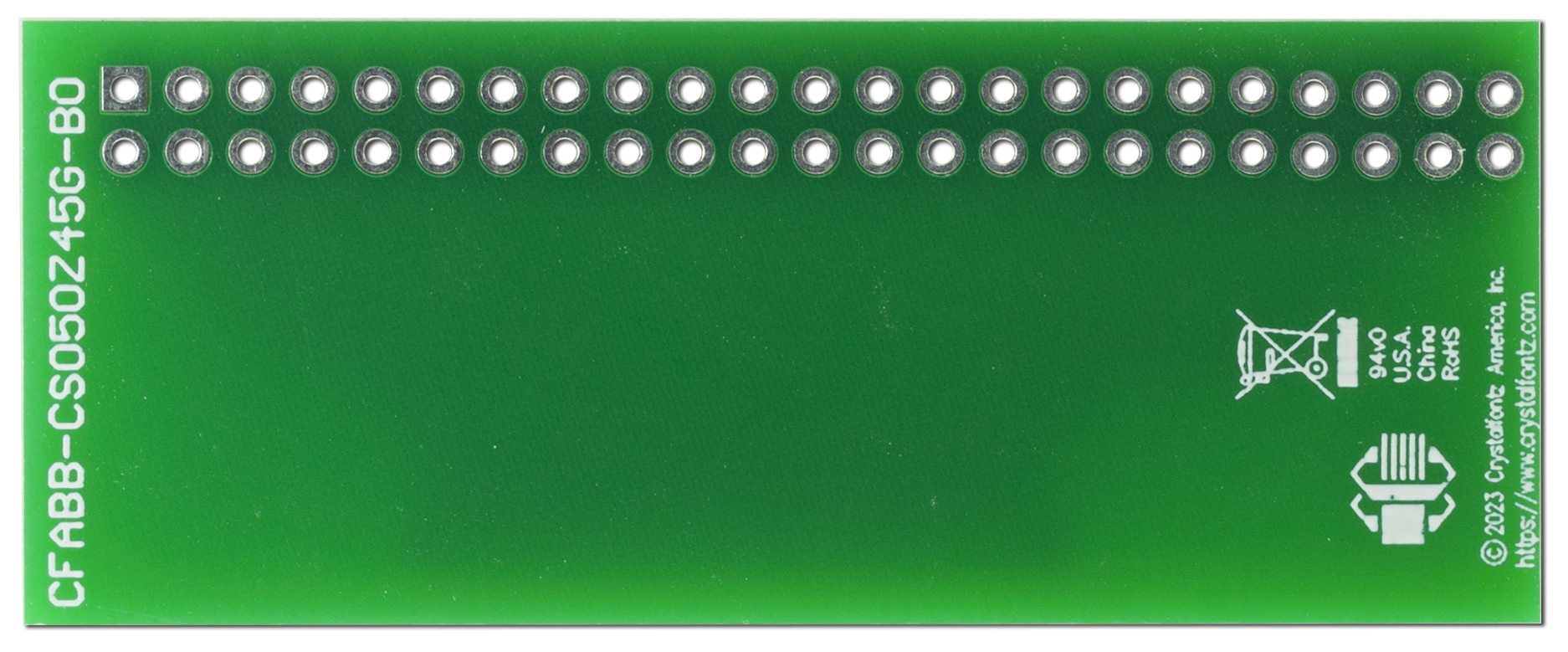

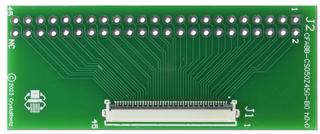

This ZIF breakout board includes our 45-pin 0.5-millimeter pitch ZIF connector broken out to 0.1" through holes. Grab this breakout board for quick prototyping with displays that have a ZIF tail with 45 pins or fewer at a 0.5 mm pitch.

Don't forget to add a few of our dual row headers to populate the through holes.

This breakout board was specifically designed to connect to our multi-use ZIF breakout board. Solder this to the empty through holes on the multi-use board to add any size ZIF connector so you can have a perfect fit.

Part Number:
CFA- Crystalfontz America
BB- Breakout Board
CS050Z45G-B0 includes this connector

Connector Part Number:
CS- Crystalfontz Connector
050- 0.5mm pitch
Z- Top and Bottom Connectors
45- 45 pins
G- Gold
A0- Family and revision

Physical Characteristics
Physical Characteristics

Weight 5.2g

Pin Count 45
Files and Downloads

picture_as_pdf Other Document - CFA10102 Integration Guide
picture_as_pdf Other Document - Getting Started Guide
Compliance Documents

picture_as_pdf Declaration of Conformity RoHS2

picture_as_pdf Declaration of Conformity REACH

45-Position ZIF Breakout Board (CFABB-CS050Z45G-B0)

Quantity	Price
1	$6.54

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors? $1.50 ea.

6-inch Female to Female Jumper Wires
Need jumper wires? $3.38 ea.

72 Pin Header
Add Header Pins? $0.66 ea.

Multi-use ZIF Breakout Board
Add a breakout board? $22.34 ea.
