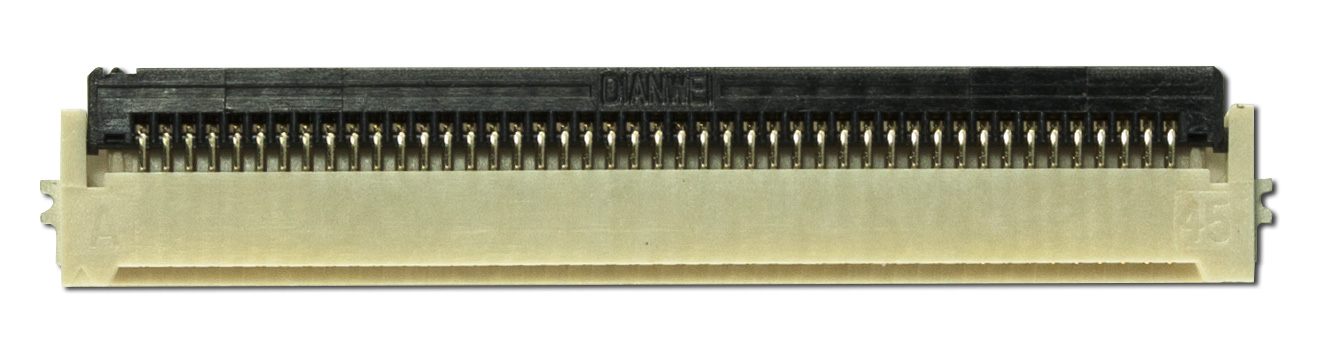

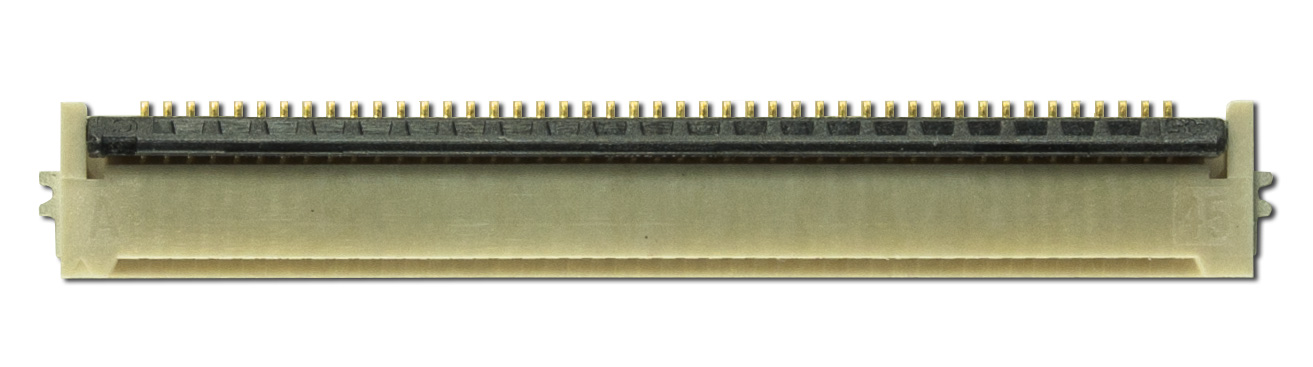

45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector

Part Number: CS050Z45G-B0

This 45 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 45 Position
  • 0.50mm Pitch
  • Gold Plated
  • Top & Bottom Contacts
Qty:
Quantity Price
5 $1.50
100 $0.89
3000 $0.74
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z45G-B0 or RSS RSS feed for changes to CS050Z45G-B0 for CS050Z45G-B0

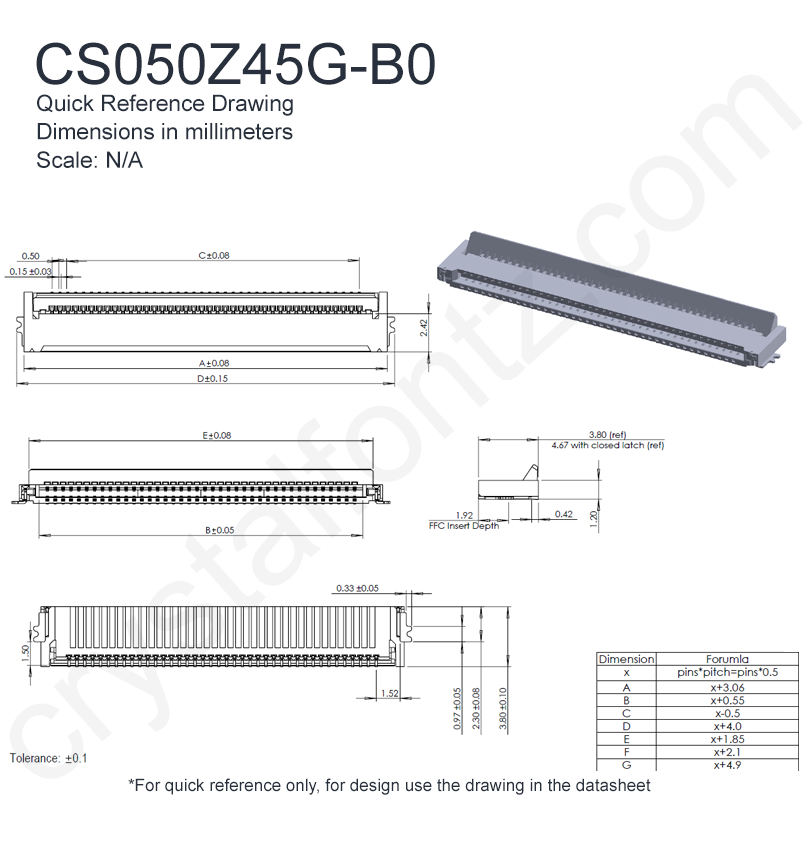

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 25.56 1.2
inches 1.006 0.047
Weight 0.436g
Pin Count 45

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
