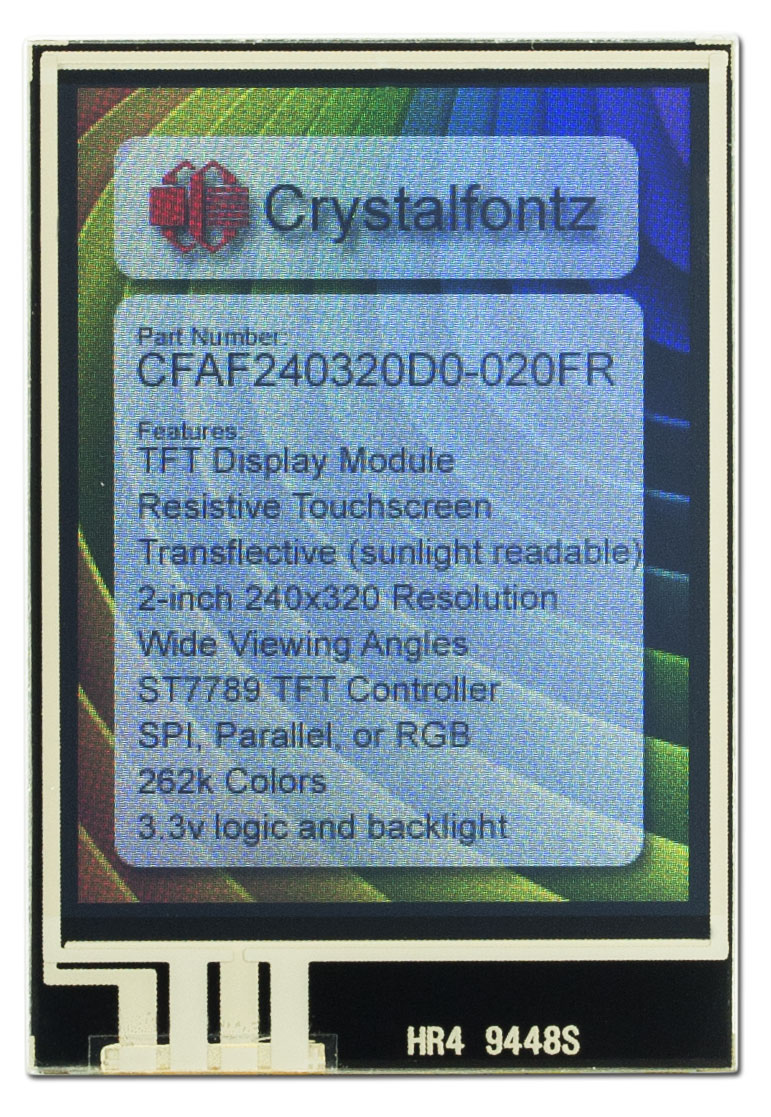

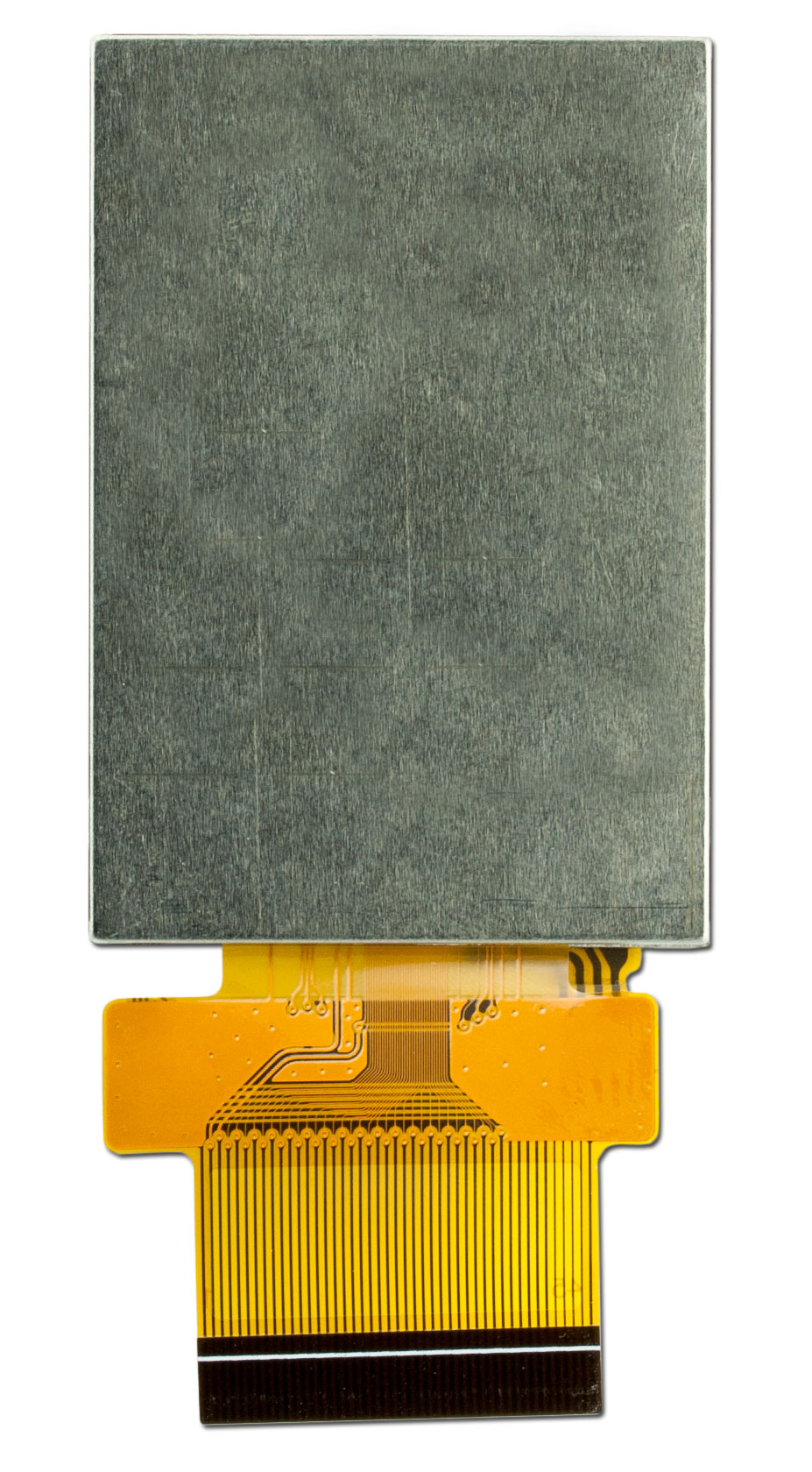

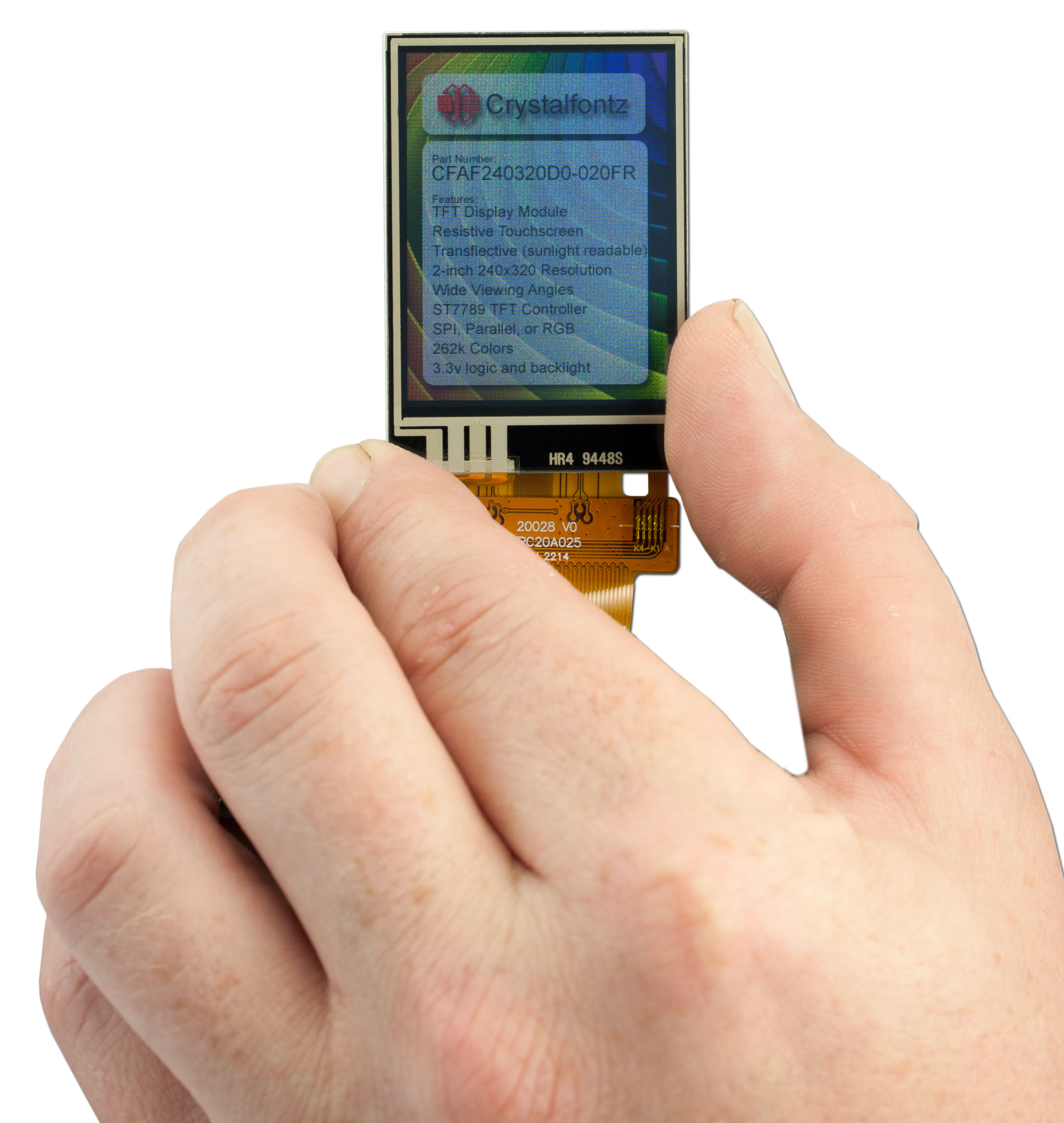

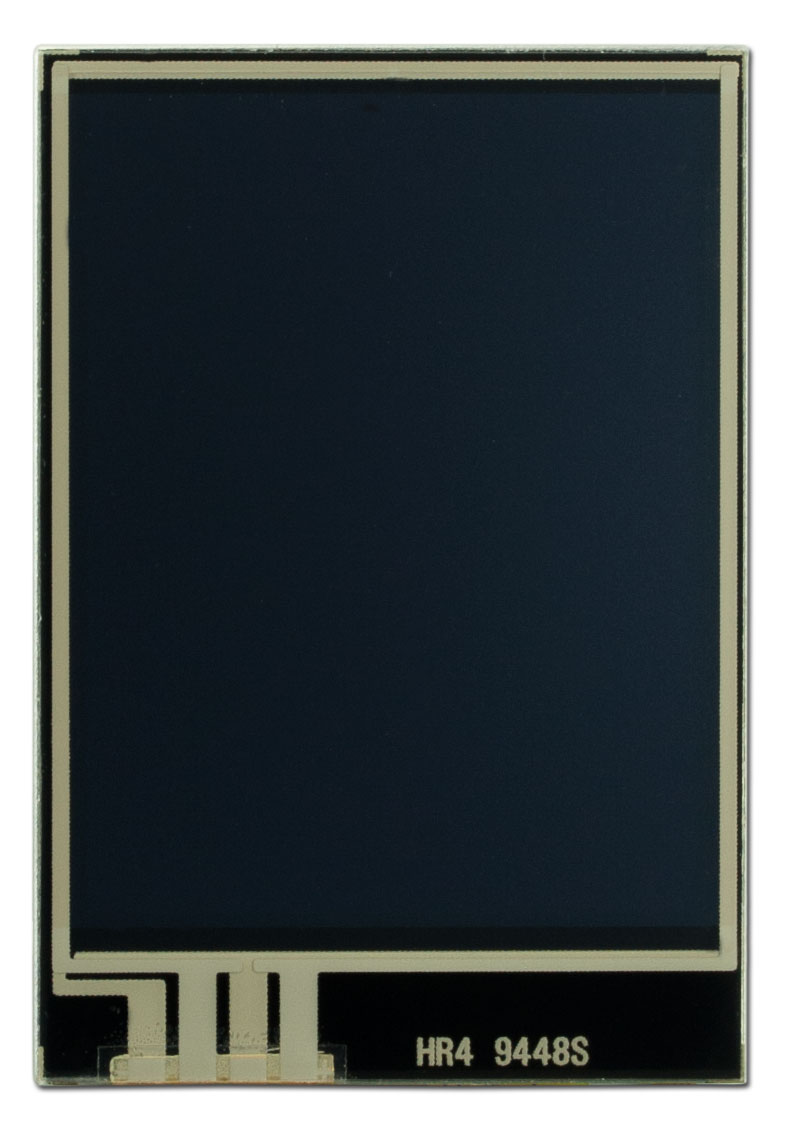

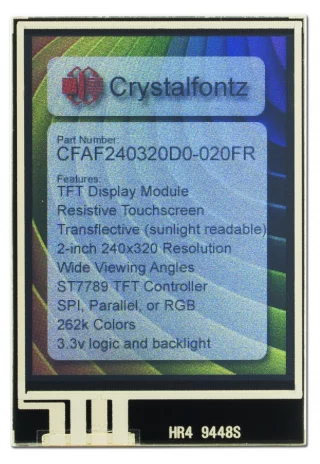

240x320 2" Sunlight Readable Resistive Touchscreen TFT Display

Part Number: CFAF240320D0-020FR

Thanks to the transflective polarizer (sunlight readable!) and resistive touchscreen, this display would be a great human-machine interface point. The wide viewing angle (80 degrees on each side without color inversion) means this display can be mounted above or below the eye and still look sharp. The display is a compact 2" on the diagonal for the active area, and with 240x320 pixels it will look clear and sharp.

The resistive touchscreen makes this a great choice for applications where users will interact with it when the display might be wet or when the users are wearing non-conductive gloves.

Part Number
CFA - Crystalfontz America
F - TFT LCD
240x320 - 240x320 pixel resolution
D0 - Family and revision
020 - 2" diagonal
F - Transflective polarizer
R - Resistive touchscreen

Product Variants

• square_foot Physical Characteristics

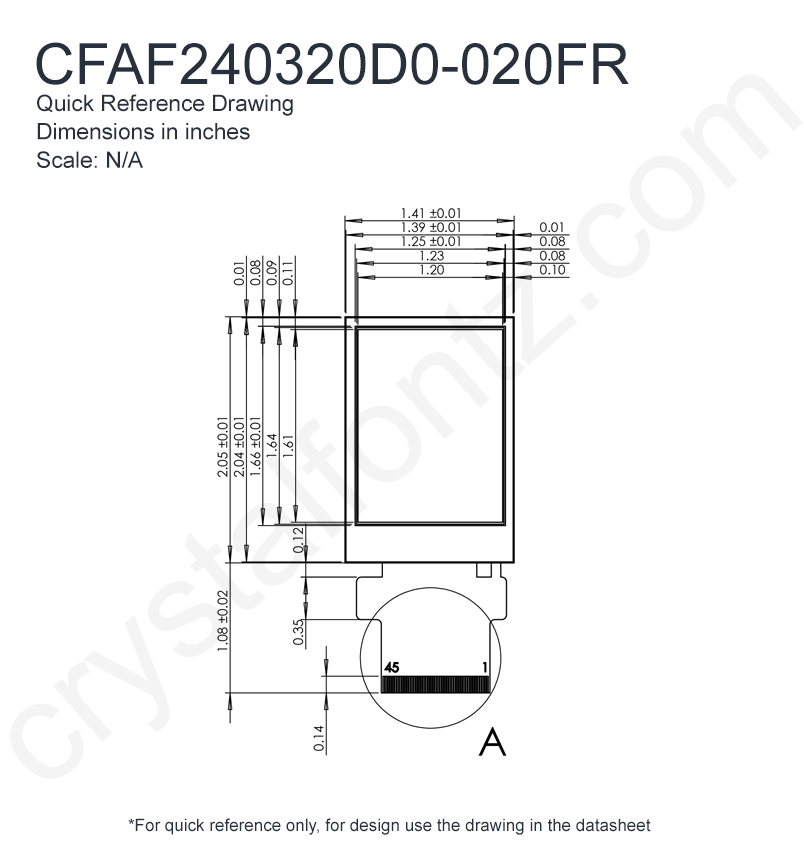

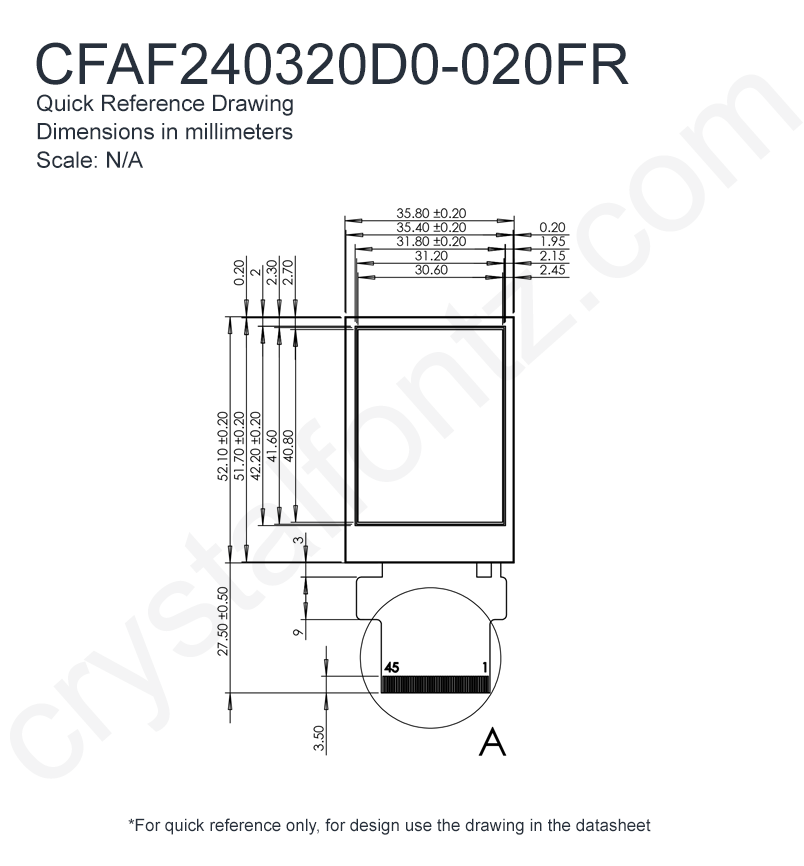

  Physical Characteristics

  Column Dots x Row Dots

  240 x 320

  Module Overall	width	height	depth
  millimeters	35.8	52.1	2.65
  inches	1.41	2.05	0.10

  Diagonal Dimension

  2"

  Active Area	Width	Height
  millimeters	30.6	40.8
  inches	1.21	1.61

  Dot Pitch	Width	Height
  millimeters	0.1275	0.1275
  inches	0.0050	0.0050

  Weight	14.6g
  Pin Count	45

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transflective
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.5V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V

  Supply Current Maximum	12mA
  Supply Current Typical	6mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.8V
  Forward Voltage Maximum	3.3V
  Forward Voltage Typical	3.2V

  Forward Current Minimum	60mA
  Forward Current Typical	80mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7789V ST7789V Datasheet Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
  Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI
