IPS TFT Development Kit from Crystalfontz

Product

Home » Products » Accessories » Carrier Boards

                        This kit is no longer available. We recommend this 2" TFT Development Kit

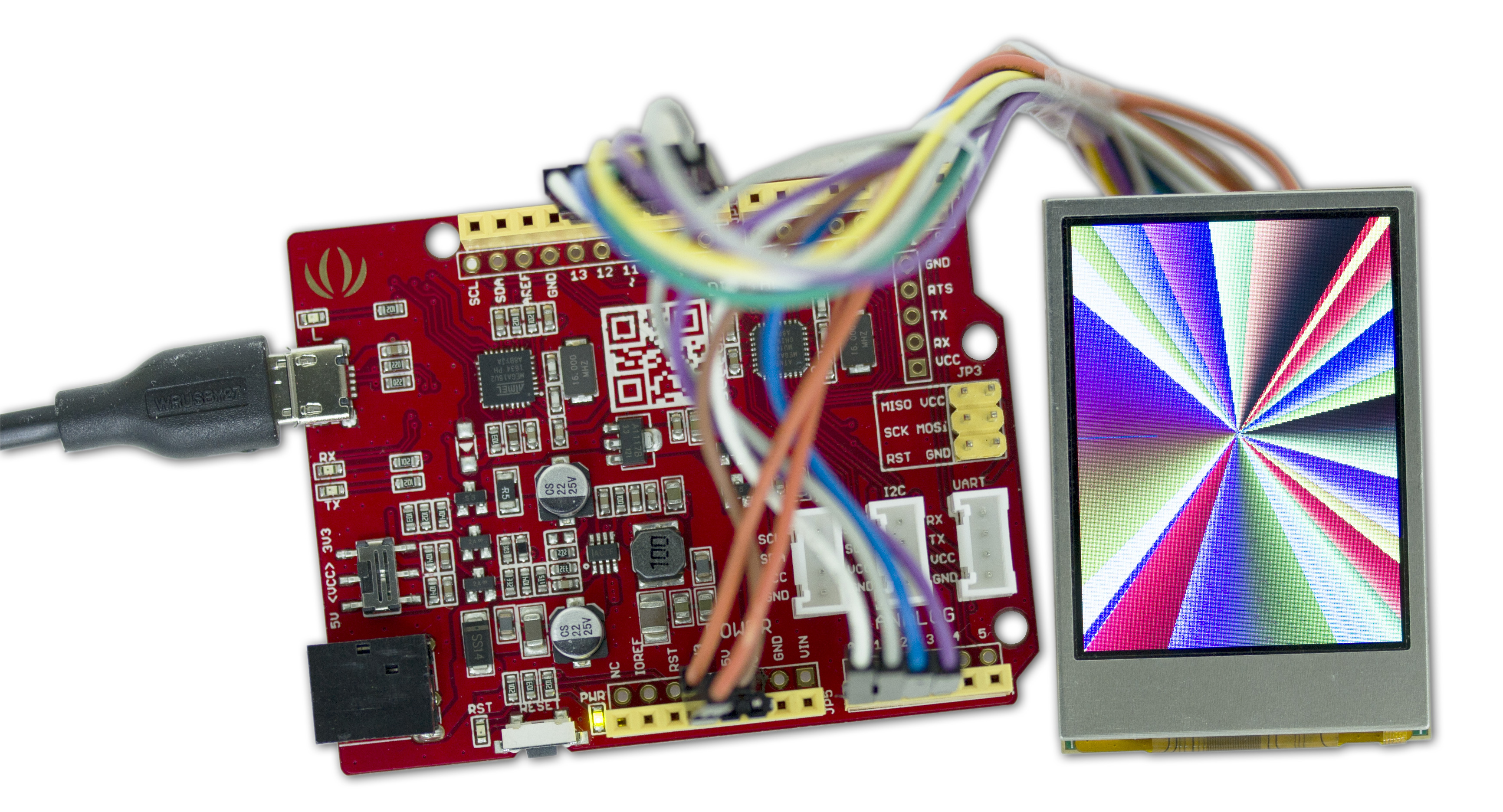

IPS TFT Development KitPart Number: CFAF240320W0-E1-2Complete IPS TFT demonstration kit for our CFAF240320W-020T Small IPS Display. This TFT development kit consists of the display, a carrier board (CFA10081) with all the connection headers and wires and a Seeeduino (which is a 3.3/5v switchable Arduino clone).
This kit comes fully assembled and just needs to be plugged in to run, making prototyping a breeze!
You can download the datasheet for the display  here under the datasheet section on the right.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height

        millimeters
        35.8
        52.1

        inches
        1.41
        2.05

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.01"

    Viewing Area        Width
        Height

        millimeters
        30.6
        40.8

        inches
        1.21
        1.61

    Active Area        Width
        Height

        millimeters
        30.6
        40.8

        inches
        1.21
        1.61

    Dot Pitch        Width
        Height

        millimeters
        0.1275
        0.1275

        inches
        0.0050
        0.0050

        Weight
            47.4g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            IPS
Polarizer
            Transflective
Sunlight Readable
            yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            3.3V
Supply Current Typical
            7mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V
Forward Current Minimum
            60mA

        Forward Current Typical
            80mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

download Files and Downloads
folder_zip Hardware Design - Hardware Build Package

Module Overall	width	height
millimeters	35.8	52.1
inches	1.41	2.05
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	30.6	40.8
inches	1.21	1.61

Active Area	Width	Height
millimeters	30.6	40.8
inches	1.21	1.61

Dot Pitch	Width	Height
millimeters	0.1275	0.1275
inches	0.0050	0.0050

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10913: End-of-Life Notice

Products Affected:	CFAF240320V-020T, CFAF240320V-020T-TS, CFAF240320W-020T, CFAF240320W-020T-TS, CFAF240320W0-E1-2, CFAF240320W0-TS-E1-2, CFAF240320W0-TS-E1-1, CFAF240320W0-E1-1
Date Issued:	December 21, 2017
Summary:	End-of-Life Notice
Description:	An equal and less expensive replacement has been developed.
Impact:	When current stocks of these parts are depleted the parts will no longer be available
Recommendation:	New designs should be based on the replacement part CFAF240320X0-020T
Availability:	The replacement part CFAF240320X0-020T is available now. Development kits are also available: CFAF240320X0-020T-E1-1 CFAF240320X0-020T-E1-2
Price Change:	Current pricing for the CFAF240320X0-020T is shown on the web page. https://www.crystalfontz.com/product/cfaf240320x0020t-2inch-240x320-color-tft

Product Update #10874: (New Product) CFAF240320W0-E1-2

New Product:	CFAF240320W0-E1-2
Date Issued:	August 18, 2017
Summary:	(New Product) CFAF240320W0-E1-2
Description:	Development Kit / Demonstration Board: Complete IPS TFT development kit. Includes everything you need just plug in and go!
