240x400 Touchscreen EVE SPI TFT
Part Number: CFAF240400C0-030SC-A1-1

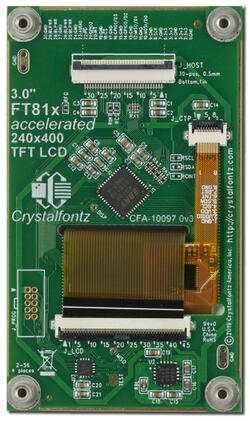

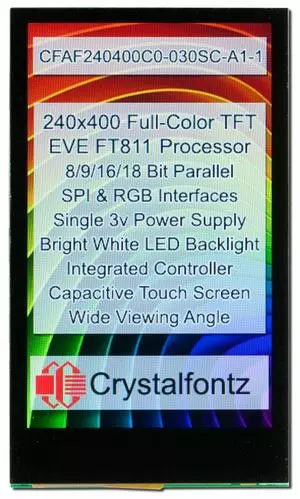

This EVE TFT Development Kit is a 3-inch, 240x400 Full-Color TFT with the EVE graphic accelerator and capacitive touchscreen. Simply plug in your controller of choice. the EVE engine uses 4-wire SPI for communication via a 30-pin FPC/ZIF connection.This kit is based around an FTDI/BridgeTek FT811 Embedded Video Engine (EVE). All display, touch sensing, backlight control and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data using SPI.
Need a breakout board? The EVE Breakout Board breaks out the zif connector to 0.1" headers for easy development. We also carry a 6-inch 30-pin FPC cable and a 12-inch 30-pin FPC cable.
For more info about the Embedded Video Engine, please see the FTDI FT81x Datasheet.
Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm
