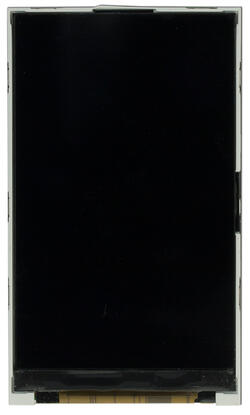

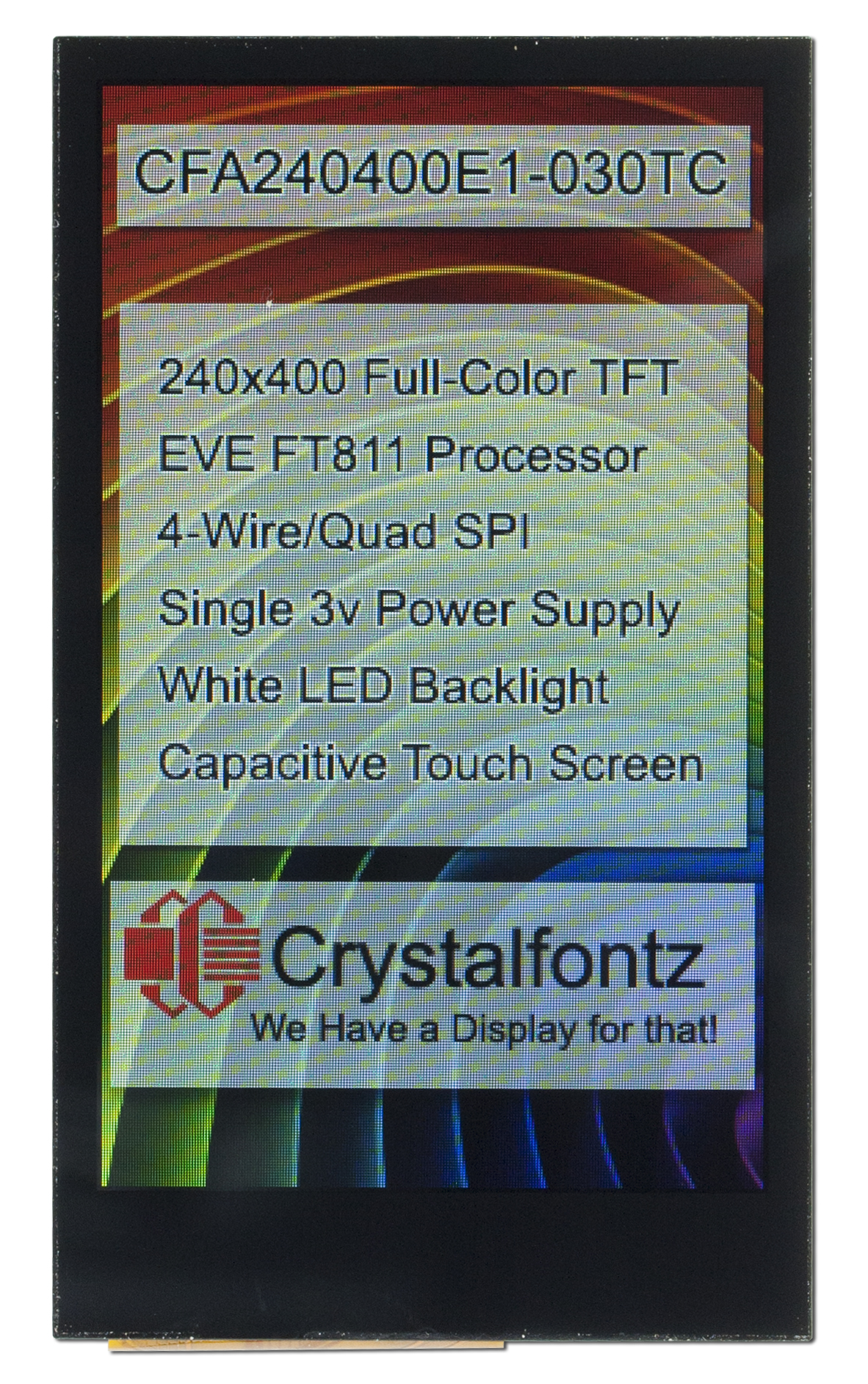

240x400 Capacitive Touchscreen EVE TFT Display

Part Number: CFA240400E1-030TC

This EVE TFT module boasts a 3" 240x400 Full-Color TFT and capacitive touchscreen controlled by an EVE graphic accelerator board. The EVE engine uses 4-wire SPI for communication via a 30-pin FPC/ZIF connection. Check out our other EVE display modules.

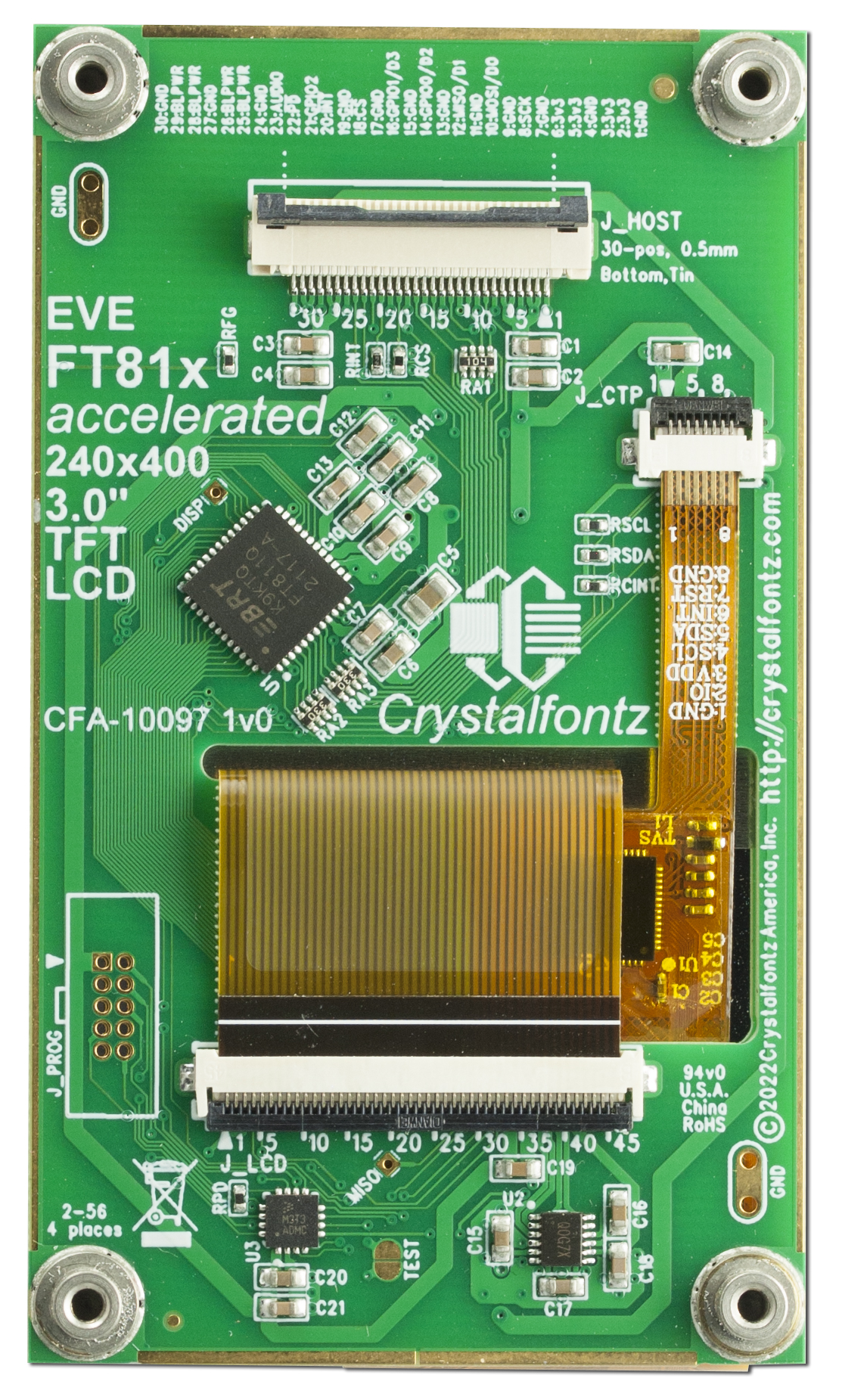

This module is based around the FTDI/BridgeTek FT811 Embedded Video Engine (EVE). All display, touch sensing, backlight control, and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data using SPI. Read more about EVE on our blog.

For more info about the Embedded Video Engine, please see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on Bridgetek's website.

To demonstrate this product quickly, we offer a full 3" EVE TFT demonstration kit. We also carry many useful parts for implementing this display module including:
This module replaces the CFAF240400C0-030SC-A1-1. Some modifications to the timing parameters are required to implement this new module. Please see the PCN.

Currently Shipping: HW Version 1v0, Firmware Version: 1v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240400 - Pixel Resolution
1 - Revision
030 - 3.0" Diagonal
T - Standard Brightness
C - Capacitive Touch

Product Variations

  • square_foot Physical Characteristics

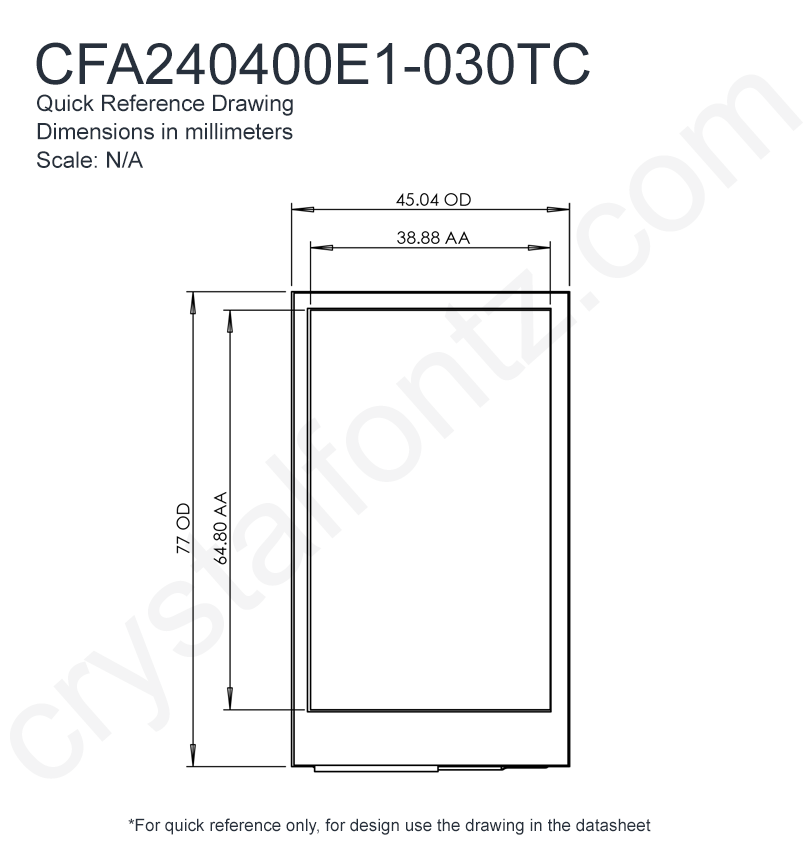

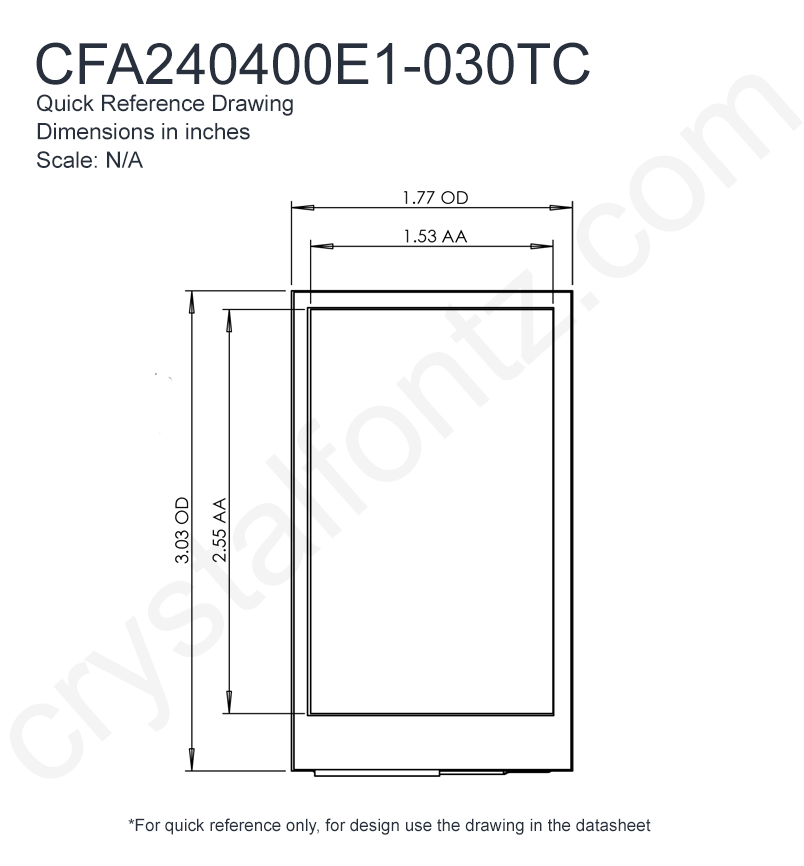

    Physical Characteristics

    Column Dots x Row Dots 240 x 400
    Module Overall width height depth
    millimeters 45 77 6.3
    inches 1.77 3.03 0.25
    Diagonal Dimension 3"
    Active Area Width Height
    millimeters 38.88 64.8
    inches 1.53 2.55
    Dot Pitch Width Height
    millimeters 0.162 0.162
    inches 0.0064 0.0064
    Weight 42g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Polarizer IPS
    View Angle 80°
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.97V
    Supply Voltage for Logic Maximum 3.63V
    Supply Voltage for Logic Typical 33.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Minimum 3mA
    Supply Current Maximum 5mA
    Supply Current Typical 39.7mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 3V
    Forward Voltage Maximum 5V
    Forward Voltage Typical 3.3V
    Forward Current Maximum 80.1mA
    Forward Current Typical 39.7mA
  • nature Enviromental


    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics


    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity Price
1 $114.80
5 $95.86
10 $93.33
20 $90.18
50 $87.03
100 * $85.77
200 * $85.13
300 * $84.51
500 * $83.88
1000 * $83.25
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors? $0.61 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
4606 6-inch 30-pin FFC Cable
Ribbon cable? $2.30 ea.

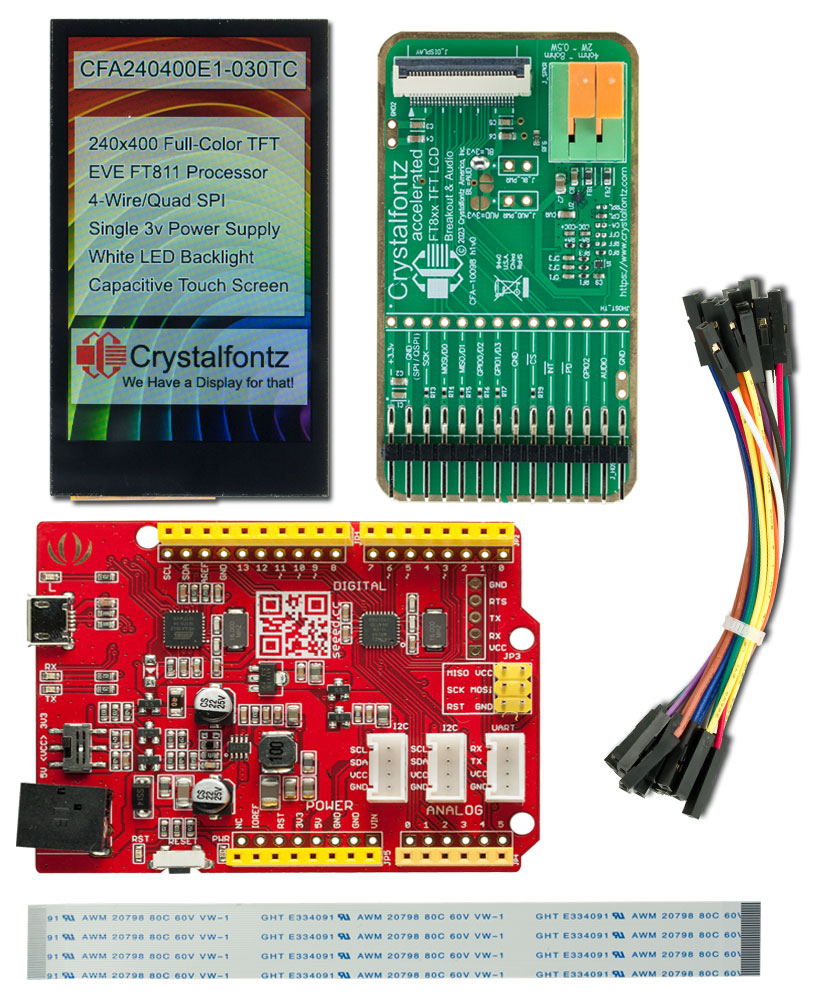

4758 240x400 Capacitive Touch EVE Development Kit
Get the Kit? $134.03 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA240400E1-030TC or RSS RSS feed for changes to CFA240400E1-030TC
  • text_snippet
    Part Change Notice #11153: 240x400 Capacitive Touchscreen EVE TFT Display is now available
    New Product: CFA240400E1-030TC
    Date Issued: October 12, 2022
    Summary: 240x400 Capacitive Touchscreen EVE TFT Display is now available
    Description: CFA240400E1-030TC has been released on our website ( and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to Contact for any technical questions.
