3 Inch 240x400 Full-Color IPS Touchscreen Display

Part Number: CFAF240400C0-030SC

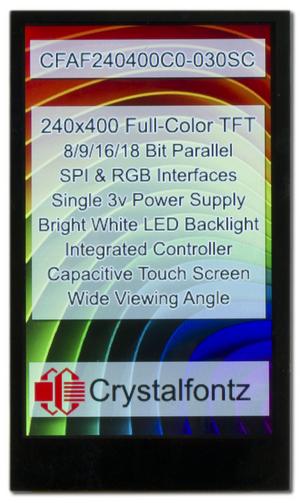

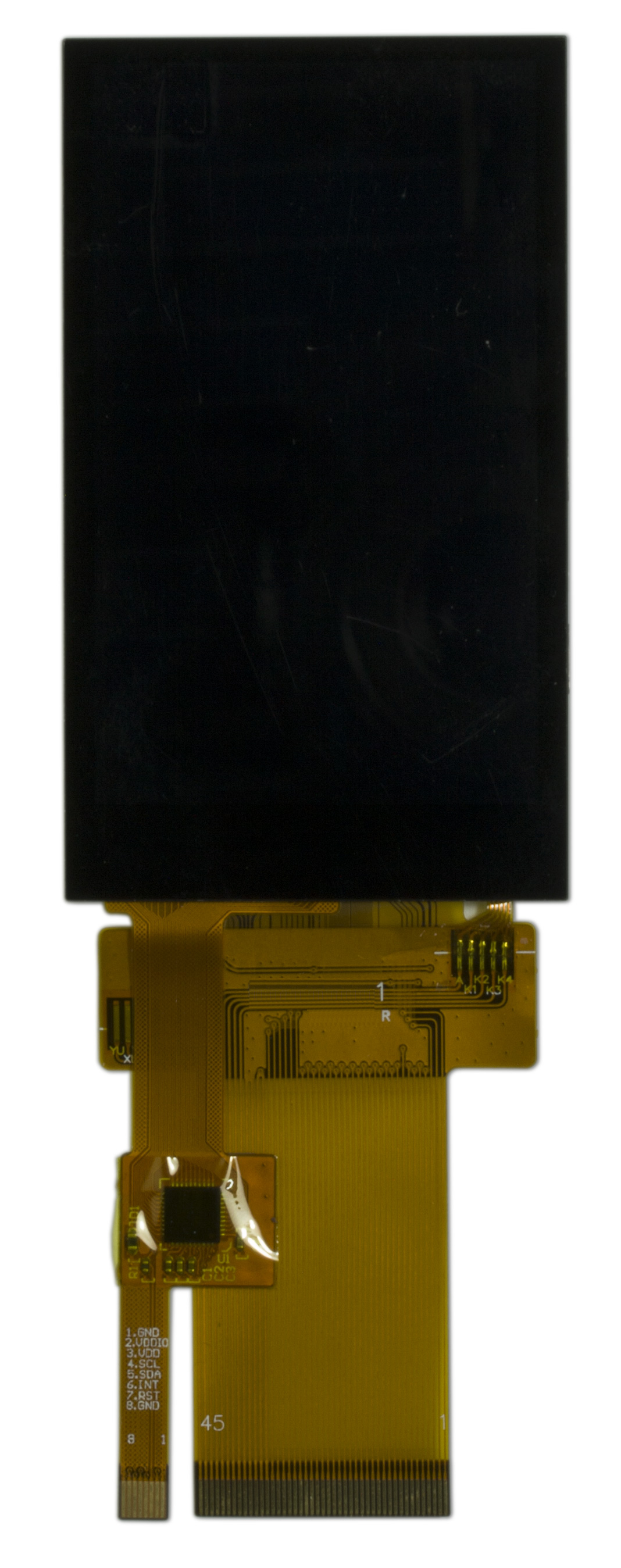

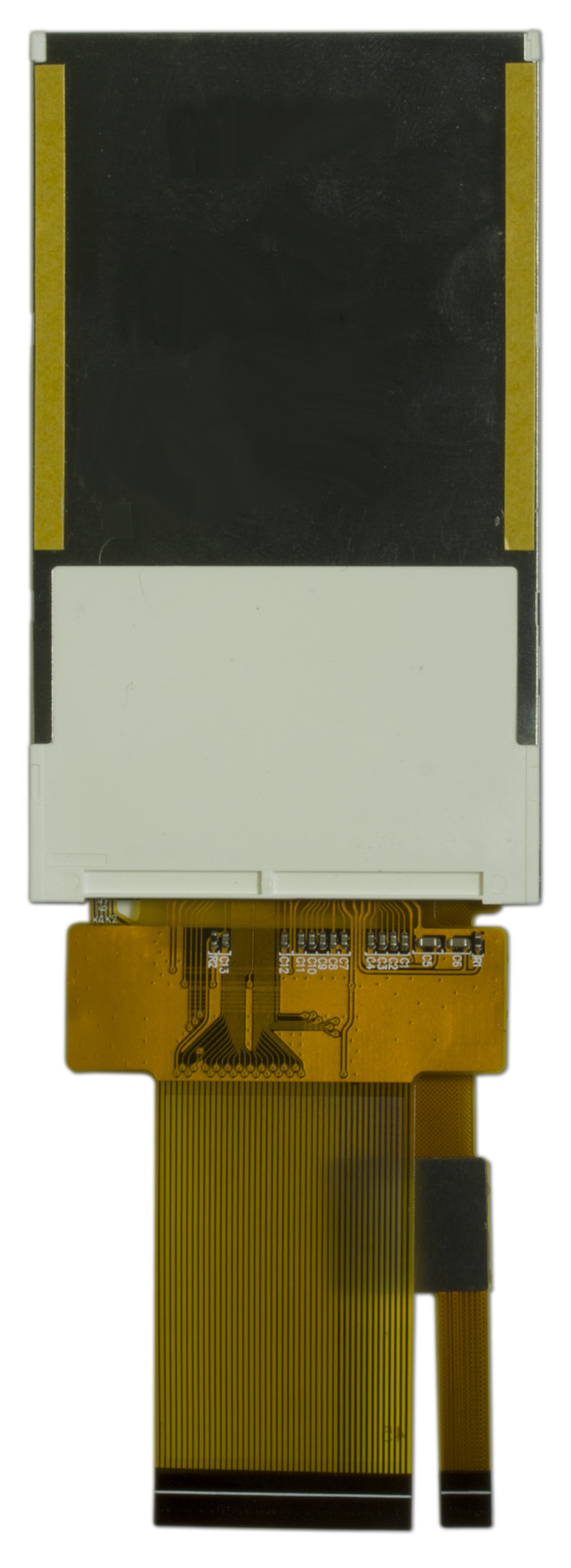

This is a 3", full-color, IPS, TFT graphic display module with a white LED backlight and a capacitive touchscreen. This display is designed with a FPC tail for easy PCA integration with a ZIF socket. It's compatible with our 45-position ZIF socket while the touchscreen connection is compatible with our 8 Position ZIF connector.

Selectable resolution options allow you to set your color depth requirements allowing for an 8 color span, a 65k color span, and a 262k color span and is approximately 340 nits.

Product Variants

CFAF240400C0-030SC3 Inch 240x400 Full-Color IPS Touchscreen Display
CFAF240400E0-030TN3" 240x400 Full-Color TFT Display
3 Inch 240x400 Full-Color IPS Touchscreen Display (CFAF240400C0-030SC)
Qty:
Quantity Price
1 $37.96
10 $30.86
20 $29.82
50 $28.77
100 $28.36
200 * $28.15
500 * $27.94
1000 * $27.73
* Contact us about potential lead times.
Components worth considering
4638 45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $1.30 ea.
4627 8 Position, 0.5.mm Pitch, Gold, FCC FPC ZIF connector
Add a 5 ZIFs for the touchscreen? $0.54 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240400C0-030SC or RSS RSS feed for changes to CFAF240400C0-030SC for CFAF240400C0-030SC

Compliance Documents

Video Demonstrations

3-inch 240x400, Full-Color, IPS TFT Demo

Demo of our 3" 240x400, Full-Color, IPS TFT display with a capacitive touch-screen


TECHNICAL SPECS

Physical Characteristics

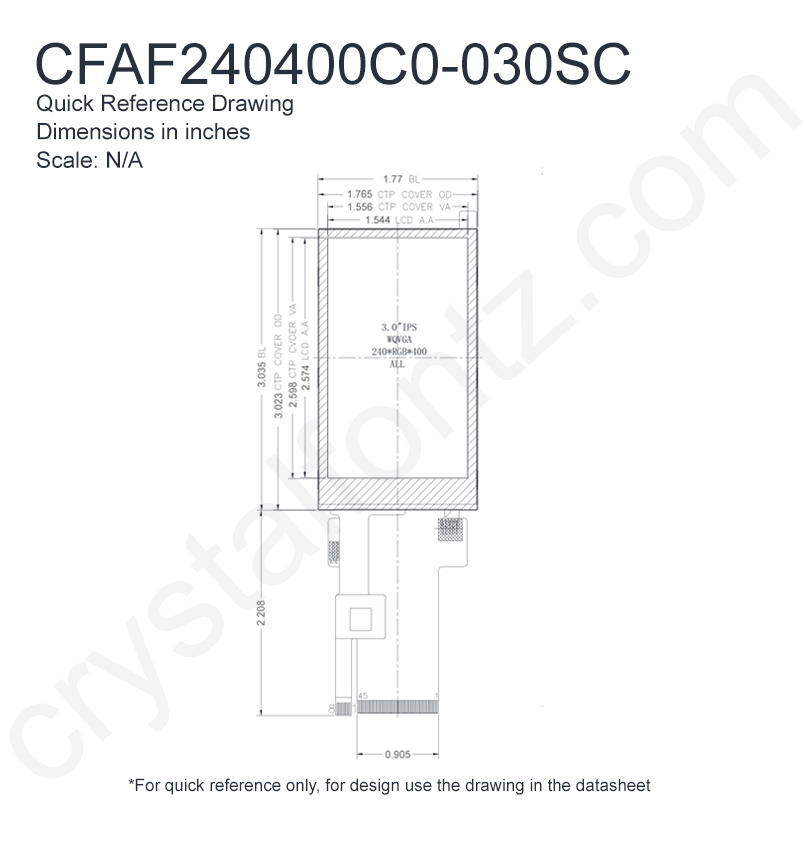

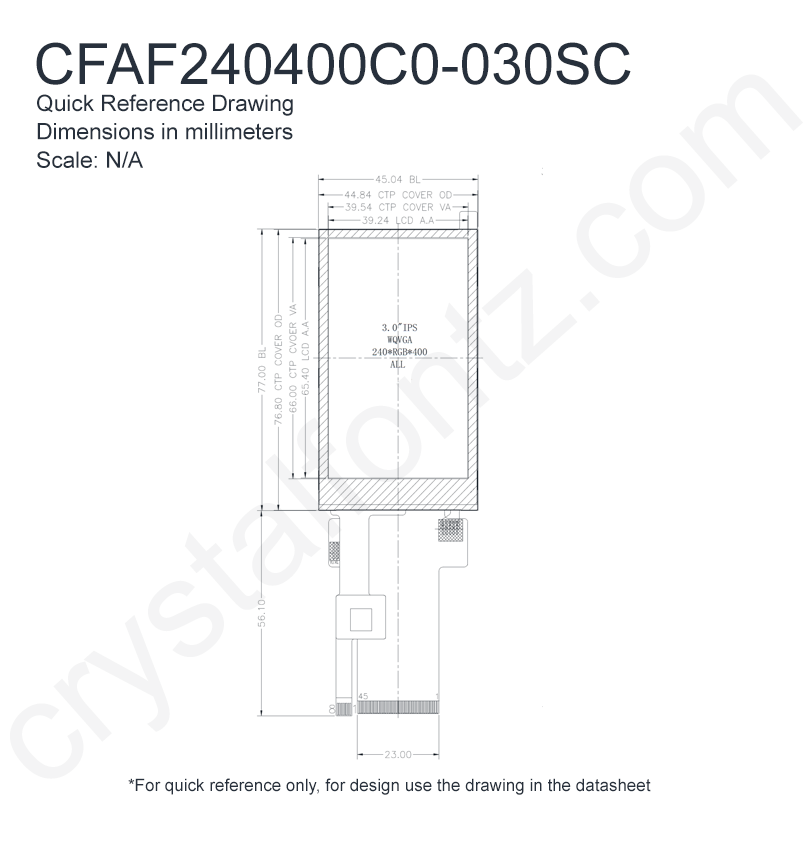

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 3.85
inches 1.773 3.031 0.152
*width / height does not include Foldable Tab
Diagonal Dimension 3"
Viewing Area width height
millimeters 39.54 66
inches 1.557 2.598
Active Area width height
millimeters 39.24 65.4
inches 1.545 2.575
Dot Pitch width height
millimeters 0.1635 0.1635
inches 0.0064 0.0064
Optional Connectors CS050Z45GB0
Weight 19.6g
Pin Count 45

Optical Characteristics

Polarizer Transmissive
View Angle 160°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V

Backlight Electrical Specifications

Forward Voltage Typical 3.2V
Forward Current Typical 80mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Ilitek ILI9327
a-Si TFT LCD Single Chip Driver
240RGBx432 Resolution and 262K color
Ilitek ILI9327
a-Si TFT LCD Single Chip Driver
240RGBx432 Resolution and 262K color
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Foldable Tab Yes
Nits 340
Touch Screen Capacitive

Additional Options

Purchase this display bundled with an EVE board for quick development.

240x400 Touchscreen EVE SPI TFT
Part Number: CFAF240400C0-030SC-A1-1

This EVE TFT Development Kit is a 3-inch, 240x400 Full-Color TFT with the EVE graphic accelerator and capacitive touchscreen. Simply plug in your controller of choice. the EVE engine uses 4-wire SPI for communication via a 30-pin FPC/ZIF connection.

This kit is based around an FTDI/BridgeTek FT811 Embedded Video Engine (EVE). All display, touch sensing, backlight control and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data using SPI.

Need a breakout board? The EVE Breakout Board breaks out the zif connector to 0.1" headers for easy development. We also carry a 6-inch 30-pin FPC cable and a 12-inch 30-pin FPC cable.

For more info about the Embedded Video Engine, please see the FTDI FT81x Datasheet.
Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm

Details
Quantity 1 5 10 20 50 100 200 * 300 * 500 * 1000 *
Price $73.92 $61.72 $60.10 $58.07 $56.03 $55.22 $54.82 $54.41 $54.00 $53.60
Quantity:
240x400 EVE TFT Development Kit
Part Number: CFAF240400C0-030SC-A1-2

A complete FTDI EVE development kit including:

This development kit gives you all the hardware and demo code you need to start working with the Embedded Video Engine (EVE) platform.

If you're interested in learning more about the advantages of the EVE FTDI processor read about it on our blog.

Details
Quantity 1
Price $87.42
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400C0-030SC or RSS RSS feed for changes to CFAF240400C0-030SC

Part Change Notice #11061: End-Of-Life Notification

Products Affected: CFAF240400C0-030SC, CFAF240400E0-030TN
Date Issued: February 11, 2020
Summary: End-Of-Life Notification
Reason: The glass used on these displays is no longer available
Impact: Neither part will be available when current stocks are depleted
Recommendation: The displays are being replaced by new parts with more efficient glass

CFAF240400C1-030TC replaces the CFAF240400C0-030SC
CFAF240400C1-030TN replaces the CFAF240400E0-030TN

The replacement parts are as close to "drop-in" as possible. There will be a difference in the initialization code.
Availability: The new displays will be available after the current stock of the displays being set to EOL are depleted
Price Change: TBA
Response: It is recommended that customers obtain samples of the new display to verify compatibility. Contact sales@crystalfontz.com.

Part Change Notice #11051: The controller chip used on the CFAF240400C0-030SC has been discontinued. The parts will be replaced by a CFAF240400C1-030SC

Products Affected: CFAF240400C0-030SC, CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2
Date Issued: September 18, 2019
Summary: The controller chip used on the CFAF240400C0-030SC has been discontinued. The parts will be replaced by a CFAF240400C1-030SC
Impact: Physically, this will be a drop-in replacement. Changes will have to be made to initialization code.
Recommendation: Sample code for the CFAF240400C1-030SC will be available in the fourth quarter of 2019. Sample CFAF240400C1-030SC parts will be available for purchase at that time

The CFAF240400C0-030SC is not recommended for new designs
Availability: The CFAF240400C1-030SC will be available when current stocks of the CFAF240400C0-030SC are depleted
Price Change: TBD
For reference only. For design purposes, please use the specifications in the datasheet.
