12-inch 30-pin FFC

Part Number: WR-FFC-Y51

Pricing

Quantity Price
1 $2.00
10 $1.50
20 $1.25
50 $1.00
100 $0.80
500 $0.75
1000 * $0.60
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-FFC-Y51 or RSS RSS feed for changes to WR-FFC-Y51 for WR-FFC-Y51

Description

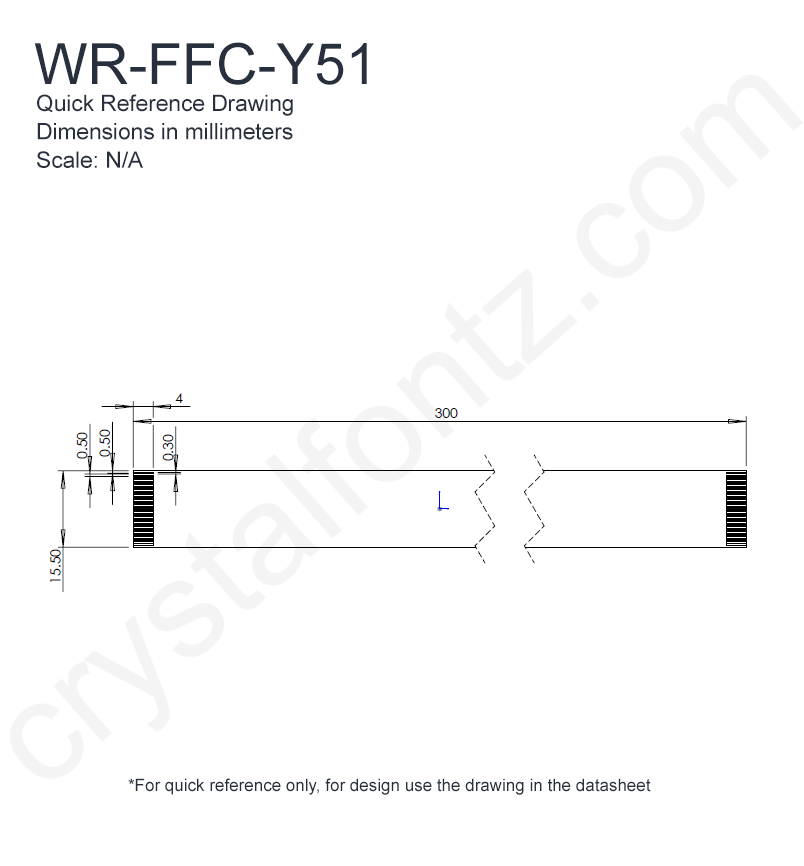

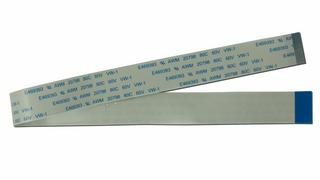

This is a ~12-inch (300mm) flexible flat cable (FFC) with 30 pins at 0.5mm pitch. The contacts are on the same side of the cable and are tin-plated. Use this cable to easily connect boards with the appropriate female connectors.

TECHNICAL SPECS

Physical Characteristics

Optional Connectors CS050Y30TB0
Flexible Cable (FFC/FPC) length
millimeters 300
inches 11.811
Weight 1.5g
For reference only. For design purposes, please use the specifications in the datasheet.
