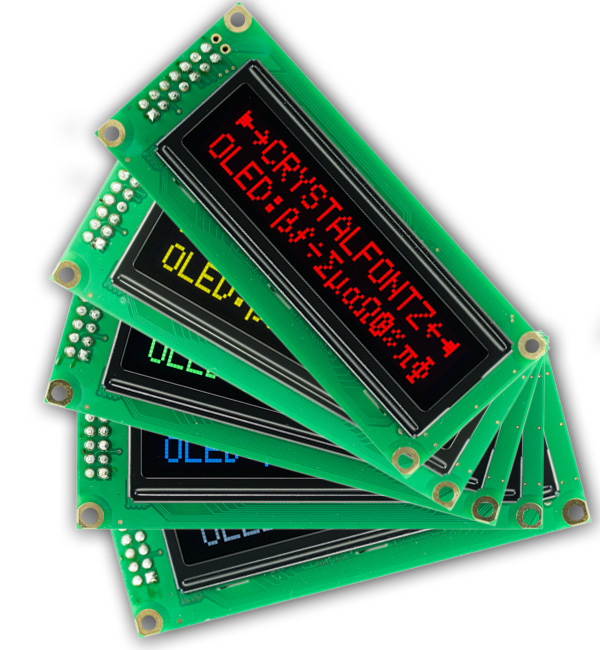

16x2 Character OLED Display, Multiple Colors

Part Number: CFAL1602C Series

4-Bit/8-Bit Parallel Or SPI, 7 Colors, Sunlight Readability!

The OLED technology of the CFAL1602C Series provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C Series OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

We offer these 16x2 character OLEDs ready to use with your interface choice: 4-bit / 8-bit parallel or SPI via a standard 0.100" (2.54mm) connector. This flexibility gives you the ability to use as many or as few IO lines from your micro-controller that works best for your design. With no backlight and no contrast controls, designing in the CFAL1602C Series further reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C Series has the same physical footprint.

  • High contrast OLED Character Display.
  • Sleek, modern visual appearance..
  • True black background.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Thin package, no backlight.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Sunlight readable display modules available in yellow and green (part number ends with a "T").
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 85 36 8.9
inches 3.346 1.417 0.350
Diagonal Dimension 2.29"
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.95 11.85
inches 2.242 0.467
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.6 6.3
inches 0.142 0.248
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 24g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle >160°
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 4.8V
Supply Voltage for Logic Maximum 5.3V
Supply Voltage for Logic Typical 5V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Winstar Display WS0010

Interface 4-bit Parallel, 8-bit Parallel, SPI

Additional Options

Choose a color below.

16x2 Yellow Sunlight Readable OLED With SPI
Part Number: CFAL1602C-PYT

This yellow-on-black OLED SPI sunlight readable CFAL1602C-PYT provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-PYT OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-PYT into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our CFAH1602C? The CFAL1602C-PYT has the same physical footprint.

  • Thin package, no backlight.
  • High contrast sunlight readable OLED Character Display.
  • True black background with yellow characters.
  • This SPI interface OLED has a sleek, modern visual appearance.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • SPI sample code, datasheet and RoHS/REACH Certificate of Compliance are under the Datasheets & Files section.

Check out or forum for a tutorial on how to wire this display using an Arduino and 4-wire SPI.

Details
Quantity 1 5 10 * 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Price $27.16 $23.97 $22.08 $21.33 $20.60 $19.42 $19.29 $18.31 $18.17 $16.99
Quantity:
SPI 16x2 Yellow Character OLED
Part Number: CFAL1602C-PY

SPI Host Interface

The OLED technology of the yellow-on-black CFAL1602C-PY provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-PY OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-PY into your project. With four built in font tables, multi-language support for this SPI OLED is a breeze.

Looking to change the look of your existing product that uses our CFAH1602C? The CFAL1602C-PY has the same physical footprint.

  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • High contrast OLED Character Display.
  • True black background with yellow characters.
  • SPl sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.
  • Sleek, modern visual appearance.
  • Thin package, no backlight.
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Easy connectivity with standard 0.100" / 2.54mm connector.

Learn how to connect it to an Arduino with this tutorial on how to wire this display using an Arduino and 4-wire SPI.

Details
Quantity 1 5 10 * 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Price $26.19 $23.10 $21.29 $20.57 $19.85 $18.75 $18.61 $17.66 $17.53 $16.62
Quantity:
SPI 16x2 White Character OLED
Part Number: CFAL1602C-PW

Simple SPI Interface

The OLED technology of the white-on-black CFAL1602C-PW provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-PW OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-PW into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our CFAH1602C? The CFAL1602C-PW has the same physical footprint.

  • True black background with white characters.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • High contrast OLED Character Display.
  • Sleek, modern visual appearance.
  • Thin package, no backlight.
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • SPI sample code, Datasheet and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

Have an Arduino? Take a look at our tutorial on how to wire this display using an Arduino with 4-wire SPI.

Details
Quantity 1 10 * 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Price $25.13 $21.85 $21.07 $20.29 $19.09 $18.79 $17.79 $17.65 $15.81
Quantity:
This product is not recommended for new designs as they're scheduled for End-Of-Life.

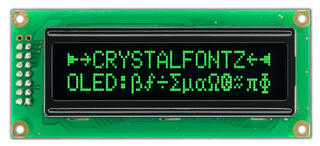

16x2 Green Character OLED
Part Number: CFAL1602C-G

4-Bit/8-Bit Parallel

The OLED technology of the green-on-black CFAL1602C-G provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-G OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

This 16x2 character OLED is compatible with our 8x2 pin dual row header. With no backlight and no contrast controls, designing in the CFAL1602C-G reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-G into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-G has the same physical footprint.

  • High contrast OLED Character Display.
  • Sleek, modern visual appearance.
  • True black background with green characters.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Thin package, no backlight.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

Details
Quantity 1 10 20 50 100 * 200 * 300 * 500 * 1000 *
Price $24.21 $21.05 $20.30 $18.70 $17.61 $17.34 $16.41 $16.27 $14.46
Quantity:

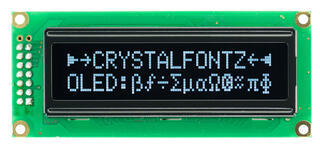

16x2 White Character OLED
Part Number: CFAL1602C-W

4-Bit/8-Bit Parallel

The OLED technology of the white-on-black CFAL1602C-W provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-W OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

This 16x2 character OLED is compatible with our 8x2 pin dual row header. With no backlight and no contrast controls, designing in the CFAL1602C-W reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-W into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-W has the same physical footprint.

  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • High contrast OLED Character Display.
  • True black background with white characters.
  • Sleek, modern visual appearance.
  • Thin package, no backlight.
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

Details
Quantity 1 5 10 20 50 100 200 300 * 500 * 1000 *
Price $27.63 $24.38 $22.47 $21.71 $20.95 $19.78 $19.63 $18.63 $18.49 $17.08
Quantity:
16x2 Yellow Character OLED Module
Part Number: CFAL1602C-Y

4-Bit/8-Bit Parallel Host Interface

The OLED technology of the yellow-on-black CFAL1602C-Y provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-Y OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

This 16x2 character OLED is compatible with our 8x2 pin dual row header. With no backlight and no contrast controls, designing in the CFAL1602C-Y reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-Y into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-Y has the same physical footprint.

  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • High contrast OLED Character Display.
  • True black background with yellow characters.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.
  • Sleek, modern visual appearance.
  • Thin package, no backlight.
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Easy connectivity with standard 0.100" / 2.54mm connector.

Details
Quantity 1 10 20 50 100 200 * 300 * 500 * 1000 *
Price $22.48 $19.55 $18.85 $18.16 $17.09 $16.81 $15.90 $15.79 $14.15
Quantity:
16x2 Yellow Sunlight Readable Character OLED
Part Number: CFAL1602C-YT

4-Bit/8-Bit Parallel To Host

The OLED technology of the yellow-on-black sunlight readable CFAL1602C-YT provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-YT OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

This 16x2 character OLED is compatible with our 8x2 pin dual row header. With no backlight and no contrast controls, designing in the CFAL1602C-YT reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-YT into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-YT has the same physical footprint.

  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • Thin package, no backlight.
  • High contrast sunlight readable OLED Character Display.
  • True black background with yellow characters.
  • Sleek, modern visual appearance.
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic

Details
Quantity 1 5 10 20 50 100 200 * 300 * 500 * 1000 *
Price $27.16 $23.97 $22.08 $21.33 $20.60 $19.45 $19.31 $18.31 $18.17 $17.22
Quantity:

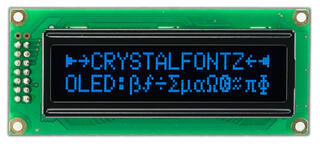

16x2 Blue Character OLED Module
Part Number: CFAL1602C-B

Beautiful Blue Character OLED, 4-Bit/8-Bit Parallel

The OLED technology of the blue-on-black CFAL1602C-B provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-B OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

This 16x2 character OLED is compatible with our 8x2 pin dual row header. With no backlight and no contrast controls, designing in the CFAL1602C-B reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-B into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our CFAH1602C? The CFAL1602C-B has the same physical footprint.

  • True black background with blue characters.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • Thin package, no backlight.
  • High contrast OLED Character Display.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.
  • Sleek, modern visual appearance.
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic

Details
Quantity 1 5 10 20 50 100 200 300 500 * 1000 *
Price $27.47 $24.25 $22.34 $21.59 $20.83 $19.67 $19.52 $18.52 $18.38 $16.99
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
