16x2 Yellow Sunlight Readable OLED With SPI

Part Number: CFAL1602C-PYT

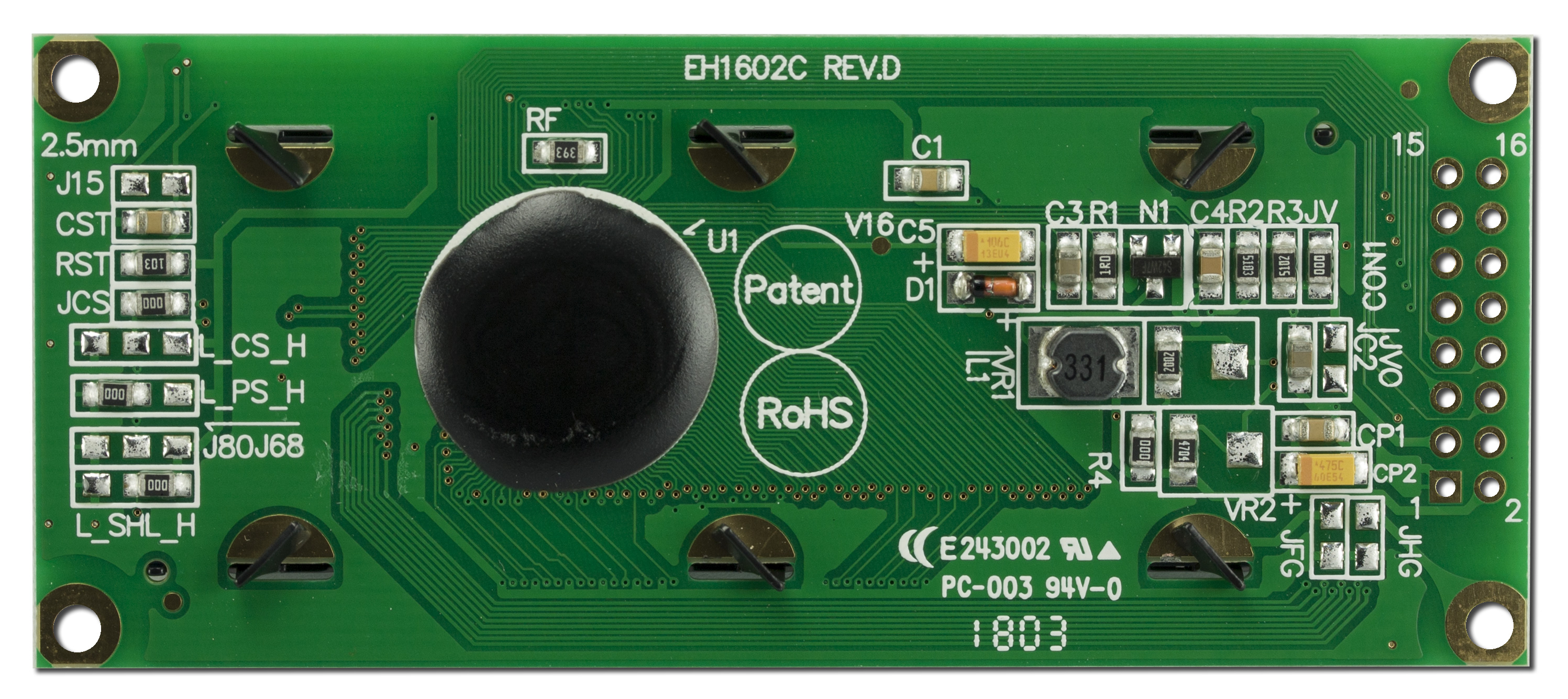

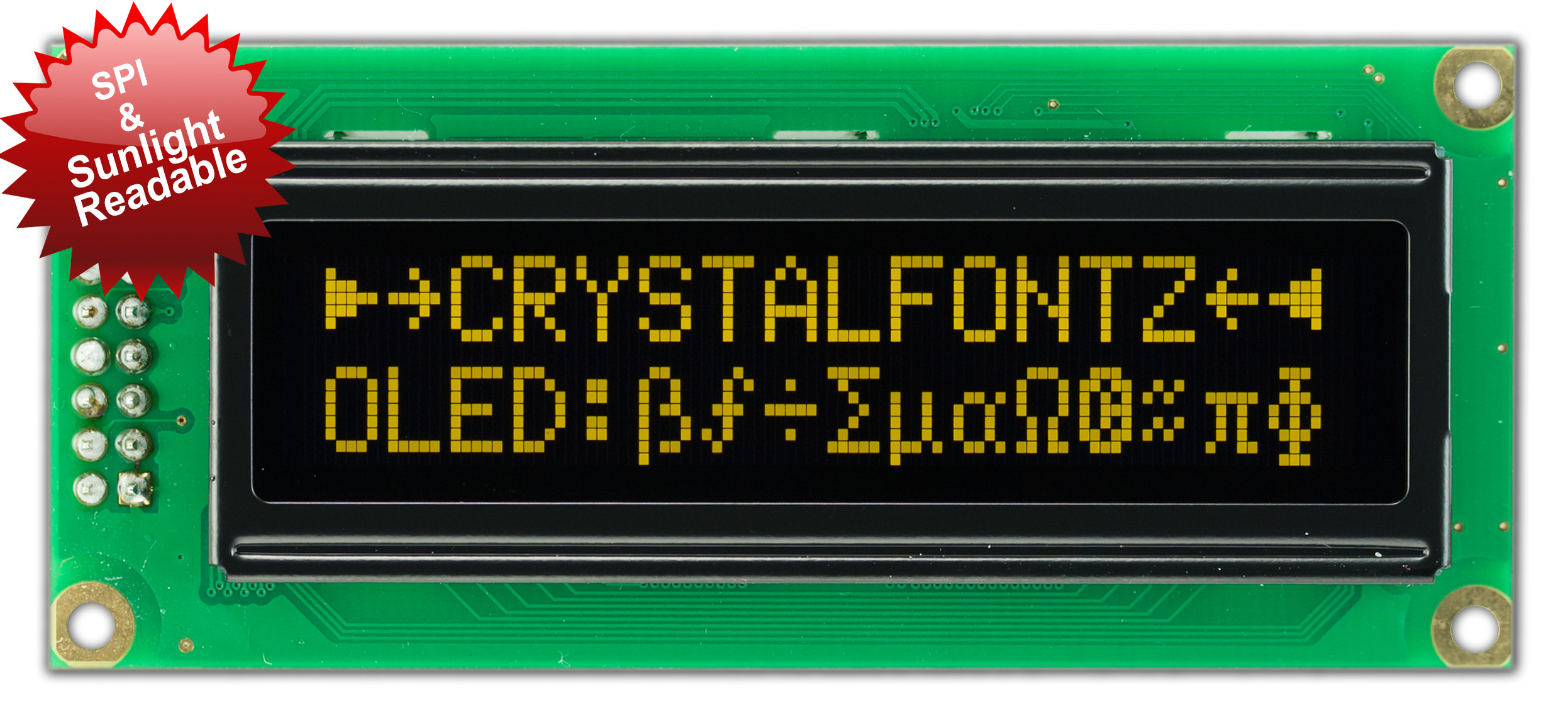

This yellow-on-black OLED SPI sunlight readable CFAL1602C-PYT provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-PYT OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-PYT into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our CFAH1602C? The CFAL1602C-PYT has the same physical footprint.

  • Thin package, no backlight.
  • High contrast sunlight readable OLED Character Display.
  • True black background with yellow characters.
  • This SPI interface OLED has a sleek, modern visual appearance.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • SPI sample code, datasheet and RoHS/REACH Certificate of Compliance are under the Datasheets & Files section.

Check out or forum for a tutorial on how to wire this display using an Arduino and 4-wire SPI.

Qty:
Quantity Price
1 * $27.16
5 * $23.97
10 * $22.08
20 * $21.33
50 * $20.60
100 * $19.42
200 * $19.29
300 * $18.31
500 * $18.17
1000 * $16.99
* For quantites over this amount the lead time may be up to 60-90 days. Contact us about potential lead times.
Components worth considering
4685 8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL1602C-PYT or RSS RSS feed for changes to CFAL1602C-PYT for CFAL1602C-PYT

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 85 36 8.9
inches 3.346 1.417 0.350
Diagonal Dimension 2.29"
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.95 11.85
inches 2.242 0.467
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.6 6.3
inches 0.142 0.248
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 24g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle >160°
Sunlight Readable Yes
Foreground Color Yellow
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 4.8V
Supply Voltage for Logic Maximum 5.3V
Supply Voltage for Logic Typical 5V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Winstar Display WS0010

Interface SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL1602C-PYT or RSS RSS feed for changes to CFAL1602C-PYT

Product Update #11116: Bezel Change

Products Affected: CFAL0802A-Y, CFAL1602C-B, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL1602C-PYT
Date Issued: February 21, 2022
Summary: Bezel Change
Description: The bezel around these OLED displays is being modified to remove the small gap adjacent to the PCB.
Reason: This gap is used in the manufacturing of STN LCDs that share the same bezel and is not necessary for OLED displays.
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #11103: Reset pin modification

Products Affected: CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL1602C-PYT, CFAL5016A-PY
Date Issued: October 14, 2021
Summary: Reset pin modification
Description: RST and CST, the components in the RC filter for the reset pin, are being modified. RST will be 33kOhms and CST will be 1uF.
Reason: Some reset circuits have shown not to be strong enough to drive the reset pin within the specified timing. If the reset circuit is not strong enough, the controller will not properly reset which causes abnormal behavior.

Product Update #10751: (New Product) CFAL1602C-PYT

New Product: CFAL1602C-PYT
Date Issued: December 9, 2016
Summary: (New Product) CFAL1602C-PYT
Description: OLED Modules: SPI 16x2 OLED Character Display, Yellow, Sunlight Readable
For reference only. For design purposes, please use the specifications in the datasheet.
