This product is not recommended for new designs as they're scheduled for End-Of-Life.
Home » Products » OLED Displays » Character » Characters X Lines » 16x2

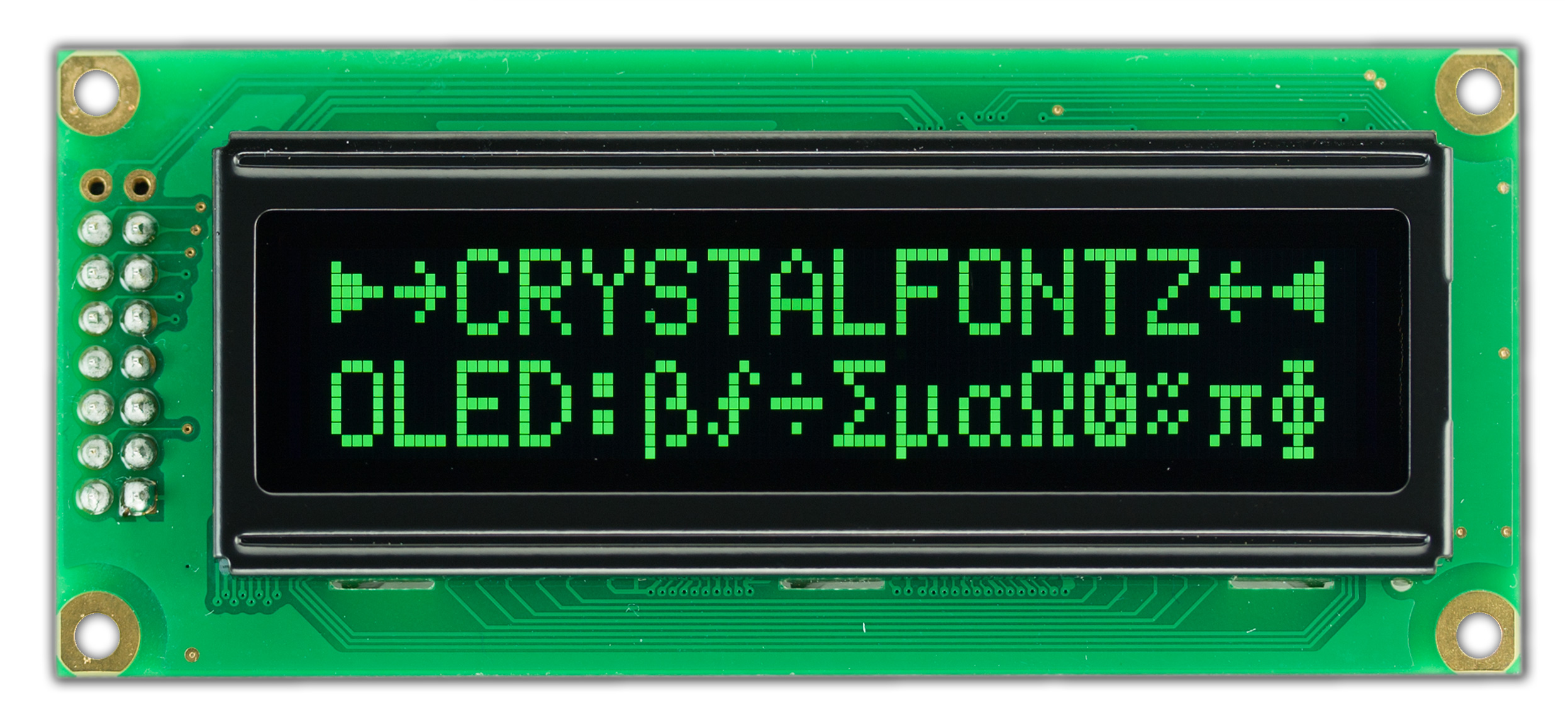

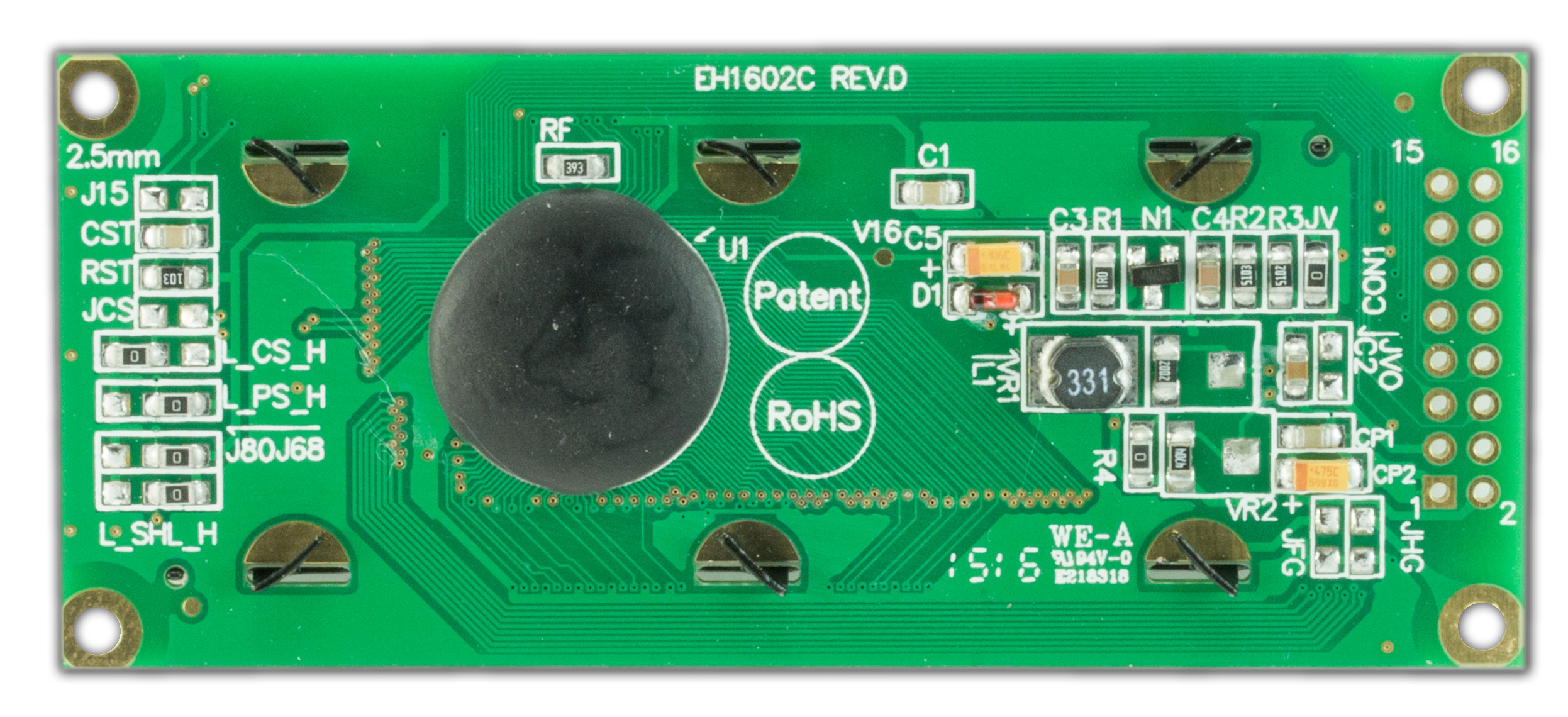

16x2 Green Character OLED

Part Number: CFAL1602C-G

4-Bit/8-Bit Parallel

The OLED technology of the green-on-black CFAL1602C-G provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-G OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

We offer these 16x2 character parallel interface OLEDs ready to use with a standard 0.100" (2.54mm) connector. With no backlight and no contrast controls, designing in the CFAL1602C-G reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-G into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-G has the same physical footprint.

  • High contrast OLED Character Display.
  • Sleek, modern visual appearance.
  • True black background with green characters.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Thin package, no backlight.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

Product Variants


SPI

CFAL1602C-PWSPI 16x2 White Character OLED
CFAL1602C-PYSPI 16x2 Yellow Character OLED
CFAL1602C-PYT16x2 Yellow Sunlight Readable OLED With SPI

4-bit Parallel / 8-bit Parallel

CFAL1602C-G16x2 Green Character OLED
CFAL1602C-B16x2 Blue Character OLED Module
CFAL1602C-W16x2 White Character OLED
CFAL1602C-Y16x2 Yellow Character OLED Module
CFAL1602C-GT16x2 Green Sunlight Readable Character OLED
CFAL1602C-YT16x2 Yellow Sunlight Readable Character OLED
16x2 Green Character OLED (CFAL1602C-G)
Qty:
Quantity Price
1 $21.05
10 $18.30
20 $17.65
50 $16.26
100 * $15.31
200 * $15.08
300 * $14.27
500 * $14.15
1000 * $12.57
* Contact us about potential lead times.
Components worth considering
4685 8x2 Pin Dual Row Header
Add header pins (5pk)? $0.24 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL1602C-G or RSS RSS feed for changes to CFAL1602C-G for CFAL1602C-G

Compliance Documents

TECHNICAL SPECS

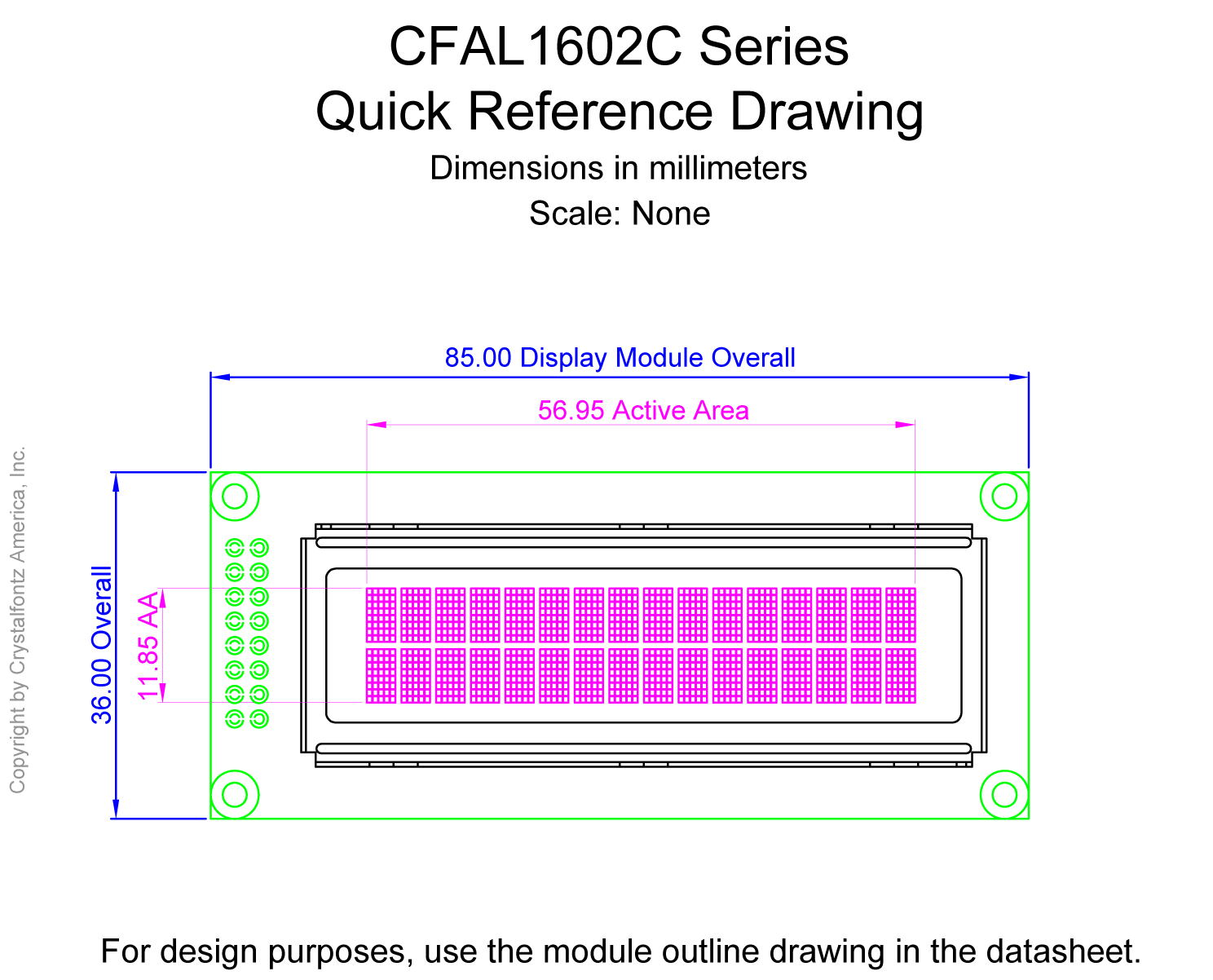

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 85 36 8.9
inches 3.346 1.417 0.350
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.95 11.85
inches 2.242 0.467
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.6 6.3
inches 0.142 0.248
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 24g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle >160°
Foreground Color Green
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 4.8V
Supply Voltage for Logic Maximum 5.3V
Supply Voltage for Logic Typical 5V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Winstar Display WS0010

Interface 4-bit Parallel, 8-bit Parallel

Miscellaneous

Nits 150

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL1602C-G or RSS RSS feed for changes to CFAL1602C-G

Part Change Notice #11077: Small Layout Change

Products Affected: CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-G, CFAL1602C-B, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-GT, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL5016A-PY
Date Issued: February 10, 2021
Summary: Small Layout Change
Description: Changing manufacturing locations of the wafers used in the controller chip. The layout has to be slightly modified to accommodate the practices at the new facility. The functionality will remain the same.
Reason: Changing manufacturing locations due to the wafer process no longer being supported by the original facility.

Part Change Notice #11031: End-Of-Life Notification

Products Affected: CFAL1602C-G, CFAL1602C-B, CFAL1602C-R, CFAL1602C-GT, CFAL1602C-PB, CFAL1602C-PG, CFAL1602C-PGT, CFAL1602C-PR
Date Issued: January 22, 2019
Summary: End-Of-Life Notification
Description: The parts listed are being set to End of Life Status
Reason: The manufacturing process for these colors is being revised. Replacement parts will not be available before Q4 2019.
Impact: These parts will not be available once current stock is depleted. When replacement parts are available, new part numbers will be assigned.
Recommendation: These parts should not be used for new designs.
Availability: Current Stock

Product Update #10679: (New Product) CFAL1602CG

New Product: CFAL1602C-G
Date Issued: November 5, 2015
Summary: (New Product) CFAL1602CG
Description: OLED Modules: 16x2 OLED Character, Green
For reference only. For design purposes, please use the specifications in the datasheet.
