[EOL] Yellow 256x64 SPI Graphic OLED
Part Number: CFAL25664A-Y-B1

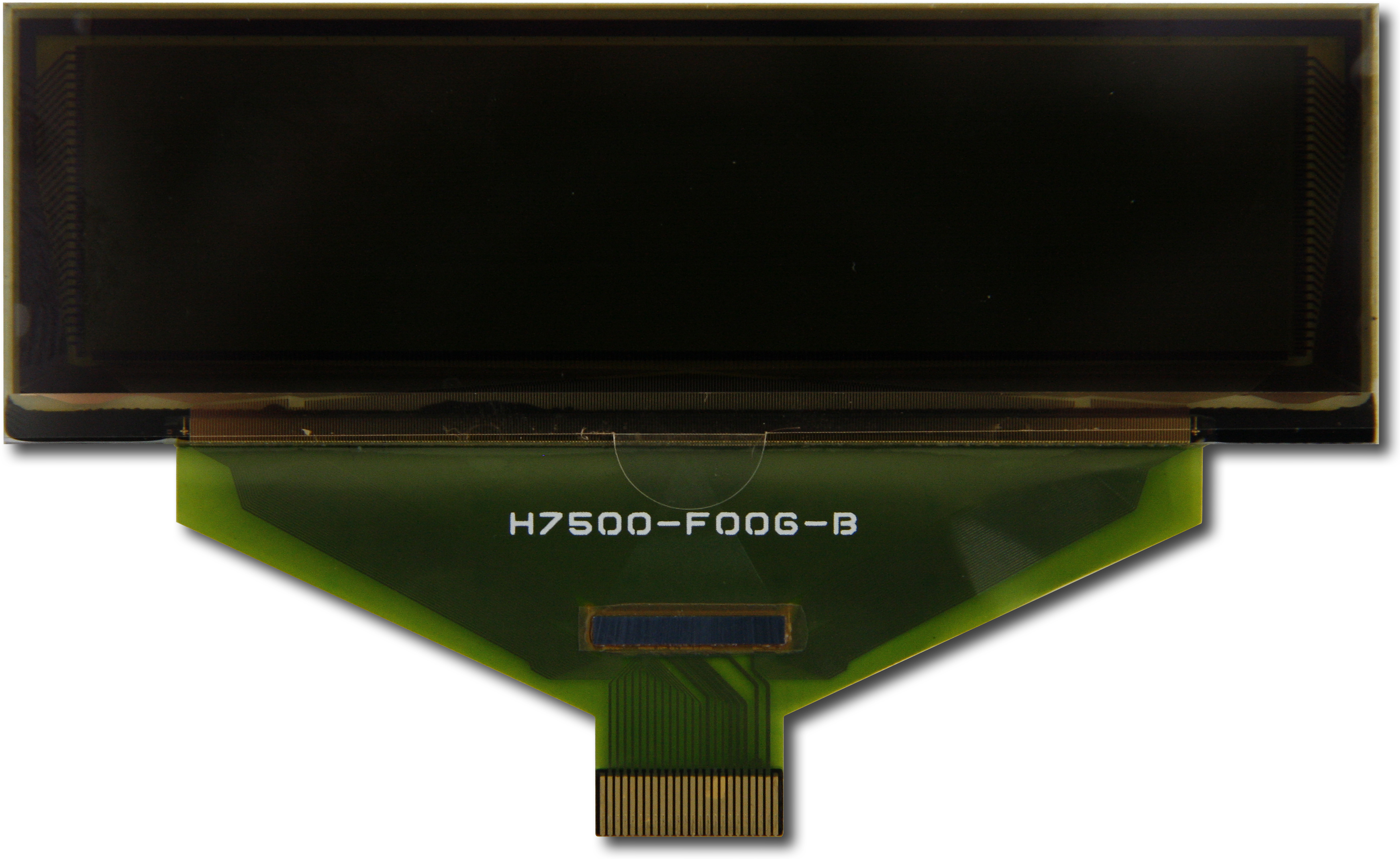

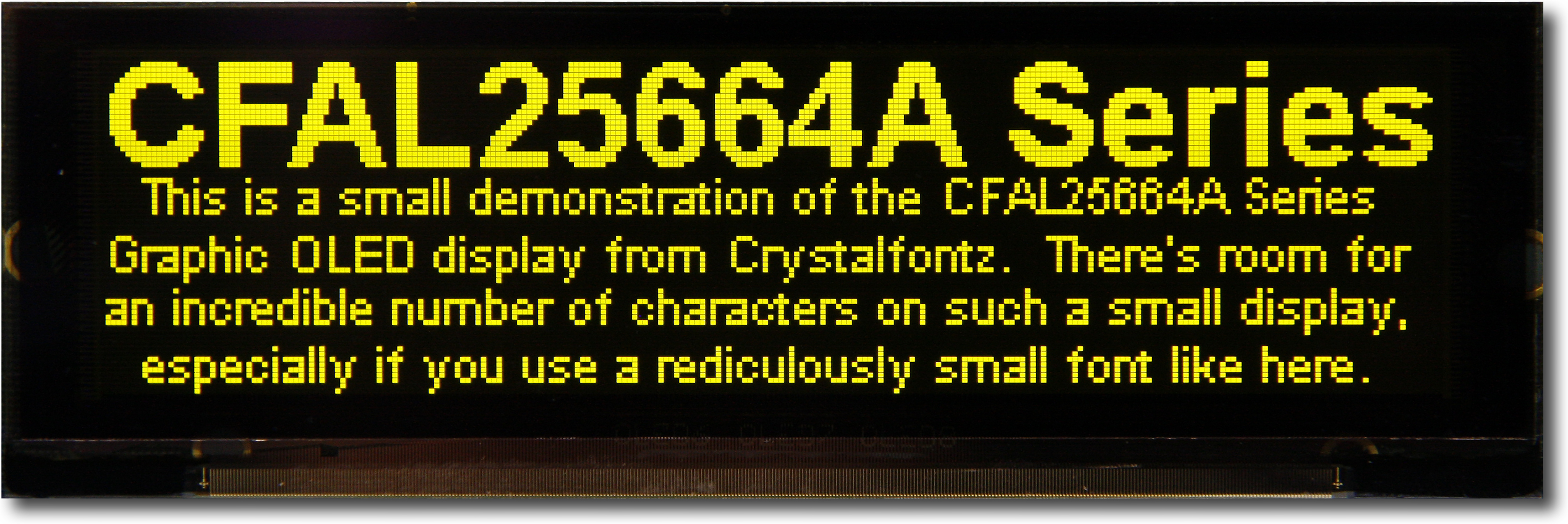

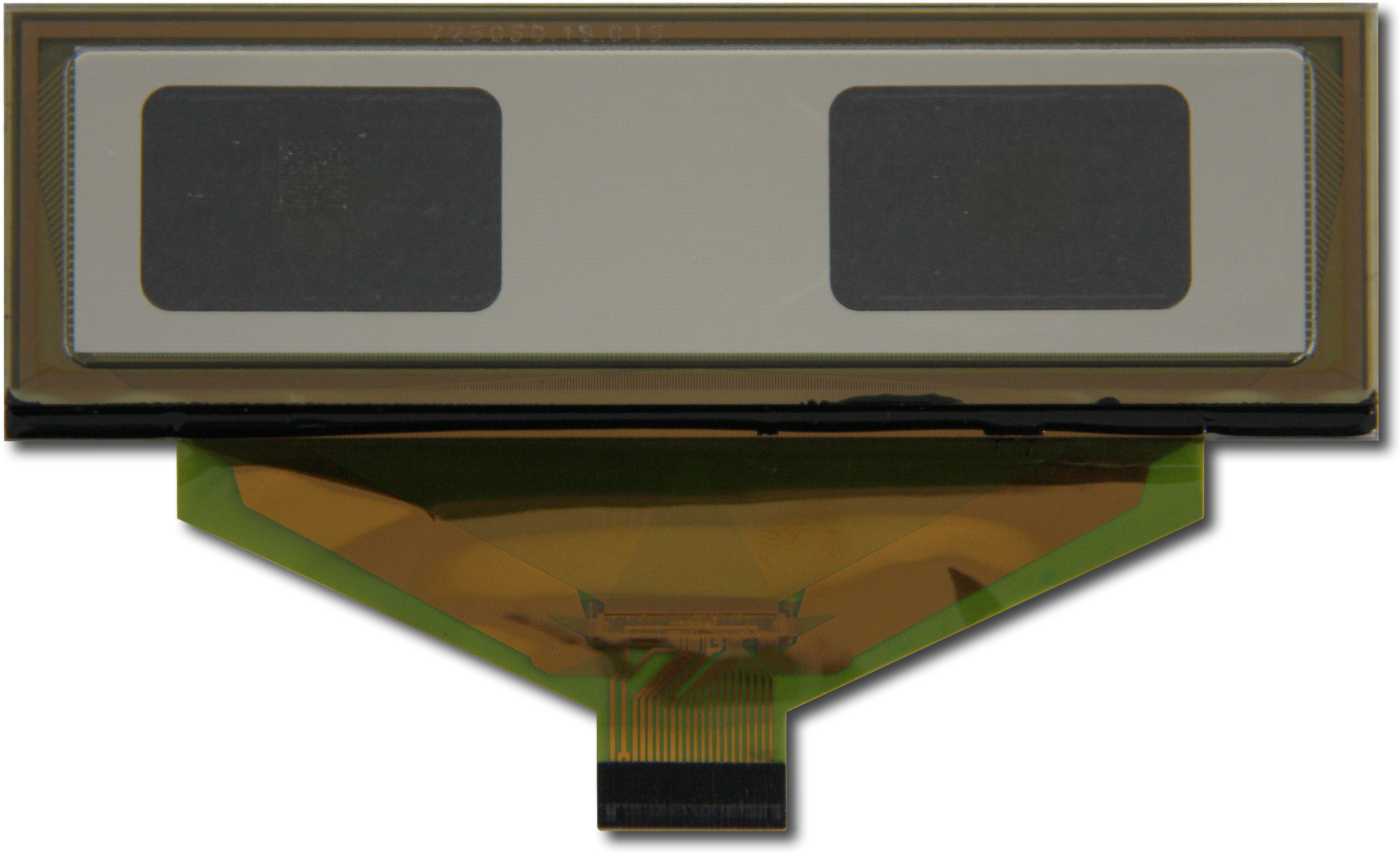

This 256x64 graphic OLED display module would be a fantastic enhancement to your next project. It packs a tremendous amount of pixels in a relatively small space. It is approximately 30mm in height (just under 1.25") and so could easily be placed on the front of a 1U server. It is less than 3mm (~1/8") deep, and so is also a great choice for depth constrained applications. The integrated controller has built-in gray scale functionality, offers anti-aliased fonts, and will will make your project stand out. The FPC will mate with any 0.5mm pitch ZIF socket, such as 609-1875-1-ND or 609-1876-1-ND, both readily available from Digi-Key.
- 256x64 graphic OLED display module
- Extremely wide viewing angles
- Very high contrast ratio
- Built-in ST Microelectronics STV8105 or compatible controller
- Supports 8-bit parallel interface or SPI
- RoHS Compliant

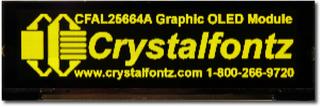

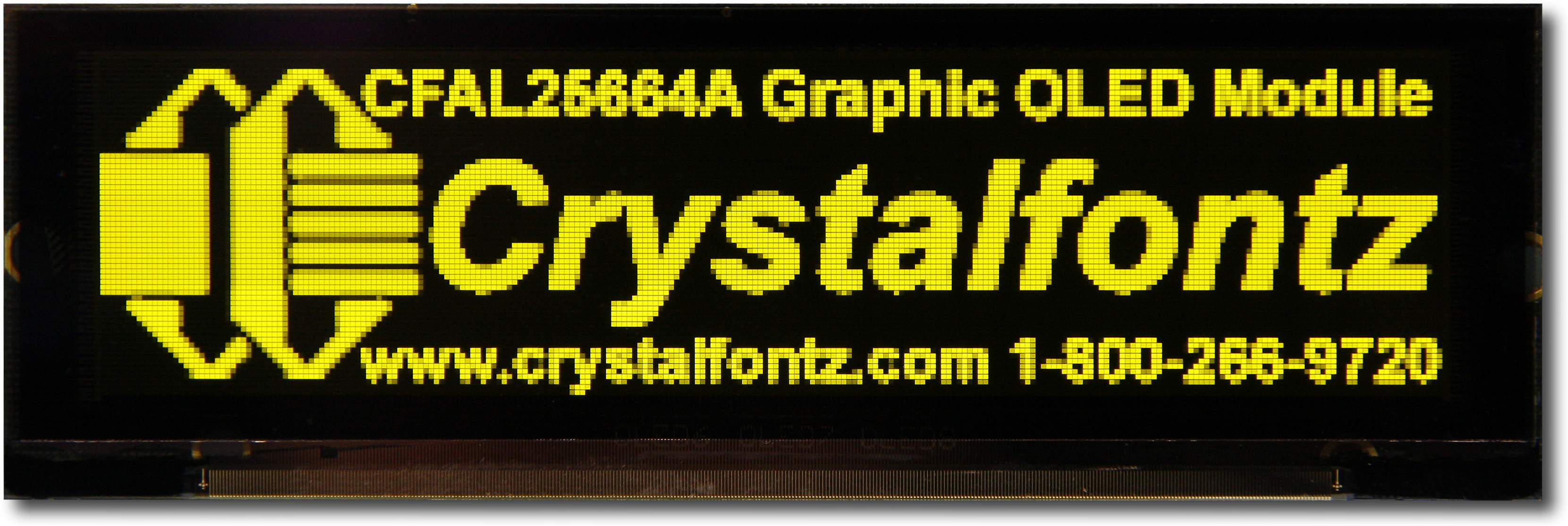

![[EOL] Yellow 256x64 SPI Graphic OLED (CFAL25664A-Y-B1)](/images/products/CFAL25664AYB1/CFAL25664A_screen0.jpg)
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 256 x 64 |
| Module Overall | width | height | depth |
|---|---|---|---|

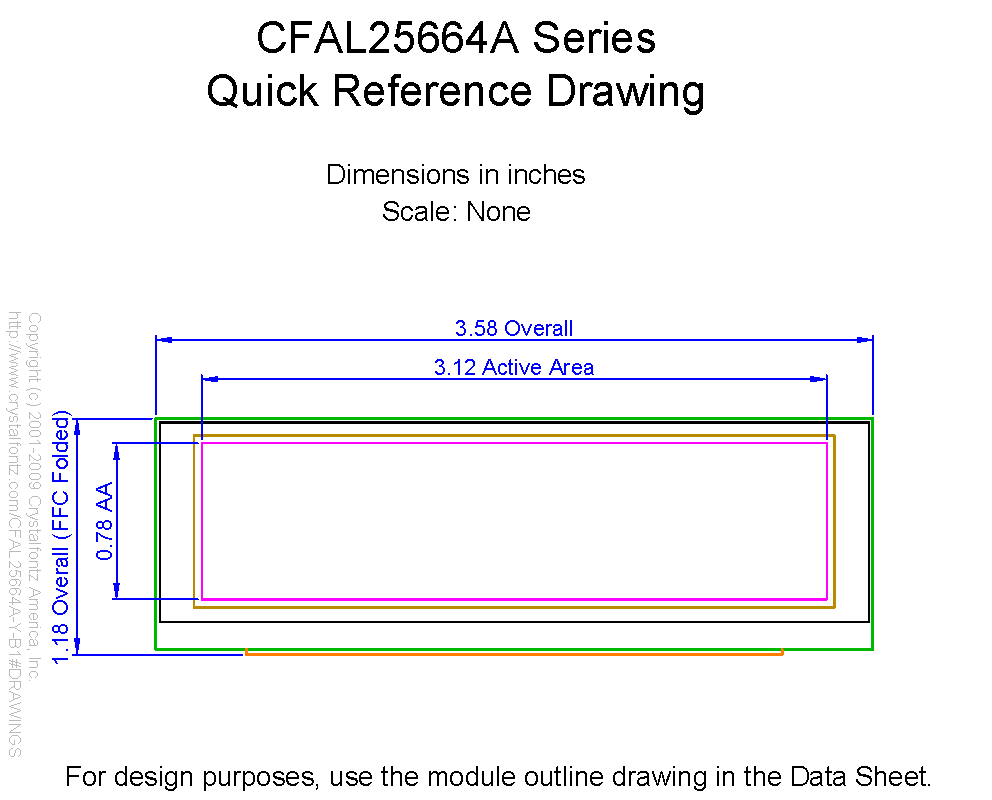

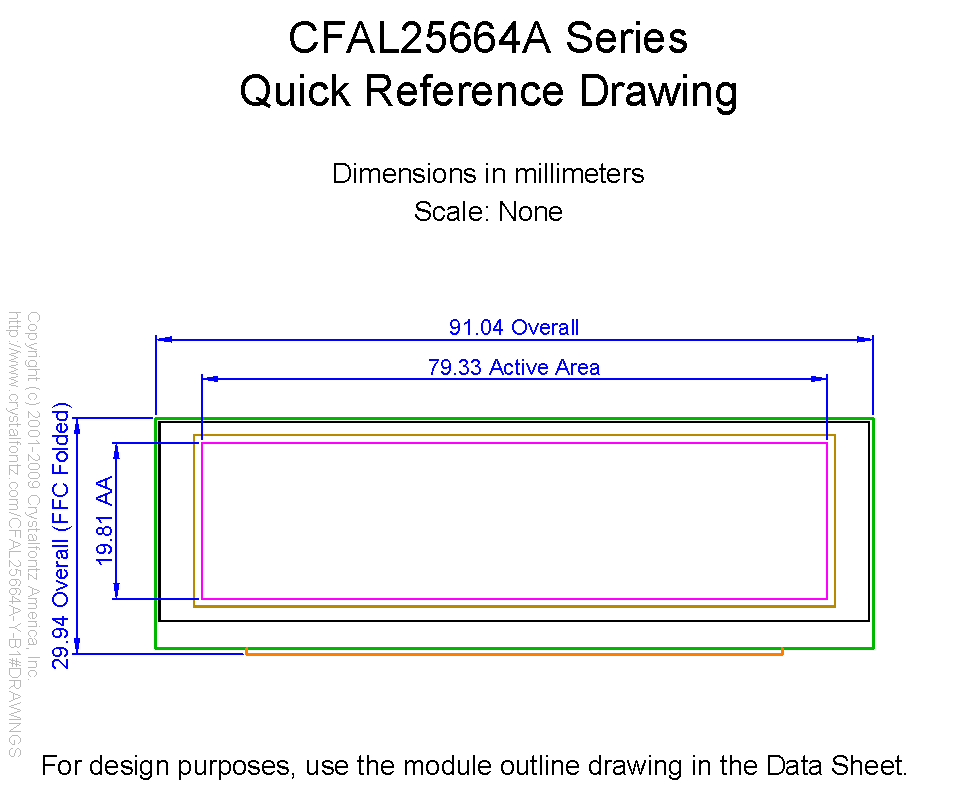

| millimeters | 91.04 | 55.44 | 2.2 |
| inches | 3.584 | 2.183 | 0.087 |
| *width / height does not include Foldable Tab | |||
| Viewing Area | width | height |
|---|---|---|
| millimeters | 81.33 | 21.81 |
| inches | 3.202 | 0.859 |
| Active Area | width | height |
|---|---|---|
| millimeters | 79.33 | 19.81 |
| inches | 3.123 | 0.780 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.28 | 0.28 |
| inches | 0.011 | 0.011 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.31 | 0.31 |
| inches | 0.012 | 0.012 |
| Weight | 11g |
Optical Characteristics
| Glass Type | OLED |
| Polarizer | Emissive |
| Backlight Type | None |
| Mode | Positive |
| Foreground Color | Yellow |
| Background Color | Dark |
Electrical Specifications
| Module Connector Pitch | 0.5mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | ST Microelectronics STV8105 STV8105 256 x 72 x 4-Bit OLED Passive Matrix Controller/Driver |
| Interface | 8-bit Parallel, SPI |
Miscellaneous
| Foldable Tab | Yes |
For reference only. For design purposes, please use the specifications in the datasheet.
