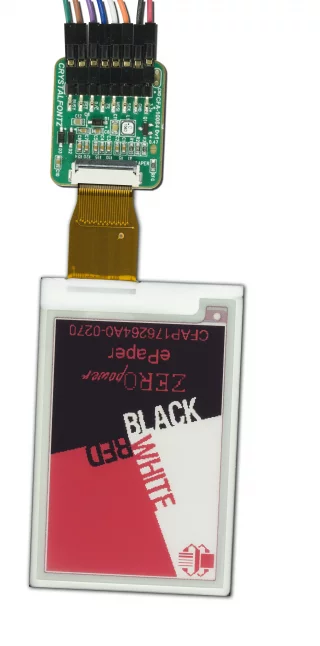

176x264 epaper display with adapter board

Part Number: CFAP176264A0-E2-1

This is a 172x264 ePaper display, with our CFA10084 ePaper adapter board. This bundle has been designed to help get you up and running quickly by providing a simple solution for connecting Crystalfontz epaper displays with a 3.3v Arduino or Seeeduino.

*Cables are NOT included

Physical Characteristics
Physical Characteristics

Diagonal Dimension 2.71"

Weight 8.4g
Electrical Specification
Electrical Specifications

Module Connector Pitch 2.54mm
Files and Downloads

picture_as_pdf Hardware Design - CFA10084 Schematic

Change Notices

Product Update #11084: Red ePaper End-of-Life notice.

Products Affected:	CFAP128296D0-0290, CFAP176264A0-0270, CFAP104212C0-0213, CFAP152152A0-0154, CFAP176264A0-E2-1, CFAP176264A0-E2-2, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP128296D0-E2-1, CFAP128296D0-E2-2
Date Issued:	April 28, 2021
Summary:	Red ePaper End-of-Life notice.
Description:	These products will no longer be stocked at our facility or offered for sale on our website.
Reason:	Due to quality issues with the red ink during storage, we have determined that we will no longer offer this line of products to our customers.

Part Change Notice #10980: ePaper adapter board now comes attached to displays in kits.

Products Affected:	CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP200200A1-E2-1, CFAP176264A0-E2-2
Date Issued:	August 7, 2018
Summary:	ePaper adapter board now comes attached to displays in kits.
Description:	Product Development Kits containing the ePaper adapter board have been changed. Previously these kits were shipped with just the tail of the display connected to the adapter board by the ZIF connector. The kits will now be shipped with the displays also connected to the adapter board with double backed tape.
Reason:	To prevent damage to the tail during shipping and general handling.
Recommendation:	The display can be shipped without being attached to the adapter board. This must be requested as "special instructions" when the kit is ordered
Price Change:	N/A
