2.7 inch 3-color ePaper display
Part Number: CFAP176264A0-0270

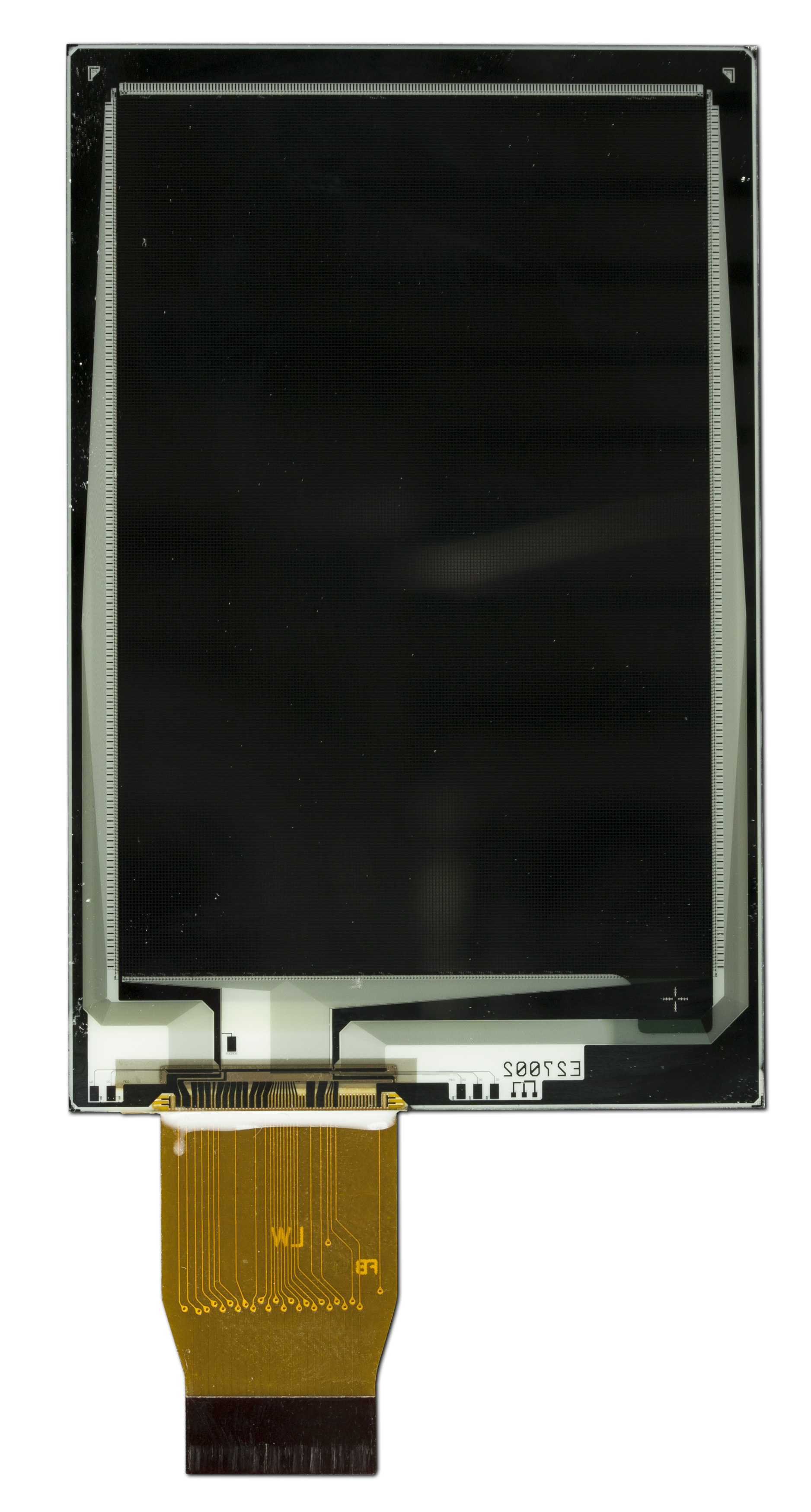

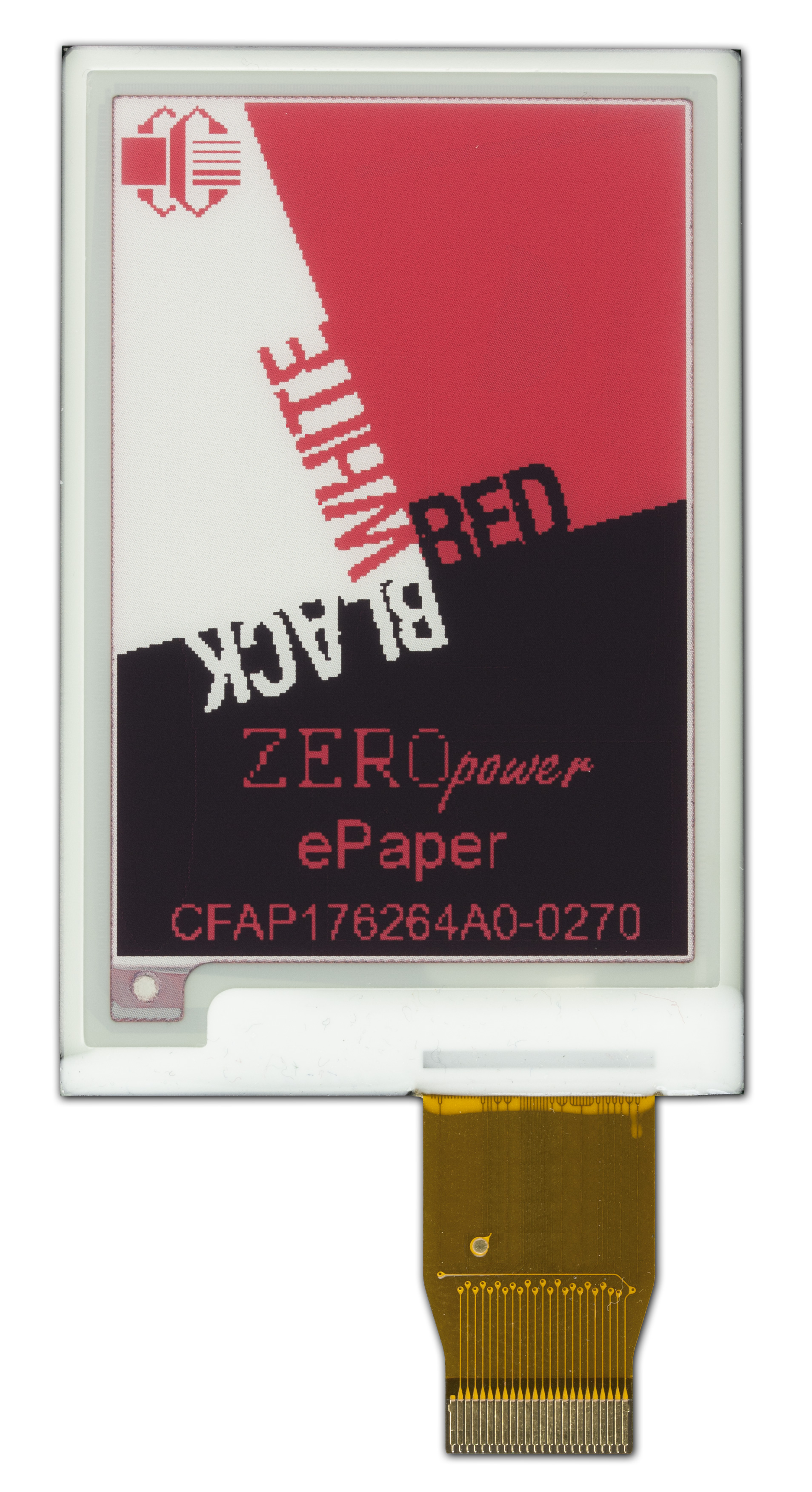

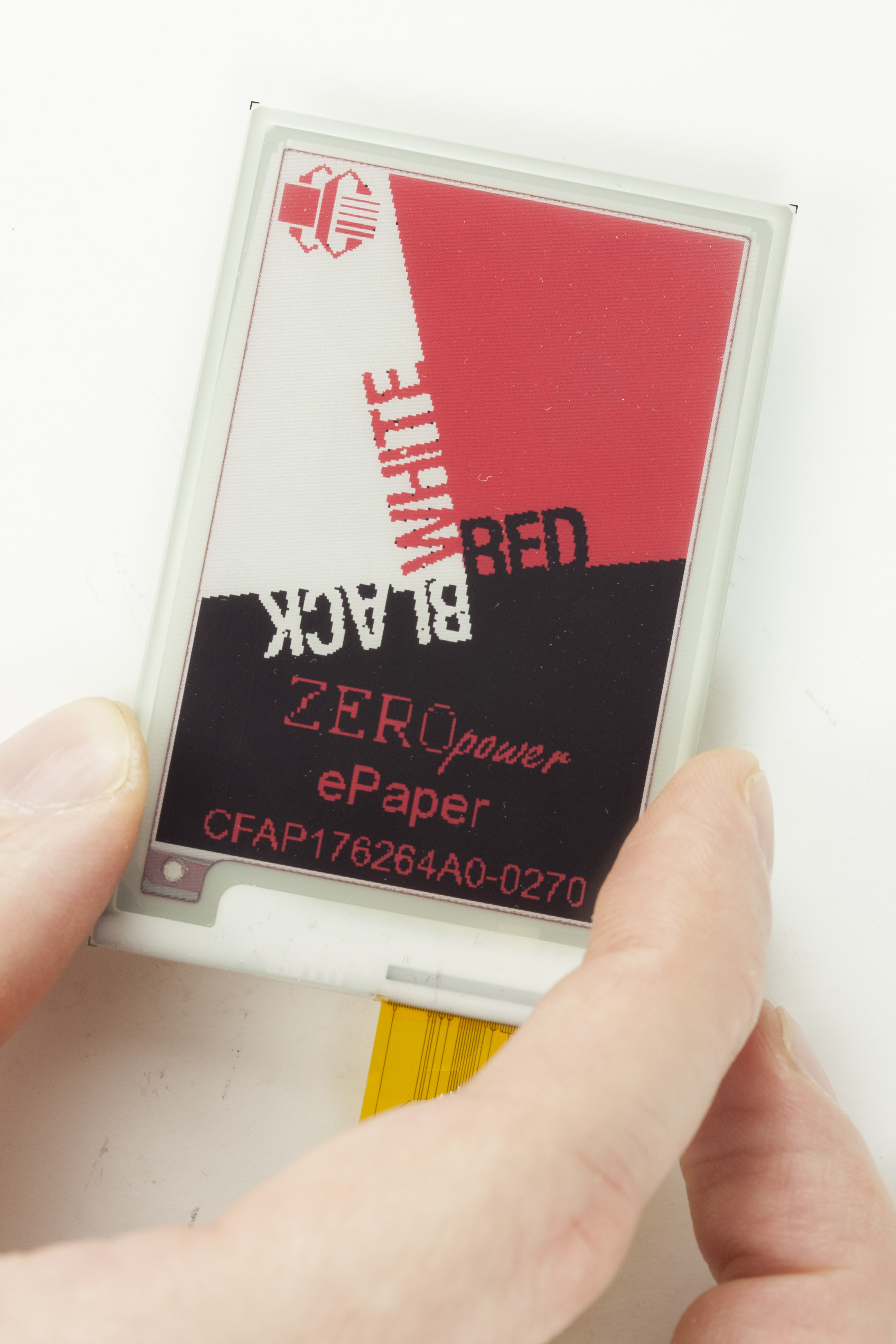

This ePaper display (EPD) boasts 3 colors on a 2.7 inch screen. eInk displays are becoming more popular due to their ultra-low power requirements. Once this e ink display is updated, you can disconnect it entirely and the contents of the display remain indefinitely. These electronic paper displays are perfect for name badges, electronic shelf labels and much more!
We powered this display up with a Seeeduino / Arduino clone. It requires the adapter board (schematic available in the files section) to connect and run. The sample Arduino sketch is available in the files section, it provides code examples to get you up and running quickly.
This ePaper display DOES NOT support partial updates.
Use our free ePaper software to prepare your bitmap image for this display.
Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.
We powered this display up with a Seeeduino / Arduino clone. It requires the adapter board (schematic available in the files section) to connect and run. The sample Arduino sketch is available in the files section, it provides code examples to get you up and running quickly.
This ePaper display DOES NOT support partial updates.
Use our free ePaper software to prepare your bitmap image for this display.
Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.
Datasheet
TECHNICAL SPECS

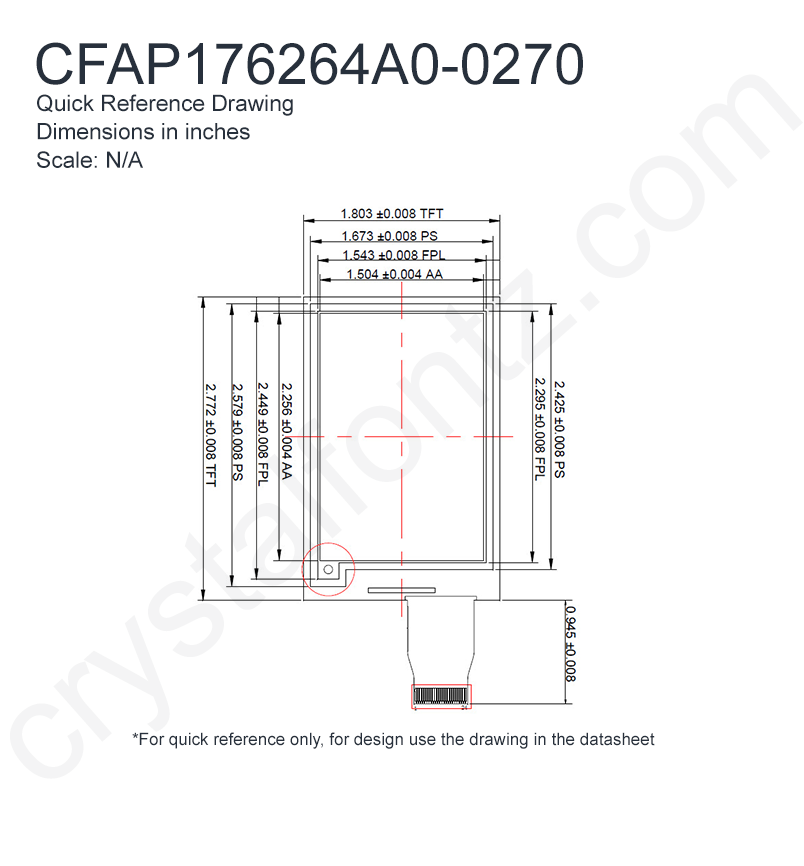

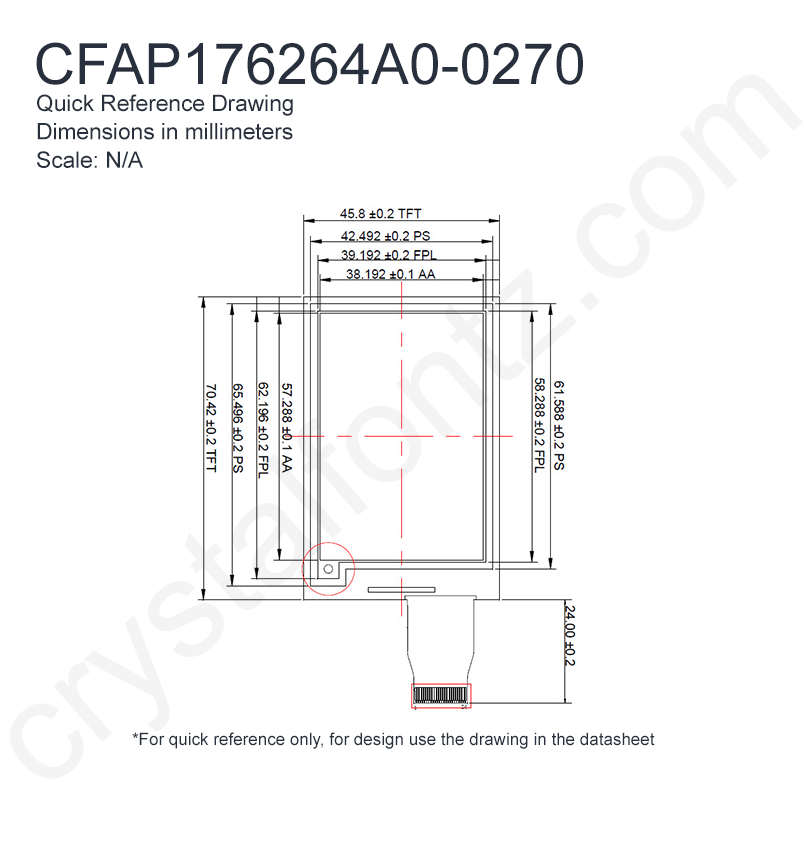

Physical Characteristics
| Column Dots x Row Dots | 176 x 264 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 45.8 | 70.42 | 0.98 |
| inches | 1.803 | 2.772 | 0.039 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 2.7" |
| Active Area | width | height |
|---|---|---|
| millimeters | 38.192 | 57.288 |
| inches | 1.5036 | 2.2554 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.217 | 0.217 |
| inches | 0.0085 | 0.0085 |
| Optional Connectors | CS050Z24GA0 |
| Flexible Cable (FFC/FPC) | length |
|---|---|
| millimeters | 24 |
| inches | 0.945 |
| Weight | 6g |
| Pin Count | 24 |
Optical Characteristics
| Glass Type | ePaper |
| Sunlight Readable | Yes |
| Foreground Color | Black / Red |
| Background Color | White |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.3V |
| Supply Voltage for Logic Maximum | 3.6V |
| Supply Voltage for Logic Typical | 3.3V |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | 0° | 40° |
| Fahrenheit | 32° | 104° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -25° | 60° |
| Fahrenheit | -13° | 140° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 40% | 70% |
Electronics
| Interface | SPI |
Miscellaneous
| Foldable Tab | Yes |
| Full Screen Update Time | 16s |
| Time Between Updates | 180s |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #11084: Red ePaper End-of-Life notice.
| Products Affected: | CFAP128296D0-0290, CFAP176264A0-0270, CFAP104212C0-0213, CFAP152152A0-0154, CFAP176264A0-E2-1, CFAP176264A0-E2-2, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP128296D0-E2-1, CFAP128296D0-E2-2 |
| Date Issued: | April 28, 2021 |
| Summary: | Red ePaper End-of-Life notice. |
| Description: | These products will no longer be stocked at our facility or offered for sale on our website. |
| Reason: | Due to quality issues with the red ink during storage, we have determined that we will no longer offer this line of products to our customers. |
Product Update #10920: (New Product) 2.7" 3-Color ePaper Display: CFAP176264A0-0270
| New Product: | CFAP176264A0-0270 |
| Date Issued: | January 24, 2018 |
| Summary: | (New Product) 2.7" 3-Color ePaper Display: CFAP176264A0-0270 |
| Description: | This ePaper display (EPD) boasts 3 colors on a 2.7-inch screen. aPaper displays are becoming more popular due to their ultra-low power requirements. Once this ePaper display is updated, you can disconnect it entirely and the contents of the display remain indefinitely. These electronic paper displays are perfect for name badges, electronic shelf labels and much more! Complete development kits are also available! Read more here: https://www.crystalfontz.com/product/cfap176264a00270-3-color-epaper-display |
Compatible Software:
For reference only. For design purposes, please use the specifications in the datasheet.
