ePaper Adapter Board from Crystalfontz

Product

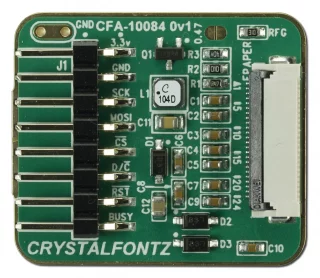

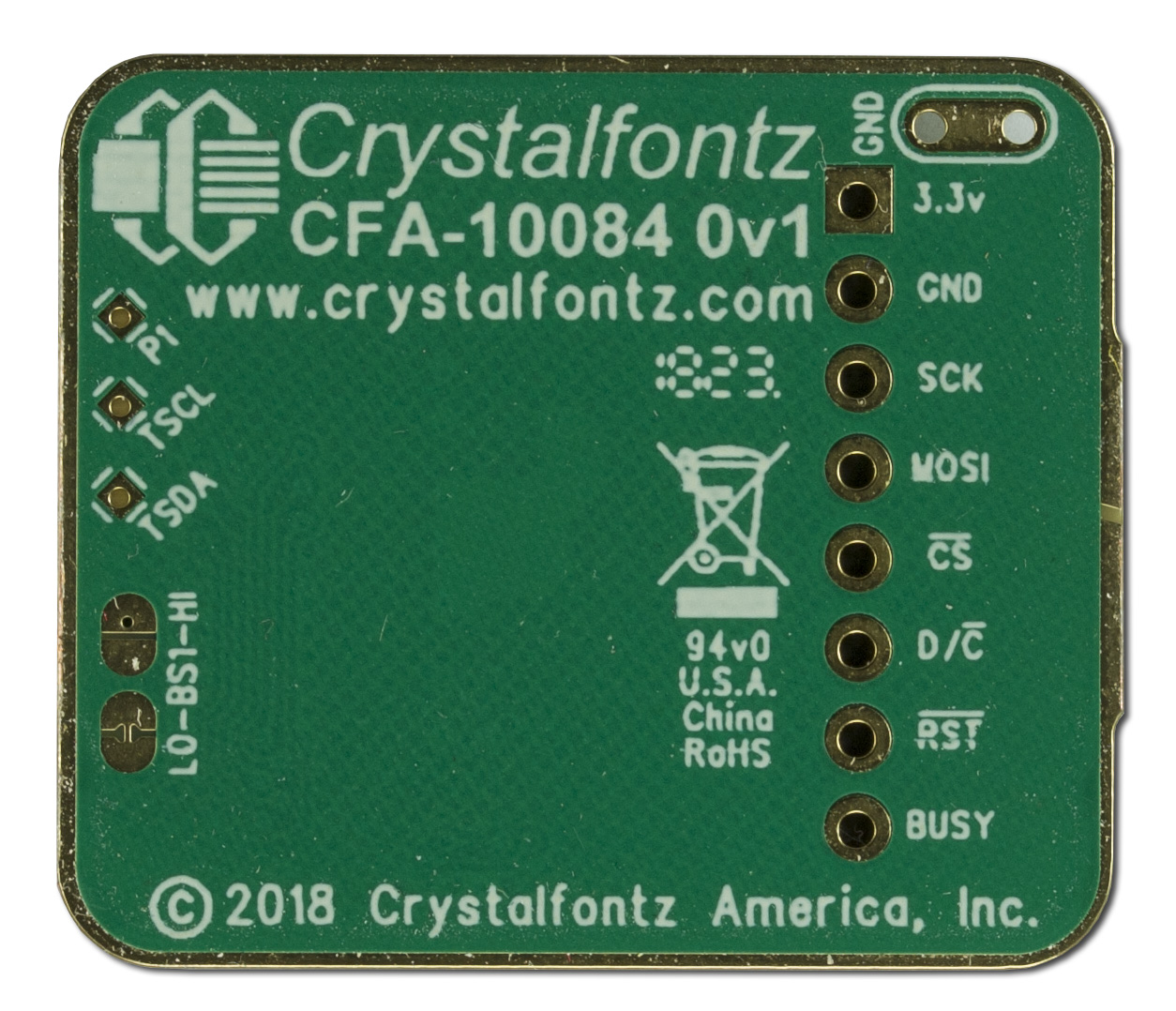

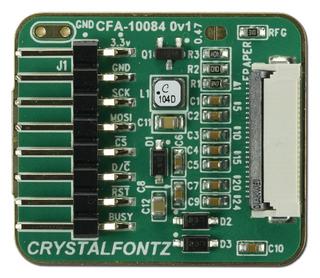

      ePaper Adapter Board
      Part Number: CFA10084

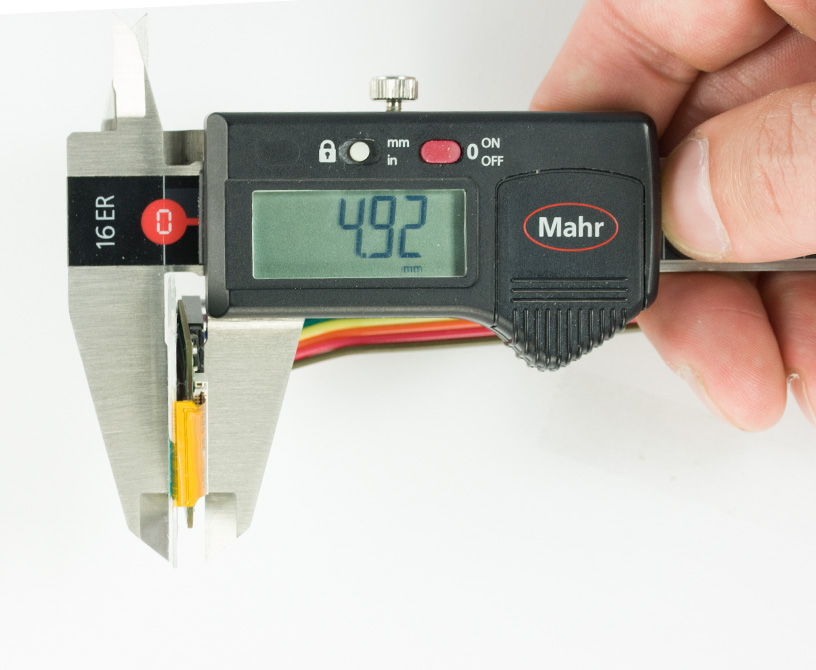

         While the Crystalfontz ePaper adapter board is great for initial prototype and evaluation, it can also be used in production. We have designed it for ease-of-use, low-cost, and to have a very thin assembled thickness of less than 5mm, including the e-Paper module. The board and module can be ordered as a single unit, assembled and tested.

The Crystalfontz ePaper adapter board is open source hardware. The full schematic is available in the files section, so you can move the functionality onto your PCB for an even lower production cost.

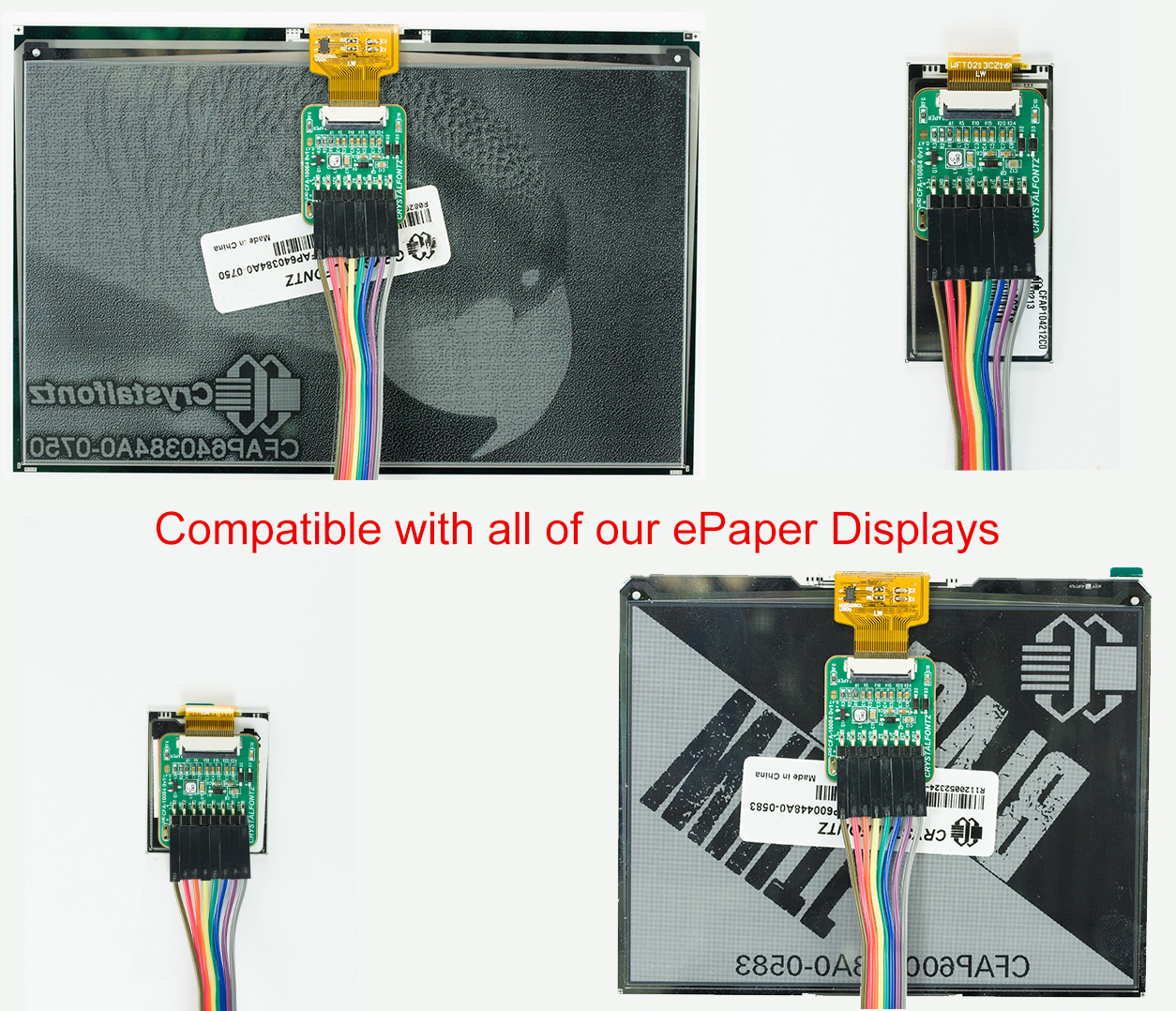

This ePaper adapter board is compatible with our entire line of ePaper display modules. You can purchase them separately here or in a kit that includes the display with the adapter and an optional Seeeduino/Arduino compatible microcontroller, for a quick prototype or demonstration. square_foot Physical Characteristics

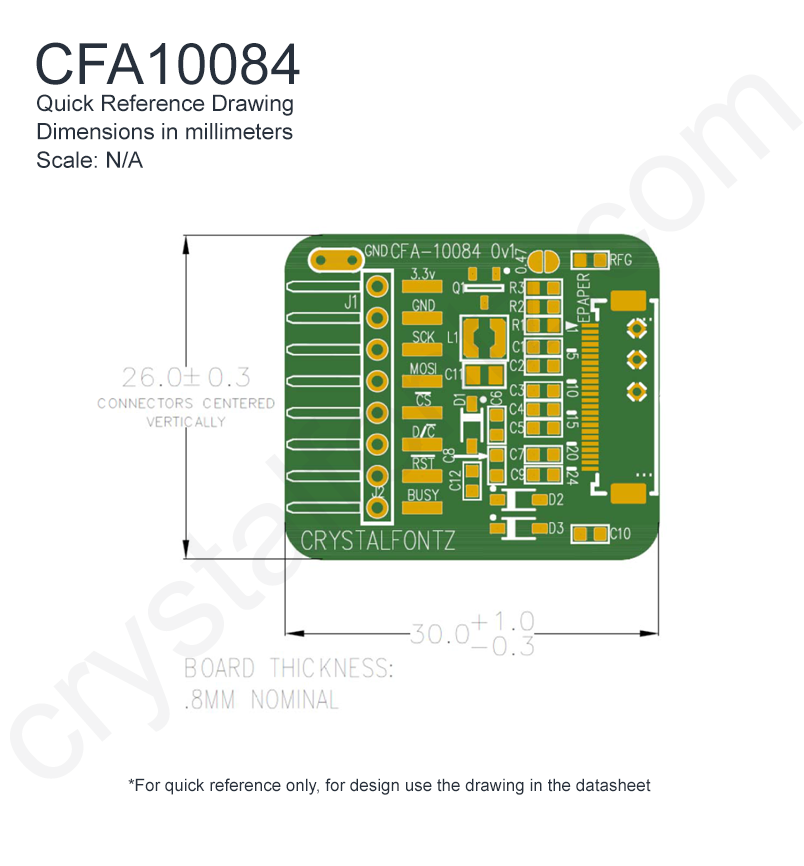

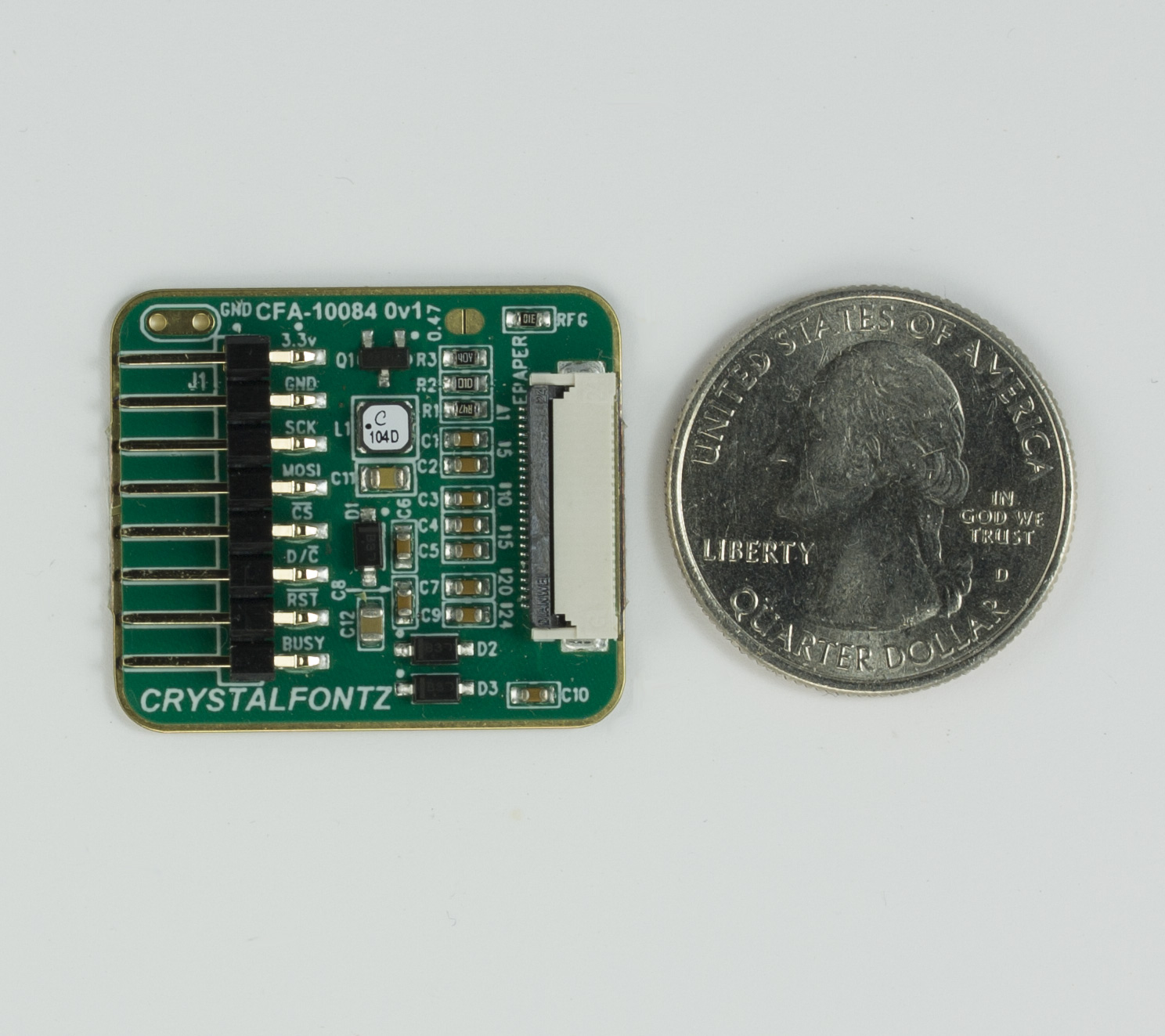

Physical Characteristics

    Module Overall        width
        height

        millimeters
        30
        26

        inches
        1.18
        1.02

        Weight
            2.4g
Pin Count
            8

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFA10084 Datasheet

 download Files and Downloads
folder_zip Hardware Design - CFA10084 3D Models
folder_zip Hardware Design - CFA10084 Board Design Files
picture_as_pdf Hardware Design - CFA10084 Schematic
picture_as_pdf Other Document - ePaper Getting Started Guide
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $11.68

            10
            $10.18

            20
            $9.83

            50
            $9.52

            100
            $9.42

727 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						6-inch Female to Female Jumper Wires
Need wires? $2.76 ea.

						Seeeduino 4.3
Add a microcontroller $10.00 ea.

Module Overall	width	height
millimeters	30	26
inches	1.18	1.02

Quantity	Unit Price
1	$11.68
10	$10.18
20	$9.83
50	$9.52
100	$9.42

Resources
Notices

Additional Resources

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11053: When this part is purchased without an ePaper display it must be configured by the user to operate correctly with an ePaper display.

Product Affected:	CFA10084
Date Issued:	October 30, 2019
Summary:	When this part is purchased without an ePaper display it must be configured by the user to operate correctly with an ePaper display.
Reason:	The CFA10084 has a jumper marked .047 that must be closed for some displays and open for others. If the schematic on the display web page referenced 3.0 ohms in the title block, this jumper must be left open. The jumper must be closed for all other ePaper displays.
Impact:	If the jumper is not configured correctly, the "busy" line will go low and stay low preventing the display from initializing properly.
Recommendation:	For more information refer to our blog post regarding the jumper https://www.crystalfontz.com/blog/why-does-my-epaper-display-not-work-with-my-epaper-adapter-board/
