This product is end-of-life. We recommend CFAX12864T1-NFH as a replacement display.

Thin 128x64 SPI Graphic LCD

Part Number: CFAX12864T-NFH

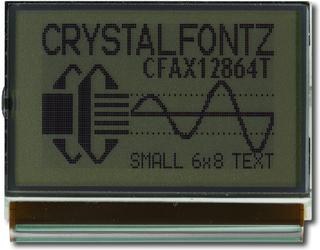

This is a thin, extremely low-power 128x64 graphic LCD display module. It has no backlight, so consumes no power to illuminate the display. However, if you wanted to backlight the module, the rear polarizer is transflective, so you could add your own lighting solution there. This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display. It has an integrated controller. The FFC is designed for inexpensive mass-production, with no need for a mating connector, as the module solders directly to your PCB.

  • Ultra thin and light TAB construction
  • Form and Function compatible with CFAX12864A series of LCD modules
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Novatek NT7534 controller
  • Great for handheld instruments, cell phones, PDAs, etc
  • Ultra low power consumption
  • Demonstration board available.
  • RoHS Compliant
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64

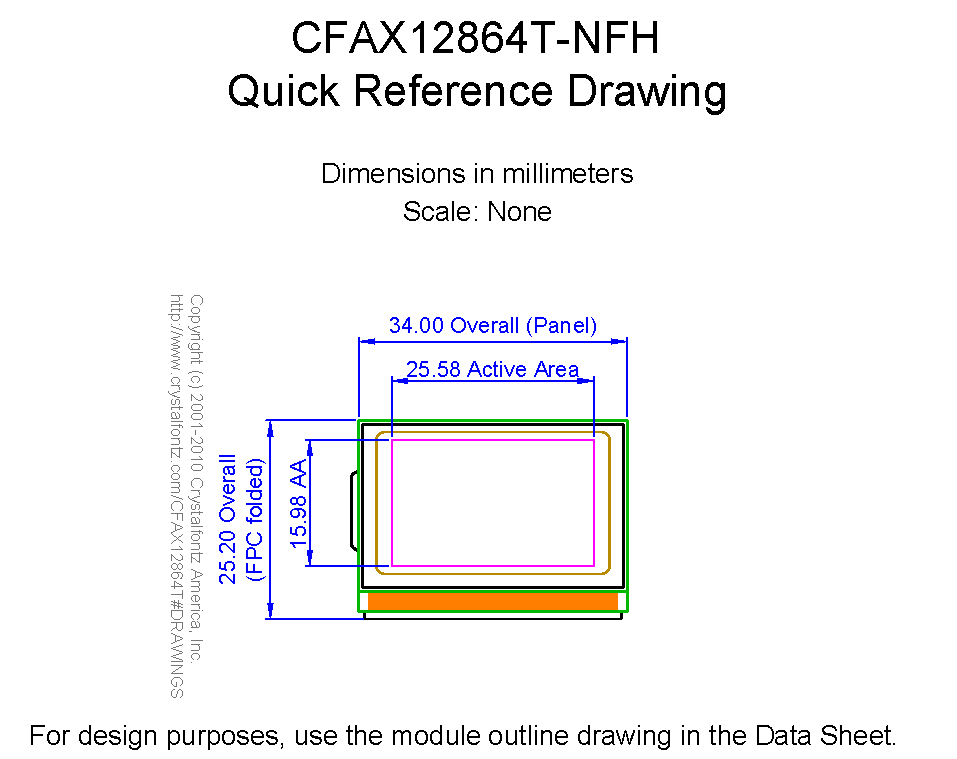

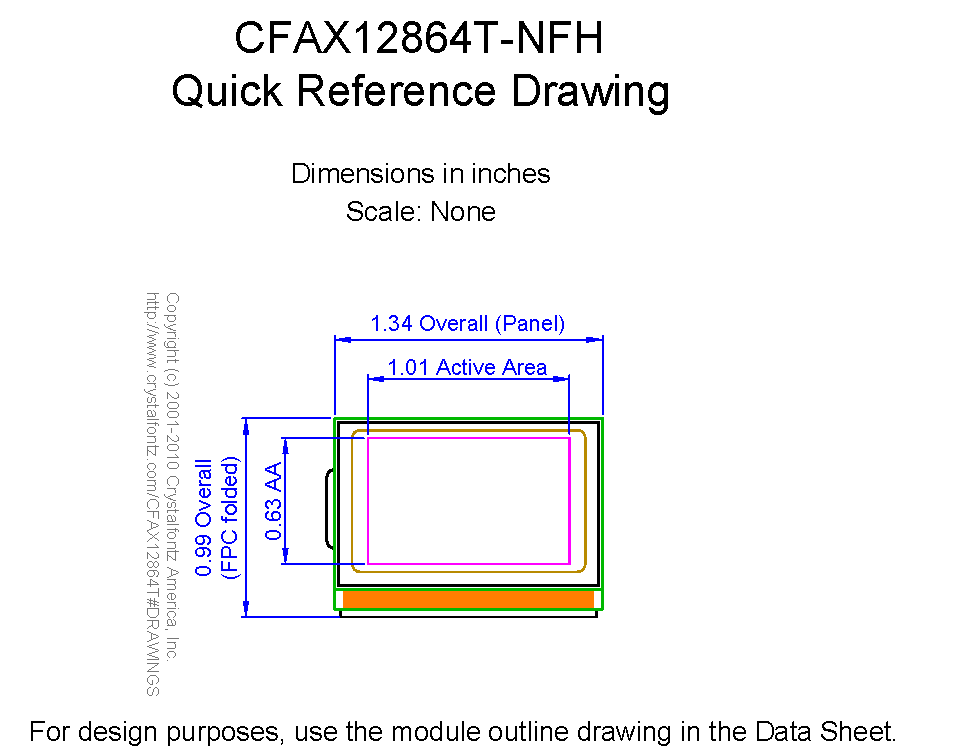

    Module Overall width height depth
    millimeters 34 25.2 2.9
    inches 1.34 0.99 0.11
    *width / height does not include Foldable Tab
    Diagonal Dimension 1.19"
    Viewing Area Width Height
    millimeters 29.58 17.98
    inches 1.17 0.71
    Active Area Width Height
    millimeters 25.58 15.98
    inches 1.01 0.63
    Dot Size Width Height
    millimeters 0.18 0.23
    inches 0.007 0.009
    Dot Pitch Width Height
    millimeters 0.2 0.25
    inches 0.008 0.010
    Flexible Cable (FFC/FPC) length
    millimeters 19.5
    inches 0.768
    Weight 3g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Light Gray
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Type None
    Mode Positive
    Foreground Color Dark
    Background Color Light Gray
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Current Minimum 0.18mA
    Supply Current Maximum 0.18mA
    Supply Current Typical 0.18mA
    Module Connector Pitch 0.6mm
  • nature Enviromental


    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics


    Controller Documents Novatek NT7534
    132 X 65 RAM-Map STN LCD
    (This controller is a possible replacement for the EOL Samsung S6B1713)
    Interface 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads

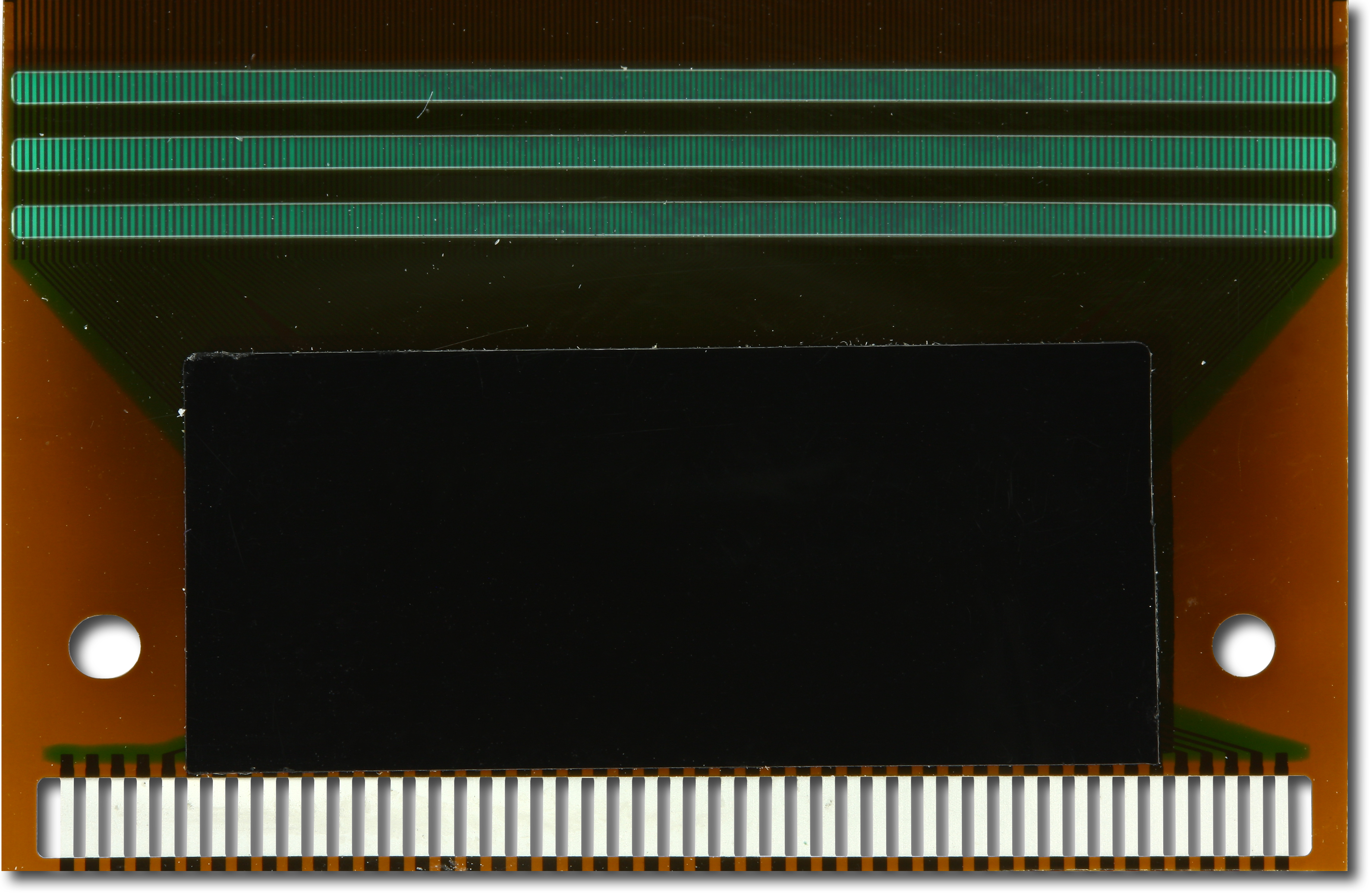

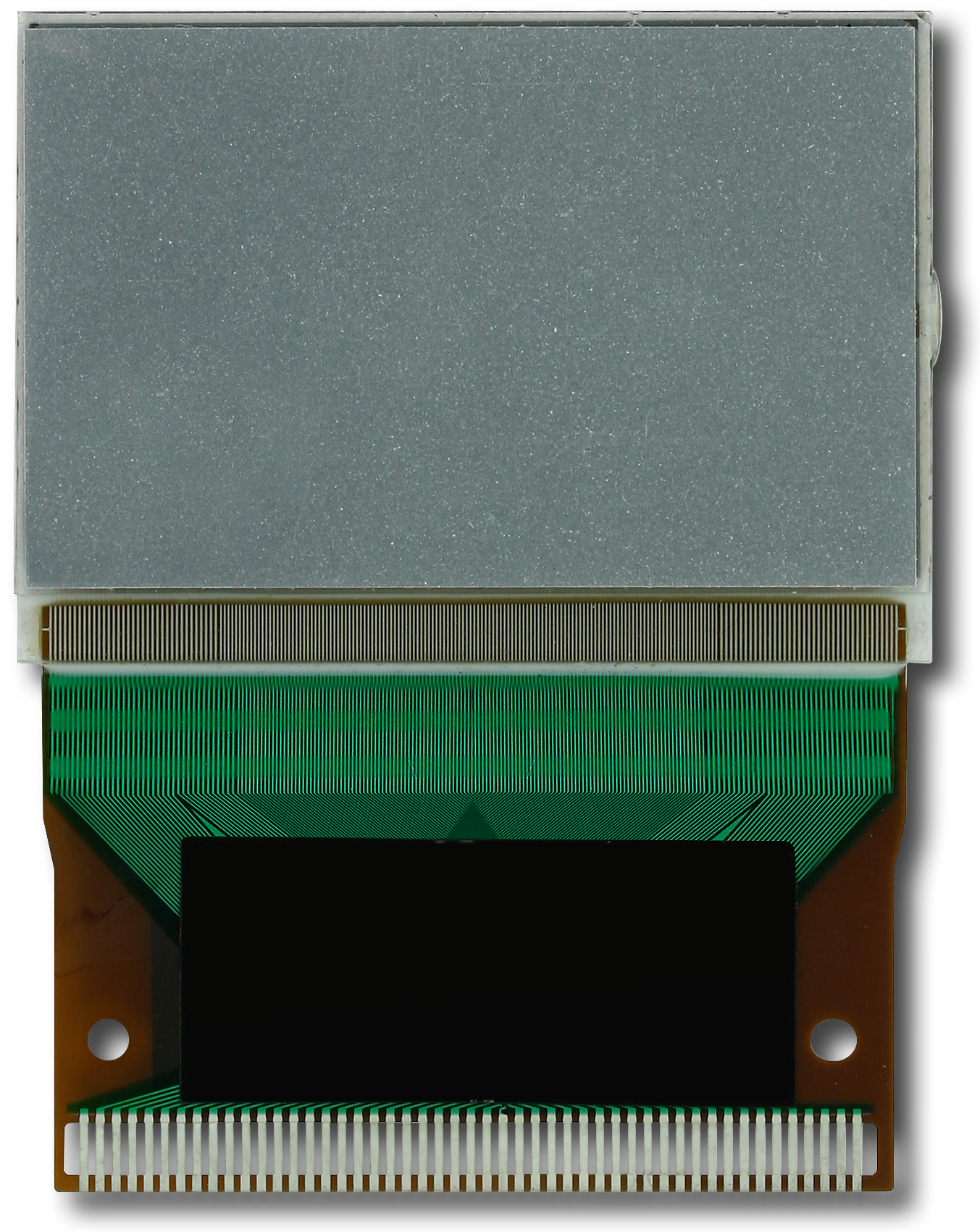

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra-thin profile of the display is maintained.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAX12864T-NFH or RSS RSS feed for changes to CFAX12864T-NFH
  • text_snippet
    Product Update #10858: End of Life Notice
    Products Affected: CFAX12864T-NFH, CFAX12864T-WFH, CFAX12864T-TFH, CFAX12864U-NFH, CFAX12864U-WFH, CFAX12864U-TFH
    Date Issued: June 8, 2017
    Summary: End of Life Notice
    Description: The following products have reached the end of their lifecycle.
    Reason: The controller chip used in these parts will not be available after August 2017.
    Impact: These parts will not be available for purchase after the dates for the last time buys.
    Availability: Due to long manufacturing lead times, all orders for last time buys must be received by July 14, 2017.
    Price Change: Prices will not change from the current prices.
