Home » Products » Accessories » ZIF Connectors

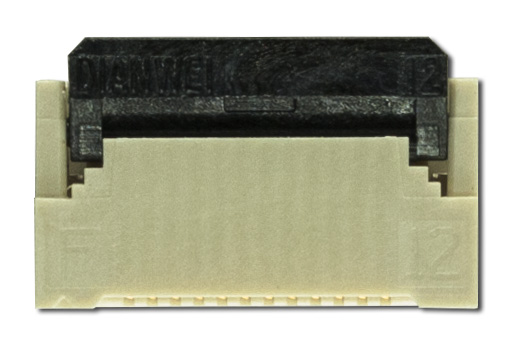

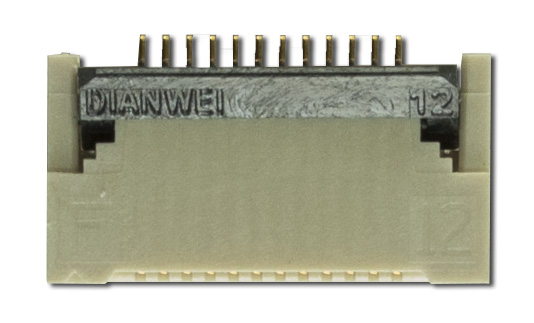

12 Position, 0.5mm Pitch, Gold, FPC FCC ZIF Connector

Part Number: CS050Z12G-A0

This 12 Position, 0.5mm Pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • Top and bottom contacts for dual mounting options
  • Gold plated
  • 12 position
  • 0.5mm Pitch
12 Position, 0.5mm Pitch, Gold, FPC FCC ZIF Connector (CS050Z12G-A0)
Qty:
Quantity Price
5 $0.70
100 $0.41
1500 $0.35
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z12G-A0 or RSS RSS feed for changes to CS050Z12G-A0 for CS050Z12G-A0

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 9.5 2
inches 0.374 0.079
Weight 0.435g
Pin Count 12

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
