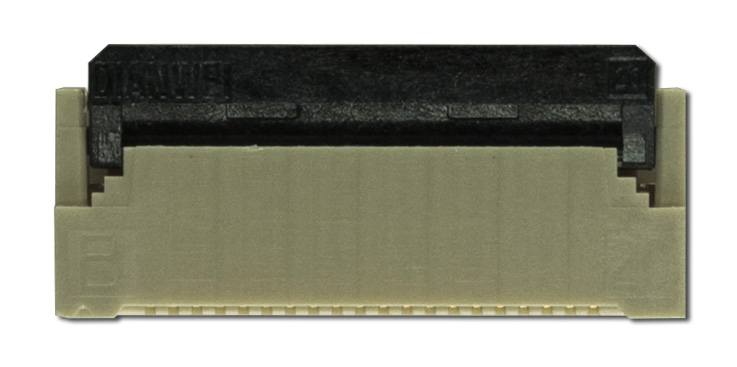

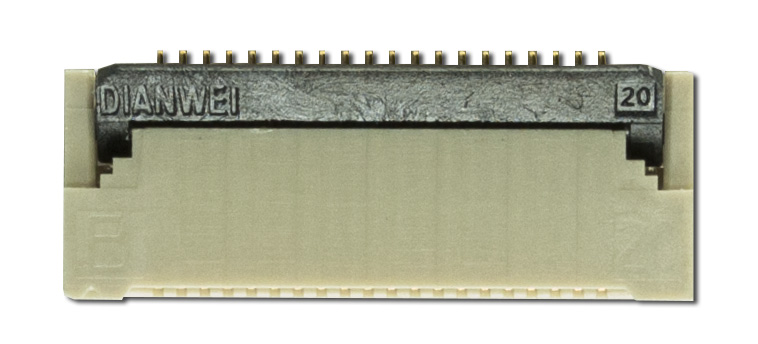

20 position, 0.50mm pitch, Gold, FCC FPC ZIF connector

Part Number: CS050Z20G-A0

This 20 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 20 Position
  • 0.50 Pitch
  • Gold Plated
  • Top & Bottom Contacts
20 position, 0.50mm pitch, Gold, FCC FPC ZIF connector (CS050Z20G-A0)
Qty:
Quantity Price
5 $0.89
100 $0.52
1500 $0.44
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z20G-A0 or RSS RSS feed for changes to CS050Z20G-A0 for CS050Z20G-A0

Compliance Documents

TECHNICAL SPECS

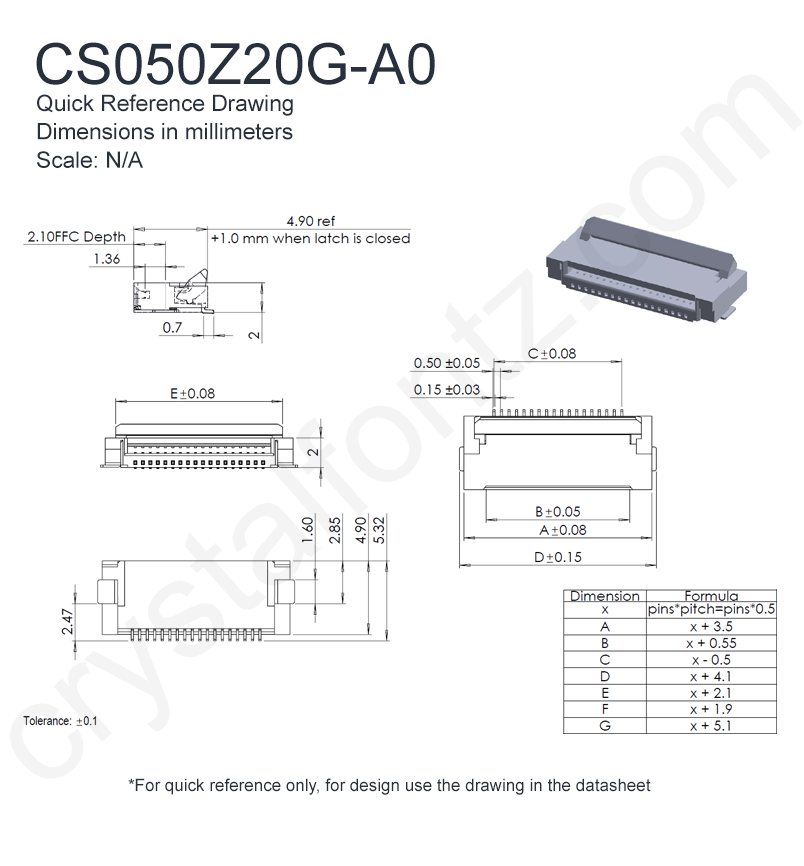

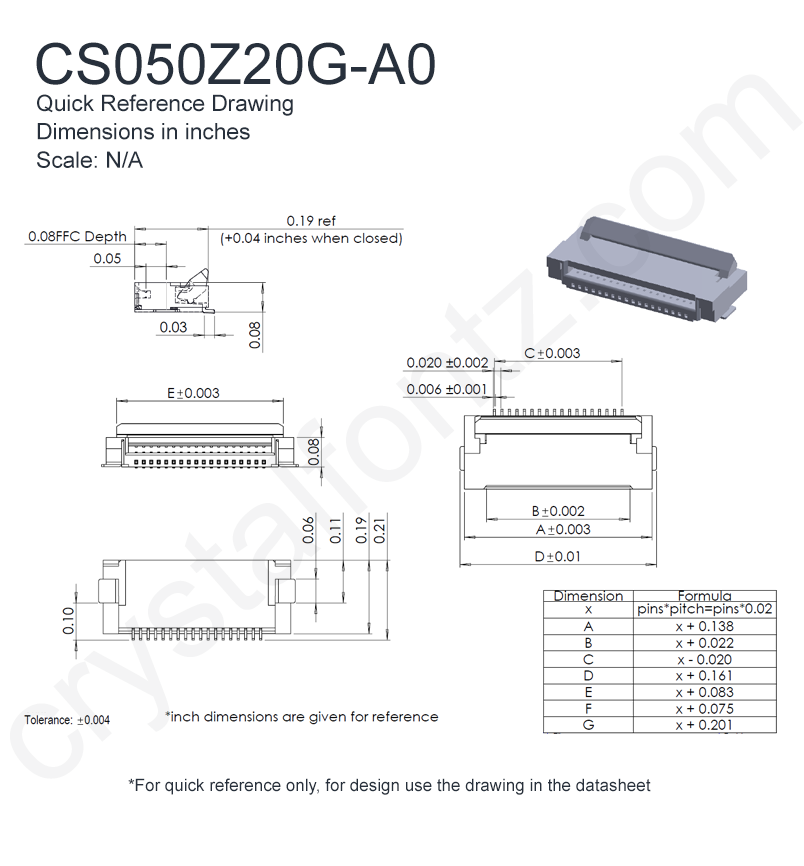

Physical Characteristics

Module Overall width height
millimeters 13.5 2
inches 0.531 0.079
Weight 0.508g
Pin Count 20

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
