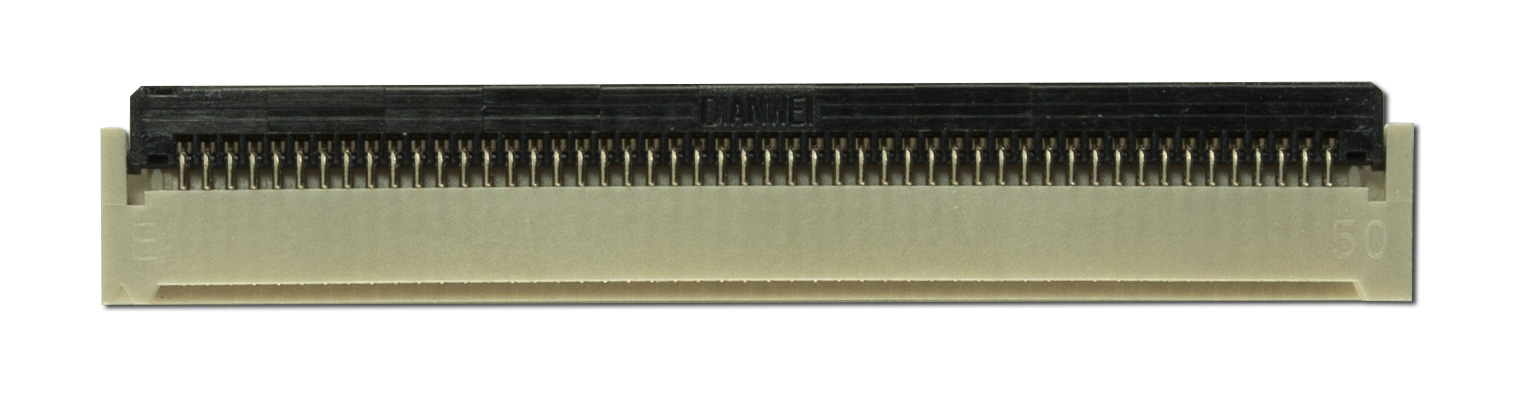

50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector

Part Number: CS050Z50G-B0

This 50 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 50 Position
  • 0.50mm Pitch
  • Gold Plated
  • Top & Bottom Contacts
50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector (CS050Z50G-B0)
Qty:
Quantity Price
5 $1.76
100 $1.04
3000 $0.86
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z50G-B0 or RSS RSS feed for changes to CS050Z50G-B0 for CS050Z50G-B0

Compliance Documents

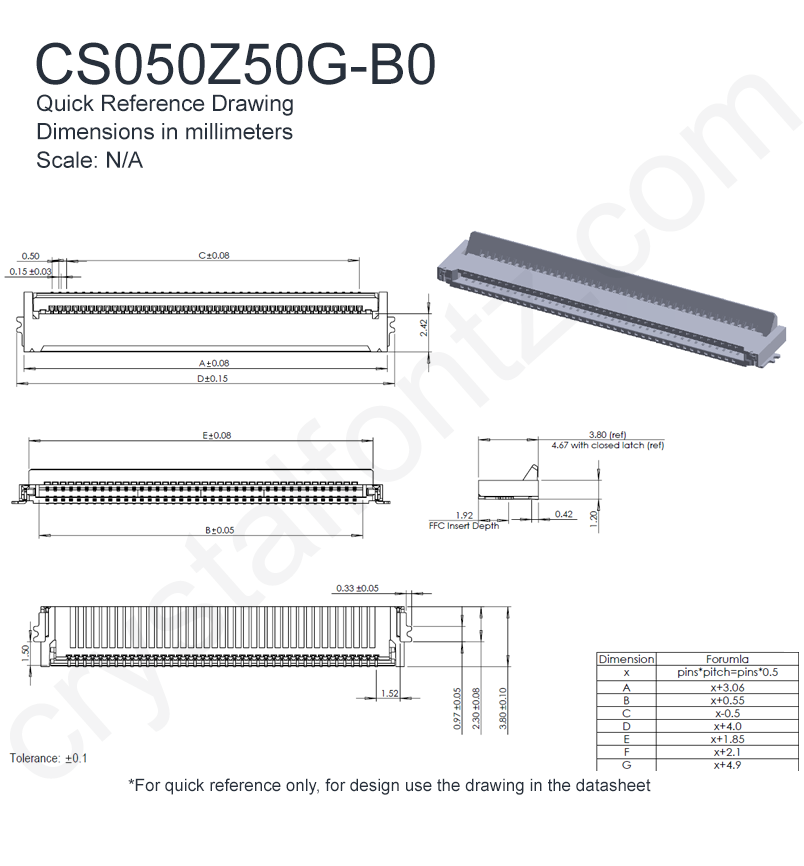

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 28.06 1.2
inches 1.105 0.047
Weight 0.457g
Pin Count 50

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
