This demonstration kit is no longer available, this page is left as a technical reference

CFAX12864U-NFH LCD Dev Kit

Part Number: DMOX12864U-NFH

CFAX12864U-NFH LCD Dev Kit (DMOX12864U-NFH)

Description

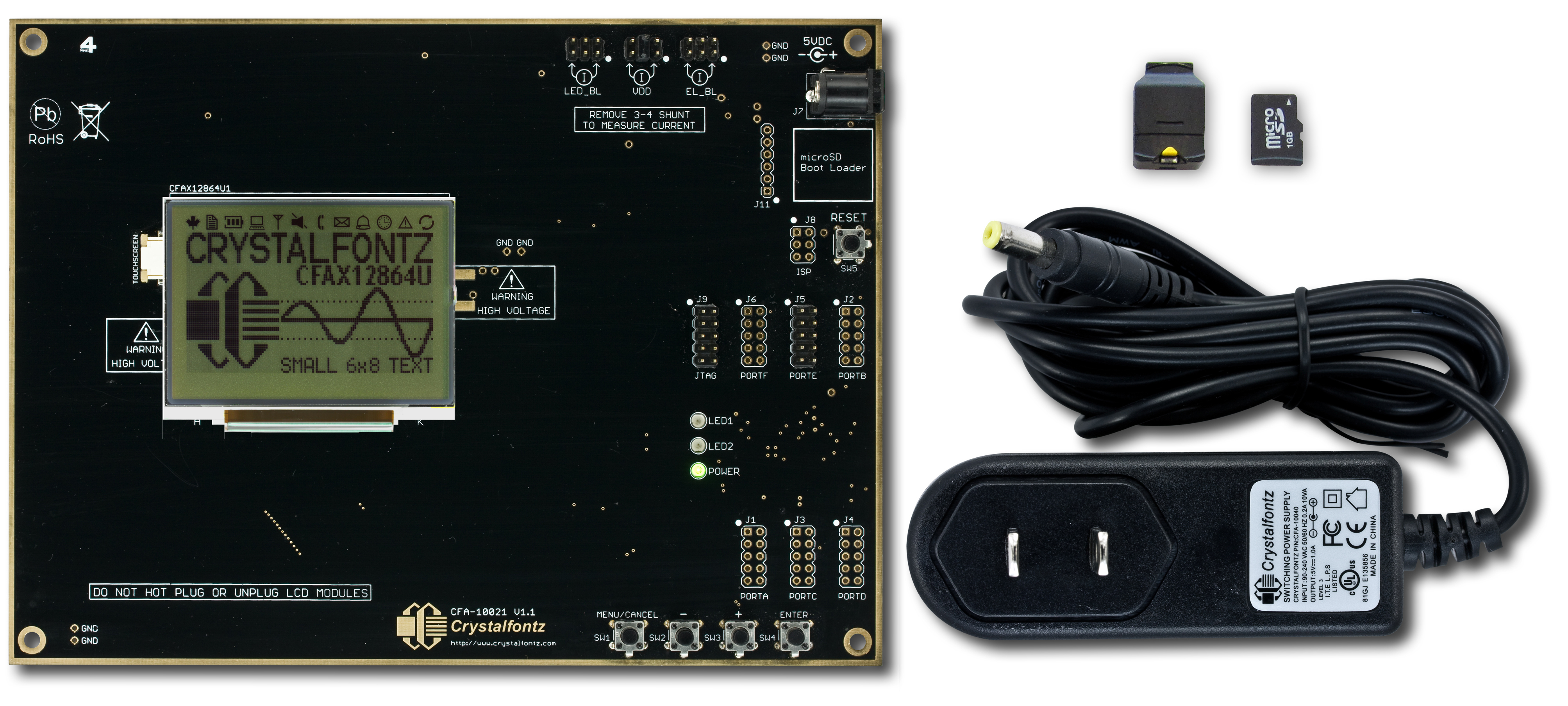

Our CFA-10021 graphic display demonstration board with CFAX12864U-NFH graphic LCD display module installed.

The display is a critical component in any project, impacting every aspect of your design. In addition, the display is the most prominent and visible component of any finished product, and as such, must be evaluated and approved by not only the mechanical design team, but marketing and management as well.

Our ready-to-use development kits provide you with a plug and play solution to explore all aspects of a display. All development kits ship loaded with demonstration scripts to provide a complete working example of the displays. You can easily create your own demonstrations by loading your own scripts and images onto the included microSD card, allowing you to create your own test screens, or load mockups of user interfaces to show how a display will function in your product.

These kits not only empower, but also provide flexibility to your engineering departments, allowing them to have a hands-on, working display during the design phase. This, along with datasheets, schematics, and Eagle CAD files(available below) give your team everything they need to know about the display early in your product's development.

Each demo board is pre-programmed with a microSD boot loader, which can load our demonstration scripts, the miniBASIC interpreter, or your own application built with AVRStudio or WinAVR (both free) for this board's versatile ATMEGA2561. Use the JTAG port for more advanced programming and debugging. We have brought out all the ports to 0.1" centers. Since these demonstration boards are both powerful and convenient, they can be even used as a base development platform for your project.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Weight 243.3g

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to DMOX12864U-NFH or RSS RSS feed for changes to DMOX12864U-NFH

Product Update #10326: New Product in Graphic LCD Development Kit / Demonstration Board: DMOX12864U-NFH

New Product: DMOX12864U-NFH
Date Issued: March 2, 2011
Summary: New Product in Graphic LCD Development Kit / Demonstration Board: DMOX12864U-NFH

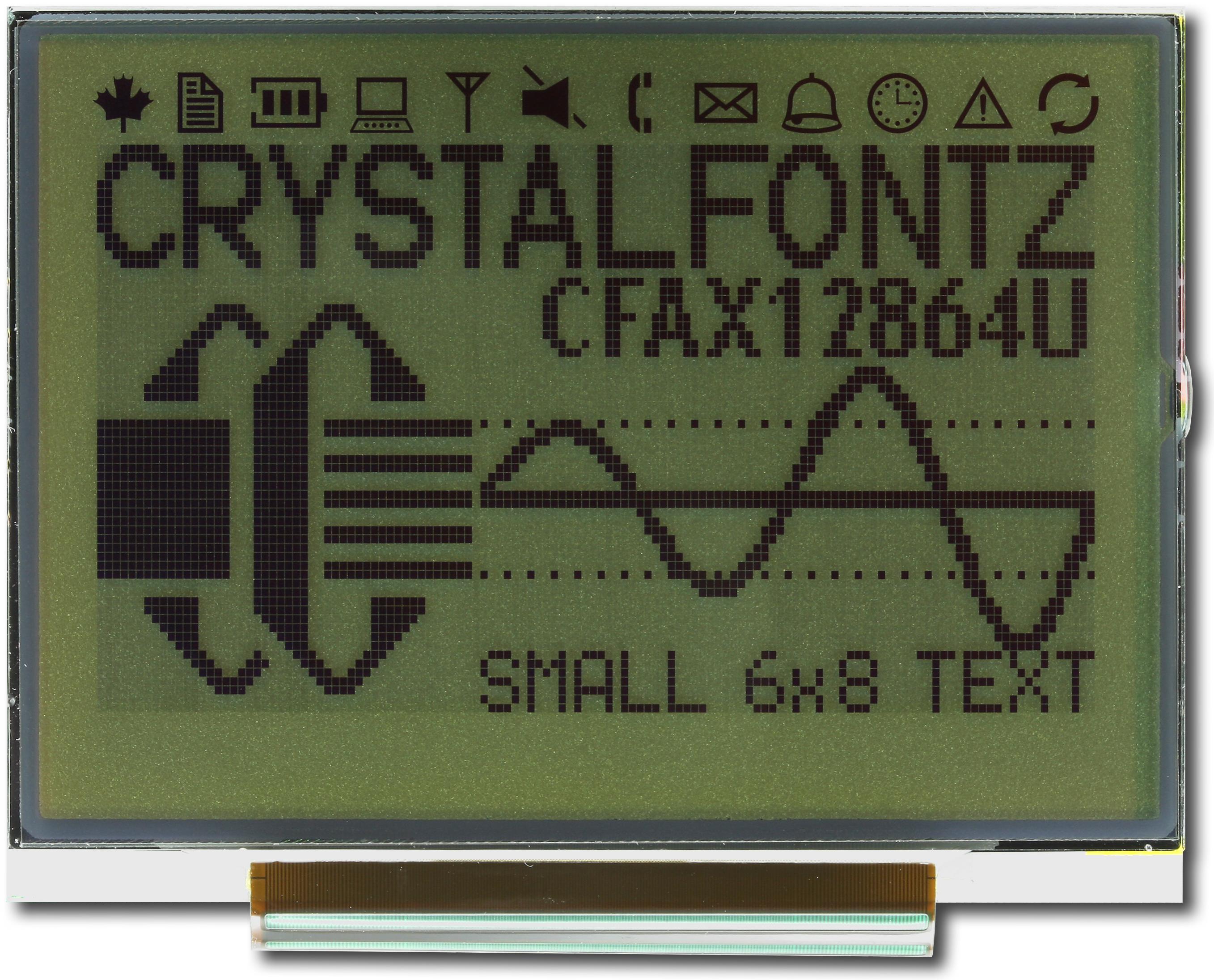

Description: Crystalfontz CFA-10021 Demonstration PCB with CFAX12864U-NFH Graphic LCD display module installed.

$116.20
