Crystalfontz CFA631 eDrawingsDisclaimer: These models are intended for visualization only, not design.
These drawings are accurate to the best of our knowledge. However these drawings are not design drawings but were
generated from the 2d drawings provided in the datasheet and measurements of sample parts. Please verify your design using the
2d drawings and actual parts. Please let us know if you find any errors or inconsistencies in these drawings.

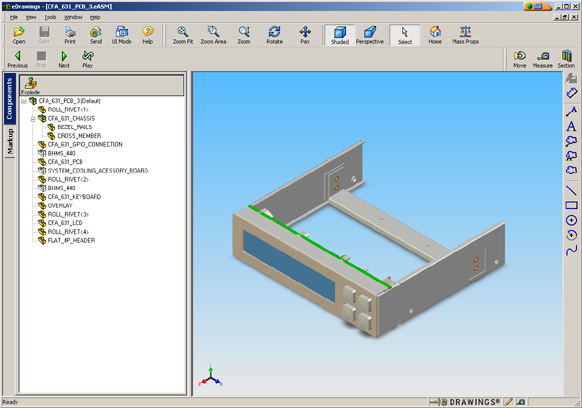

Save this EXE file to your local disk, then execute the EXE file. This will open the SolidWorks eDrawing self-viewer. No install will be done, no changes will be made to your computer. Once you are done viewing the e-drawing, you can simply delete the EXE file.
This version will prompt you to load the eDrawings plugin (only works with Internet Explorer). Once the plugin is loaded you can view any of these eDrawings right in your browser.
