176x220 2" Full Color TFT LCD

Part Number: CFAF176220U-020T


Quantity Price ea.
1 $17.77
10 $16.15
20 $15.92
50 $15.55
100 $15.31
200 $14.96
500 * $10.04
1000 * $8.95
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF176220U-020T or RSS RSS feed for changes to CFAF176220U-020T for CFAF176220U-020T

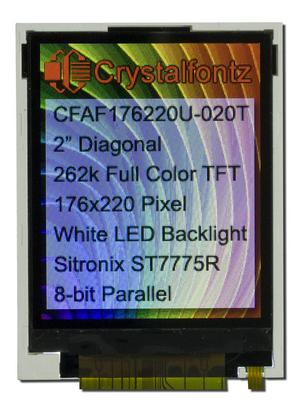

This 2" diagonal TFT display has an integrated controller, and can take images formatted as 18 (262K color), 16 (65K color) or 12( 4K color) bits per pixel.

  • 176x220 full color graphic TFT module
  • Built-in Sitronix ST7775R or compatible controller allows a single 3.3v supply for both power supply and logic.
  • 8-bit parallel interface
  • Operating temperature range is from -20°C to +70°C.

Please contact Technical Support if you need assistance. Our staff is experienced and knowledgeable.

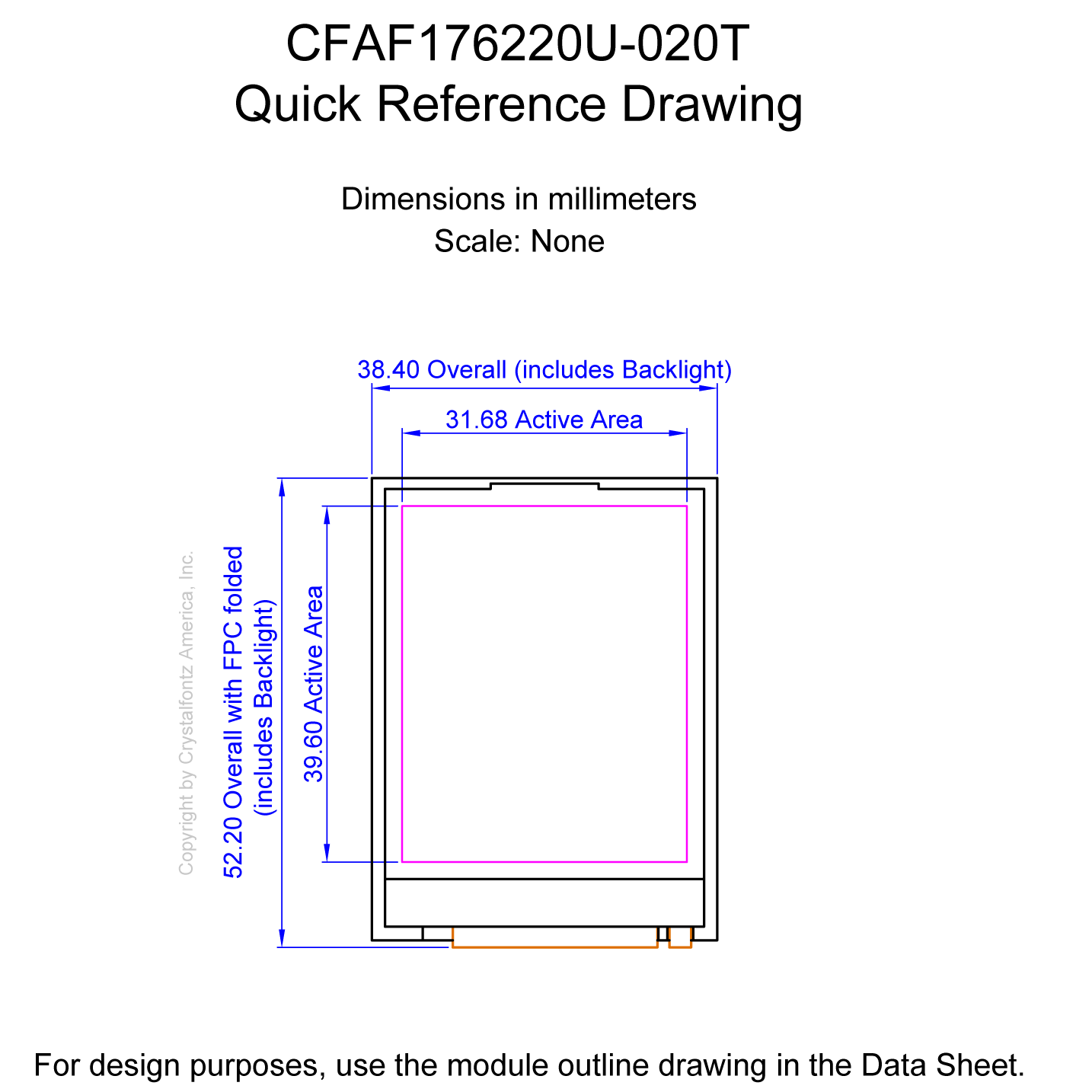

Physical Characteristics

Column Dots x Row Dots 176 x 220
Module Overall width height depth
millimeters 38.4 52.2 3.5
inches 1.512 2.055 0.138
*width / height does not include Foldable Tab
Diagonal Dimension 2.000"
Viewing Area width height
millimeters 35.48 43.4
inches 1.397 1.709
Active Area width height
millimeters 31.68 39.6
inches 1.247 1.559
Dot Pitch width height
millimeters 0.18 0.18
inches 0.007 0.007
Weight 10g

Optical Characteristics

Glass Type/Glass Color TFT/Black
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.5V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving LCD Typical 1.8V
Supply Current Maximum 20mA
Supply Current Typical 10mA

Backlight Electrical Specifications

Forward Voltage Minimum 3V
Forward Voltage Maximum 3.4V
Forward Voltage Typical 3.2V
Forward Current Maximum 60mA
Forward Current Typical 45mA


Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%


Controller Documents Sitronix ST7775R
Sitronix ST7775R 176xRGBx220 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
Interface 8-bit Parallel


Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF176220U-020T or RSS RSS feed for changes to CFAF176220U-020T

Product Update #10457: Controller change for CFAF176220U series of LCD modules.

Product Affected: CFAF176220U-020T
Date Issued: March 21, 2013
Summary: Controller change for CFAF176220U series of LCD modules.
Description: PUN for CFAF176220U series of TFT LCD modules due to controller change from Orise Technology OTM2201A to Sitronix ST7775R.
Reason: The Orise Technology OTM2201A is not being used any longer. The display now uses a Sitronix ST7775R Controller.
Impact: Because of the LCD controller change, a change to the initialization code is required.

This change is pin-compatible with the previous version of this display, no change to the circuit will be necessary.
Recommendation: Use code found on the module's web page on the Docs/Files tab as an example for the new controller.
Availability: 2013-Q2
Price Change: N/A

Product Update #10335: Change in TFT part numbers

Products Affected: CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued: March 29, 2011
Summary: Change in TFT part numbers
Description: We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months.

Part numbers will change as follows:
CFAF128160C-T will change to CFAF128160C-018T
CFAF176220M-T will change to CFAF176220U-020T
CFAF240320E-T will change to CFAF240320H-022T
CFAF240320K-T-TS will change to CFAF240320K-024T-TS
CFAF240320P-T will change to CFAF240320S-032T
CFAF240400D-T will change to CFAF240400D-030T
CFAF320240F-T will change to CFAF320240F-035T
CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason: There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact: The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability: The transition period should be about six months from the date of this bulletin.
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

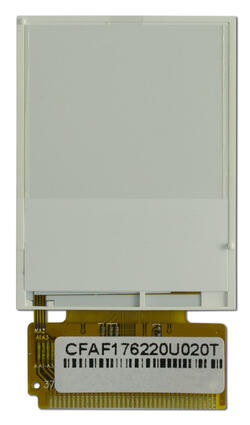

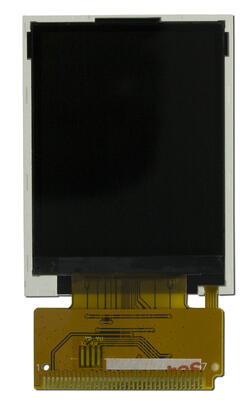

The connector on the CFAF176220U-020T is a flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections.
