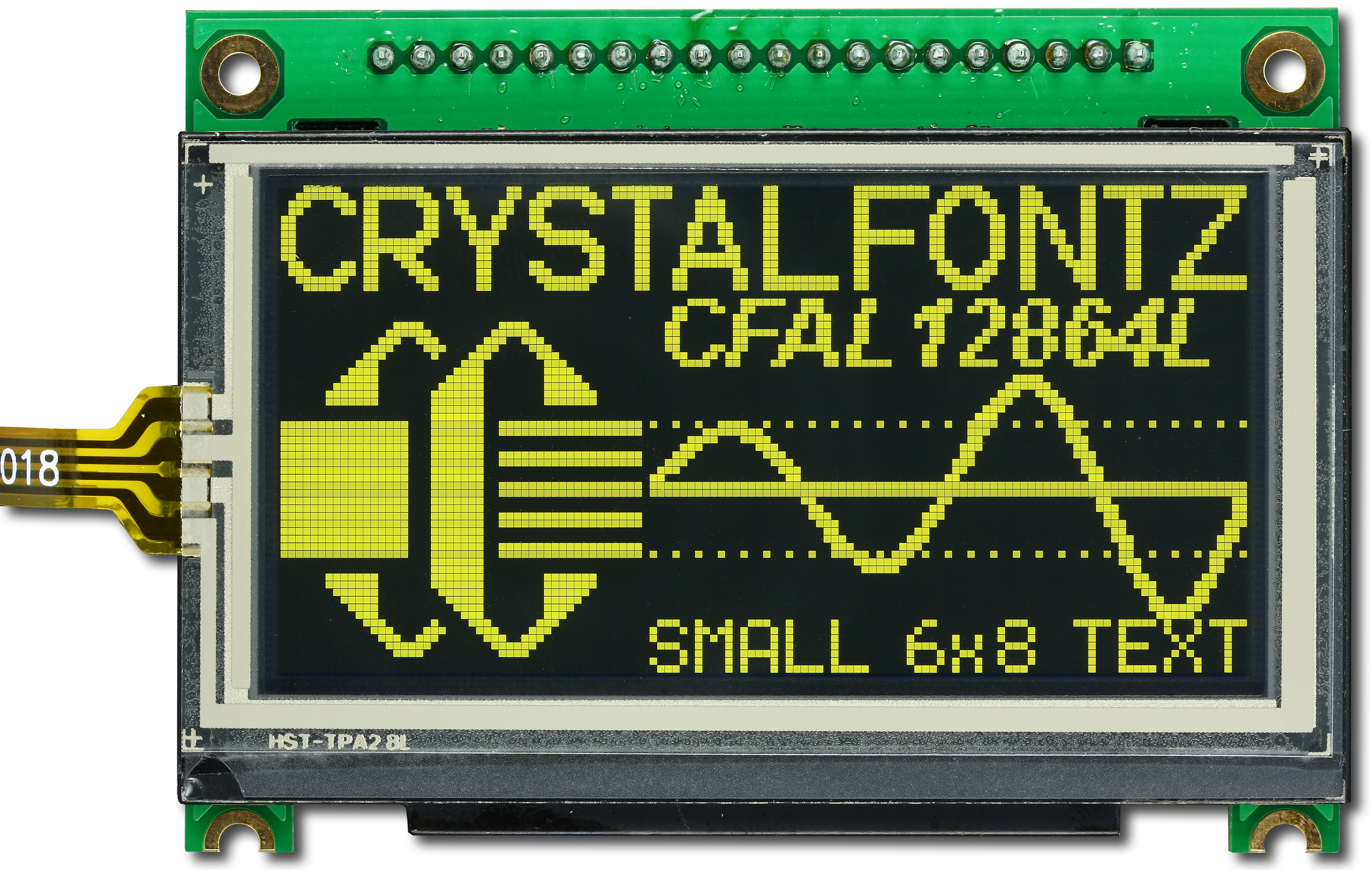

128x64 Graphic OLED

Part Number: CFAL12864L-Y-B2TS

• 128x64 graphic OLED display module
• Single 3v supply and logic levels (modules with PCB only)
• Extremely wide viewing angles
• Very high contrast ratio
• Built-in Solomon SSD1305 or compatible controller
• 8-bit parallel interface or SPI Interface
• RoHS Compliant

• grid_on Resolution

  Pixel Grid

  Column Dots	128 px
  Row Dots	64 px

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	74.80 mm	2.945 in
  Overall Height	53.50 mm	2.106 in
  Weight	60 g

  Display Area	Metric	Imperial
  Active Area Width	61.40 mm	2.417 in
  Active Area Height	30.70 mm	1.209 in
  Viewing Width	63.41 mm	2.496 in
  Viewing Height	32.69 mm	1.287 in

  Character Geometry	Metric	Imperial
  Character Width	0.45 mm	0.018 in
  Character Height	0.45 mm	0.018 in

  Dot Geometry	Metric	Imperial
  Dot Pitch Width	0.48 mm	0.019 in
  Dot Pitch Height	0.48 mm	0.019 in
  Dot Size Width	0.45 mm	0.018 in
  Dot Size Height	0.45 mm	0.018 in

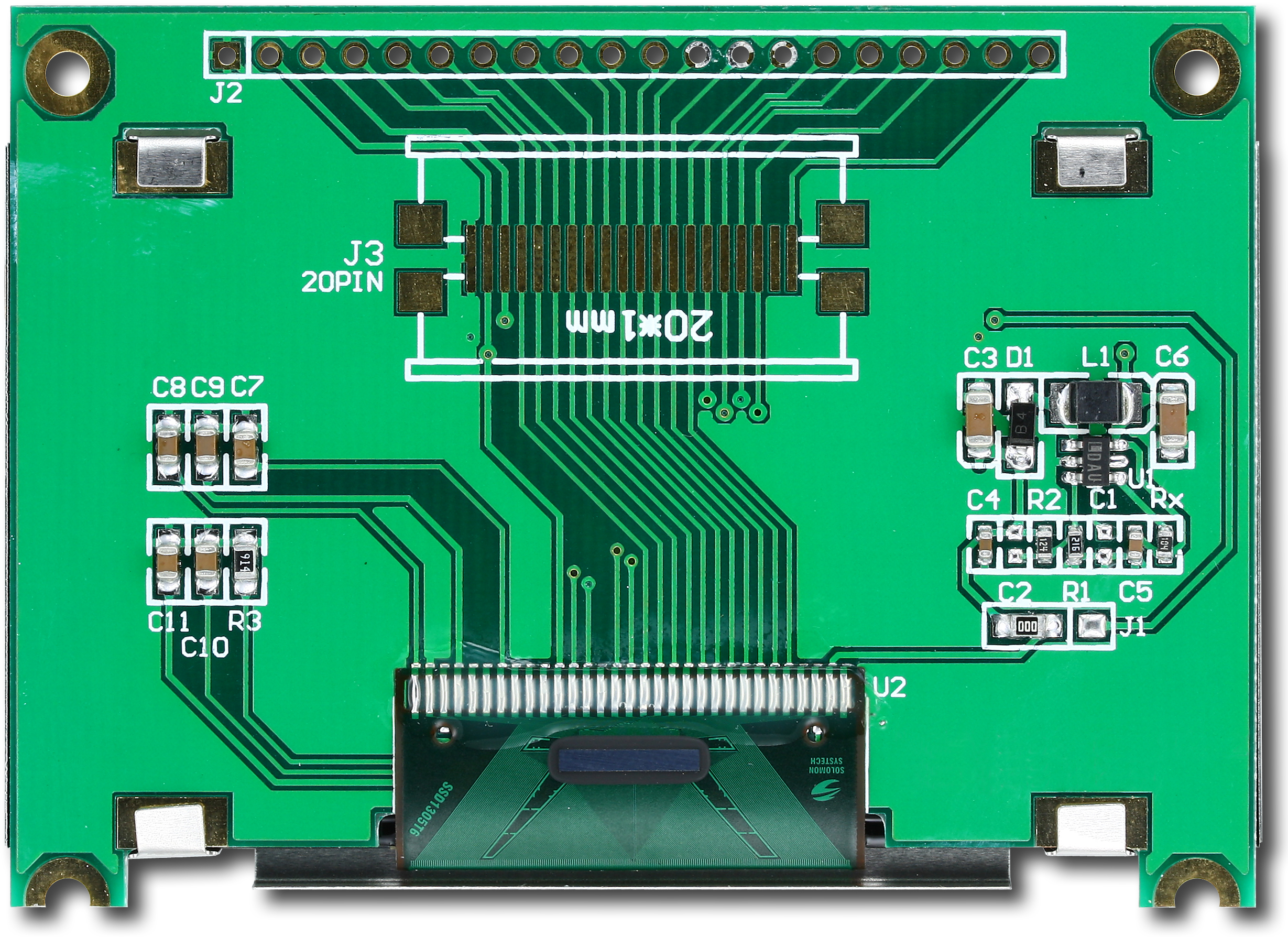

• build Mechanical

  Connectors

  Module Connector Pitch	0.10 mm (0.00 in)
  Foldable Tab	Yes

• visibility Display Optics

  Technology

  Display Technology	OLED
  Display Addressing	passive
  Glass Type	OLED
  Mode	Positive
  Polarizer	Emissive

• palette Color & Appearance

  Display Colors

  Foreground Color	Yellow
  Background Color	Black

  Backlight

  Backlight Type

  None

• touch_app Touch

  Capability

  Touch Screen

  yes

  Connector

  Touchscreen Connector Pitch

  1.00 mm (0.04 in)

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

  Humidity

  Relative Humidity

  0% to 90% RH (non-condensing)

• info Product Metadata

  Controller

  Built-in Controller

  Solomon Systech SSD1305

• download Downloads
  Documents & Files


  folder_zip Software Source - ATmega2561 Demonstration Code





  Controller Documents:
  link Solomon Systech SSD1305
